Side 1/12

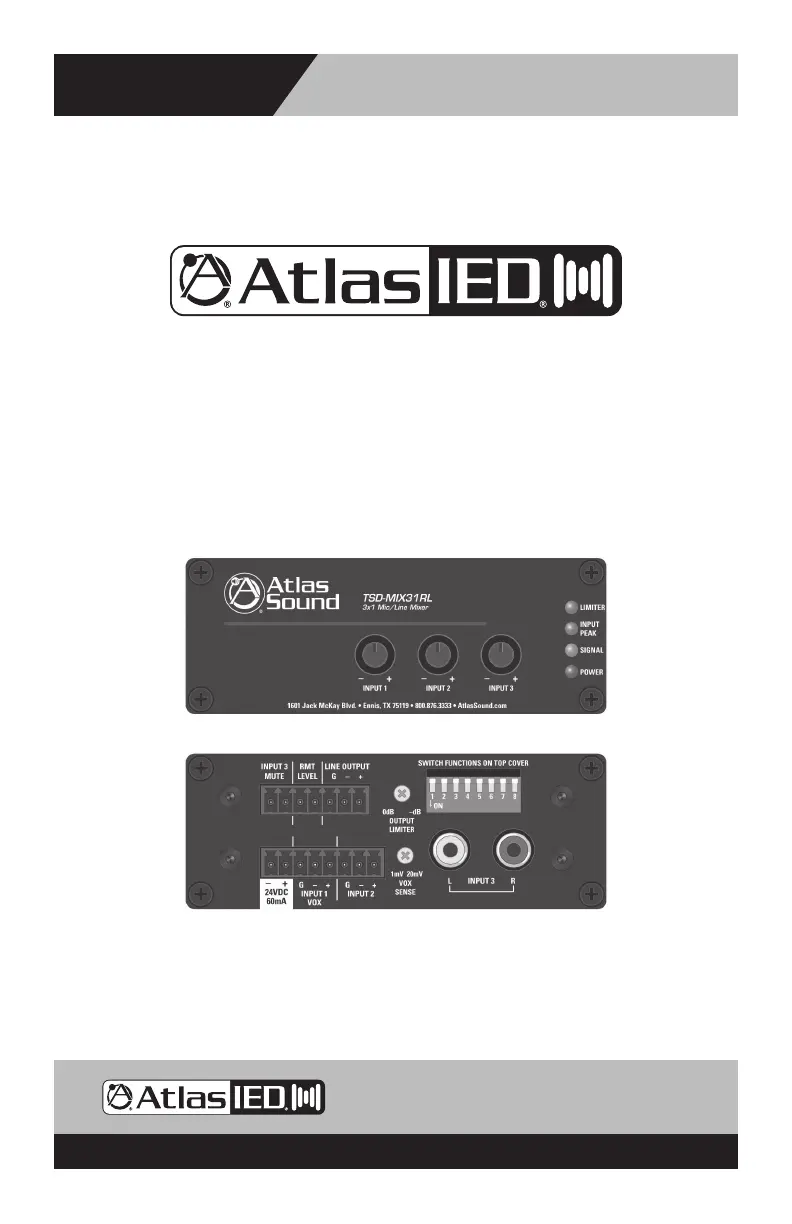

Owner’s Manual
TSD-MIX31RL
3x1 Mic/Line Mixer
AtlasIED.com – 1 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
TSD-MIX31RL
3x1 Mic/Line Mixer
with Priority Mute & Remote Level
Owner’s Manual
TSD-MIX31RL
3x1 Mic/Line Mixer
AtlasIED.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
Description
The versatile AtlasIED TSD-MIX31RL 3x1 mic/line mixer is ideal for applications where paging, public
address, and BGM music are required. Use alone or in conjunction with ampliers in meeting rooms,
stadiums, gymnasiums, and other applications requiring versatile, multi source mix control.
The unit includes two mic/balanced line inputs via removable Phoenix style connectors and a stereo
summing dual RCA input. Switchable phantom power is provided for both mic inputs to facilitate
condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet
operation without unwanted coloration. A 12dB/octave high pass lter @ 125Hz also is available on
each input to minimize bass rumble and low frequency feedback.
Priority paging can be accomplished via contact closure or VOX trigger on Input 1 (mutes input 3 only).
Remote level control feature allows use of the AtlasIED AAVC-10K (or equivalent) decorative wall
plate control for convenient remote adjustment of either the entire mix bus or input 3 only (typical BGM
input). A variable output limiter provides system protection by reducing clipping and distortion - which
is especially useful when mixing multiple mics and/or line sources with varying volumes.
The TSD-MIX31RL is part of a full line of AtlasIED Time Saving Devices. These compact
(1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the
easiest and in the most efcient and cost-effective way. All models are made from high quality
components and include removable individual I/O connectors for quick and precise wiring, separate
ground terminals for all I/Os assuring secured connections, and removable level controls that can be
replaced with tamper-proof security covers. The TSDs are highly efcient and meet Energy Star™
standards as one 24V DC power supply (available separately) can power multiple Time Saving Devices.
Features
• Two (2) Balanced Mic/Line Inputs
• High Gain (50dB) Microphone Preamps
• Switchable 24V Phantom Power
• One (1) Unbalanced Summing Line Input
• Vox Sense and Contact Closure Priority
Mute of Ch3
• Variable Output Limiter
• Remote Level Control
• 12dB/Octave Low Cut Filter @ 125Hz
• Input Signal & Peak Indicator LEDs
• High Gain Output for Driving Long
Balanced Lines
• Separate Ground Connections
• Removable Phoenix Style I/O Connectors
• Security Covers
• Cable Management System
• Multiple Mounting Congurations
• Meets Energy Star™ Standards
• Compact Chassis Design
Audio Applications
• Mixer
• Mic Preamp
• Line Preamp
• Stereo Summing Preamp
• Line Drive
• Remote Level Control
• Priority Paging
Installation
• Churches
• Restaurants
• Sports Bars
• Schools
• Industrial Facilities
• House of Worship
