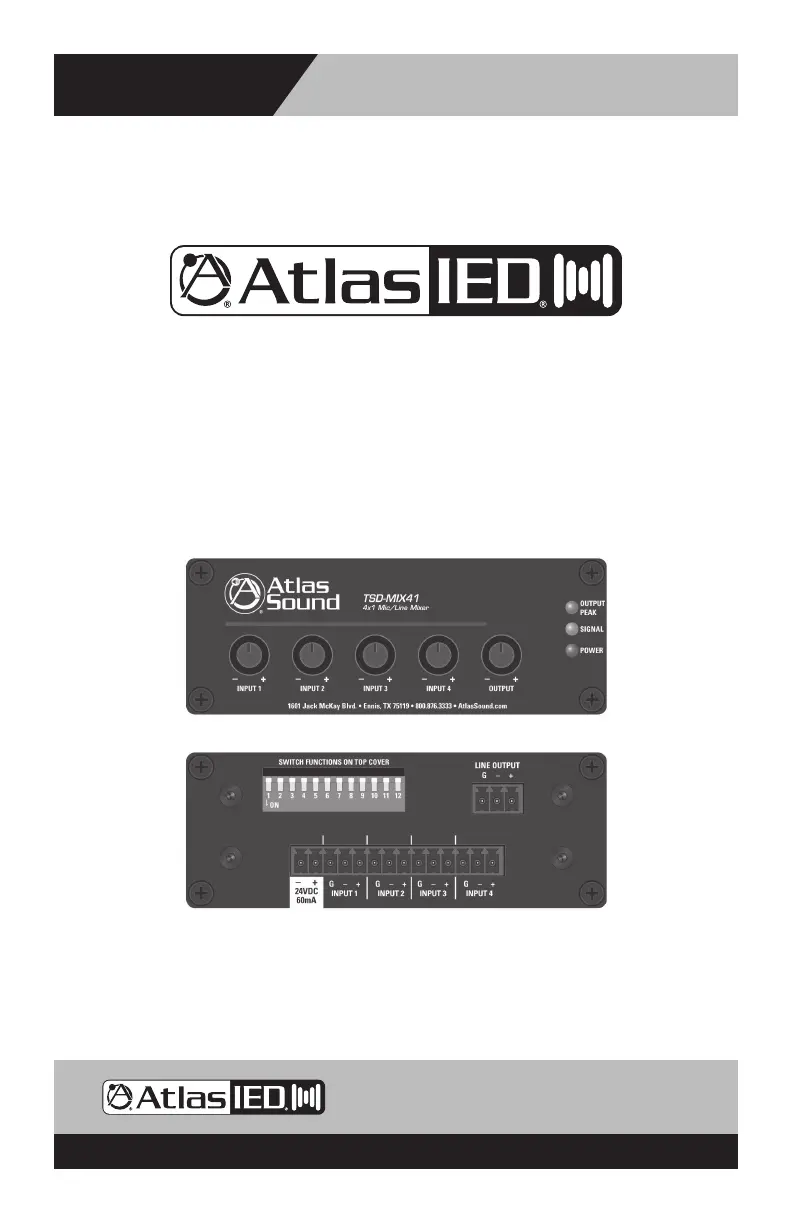

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasIED.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
Description
The AtlasIED TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line
sources need to be sub mixed or summed. In House of Worship applications the TSD-MIX41 is
especially useful for combining similar sources such as choir microphones to a single mixer channel.
The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with AtlasIED
ampliers. Other applications include restaurants, conference rooms, and schools.
Each input is mic/line switchable with phantom power provided for condenser microphones. The
high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted
coloration. A 12dB/octave high pass lter @ 125Hz also is available on each input to minimize bass
rumble and low frequency feedback.
The TSD-MIX41 is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 2.75")
units are designed to solve some of the common audio system problems in the easiest and in the
most efcient and cost-effective way. All models are made from high quality components and include
removable individual I/O connectors for quick and precise wiring, separate ground terminals for all
I/Os assuring secured connections, and removable level controls that can be replaced with
tamper-proof security covers. The TSDs are highly efcient and meet Energy Star™ standards as one
24V DC power supply (available separately) can power multiple Atlas Time Saving Devices.
Features
• Four (4) Balanced Mic/Line Inputs
• Four (4) Professional Grade Microphone
Preamps with Switchable 24V Phantom
Power
• Up to 50dB Mic Gain Per Input
• 12dB/Octave Low Cut Filter @ 125Hz
• Balanced Line Output
• Input Peak & Signal Indicator LEDs
• High Gain Output for Driving Long
Balanced Lines
• Separate Ground Connections
• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front
Panel Controls
• Meets Energy Star™ Standards
• Compact Chassis Design
Audio Applications
• Mic Preamp
• Line Preamp
• Line Drive
• Choirs
Installation
• Churches
• Restaurants
• Sports Bars
• Schools
• Industrial Facilities
• House of Worship
