AtlasIED.com

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

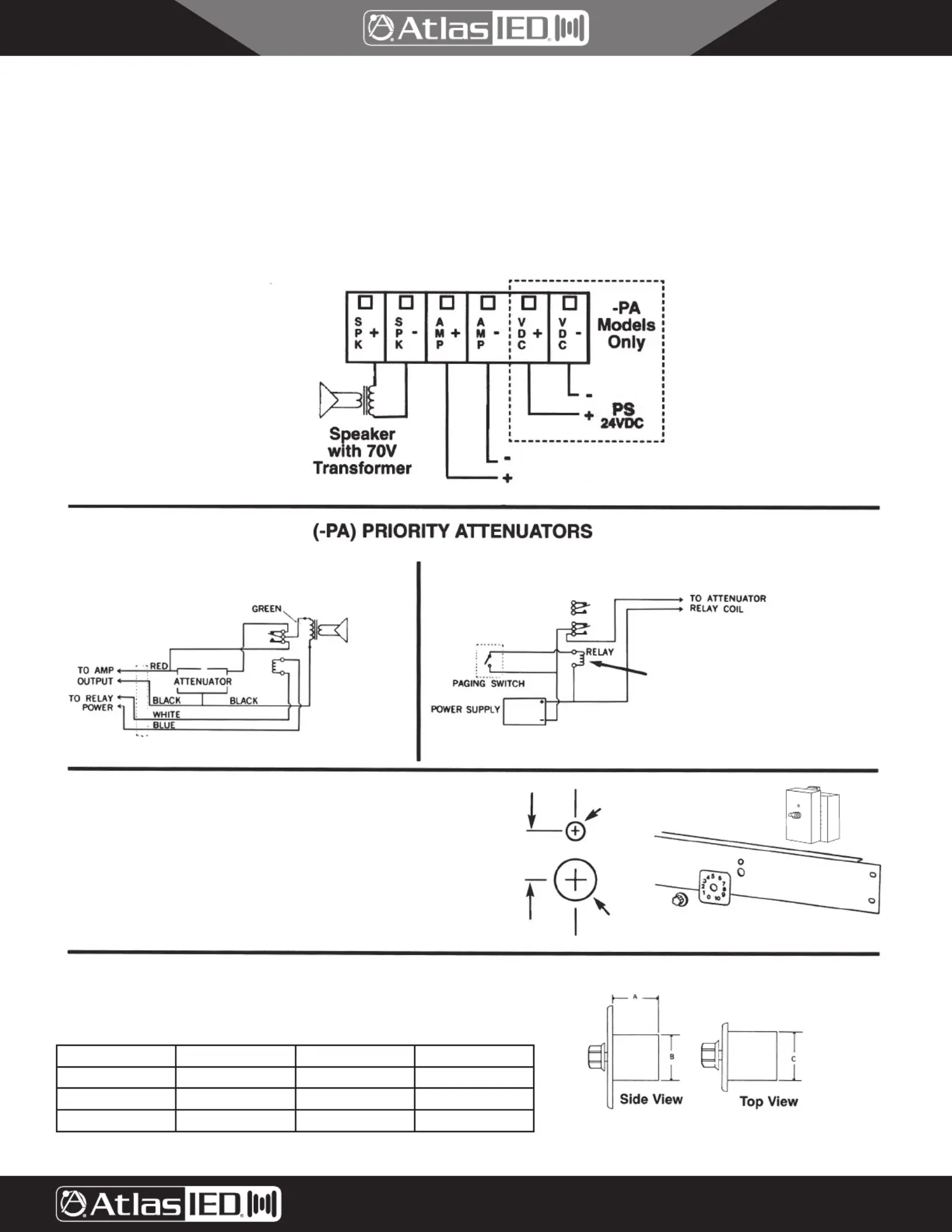

Wiring

Each terminal will hold up to 2-16AWG stranded wire. For larger wires or home run situations, a small length of wire and a wire nut are recommended.

Attach wire according to label on terminal block as shown to the right (Non-PA Models will not have the “VDC+” and “VDC-” terminals).

*Install the unit with the terminal block on top. This will ensure that the OFF position is in the bottom.

Attenuator Installations

Schematics for Priority Attenuators Power Switching Req. for -PA Attenuators

Use 2nd external relay when paging switch

is part of a paging microphone. This will

reduce hum and noise pickup from the mic.

Relay Specifications:

Coil Voltage: 24 VDC Coil Current: 10MA

Contacts: SPDT-2Amp Rating

Relay has a protective cover.Wiring Requirements: (1) Pair for Audio, (1) Pair for Relay

(-RM) Rack Mount

Drill holes in panel using the template to the right. Peel off adhesive

backing on escutcheon overlay. Align hole openings with holes in

panel and affix to surface. Remove knob and nut from attenuator.

Insert bushing through large hole in panel making sure that the small

indentation on the bracket lines up with the small hole in the panel.

Fasten attenuator to panel with the nut. Fit attenuator knob on shaft.

Tighten screw on knob to secure.

Dimensional Specifications

-RM Models supplied without a faceplate. All other models supplied with a single faceplate.

Double gang stainless steel faceplate can be ordered separately.

Model A B C

AT10 2

/ 28" (54mm)

/ 14" (70mm)

/4" (45mm)

AT35 2

/ 28" (54mm)

/ 14" (70mm)

/4" (45mm)

AT100 2

/ 22" (64mm)

/ 14" (70mm)

/4" (45mm)

/16" (5mm)

/8" (10mm)

/16" (11mm)

Produkt Specifikationer

Mærke:	Atlas
Kategori:	Ikke kategoriseret
Model:	AT100-PA
Type:	Roterende volumenkontrol
Bredde:	69.9 mm
Dybde:	63.5 mm
Højde:	114.3 mm
Produktfarve:	Black, Grey
Nem at installere:	Ja
Effekthåndtering:	- W
Dæmpning:	27 dB
