Introduction:

The AT-HD30SR is designed to replace long runs of HDMI

cable with CAT5E/6 cable( also called Ethernet, or LAN ca-

ble). (Atlona recommends using CAT6 cable for all extender

products) This product is capable of extending 1080p signal

from any HDMI or DVI source up to 30 Meters (99 ft.) with no

signal degradation. LED indicator lights on the AT-HD30SR

activate when the unit is connected properly.

KEY FEATURES:

· Simple connection. No additional HDMI cables required.

· Transfers HDMI Signal ( Digital Video and Audio ) over

CAT5E/6 cable up to 30 meters (99ft) at Full 1080P v1.3.

· Auto feedback, equalization and amplication adjustment

regardless of cable length.

· Compact size.

· Signaling rates up to 2.25Gbits

· Supports HDMI or DVI inputs.

· HDCP and IEEE-568B compliant.

PACKAGE CONTENTS

1) Sender unit AT-HD30S

2) Receiver unit AT-HD30R

3) Manual

4) 8.5” pig tail

Safeguards

· To reduce the risk of electric shock, do not expose this

product to rain, water or moisture.

Precautions

· FCC Regulations state that any unauthorized

modications to this equipment could void the user’s

authority to operate this equipment.

· Use only accessories recommended by ATLONA to

avoid re, shock or other hazards.

· Unplug the product before cleaning. Use a damp cloth for

cleaning. Do not use cleaning uid or aerosols

· Never open or remove unit panels or make any

adjustments not described in this manual. Attempting to

do so could expose you to dangerous electrical shock or

other hazards. It may also cause damage to your

AT-HD30SR. Opening the product will void the warranty.

· Do not attempt to service the unit. Instead disconnect it

and contact your Authorized ATLONA reseller or contact

ATLONA directly

For additional help or trouble shooting with this product

please visit: www.atlona.com

Atlona

2151 O’toole Ave Unit D

San Jose, CA 95131

Tel: 408-954-8782

Fax: 408-954-8792

toll free: 1-877-536-3976

Powerless HDMI Extender

over CAT5e/6 Cable

SKU: AT-HD30SR

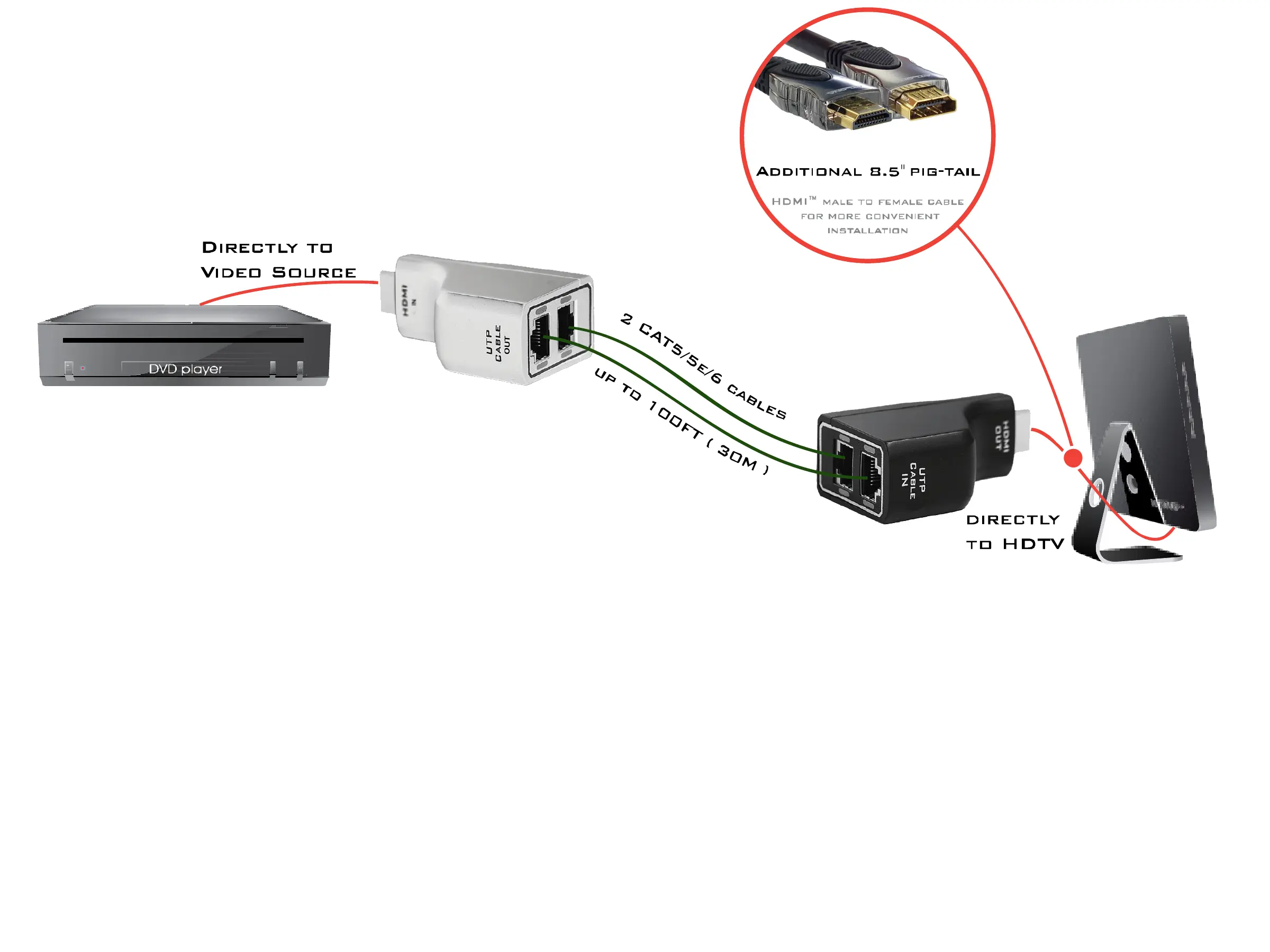

Installation Instructions:

1. Cut and terminate two CAT5e/6 to desired length, or use pre-terminated cables.

2. Connect one end of each CAT5E/6 cable to the Sender unit labeled “HDMI IN”

Note: keep track of which cable is inserted into each CAT5E/6 port as they will need to match on the Receiver side

3. Connect the remaining ends of CAT5E/6 cables to the Receiver unit labeled “HDMI OUT”

4. Connect the Sender unit to your source (i.e. BluRay Player)

5. Connect the Reciever unit to your Display (i.e. HDTV)

6. Video from your source should be visible immediately on your display.

Produkt Specifikationer

Mærke:	Atlona
Kategori:	Kabler til pc'er og periferiudstyr
Model:	AT-HD30SR
Bredde:	46 mm
Højde:	83 mm
Vægt:	240 g
Produktfarve:	Sort
3D:	Ja
Relativ luftfugtighed ved drift (H-H):	5 - 90 %
Driftstemperatur (T-T):	-5 - 35 °C
Kabellængde:	30 m
Længde:	23 mm
Stik 1:	HDMI Type A (Standard)
Stik 2:	HDMI Type A (Standard)
Stikforbindelse kontakter plettering:	Guld
Dataoverførselshastighed:	2.25, 6.75 Gbit/sek.
Stik køn:	Hanstik/Hunstik
