Side 1/8

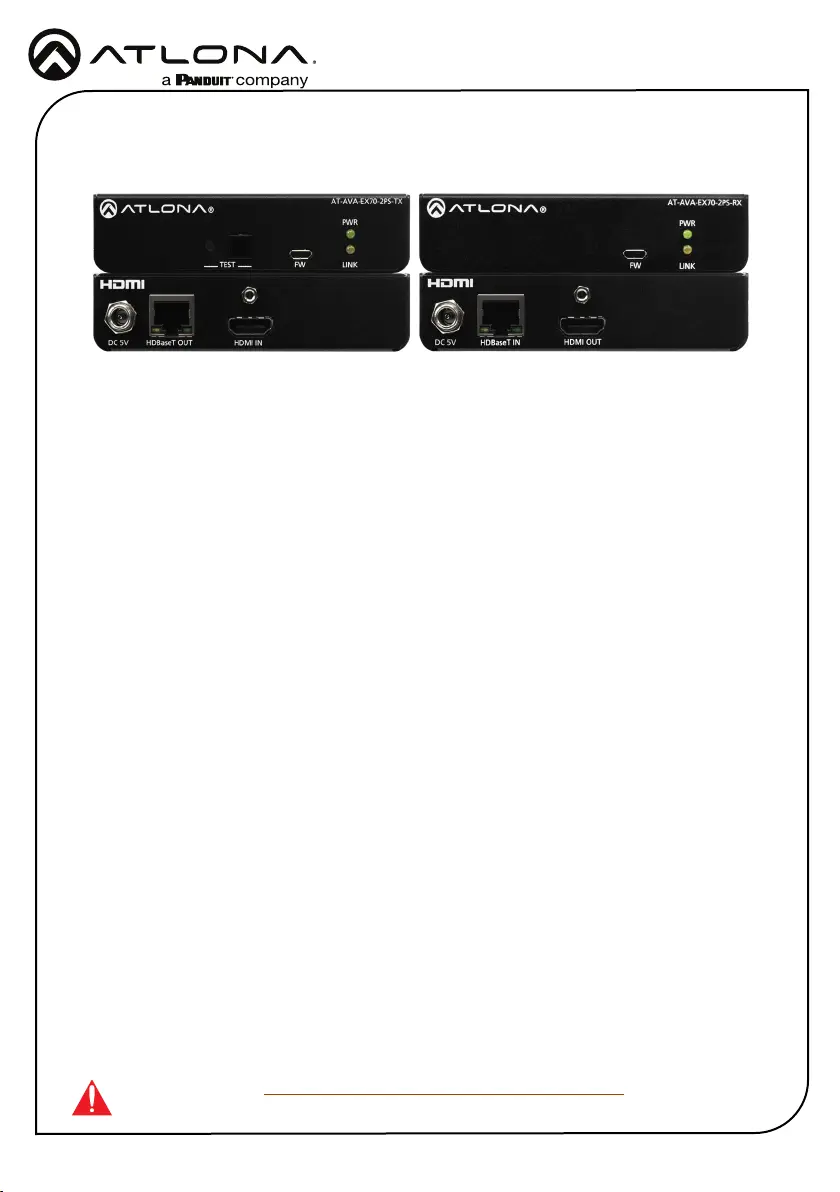

1
Installation Guide
AT-AVA-EX70-2PS-KIT
4K/UHD HDMI Over HDBaseT TX/RX Kit
AT-AVA-EX70-2PS-KIT
The Atlona AT-AVA-EX70-2PS-KIT is an HDBaseT transmitter/receiver kit in the Avance™ Series,
for video up to 4K/UHD 60Hz 4:2:0 and HDMI data rates up to 10 Gbps. The AVA-EX70-2PS-KIT
is HDCP 2.2 compliant and provides HDMI transmission up to 230 feet (70 meters) for 1080p
video, and up to 130 feet (40 meters) for 4K/UHD over CAT6a/7 cable. This extender kit features
integrated HDBaseT link status testing for quick verication of twisted pair cabling integrity, as
well as HDMI clock stretching, EDID ltering, and HDMI signal regeneration for legacy HDMI
source devices. The AVA-EX70-2PS-KIT delivers a cost-eective solution for HDMI extension,
with locally powered transmitter and receiver endpoints as well as surface mounting hardware for
discreet installation.
IMPORTANT: Visit https://atlona.com/product/AT-AVA-EX70-2PS-KIT for the latest
rmware updates and Installation Guide.
1 x AT-AVA-EX70-2PS-TX
1 x AT-AVA-EX70-2PS-RX
4 x Mounting brackets
8 x Mounting screws
2 x 5V DC power supply
2 x IEC cable
1 x Installation Guide
Package Contents
2
Installation Guide
AT-AVA-EX70-2PS-KIT
DC 5V HDBaseT IN HDMI OUT
AT-AVA-EX70-2PS-RX
PWR
LINKFW
HDBaseT IN
DC 5V HDBaseT OUT HDMI IN
AT-AVA-EX70-2PS-TX
PWR
LINKFWTEST
HDBaseT OUT

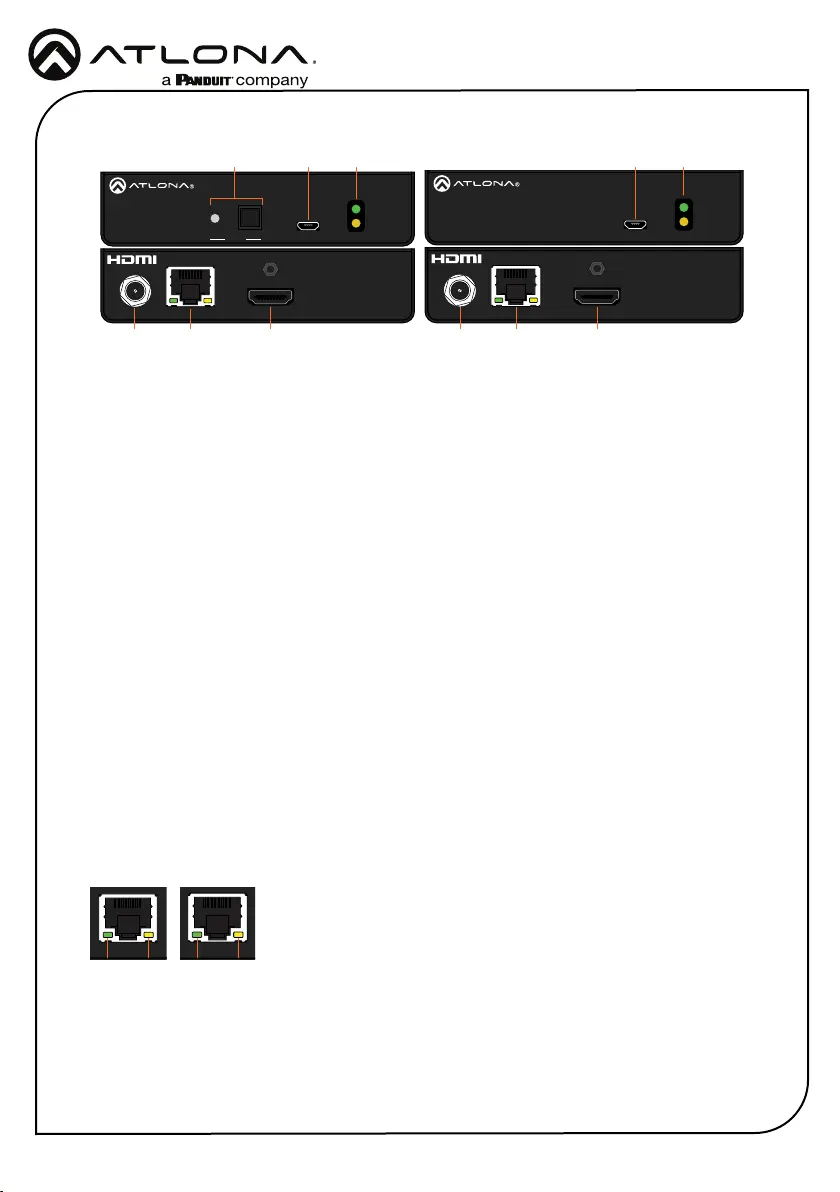

Panel Descriptions
HDBaseT LED Descriptions
1 TEST
Quick and easy test for category cables.
Use the button to start the test and the
LED to determine pass or fail.
2 FW
Connect a micro-USB to USB-A type
cable from this port to a computer, to
update the rmware.
3 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
4 DC 5V
Connect the included power supply to this
port.
5 HDBaseT OUT
Connect an HDBaseT cable from this port
to the port on the receiver.HDBaseT IN
6 HDMI IN
Connect an HDMI cable from a source to
this port. e.g. HDR BluRay Player
7 FW
Not used at this time.
8 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
9 DC 5V
Connect the included power supply to this
port.
10 HDBaseT IN
Connect an HDBaseT cable from this
port to the port on the HDBaseT OUT
transmitter.
11 HDMI OUT
Connect an HDMI cable from this port to
an HDMI display.
a Green LED
When a category cable is connected
and receiving signal this LED will be
illuminated. If no cable or signal is being
received, the LED will be o.
b Yellow LED
This LED displays the status of the
HDBaseT rmware. When the LED is
blinking slowly, the rmware is good. If
the LED is blinking rapidly or o, there
is no rmware or the rmware has been
corrupted.
9
5
b b
610 11
4
a a
83 721
