AT-HDR-EX-70C-KIT

4K HDR HDMI Over HDBaseT TX/RX Kit

AT-HDR-EX-70C-KIT

The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range

(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4

chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides

transmission of HDMI, as well as bidirectional IR and RS-232 control signals up to 230 feet

(70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable.

This extender kit features visually lossless compression with no latency to enable HDR and

4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the

transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-

KIT delivers a cost-eective solution for HDMI and control signal extension, and includes surface

mounting hardware for discrete installation.

IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70C-KIT for the latest

rmware updates and Installation Guide.

1 x AT-HDR-EX-70C-TX

1 x AT-HDR-EX-70C-RX

4 x Mounting brackets

8 x Mounting screws

1 x 48V DC power supply

1 x IR emitter

1 x 2-pin captive screw connector

2 x 3-pin captive screw connector

1 x 4-pin captive screw connector

1 x 5-pin captive screw connector

1 x Installation Guide

Package Contents

Installation Guide

AT-HDR-EX-70C-KIT

AT-HDR-EX-70C-RX

POWER

LINKFW

RS-232

RX TX SSP

HDBaseT IN HDMI OUTIR OUTIR IN

DC 48V

RS-232

RX T X SS

HDBaseT OUT HDMI INIR OUTIR IN

AT-HDR-EX-70C-TX

POWER

LINKTEST UTILITY

1. LINK

2. FW

3. TEST

4. 5V LOCK

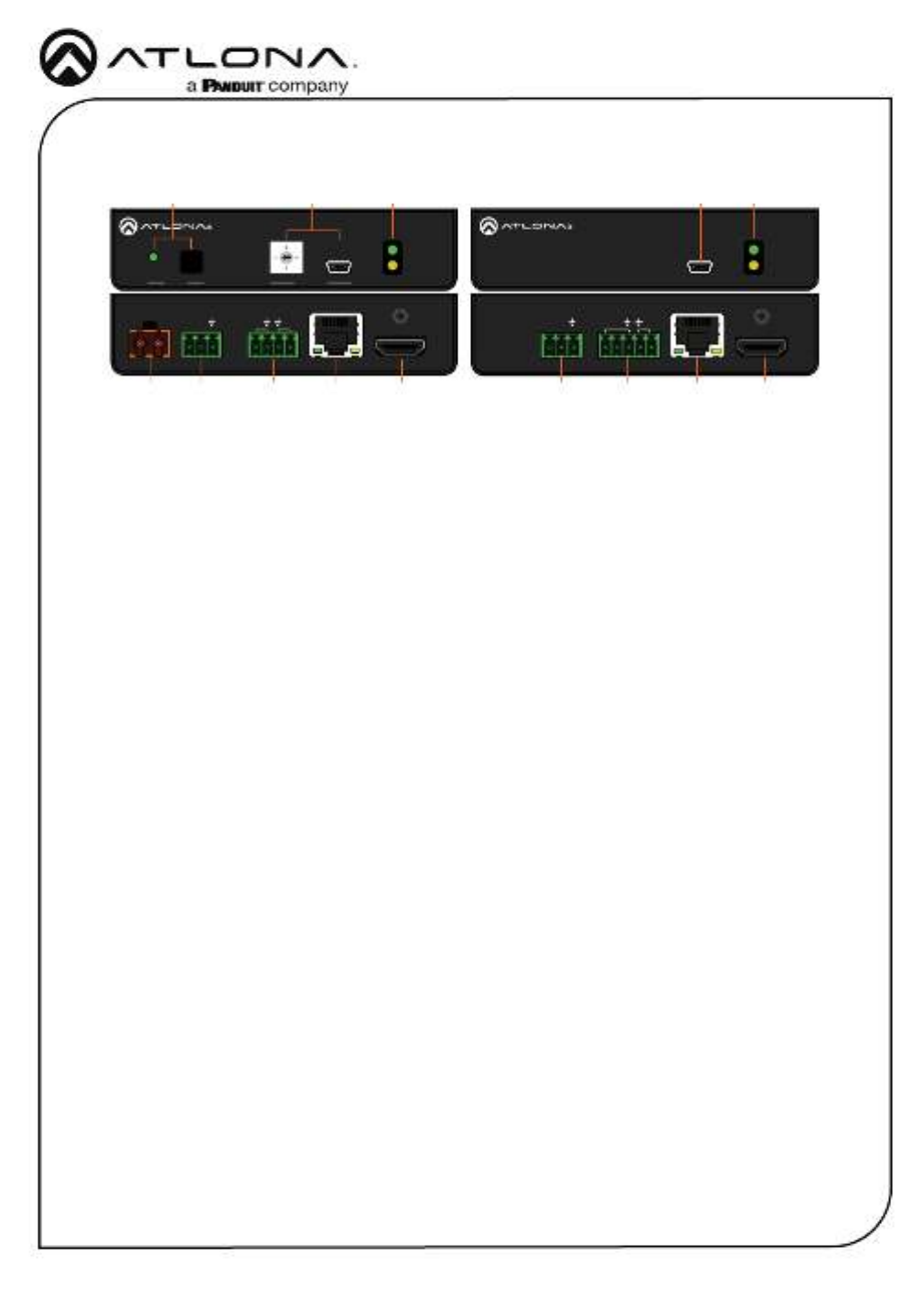

Panel Descriptions

1 TEST

Quick and easy test for cables. Use the

button to start the test and the LED to

determine pass or fail.

2 UTILITY

Connect a mini-USB to USB-A cable from

this port to a computer for updating and

testing. Rotate the dial to set the unit into

dierent modes.

3 POWER and LINK LEDs

The power LED will illuminate green when

receiving power. The link LED will glow

yellow when signal is being sent/received

between the transmitter and the receiver.

4 DC 48V

Connect the included power supply to this

port.

5 RS-232

Bidirectional control port, used for pass

through of commands to or from the

receiver.

6 IR

Connect a 3rd party controller to the IR IN

port or an IR emitter to the IR OUT port.

7 HDBaseT OUT

Connect an HDBaseT cable from this port

to the port on the receiver.HDBaseT IN

8 HDMI IN

Connect an HDMI cable from a source to

this port. e.g. HDR BluRay Player

9 FW

Connect a mini-USB to USB-A type cable

from this port to a computer, to update

the rmware.

10 POWER and LINK LEDs

The power LED will illuminate green when

receiving power. The link LED will glow

yellow when signal is being sent/received

between the transmitter and the receiver.

11 RS-232

Bidirectional control port, used for pass

through of commands to or from the

transmitter.

12 IR

Connect an IR receiver to the IR IN port or

an IR emitter to the IR OUT port.

13 HDBaseT IN

Connect an HDBaseT cable from this

port to the port on the HDBaseT OUT

transmitter.

14 HDMI OUT

Connect an HDMI cable from this port to

an HDMI display.

115 6 7 8 12 14134

103 921

Installation Guide

Produkt Specifikationer

Mærke:	Atlona
Kategori:	AV forlænger
Model:	AT-HDR-EX-70C-KIT
Type:	AV sender & modtager
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 90 %
HDCP:	Ja
Strømforbrug (typisk):	13 W
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	4096 x 2160 pixel
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	7.1 kanaler
Certificering:	CE, FCC, cULus, CCC, RCM
Antal USB-porte:	1
Bæredygtighedscertifikater:	RoHS
Farvedybde:	12 Bit
Modtager vægt:	392 g
Lydsystem:	Multikanal
Indgangsstrøm:	0.83 A
Driftsspænding:	48 V
Maksimal overførselsafstand:	70 m
USB-stik type:	Mini-USB B
HSMI-indgang:	1
RJ-45 indgangs-porte:	1
Antal HDMI-udgange:	1
Modtager dimensioner (BxDxH):	109 x 127 x 26 mm
Fjernbetjening (IR) indgang:	2
Fjernbetjening (IR) udgang:	2
HDBaseT-port:	Ja
Understøttede kabeltyper:	Cat5e, Cat6, Cat6a, Cat7
Senderdimensioner (BxDxH):	109 x 127 x 26 mm
Transmitter vægt:	390 g
Båndbredde:	18 Gbit/sek.
RJ-45 udgangs-porte:	1
HDBaseT certificeret:	Ja
Understøtter forbrugerelektronik (CEC):	Ja
