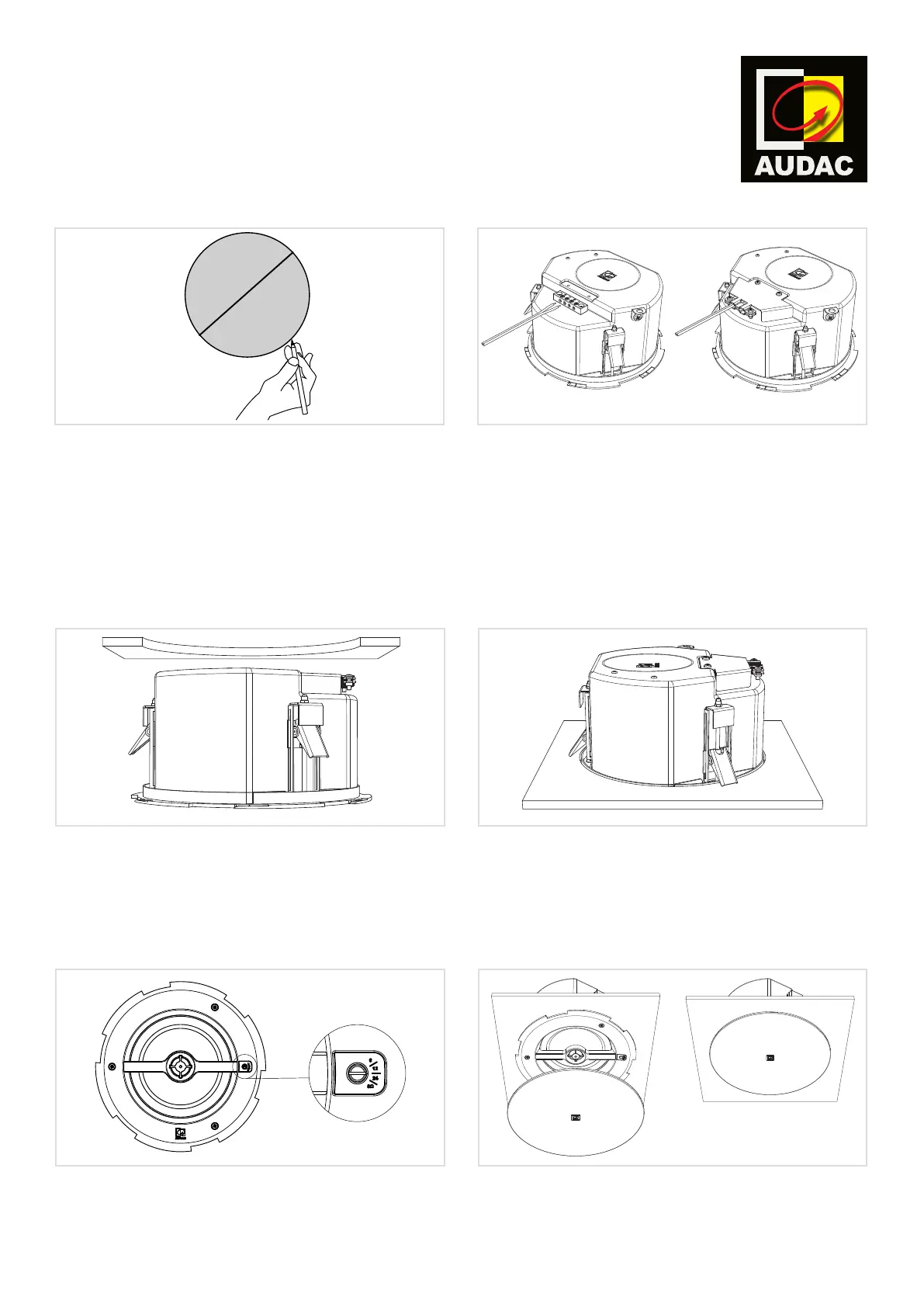

INSTALLATION MANUAL

CALI SERIES SAFE-LATCH™ CEILING SPEAKERS WITH REAR-DOME

STEP 1 STEP 2

Cut a hole on the mounting location in the ceiling.

Make sure the diameter is matching the cut-out

measurement for the loudspeaker.

Double check if there are no cables or other

obstructions behind the mounting surface before

making the cut-out.

Remove the cover and connect the cables to the

ceramic connection terminal by inserting the cable in

the corresponding hole and tightening the screw. The

remaining two terminals can be used to link through

to other speakers.

Reattach the cover plate and tighten the cable strain

relief.

Ø Diameter

STEP 3 STEP 4

Make sure the spacing between the mouting surface

and the clamp is bigger than the thickness of your

ceiling plate. Insert the speaker until the clamps snap

in place

Fix the speaker in the provided opening by tightening

the screws of the mounting clamps using a screw

driver.

An optional tile bridge must be installed when

mounting the speaker in ceiling tiles.

STEP 5 STEP 6

Using a at head screwdriver, the power tap or low

impedance selection can be made.

Attach the grill to the speaker by inserting the lips into

the provided openings on the speaker bae and rotate

it over a partial turn (15°).

The speaker is now correctly installed and ready for

use.

The WEEE marking indicates that this product

should not be disposed with regular household

waste at the end of its product life. This regulation

is created to protect both the environment and

human health.

This product is developed and manufactured with

high quality materials and components which can

be recycled and/or reused. Please dispose of this

product at your local collection point or recycling

center for electrical and electronic waste. Do this

to make sure that the product is recycled in an

environmental friendly way, and help to protect

the environment in which we all live.

INSTALLATION MANUAL

CALI SERIES SAFE-LATCH™ CEILING SPEAKERS WITH REAR-DOME

•

IF THERE IS ANY DAMAGE TO THE CARTON BOX

OR THE UNIT ITSELF, INFORM YOUR VENDOR

IMMEDIATELY.

•

ALWAYS FOLLOW THE LOCAL REGULATIONS AND

REQUIREMENTS REGARDING INSTALLATION,

SUSPENSION AND CONNECTION OF THIS

LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED

IN THIS DOCUMENT.

• THE INSTALLATION OF THIS LOUDSPEAKER SHALL

BE DONE BY QUALIFIED PERSONNEL ONLY.

•

USE CABLES OF THE RIGHT GAUGE TO CONNECT

THE LOUDSPEAKER

•

USE CABLES WITH CLEAR COLOR CODING

INDICATING THE POLARITY AND MAINTAIN THE

SAME POLARITY THROUGHOUT THE WHOLE

SYSTEM.

•

ONLY USE THE CORRECT AMPLIFIER OUTPUT

VOLTAGE AND IMPEDANCE. EXCEEDING THESE

LIMITS COULD CAUSE FIRE OR OTHER FAILURES.

•

AVOID EXPLOSIONS: DO NOT USE THE SPEAKER

AROUND GASOLINE, THINNER OR OTHER

COMBUSTIBLES

•

AVOID ELEC TRIC SHOCKS: SWITCH OFF THE

AMPLIFIER WHEN CONNECTING THE LOUDSPEAKER

•

DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED

PERIOD OF TIME AT DISTORTED SOUND. THIS

COULD CAUSE PERMANENT DAMAGE.

•

ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE

REFERENCE. NEVER THROW THEM AWAY

• ALWAYS HANDLE THIS UNIT WITH CARE

• CLEAN ONLY WITH DRY CLOTH

•

HEED ALL WARNINGS AND FOLLOW ALL

INSTRUCTIONS

•

NEVER EXPOSE THIS EQUIPMENT TO RAIN,

MOISTURE, ANY DRIPPING OR SPLASHING LIQUID.

•

DO NOT INSTALL THIS UNIT NEAR ANY HEAT

SOURCES SUCH AS R ADIATORS OR OTHER

APPARATUS THAT PRODUCE HEAT

•

DO NOT PLACE THIS UNIT IN ENVIRONMENTS

WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR

VIBRATION

• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY.

DO NOT USE IT OUTDOORS

•

ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED

BY THE MANUFACTURER.

•

ONLY INSTALL THE SPEAKER IN LOCATIONS THAT

CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE

SPEAKER. IGNORING THIS CAN BRING THE SPEAKER

DOWN.

•

DO NOT USE ANY OTHER METHOD THAN SPECIFIED

TO MOUNT THE SPEAKER. IF EXTREME FORCE IS

APPLIED TO THE SPEAKER, IT COULD FALL DOWN

•

ATTACH A SAFETY WIRE TO THE SPEAKER WHEN

IT IS MOUNTED HIGH UP. ONLY USE INDUSTRY-

ACCEPTED RIGGING TOOLS AND METHODS

• CAREFULLY CHECK THE UNIT’S CONDITION AFTER

UNPACKING.

PRECAUTIONS

This product contains no user serviceable parts.

Refer all servicing to qualied service personnel. Do

not perform any servicing (unless you are qualied

to do so.)

CAUTION - SERVICING

This product conforms to all the essential

requirements and further relevant specications

described in following directives: 2014/30/EU (EMC)

and 2014/35/EU (LVD)

EC DECLARATION OF CONFORMITY

WASTE OF ELECTRICAL AND ELECTRONIC

EQUIPMENT (WEEE)

Model Max. Power RMS Power Cut-out

dimension

Dimensions Line transformer power

tappings - Impedance

CALI424

CALI660

60 Watt

120 Watt

30 Watt

60 Watt

Ø 170 mm

Ø 220 mm

Ø 192 x 114 mm

Ø 242 x 124 mm

24W / 12W / 6W - 8 Ω

60W / 30W / 15W - 8 Ω
