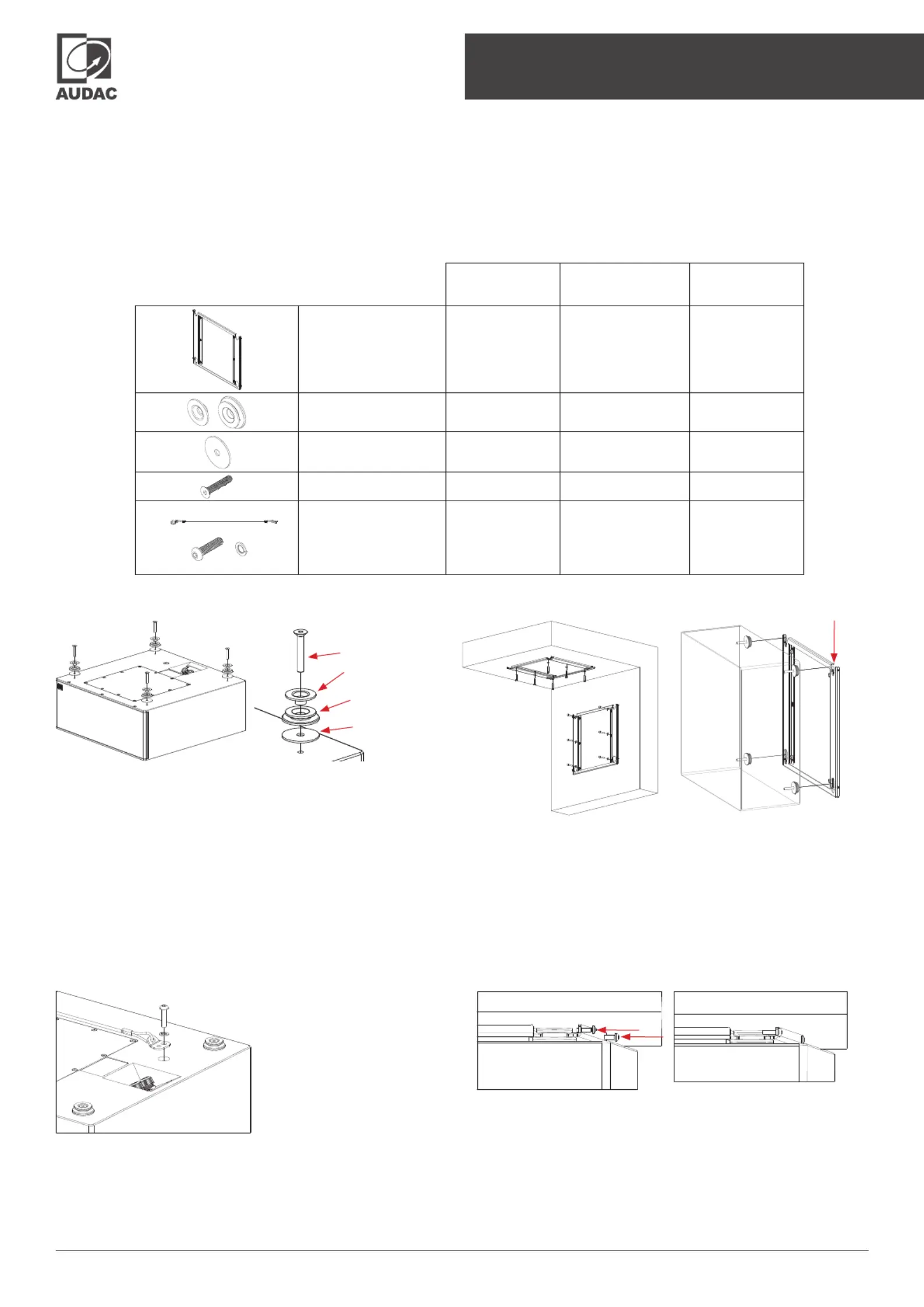

MBK62xA installation manual - V1 1

Installation manual

MBK62xA

The MBK62xA is a dedicated steel mounting bracket designed speciﬁcally for the AUDAC ARCHI series architectural

subwoofers, enabling secure and discreet installation on walls or ceilings. With its durable black ﬁnish and all necessary

mounting hardware included, the MBK62xA offers both reliability and ease of use. A smart sliding slot mechanism allows

the subwoofer to glide smoothly into place for easy and secure installation, whether mounted horizontally or vertically.

Rubber washers help minimize vibrations and protect mounting surfaces, while an integrated drop safety wire adds an

extra layer of security against accidental falls.

Included hardware:

MBK621A

(ARCHI10)

MBK622A

(ARCH10X)

MBK623A

(ARCHI210)

Mounting bracket*

*The image is for illustrative

purposes only, since it will

differ from the various

models.

1 piece 1 piece 1 piece

Silentblock washer and

rubber

4 pieces 4 pieces 4 pieces

Metal washer 4 pieces 4 pieces 4 pieces

M8x45 bolt

4 pieces 4 pieces 4 pieces

Drop safety wire with

buttonhead screw and

spring washer

1 piece

(M8 buttonhead

screw)

1 piece

(M10 buttonhead screw)

1 piece

(M8 buttonhead

screw)

Installation:

Step 1:

Remove the rubber feet from bottom of the cabinet or countersunk bolts from

rear of the cabinet, depending on whether you plan to mount it from the bottom

or the rear.

Insert the M8 bolts through Silentblock washer, then through the Silentblock

rubber and the metal washer.

Screw them into the four threaded holes at the corners.

The silentblock rubber is used to reduce vibrations and protect the bracket’s

mounting surfaces.

M8x45 Bolt

Silentblock

washer

Silentblock

rubber

Metal

washer

Step 2:

Install the drop safety wire to the

designated point using an M8 or

M10 buttonhead screw and spring

washer based on the model.

Secure the other end of the wire to

a different mounting point on the

wall or another structure that is

separate from the main suspension

surface.

Step 3:

Install the mounting bracket vertically or horizontally to the designated point on the

wall.

Insert the Silentblock into the slots in the mounting bracket and slide to secure.

Step 4:

Secure the speaker to the bracket by tightening the 4 lock screws against the

Silentblocks.

MBK62xA installation manual - V1 2

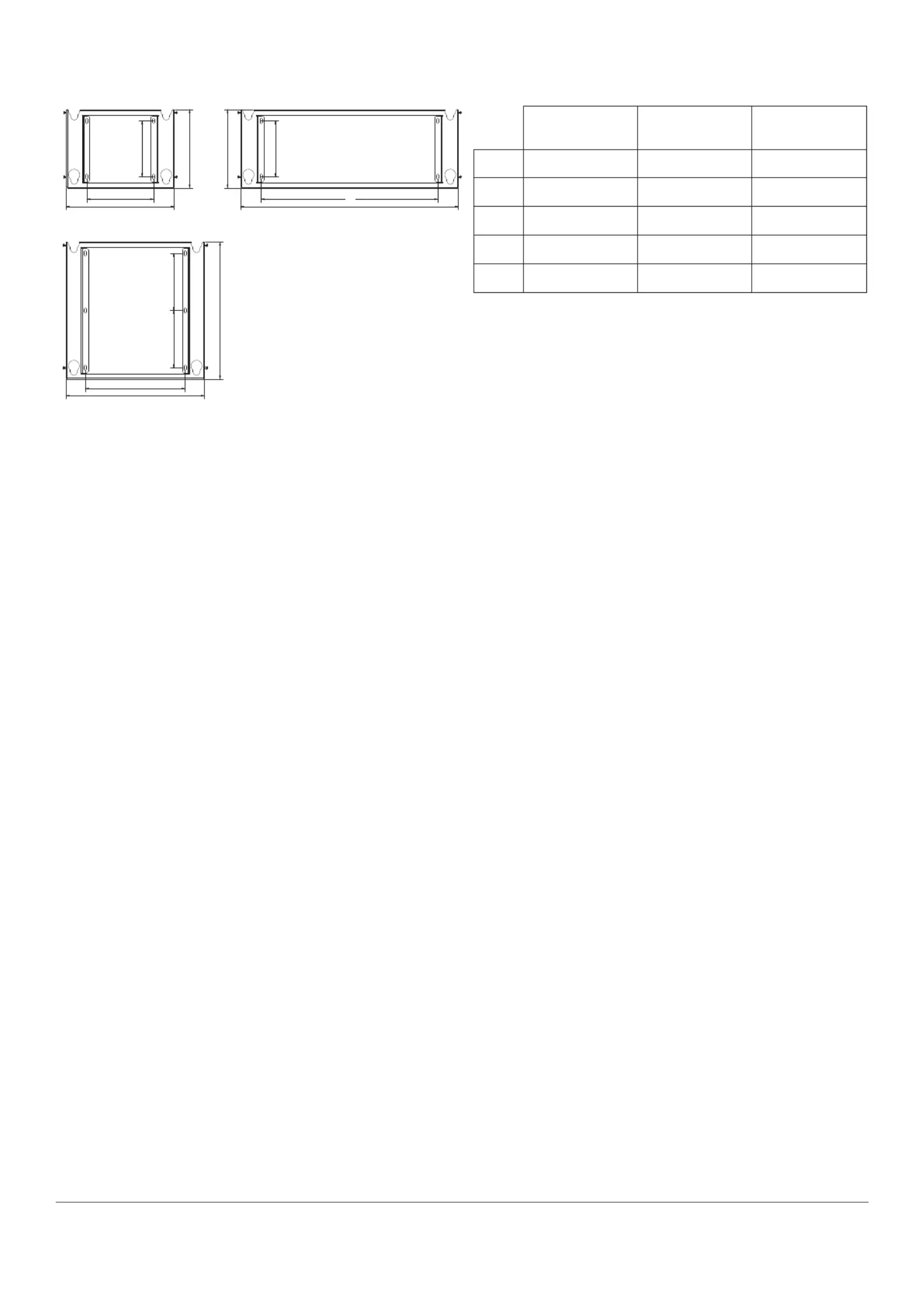

Dimensions:



ALWAYS FOLLOW THE LOCAL REGULATIONS AND

REQUIREMENTS REGARDING INSTALL ATION,

SUSPENSION AND CONNECTION OF T HIS

LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED

IN THIS DOCUMENT.



IT’S THE INSTALLERS RESPONSIBILITY TO ENSURE

INSTALLATION OF THE LOUDSPEAKERS AND

MOUNTING SYSTEMS IS PERFORMED IN ACCORDANCE

WITH ALL APPLICABLE CODES



UNSAFE MOUNTING OR OVERHEAD SUSPENSION

ON ANY HEAVY LOAD CAN RESULT IN SERIOUS

INJURY OR DEATH, AND PROPERTY DAMAGE. IT’S

THE INSTALLERS RESPONSIBILITY TO EVALUATE THE

RELIABILITY OF ANY MOUNTING METHOD USED FOR

THEIR APPLICATIONS



THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE

DONE BY QUALIFIED PERSONNEL ONLY.

PRECAUTIONS



KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

NEVER THROW THEM AWAY

 ALWAYS HANDLE THIS UNIT WITH CARE

 CLEAN ONLY WITH DRY CLOTH



HEED ALL WARNINGS AND FOLLOW ALL

INSTRUCTIONS



NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE,

ANY DRIPPING OR SPLASHING LIQUID.



DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A

HIGH LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION



DO NOT USE HYDROCARBON BASED SOLVENTS,

LUBRICANTS OR CLEANING AGENTS OF ANY TYPE

ON OR AROUND THE DEVICE AND MOUNTING

HARDWARE DURING THE INSTALL ATION. THE

USE OF THESE PRODUCTS ON OR AROUND THE

MOUNTING ANCHORS AND SCREWS CAN LEAD TO

DEGRADATION OF THE PLASTIC MATERIAL, POSSIBLY

RESULTING IN CRACKING AND PREMATURE FAILURE

OF THE PRODUCT.



THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO

NOT USE IT OUTDOORS



ONLY INSTALL THE SPEAKER IN LOCATIONS THAT

CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE

SPEAKER. IGNORING THIS CAN BRING THE SPEAKER

DOWN.

 DO NOT USE ANY OTHER METHOD THAN SPECIFIED

TO MOUNT THE SPEAKER. IF EXTREME FORCE IS

APPLIED TO THE SPEAKER, IT COULD FALL DOWN



ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS

MOUNTED HIGH UP. ONLY USE INDUSTRYACCEPTED

RIGGING TOOLS AND METHODS



CAREFULLY CHECK THE UNIT’S CONDITION AFTER

UNPACKING.



IF THERE IS ANY DAMAGE TO THE CARTON BOX

OR THE UNIT ITSELF, INFORM YOUR VENDOR

IMMEDIATELY.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all

servicing to qualiﬁed service personnel. Do not perform any

servicing (unless you are qualiﬁed to do so).

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements

and further relevant speciﬁcations described in following

directives: 2011/65/EU (RoHS2) and 1907/2006 (REACH)



DO NOT MAKE UNAUTHORIZED ALTERATIONS TO THE

PRODUCT.

•

The MBK621A mounting bracket is for the use with

ARCHI10 only.

•

The MBK622A mounting bracket is for the use with

ARCHI10X only.

•

The MBK623A mounting bracket is for the use with

ARCHI210 only.

MBK621A

(ARCHI10)

MBK622A

(ARCH10X)

MBK623A

(ARCHI210)

240 mm 634 mm 358 mm

387 mm 781 mm 497 mm

282 mm 282 mm 492 mm

200 mm 200 mm 205 mm

- - 205 mm

387

634

781

497

358

MBK621A MBK622A

MBK623A
