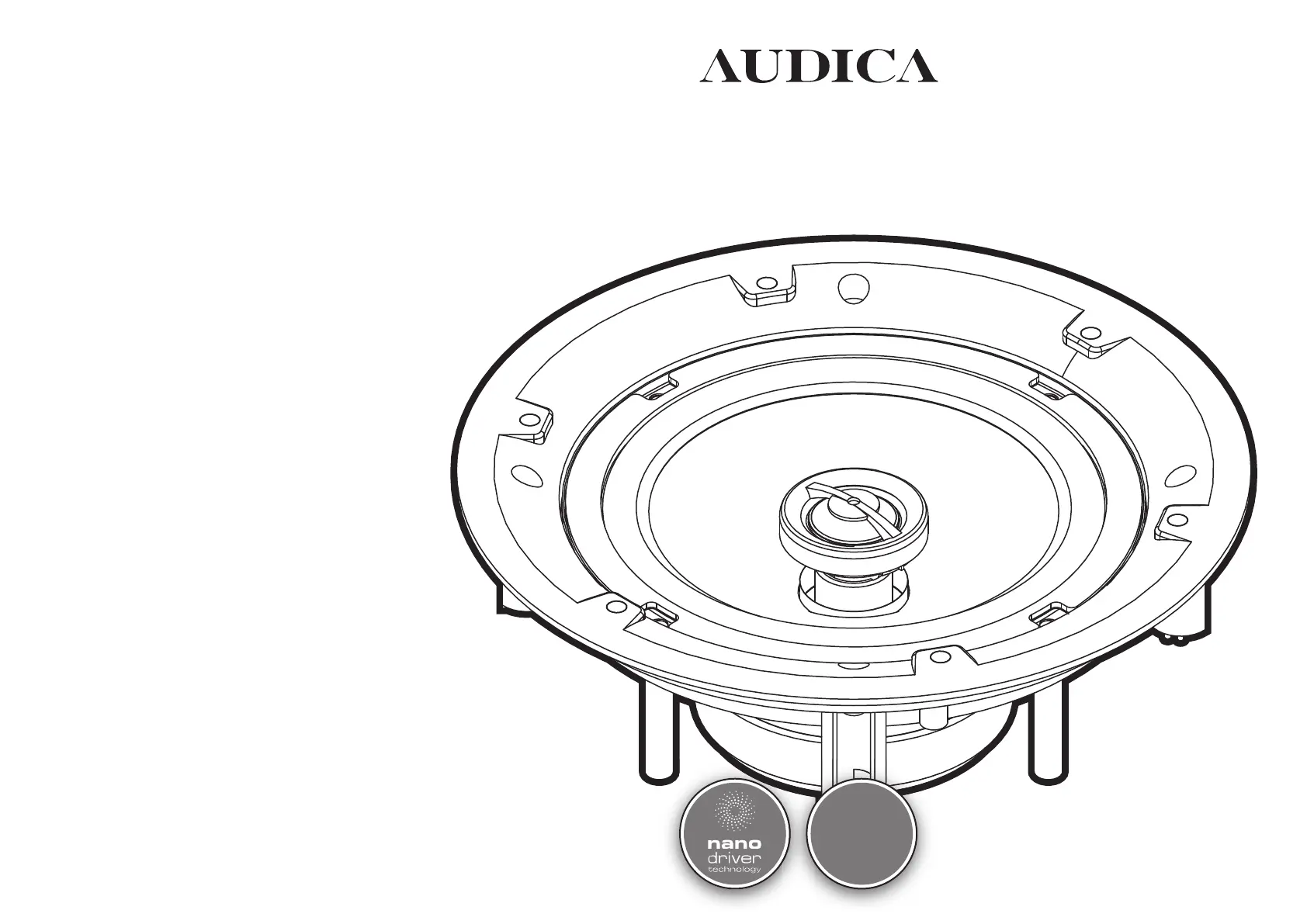

median ic125 / median ic165

in-ceiling loudspeakers

Installation Manual for:

Manual de l’utilisateur pour:

Ω

SWITCHABLE

8 OR 16

OHM

Thank you for purchasing Audica Professional loudspeakers.

Please take a few minutes to familiarise yourself with the installation procedure.

The loudspeakers are designed for installation into plasterboard ceilings or stud wall cavities.

INSTALLING THE LOUDSPEAKERS

Select a suitable mounting location for the

speaker taking note of the Warning Notices

above. Using the installation template

supplied mark the loudspeaker position and

cut the mounting hole.

Make sure all equipment is switched off. The loudspeaker cable should be stripped back ~10mm

so that there are bare wire ends. Remove the packaging and protective dust cover from the

loudspeaker and attach the loudspeaker leads using the pushdown spring clip terminals at the rear

of the loudspeaker. The positive conductor should be connected to the red terminal and the

negative conductor to the black terminal.

Note: Tweeter output level adjustment

On some Audica Professional models the tweeter output level can be increased or

decreased to accommodate room acoustics and application preferences. The tweeter

output is set using the 3 position switch located at the rear of the product.

The location of the 3 position switch may differ between models.

Check that each of the 4 swing out clamps are

rotated inwards. Push the loudspeaker through the

mounting hole and position flush with the ceiling.

Whilst holding the loudspeaker in place tighten each

of the mounting screws using a No. 2 Pozidriv®

screw driver in the order shown in the diagram

(left). When an increase in resistance is felt the

clamp is in position.

Once the loudspeakers are

installed they should be tested

before the grilles are fitted. All

loudspeakers feature a swivel

tweeter that may be adjusted

allowing the high frequencies to

be directed towards the area

where coverage is required.

The tweeter’s outer frame (not

dome) should be pushed gently

to achieve the desired tweeter

position.

The loudspeakers feature a magnetic grille, which locates over the speaker bezel where it will be pulled into place.

Note that grilles may be rotated to any angle required.

Grille backing cloth

Some models feature a white backing cloth behind the grille to help minimize visual contrast with the ceiling. For the very best sound

performance it is recommended that this cloth is removed before use. To remove simply peel away the backing cloth from the grille.

Warning Notices

• Before cutting the mounting hole ensure that there is no conflict with other in-ceiling or in-wall installed items such as pipe work,

electrical cabling, gas pipes and supporting joists etc.

• It is important to ensure that the installation complies with relevant building regulations.

• Take care not to apply pressure to the speaker cone and tweeter dome during installation.

• Ensure that the speaker model is suitable for use in the intended application. The ic125 and ic165 models should NOT be used

where there are high levels of moisture.

10mm

-3

16Ω

8Ω

The loudspeakers may be used in an 8 Ohm or

16 Ohm impedance setting using the 8Ω/16Ω

selector switch. The factory default setting is 8

Ohm. Calculate the appropriate amplifier

impedance loading and set the loudspeaker to

the impedance required.

-3 0 +3

8Ω16Ω

-3 0 +3

8Ω16Ω
