Side 1/11
ES945O/FM5
Omnidirectional Condenser Boundary Microphone
User Manual
English
1
Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure
safety, observe all warnings and cautions while using the product.
Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place.
Safety precautions
2
• Do not swing or pull with the cable connected to the microphone to prevent the microphone from becoming
disconnected or damaged.
• Do not wind the cable around the rack or allow the cable to become pinched.
• The microphone should be placed on a flat, unobstructed mounting surface.
• Placing any object on a surface (such as a conference table) before its finish is fully cured may result in damage
to the finish.
Notes on use
3
Using the product

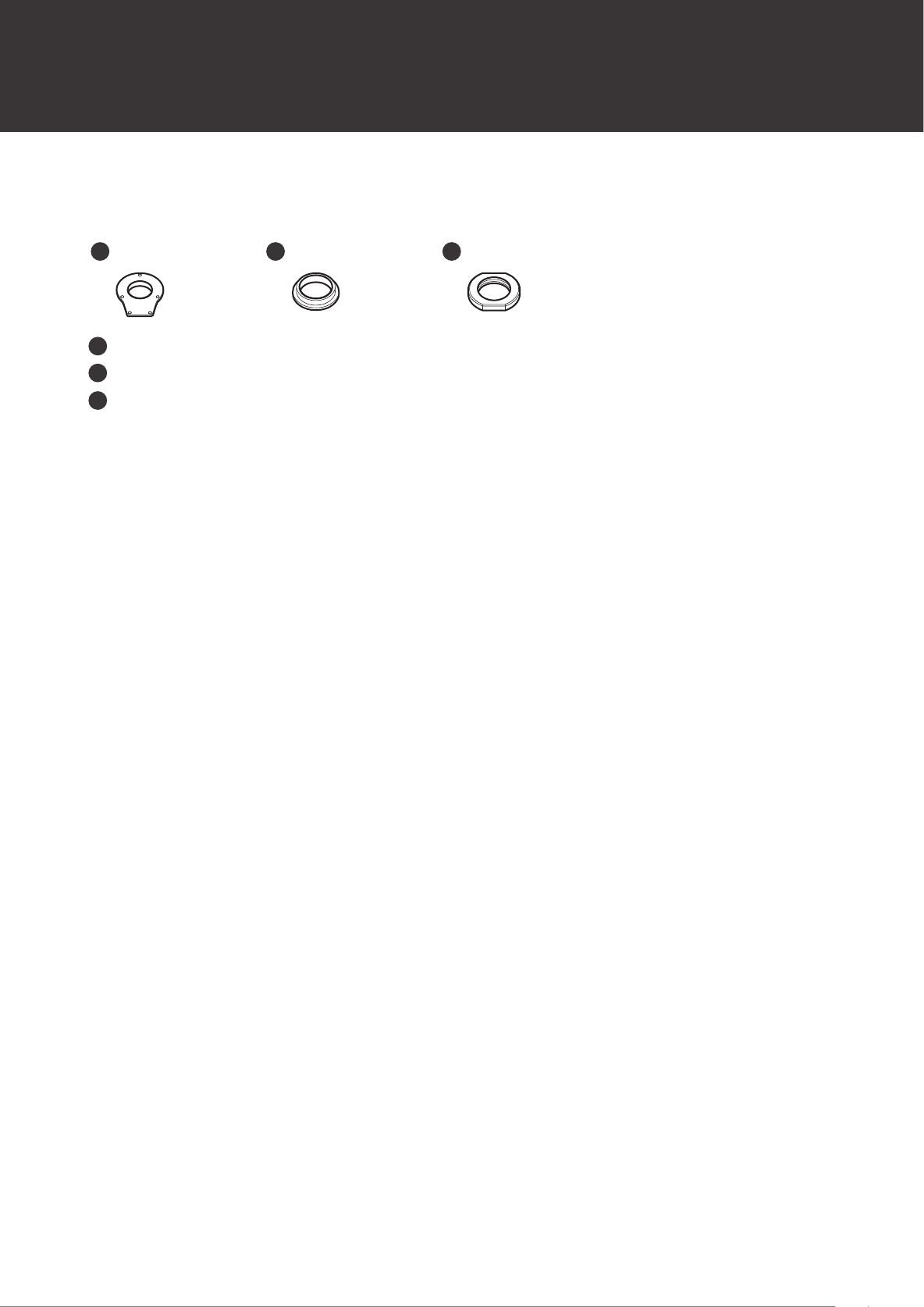

Included accessories
2
1
3
1 Rubber isolator (1)
2 Rubber isolator (2)
3 Nut
4
Using the product

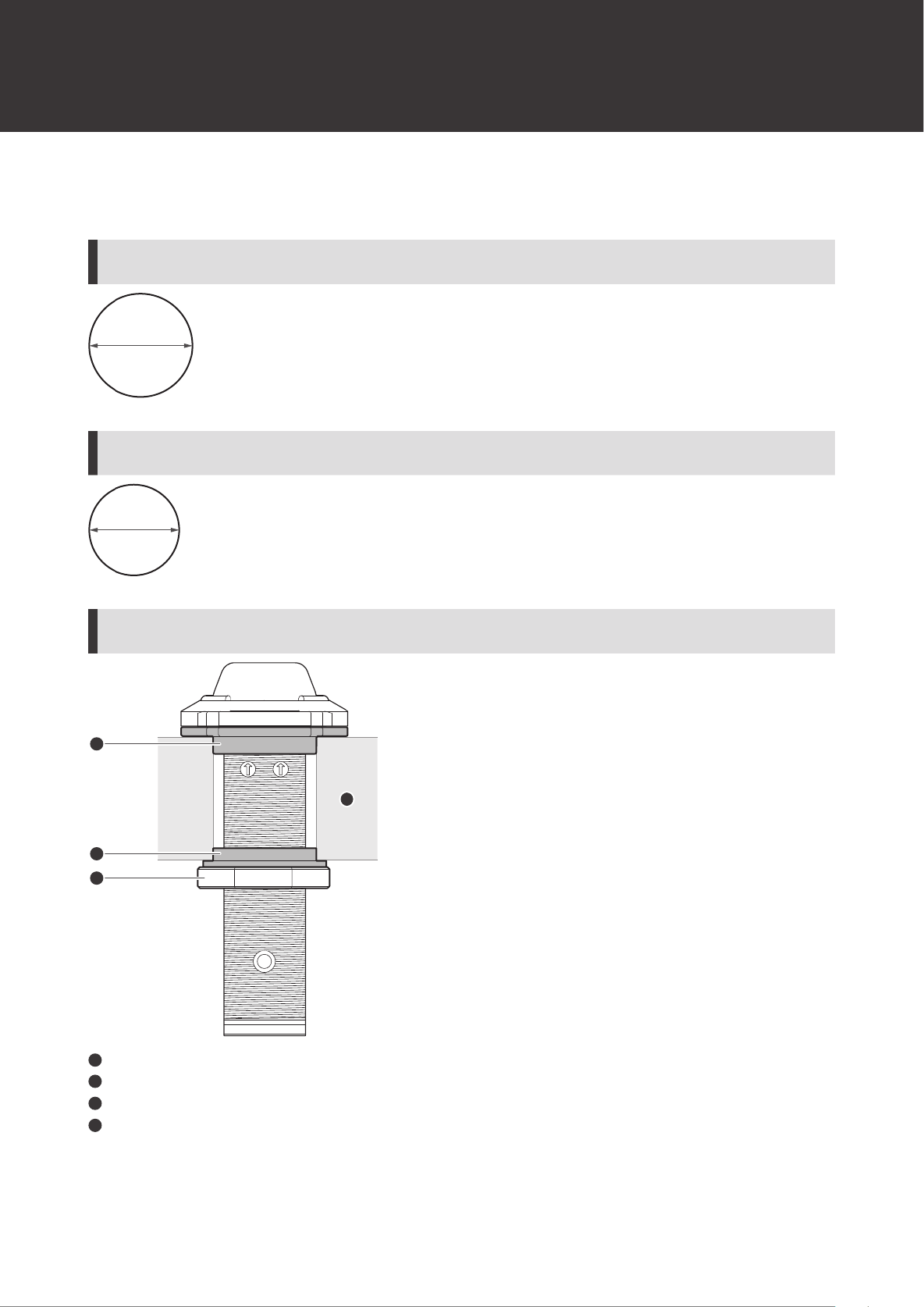

How to mount the product
Table/ceiling hole size (when using isolators)
φ
23.5
(Unit: mm)
Table/ceiling hole size (when not using isolators)
φ20.5
(Unit: mm)
Example: Mounting on a table
4
3
1
2
1 Rubber isolator (1)
2 Rubber isolator (2)
3 Nut
4
Table
5
Using the product
Switch setting and functions
MIC
Contact
Closure
GND
1. Action
3. Audio
status
2. Contact
closure
status
4. LED color
5. LED status
5
1
4
2
LED color
OFF
RED
1
2
3
GREEN
YELLOW
BLUE
MAGENTA
54
6
7
CYAN
WHITE
6
Using the product

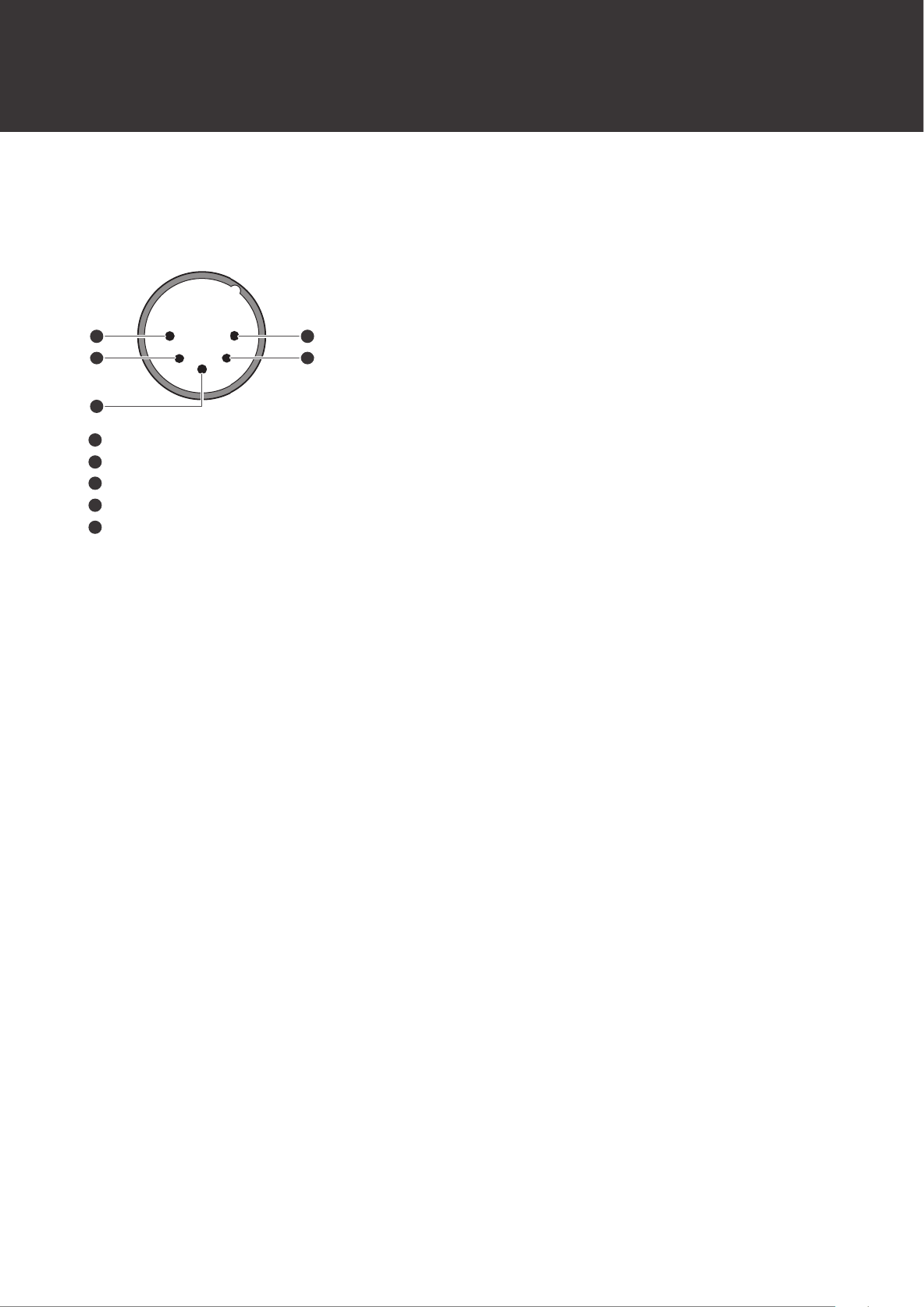

Connection procedure
The output connector is an XLR-M type with polarity as shown in the figure below.
5
4
1
2
3
1
PIN1 (ground)
2
PIN2 (hot)
3
PIN3 (cold)
4
Contact closure
5 LED control
7

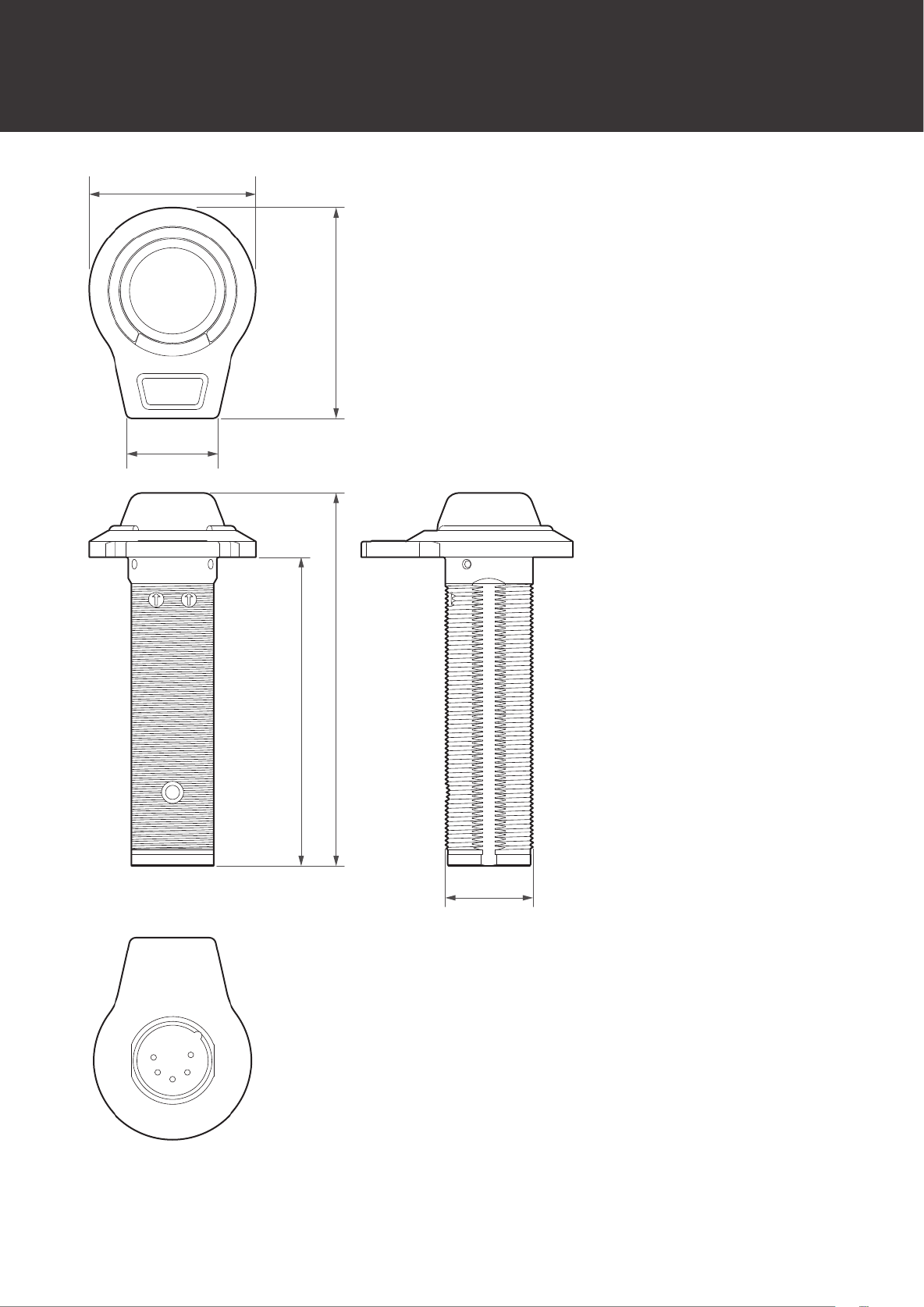

Dimensions
4884.8
70.3
(Unit: mm)
38
20.6
M20 P=1
8
Element Fixed-charge back plate, permanently polarized condenser
Polar pattern Omnidirectional
Frequency response 60 to 15,000 Hz
Open circuit sensitivity -33 dB (0 dB = 1 V/Pa, 1 kHz)
Impedance 60 ohms
Maximum input sound level 130 dB SPL (1 kHz at 1% THD)
Dynamic range 109 dB (1 kHz at Max SPL)
Signal-to-noise ratio 73 dB (1 kHz at 1 Pa, A-weighted)
Phantom power requirements 11-52 V DC, 6.8 mA
Weight 59 g (2.1 oz)
Dimensions 38 mm (1.50”) × 48 mm (1.89”) × 84.8 mm (3.34”) (W × D × H)
Output connector Integral 5-pin XLR-M type
Included accessories Rubber isolator (2 types), Nut
• 1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL
• For product improvement, the product is subject to modification without notice.
Specifications
9

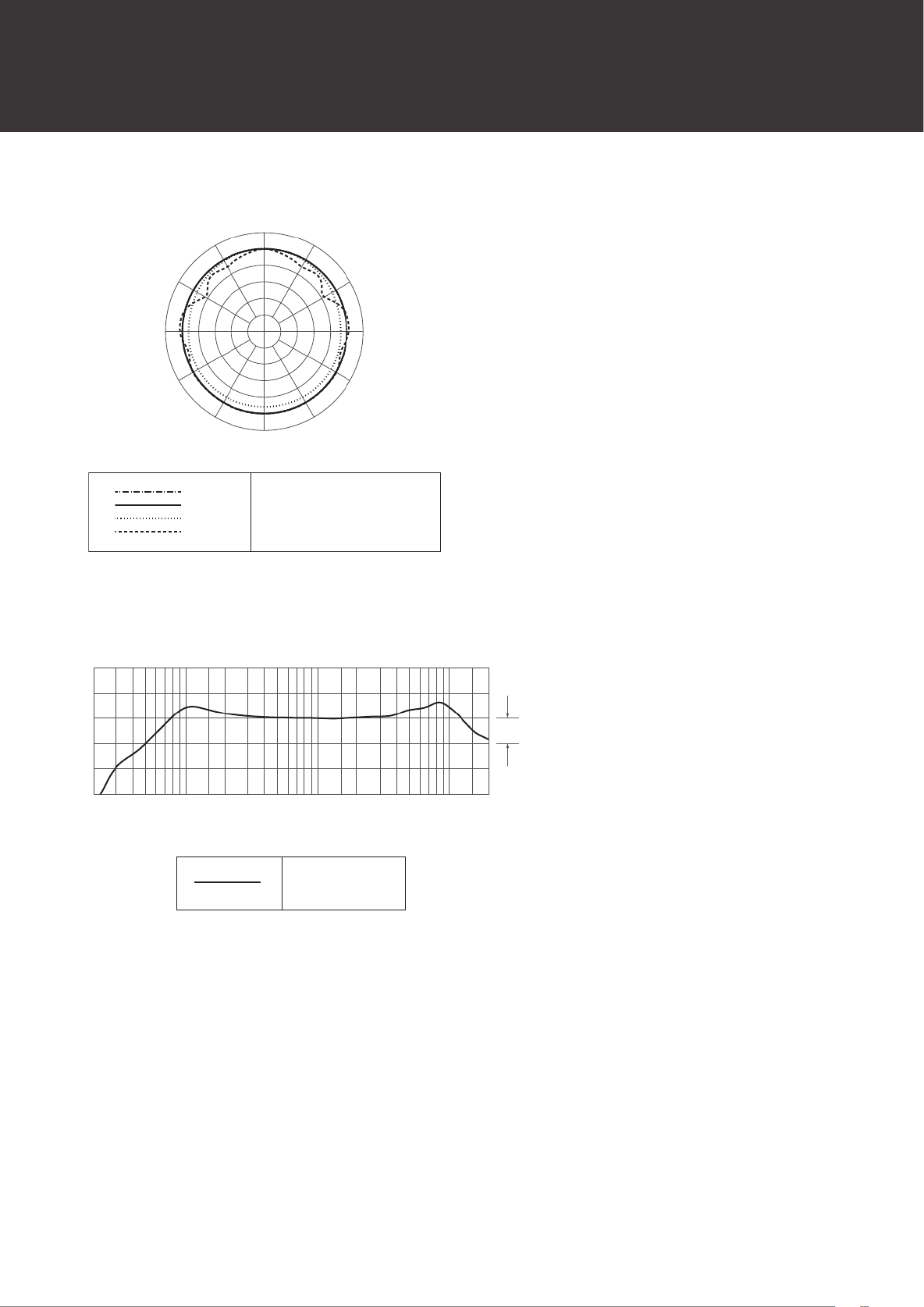

Polar pattern
200 Hz
1 kHz
5 kHz
8 kHz
SCALE IS 5 DECIBELS
PER DIVISION
LEGEND
240˚
180˚
210˚
270˚
300˚
330˚
0˚
150˚
120˚
90˚
30˚
60˚
Frequency response
0°, 50 cm
LEGEND
Frequency in Hertz
Response in dB
10 dB
20
10050 200 10k5k
1k
500 2k 20k
60 - 15,000 Hz
Polar pattern/Frequency response
