µPRE MKII
Portable battery powered stereo microphone preamp with AES/SPDIF digital
output
Thank you for buying our µPRE MKII microphone preamp. We hope our device will become an
essential companion for your sound recordings. This preamp has been designed and manufactured on the
basis of extensive and detailed technical and audio considerations.
The Audioroot µPRE MKII is a high quality microphone preamplifier of yet very simple use. This unit
benefits from the best components available in a very small package. The µPRE MKII has excellent
technical and audio characteristics that make it compatible with the best microphones available. The µPRE
MKII was specially designed to be used as an add-on to your favorite analog mixer, digital audio recorder
or any other pro audio equipment.
The µPRE MKII is an autonomous device that can be powered using 2 x 9V batteries or an external
power source (wall adapter or external Audioroot eSmart Lithium battery).
http://www.audioroot.fr audioroot@audioroot.fr
Ce document est la propriété d'AUDIOROOT, et ne peut-être reproduit ou communiqué sans autorisation
UNPACKING AND INSPECTION
The
µPRE preamplifier
products are carefully checked for good condition before being shipped from
the factory. Despite the protective carton and rugged design, shipping may damage the unit.
Check for possible carton damage when unpacking the unit. Please save the carton for return
shipment if required. AUDIOROOT does not warrant against damage caused by returning products
in other cartons than the original ones or improperly packing the products. If shipping damage is
evident, notify the transportation company immediately. Only the consignee can file a claim with
the carrier for shipping damage. AUDIOROOT will fully co-operate in such an event. Be sure to
save the carton for the shipper to inspect.
Identification and warranty
The unit's serial number is written on the silver sticker at the bottom of the battery compartment.
Never modify, remove or damage this sticker. The unit has a one year warranty from date of
purchase. Only officially appointed dealers or Audioroot are allowed to warranty repair of
Audioroot products. Any damage caused by tampering, misuse or dismantling of the instrument
will not be covered by the warranty and could be considered a reason for rendering the warranty
null and void. Return shipping fees are always at the customer's charge.
Warning
Do not try to repair this product or replace any of it's elements if this user manual does not give
specific instructions on how to do so. This equipment was built with surface mount components and
needs special tooling for repair. The removal of the electronic PCB needs special technical skills.

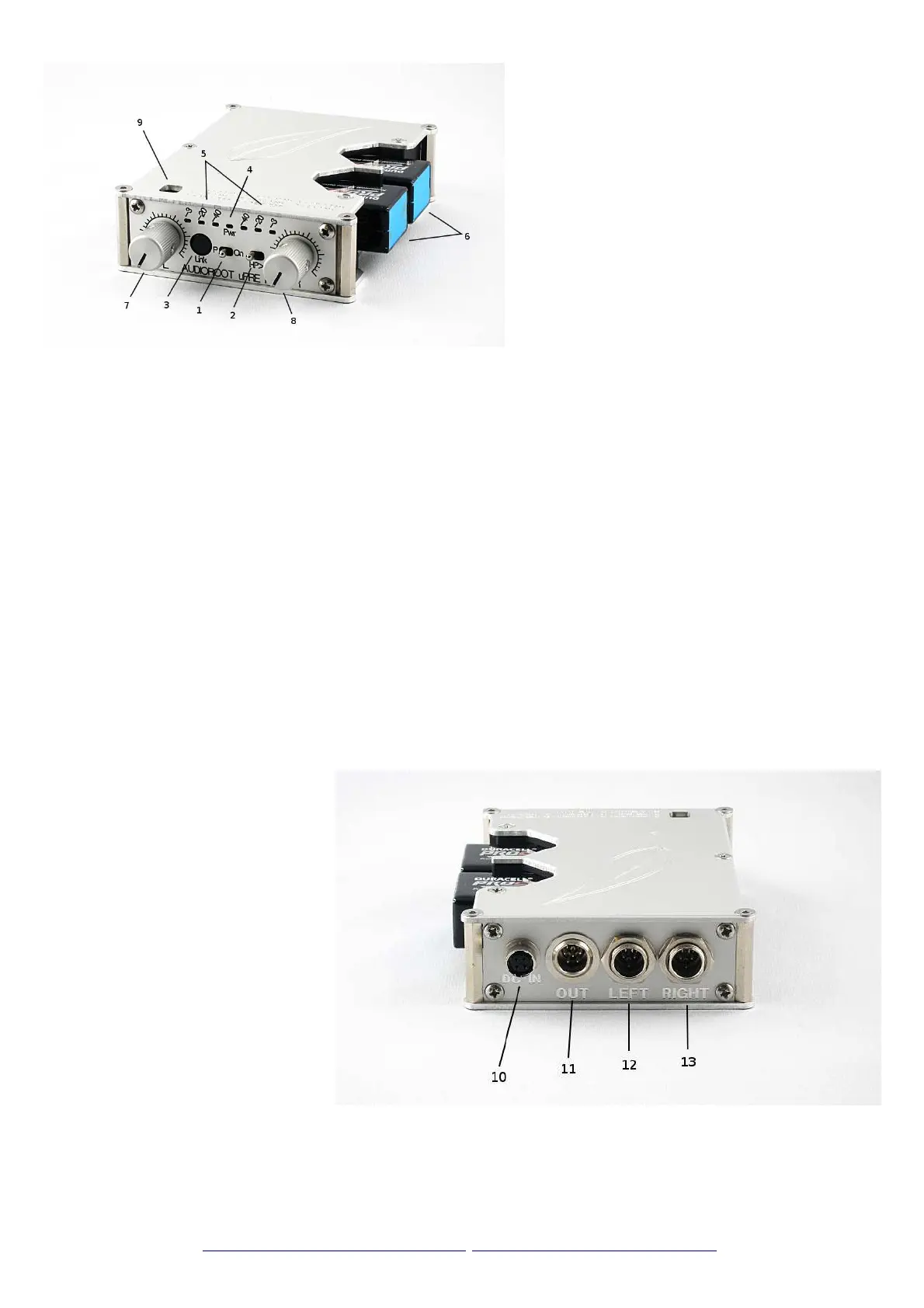

UNIT CONNECTIONS AND CONTROLS:
1. Power supply selection switch.
◦
Central position : power off
◦
On position (to the right): preamp
on, 48V phantom power off
◦
P position (to the left): preamp on,
48V phantom power on
2. Low cut filter selection switch.
◦
HP position: filter in line
◦
Left position: filter off line
3. Push button link selection switch.
◦
Switch engaged : button link is not active ; each potentiometer controls the preamplification
level of each mic input
◦
Switch disengaged : button link is active ; the right potentiometer controls the audio level of
both mic inputs. The left potentiometer is dis-activated.
4. Pwr/low battery level LED indicator. This LED blinks every 750ms when the unit is connected to an
external power supply thru the Hirose input connector. When the unit is powered from the internal
batteries this LED will turn on. The LED will start to blink every 300ms when the battery voltage is
too low. The user should then replace the batteries as soon as possible. The low voltage threshold
is set to 13V (2 x 6.5V). This threshold is compatible with iPOWERUS 9V rechargeable Lipo
batteries.
5. Audio modulation LED indicators.
6. Batteries compartment. This compartment is designed to receive 9V 6LR61 or PP3 batteries.
Audioroot recommends using alkaline or high power rechargeable lipo batteries. Please respect the
+ and – polarities. Never leave batteries in the unit during storage. Use only first choice alkaline or
rechargeable batteries.
7. Left input gain level adjustment potentiometer. Gain can be adjusted from -50dB to +80dB. This
potentiometer is deactivated when the "link" push button is engaged (3).
8. Right input gain level
adjustment potentiometer.
Gain can be adjusted from
-50dB to +80dB. This
potentiometer also controls
the gain level of the left input
when the link function is
activated for stereo
operation.(3).
9. ADC sample rate selector.
Sample rate of the digital
output can be selected from
44.1 to 192kHz with the
rotary encoder. The ADC can
also be shut down to save
battery power.
10. External power input. The mating connector reference is Hirose HR10-7P-4P or HR10A-7P-4P
(crimp style connector). The µPRE MKII can be externally powered thru this connector with a DC
power source ranging from 9 to 18V. Batteries are automatically disconnected when a external
power source is connected. The DC IN input is protected against polarity reversal.
http://www.audioroot.fr audioroot@audioroot.fr
Ce document est la propriété d'AUDIOROOT, et ne peut-être reproduit ou communiqué sans autorisation
