AVer IP Camera

User Manual

Table of Contents

USING THE IP CAMERA BROWSER INTERFACE ............................................................ 1

L V IVE IEW.......................................................................................................................... 1

U MFZ F SING THE UNCTION ................................................................................................. 4

U Q F SING UICK OCUS .......................................................................................................... 7

S > G YSTEM ENERAL ........................................................................................................... 9

S > G > M YSTEM ENERAL AINTENANCE................................................................................... 9

To Upgrade the IP Camera Firmware ....................................................................... 10

S > G > DYSTEM ENERAL ATE IME& T ................................................................................... 11

S > G > S L YSTEM ENERAL YSTEM OG ..................................................................................12

S > U M YSTEM SER ANAGEMENT ......................................................................................... 13

S > U M >YSTEM SER ANAGEMENT A CCOUNT........................................................................ 13

To Create a User Account ........................................................................................13

To Delete or Edit a User Account .............................................................................. 14

S > U M > C YSTEM SER ANAGEMENT ONNECTION...................................................................15

S > N YSTEM ETWORK ........................................................................................................ 16

S > N > S YSTEM ETWORK ETTING........................................................................................ 16

S > N > S YSTEM ETWORK ERVER......................................................................................... 18

S > N > S YSTEM ETWORK TREAMING ...................................................................................19

S > N > Q S YSTEM ETWORK O ............................................................................................. 20

S > N > O YSTEM ETWORK THERS ........................................................................................ 21

S > S YSTEM ECURITY ........................................................................................................ 23

S > S >YSTEM ECURITY IP ILTERF ....................................................................................... 23

To Add Filter ............................................................................................................. 23

S > S > 802.1X YSTEM ECURITY .........................................................................................25

S > S > RTSPYSTEM ECURITY A . UTH .................................................................................. 26

S > I YSTEM MAGE .............................................................................................................. 27

S > I > OSD YSTEM MAGE ..................................................................................................27

S > I > P YSTEM MAGE REFERENCE....................................................................................... 28

S > I > E YSTEM MAGE XPOSURE .......................................................................................... 29

S > I > AYSTEM MAGE DVANCED........................................................................................... 30

S > I > PYSTEM MAGE RIVACY MASK ....................................................................................32

S > S S YSTEM TREAM ETTING .............................................................................................33

S > S S YSTEM MART TREAM ................................................................................................ 35

S >YSTEM A UDIO .............................................................................................................. 36

S > SD/ C > M YSTEM MICROSD ARD ANAGEMENT ................................................................. 37

S > SD/ C > F S YSTEM MICROSD ARD ILE EARCH................................................................... 38

APPLICATION OTION ETECTION> M D ................................................................................... 39

To Set the Motion Detection .....................................................................................39

APPLICATION ROSS ETECTION> C D ....................................................................................40

To Set the Cross Detection ....................................................................................... 41

APPLICATION E> PTZ ........................................................................................................ 42

To Setup the ePTZ .................................................................................................... 42

E S VENT ETTING ...............................................................................................................44

To Setup the Event ................................................................................................... 44

STATUS NFORMATIONI ....................................................................................................... 47

U RTSPSING AND ROTOCOL TO CCESS THE AMERAONVIF P A IP C ....................................... 48

COPYRIGHT ...................................................................................................................... 49

NOTICE .............................................................................................................................. 49

ENGLISH

Using the IP Camera Browser Interface

The admin user has full access to the IP camera browser interface. Going through the menu on the left,

you can expand and navigate to access all features conﬁgurable on the camera .

Open the IE browser and enter the IP address of IP camera to access the Web conﬁguration interface.

In login dialog, enter the ID and Password (default is admin admin/ ).

Live View

In the Live View page, all three user levels can view and change the language setting, the IP camera

video stream setting, use the digital or RS-485 Pan and Patrol control, capture screen shot, record

video, turn on/oﬀ 2-way talk, mic and volume, and adjust the zoom and volume level.

Name

Function

(1) Language

Select the browser interface language.

(2) Protocol Type

Select the protocol for the live view video stream.

Name

Function

(3) Video screen

Change the video screen display.

Display the actual video pixel size.

Display the video screen in compact size.

Display the video on the entire screen. Press ESC to exit full

screen mode.

(4) Stream

Switch to view the video stream type. The IP camera can send

multiple video streams of up to 3 types. To change the video stream

setting, go to System > Video Stream.

(5) Direction buttons

- Use to move the position of the view point while in zoom mode.

- Use to control the position of the RS-485 pan tilt device

(6) Pan & Patrol button

Pan: automatically move the view point from left to right when in

zoom in mode.

Patrol: automatically move the view point around the preset locations

in Application > Patrol.

(7) Digital /RS-485

- Select Digital to control the IP camera ePTZ operation. This

allows you to closely view the target area without having to

physically move the IP camera. The image will be zoomed in and

you can use the direction control to pan the zoomed image. al

- Select RS-485 to control the PTZ driver or scanner via RS-485

connection to I/O terminal block. The IP camera is mounted on

an RS-485 pan tilt device.

(8) Speed control

Set the speed when panning, tilting, or zooming.

(9) MFZ function

Motorized focus and zoom the IP camera(see aslo Using MFZ

Function)

(10) Zoom control

Reset zoom level.

Increase zoom level.

Decrease zoom level.

(11) Quick Focus

It help user to adujst foucs of IP camera more easily(see aslo Using

Quick Focus).

(12) Capture

Capture and save the image on the screen in *.bmp format.

ENGLISH

Name

Function

(13) Record

Start/stop audio and video recording. The recorded video will be

saved in *.mp4 format.

(14) 2-way talk

Enable/disable mic from IP camera browser side.

(15) Mic

Enable/disable mic from the IP camera side.

(16) Sound

Enable/disable audio from the IP camera side.

(17) Volume bar

Adjust the volume.

Using the MFZ Function

Only IP cameras that motorized lens can perform the MFZ function(motorized focus and zoom).have

 MFZ supported model list

Camera Type

Model

Rugged Bullet

FB2028- TM

Rugged Bullet

FB3028-RTM

Vantal Dome

FV2028- TM

Vantal Dome

FV3028-RTM

Dome

FD2020-M

Dome

FD3020-M

To user MFZ function

1. In preview UI, click (MFZ button).

ENGLISH

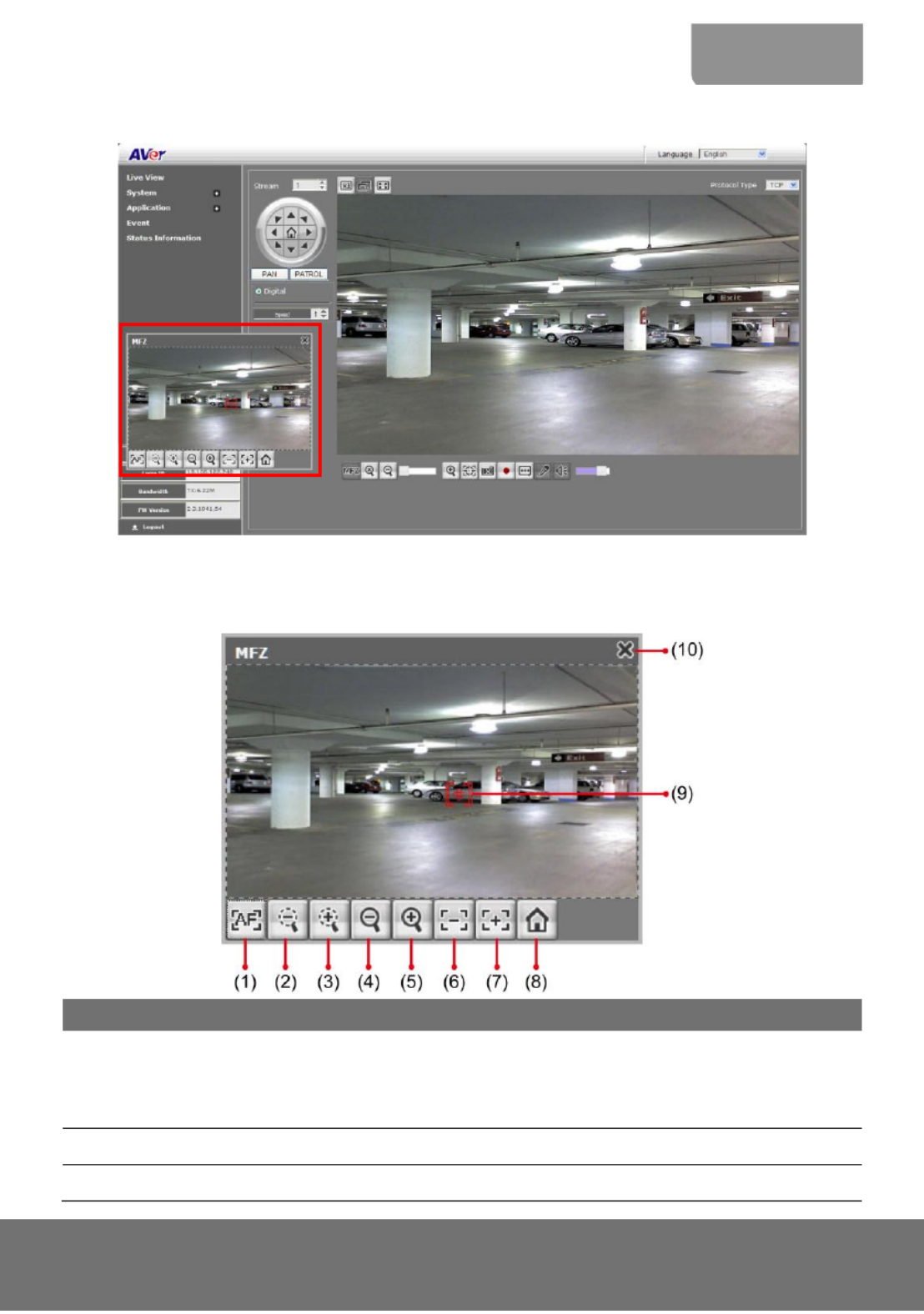

2. A MFZ window will show up on the screen.

3. User can click the object or point on screen to foucs or use the function buttons on MFZ window to

do the focus adjustment.

4. The function buttons of the MFZ window are described below:

Name

Function

(1) Auto focus

Automatically focus on the center of the screen view. If user click ed on

any point/object in the view, the focus will be centered on the

point/object the user has clicked on.

(2) One step zoom out

To zoom in step by step for ﬁner focus adjustment.

(3) One step zoom in

To zoom out step by step for ﬁner focus adjustment.

Produkt Specifikationer

Mærke:	AVerMedia
Kategori:	Overvågningskamera
Model:	FV1306
Kode for international beskyttelse (IP):	IP66
Type:	IP-sikkerhedskamera
Bredde:	80 mm
Dybde:	80 mm
Højde:	67 mm
Vægt:	350 g
Produktfarve:	Hvid
Kompatible hukommelseskort:	MicroSDHC
Wi-Fi:	Ingen
USB-port:	Ingen
Formfaktor:	Kuppel
Understøttede videotilstande:	720p
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Understøttede videoformater:	H.264,M-JPEG,MPEG4
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	1280 x 1024 pixel
Beskyttelsesfunktioner:	Dust resistant,Water resistant
Understøttede grafikopløsninger:	1024 x 800,1280 x 1024 (SXGA)
Forbindelsesteknologi:	Ledningsført
Kabelteknologi:	10/100Base-T(X)
Understøttede netværksprotokoller:	HTTP, HTTPS, TCP/IP (IPv4, IPv6), SNMP, QoS/DSCP, Access list, RTSP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP (video only), Samba, Bonjour
Webbaseret administration:	Ja
IP-adresse filtrering:	Ja
Strømkilde type:	PoE
Monteringstype:	Loft
Indbygget kortlæser:	Ja
Full HD:	Ingen
Indbygget HDD:	Ingen
Understøttet placering:	Indendørs & udendørs
Mikrofonindgang:	Ja
Medfølgende software:	NXU Lite
Sensortype:	CMOS
Samlet antal megapixels:	1.3 MP
Optisk zoom:	- x
Fokusindstilling:	1.6
Grænseflade:	RJ-45
Maksimal størrelse på hukommelseskort:	32 GB
Plug and play:	Ja
Hældningsvinkelområde:	20 - 90 °
Strøm over Ethernet (PoE):	Ja
Bredt dynamikområde (WDR):	Ja
Dag/nat funktion:	Ingen
Minimumsbelysning:	1.6 Lux
Panoreringsområde:	0 - 360 °
Optisk sensorstørrelse:	1/4 "
Fast brændvidde:	4.2 mm
Nattesyn:	Ingen
Billedhastighed:	30 fps
Bevægelsessensor (video):	Ja
HTTPS -kryptering:	Ja
DC udgangsspænding:	+12V
Overholdelse af branchestandarder:	IEEE802.3af PoE
Adgangskodebeskyttelse type:	Bruger
Objektivets synsvinkel, vandret:	52.6 °
Objektivets synsvinkel, lodret:	32.9 °
