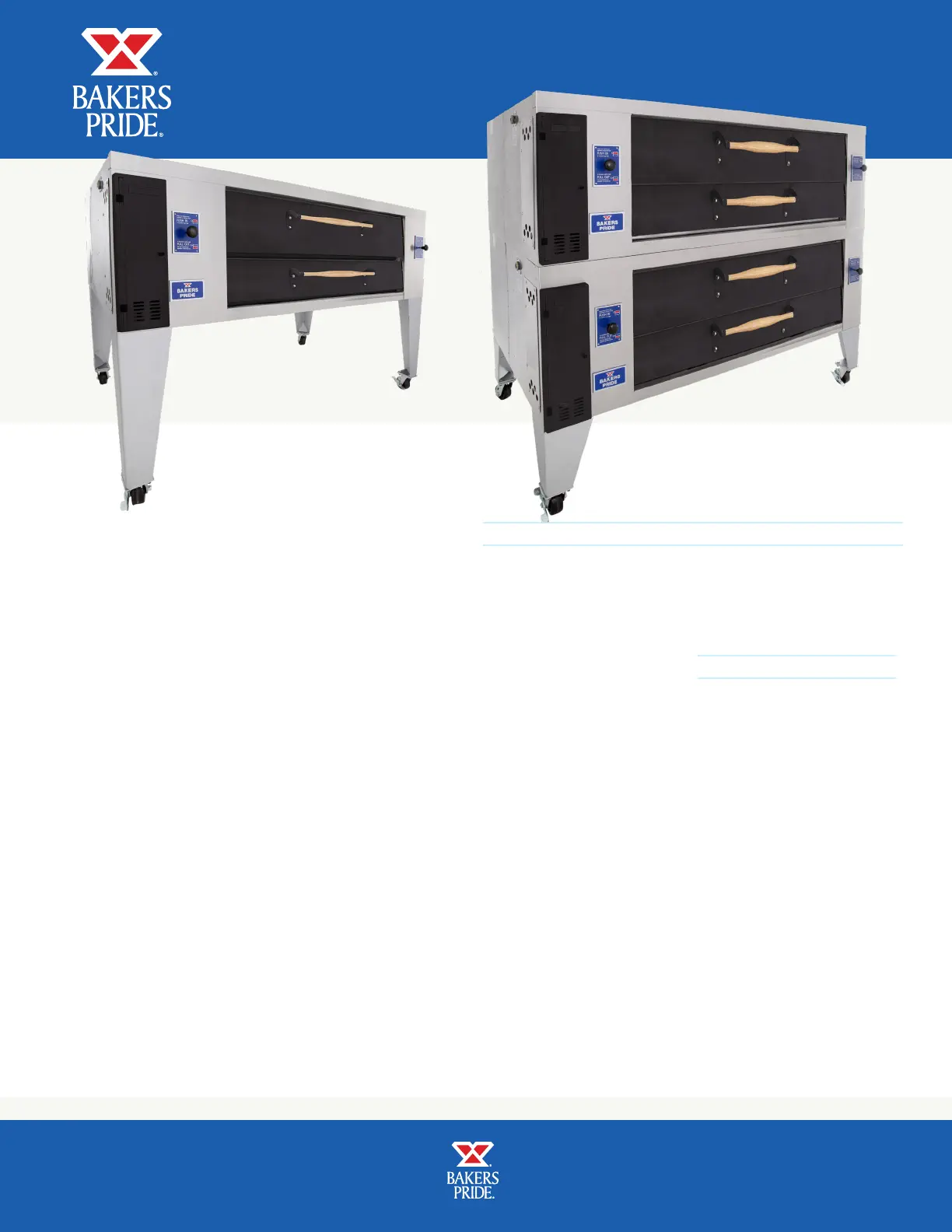

FEATURES AT A GLANCE
Bakers Pride
®
Y-DSP series deck ovens feature the largest
prole of our display ovens and is perfect for high-volume
pizza and all-purpose baking operations. These models are
designed to be built in behind a decorative facade of brick,
stone, or tile. Front and side skirts allow tile or stone to be
easily installed around the legs, while a dome top accent
nishes off the old-world look. You also have the choice
to simply display the oven in stainless steel or nish with
black-powder-coated control panel and doors with hardwood
handles for an elegant touch.
Models are available in your choice of Lightstone Fibrament
decks with an 8" deck height or brick-lined decks, which offer
faster baking and recovery times and deck height of 7.5". This
series also features independently controlled top and bottom
heat dampers to ensure perfectly balanced results. Choose
from two different deck areas and overall oven widths (78" or
84") to suit your needs.
The Y-DSP is constructed with heavy-duty angle iron frame,
which is fully welded to allow for double-stacking. Oven
exteriors are all heavy-duty stainless steel and are fully
insulated for cooler outer temperatures and consistent interior
temperatures.
Options are available to accommodate the conguration of
your kitchen, such as side-mounted controls and legs with
casters.
SERIES: Y-DSP
• 120,000 total BTUH with natural
or LP gas
• 300–650°F (148–343°C)
temperature range
• Choose deck area: 60" x 36" or
66" x 44"
• Choose overall width: 78" or 84"
• 2" (51 mm) thick Lightstone
fibrament or brick-lined decks
• 8" (203 mm) deck height
(7.5" (191 mm) for brick-lined)
• Stackable
• Independently controlled top
and bottom heat dampers
• Front- or side-mounted gas
controls with valve, regulator, and
pilot safety
• Heavy-duty, slide-out flame
diverters
• All stainless steel exteriors,
aluminized steel interiors
• Choose stainless steel or trimmed
with black-powder-coated control
panel and doors with hardwood
handles
• Front and side skirts for mounting
tile or stone
• Spring-balanced, fully insulated
doors
• Left-side or rear 3/4" (19 mm)
SUPERDECK SERIES 8" DECK HEIGHT DISPLAY GAS PIZZA OVENS
• Draft flue for direct vent
• Automatic oven starter
(comes with 120v plug)
• Side-mounted controls
(Specify when ordering.)
• Deck brush and scraper with long
wood handle
• Stainless steel wood chip box
• Legs with casters
• Cordierite or steel decks
• Heavy-duty steel legs finished with
durable Bakertone
• Dome top accent
OPTIONS & ACCESSORIES
NPT gas connection
• Fully insulated throughout
• One-year limited warranty
2M-Z24872 REV C (07-23)
EQUIPMENT DIMENSIONS
Freight Class: 77.5
FOB Smithville 37166
REQUIRED CLEARANCES
Non-Combustible Construction Combustible Construction
Left 0" (0 mm) 1" (25 mm)
Right 0" (0 mm) 3" (76 mm)
Back 2" (51 mm) 3" (76 mm)
GAS CONNECTIONS
3/4"
Each deck requires a separate gas connection
MECHANICAL SPECIFICATIONS
Model # Overall Dim••
(W x H x D)
Total
BTUH
kW Deck
Height
Deck Size Decks Baking
Chambers
Thermostat
Range
Carton Dim
(W x H x D)
Cubic
Feet
Cubic
Meter
Ship Wt.•
Y-600-DSP
78" x 55.12" x 43"
(1981 x 1400 x 1092)
120,000 35.15 8"
(203)
60" x 36"
(1524 x 914)
1 1 300°-650°F
(149-343)
31" x 82" x 53"
(787 x 2083 x 1364)
76 2.4 1338
(607kg)
Y-602-DSP
78" x 66.25" x 43"
(1981 x 1683 x 1092)
240,000 70.3 8"
(203)
60" x 36"
(1524 x 914)
2 2 300°-650°F
(149-343)
* * * 2676
(1214kg)
Y-600BL-DSP
†
78" x 55.12" x 43"
(1981 x 1400 x 1092)
120,000 35.15 7.5"
(191)
60" x 36"
(1524 x 914)
1 1 300°-650°F
(149-343)
31" x 82" x 53"
(787 x 2083 x 1364)
76 2.4 1338
(607kg)
Y-602BL-DSP
†
78" x 66.25" x 43"
(1981 x 1683 x 1092)
240,000 70.3 7.5"
(191)
60" x 36"
(1524 x 914)
2 2 300°-650°F
(149-343)
* * * 2676
(1214kg)
Y-800-DSP
84" x 55.12" x 51"
(2134 x 1400 x 1295)
120,000 35.15 8"
(203)
66" x 44"
(1676 x 1118)
1 1 300°-650°F
(149-343)
31" x 86" x 60"
(787 x 2184 x 1524)
78 2.8 1542
(699kg)
Y-802-DSP
84" x 66.25" x 51"
(2134 x 1683 x 1295)
240,000 70.3 8"
(203)
66" x 44"
(1676 x 1118)
2 2 300°-650°F
(149-343)
* * * 3084
(1399kg)
Y-800BL-DSP
†
84" x 55.12" x 51"
(2134 x 1400 x 1295)
120,000 35.15 7.5"
(191)
66" x 44"
(1676 x 1118)
1 1 300°-650°F
(149-343)
31" x 86" x 60"
(787 x 2184 x 1524)
78 2.8 1542
(699kg)
Y-802BL-DSP
†
84" x 66.25" x 51"
(2134 x 1683 x 1295)
240,000 70.3 7.5"
(191)
66" x 44"
(1676 x 1118)
2 2 300°-650°F
(149-343)
* * * 3084
(1399kg)
* Each oven ships in separate carton as do the legs. Refer to the single unit for carton specs. Shipping weight shown includes all decks and legs.
**Height includes 30" (762 mm) legs on single units and 16" (406 mm) on stacked units. Height excludes 9.87" dome accent.
†
BL in model # represents a brick-lined model

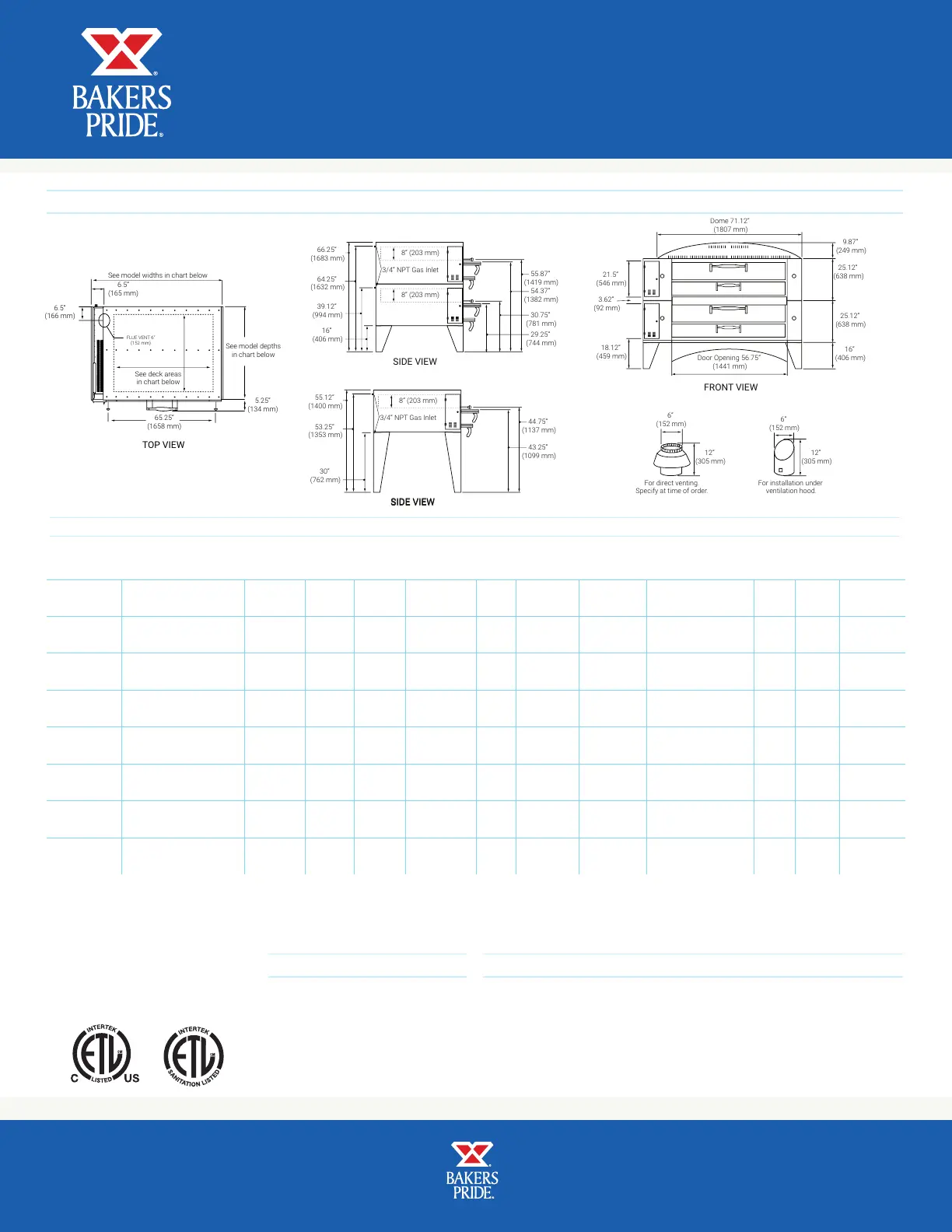

SERIES: Y-DSP
SUPERDECK SERIES 8" DECK HEIGHT DISPLAY GAS PIZZA OVENS
FLUE VENT 6”
(152 mm)
65.25”
(1658 mm)
5.25”
(134 mm)
See model widths in chart below
See model depths
in chart below
See deck areas
in chart below
6.5”
(166 mm)
6.5”
(165 mm)
TOP VIEW
66.25”
(1683 mm)
55.87”
(1419 mm)
54.37”
(1382 mm)
30.75”
(781 mm)
29.25”
(744 mm)
64.25”
(1632 mm)
39.12”
(994 mm)
16”
(406 mm)
8” (203 mm)
3/4” NPT Gas Inlet
8” (203 mm)
SIDE VIEW
25.12”
(638 mm)
21.5”
(546 mm)
3.62”
(92 mm)
18.12”
(459 mm)
25.12”
(638 mm)
9.87”
(249 mm)
Dome 71.12”
(1807 mm)
Door Opening 56.75”
(1441 mm)
16”
(406 mm)
FRONT VIEW
SIDE VIEW
55.12”
(1400 mm)
44.75”
(1137 mm)
43.25”
(1099 mm)
53.25”
(1353 mm)
30”
(762 mm)
8” (203 mm)
3/4” NPT Gas Inlet
SIDE VIEW
12”
(305 mm)
12”
(305 mm)
For installation under
ventilation hood.
For direct venting.
Specify at time of order.
6”
(152 mm)
6”
(152 mm)
Bakers Pride reserves the right to modify
specications or discontinue models without
incurring obligation. Dimensions nominal.
www.bakerspride.com | p: 800-527-2100 265 Hobson St. Smithville, TN 37166
2M-Z24872 REV C (07-23)
