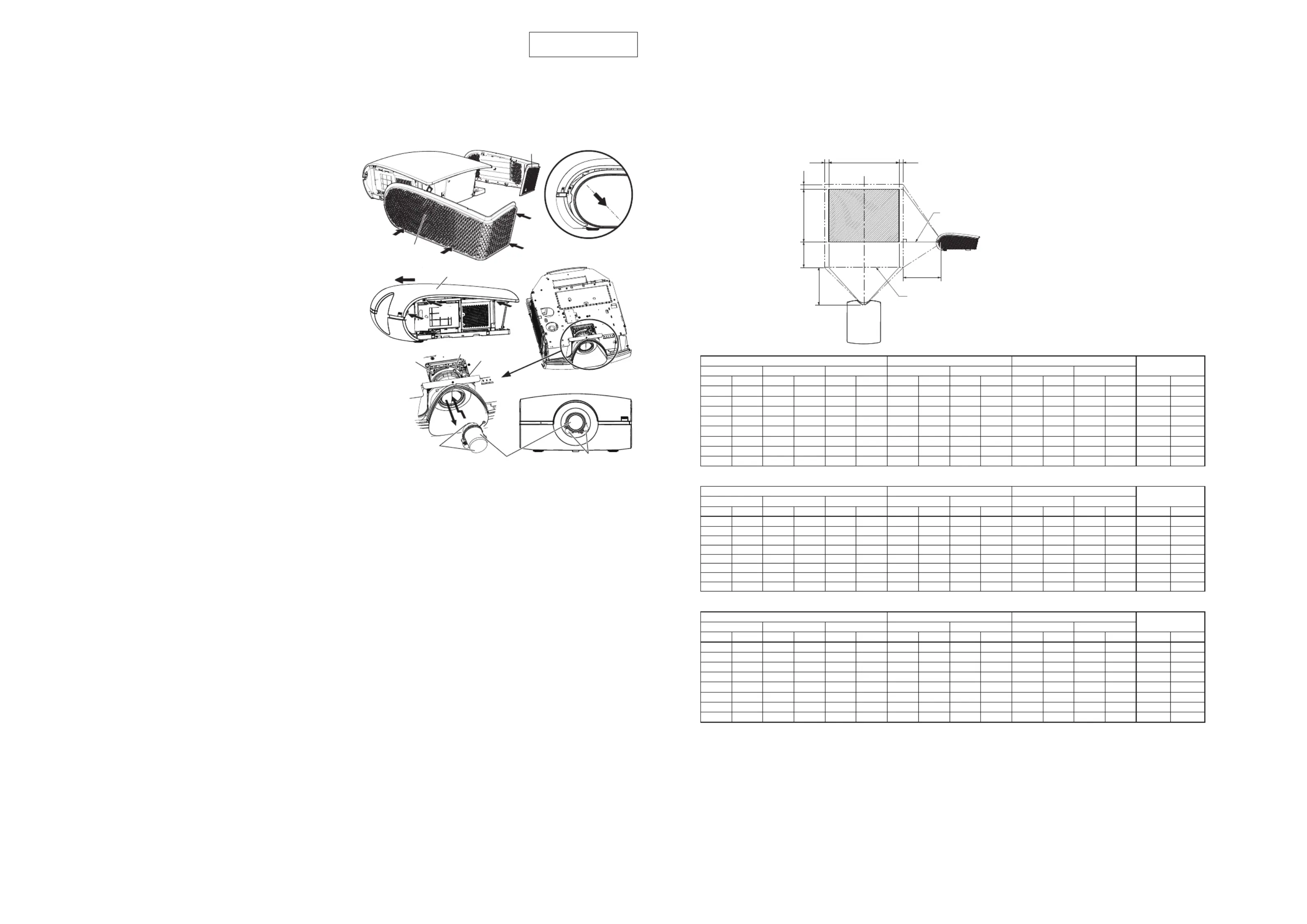

OPTION LENS
H LENS 2.8-4.5
Lens Mounting Manual
Lens mounting must be performed by service personnel.
Check that the lens shift is at the factory default position (or the lens shift reset position) before mounting the option lens.
Be sure to turn off the projector and unplug the power cord from the wall outlet before mounting the option lens.
Lens mounting procedure
Check after mounting the lens
After replacing the lens, be sure to check the following for ensuring safety.
Check that the connector for the zoom/focus motor is locked securely.
Check that no lead wires are caught in mechanical parts.
Cautions after mounting
Do not transport the projector with the option lens mounted. The projector may be damaged.
With the option lens mounted, the brightness, resolution, and color uniformity in the projected image may differ from those with
the standard lens.
With the option lens mounted, the adjustable angle in the keystone adjustment differs from that with the standard lens.
In the keystone adjustment with the option lens mounted, the proper aspect ratio may not be obtained.
Projected images may become distorted, have decreased resolution, or have shadows at their corners if they are positioned close
to the top (or bottom in the case of a ceiling-mount projector) or right or left edge of the effective projection area shown on the
right.
For details about ZOOM/FOCUS adjustment and LENS SHIFT LOCK, see User Manual of the projector.
Be careful not to caught in the opening in the lens while the lens is moving.
ENGLISH
Specifications
F No. F2.2-2.7
Focal distance f = 40.7-65.1 mm
Zoom/focus Electrical drive
Screen size and projection distance
XGA model
Screen size (4:3) Projection distance (L) Lens shift height
Lens shift width
(W1)
Diagonal size Width (W) Height (H) Shortest (Wide) Longest (Tele) H1 H2
inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm
40 102 32 81 24 61 - - 148 3.8 12 30 2 6 3 8
60 152 48 122 36 91 136 3.5 224 5.7 18 46 3 9 5 12
80 203 64 163 48 122 183 4.7 301 7.6 24 61 4 11 6 16
100 254 80 203 60 152 230 5.8 377 9.6 30 76 6 14 8 20
150 381 120 305 90 229 348 8.8 568 14.4 45 114 8 21 12 30
200 508 160 406 120 305 465 11.8 759 19.3 60 152 11 28 16 41
250 635 200 508 150 381 583 14.8 951 24.1 75 191 14 36 20 51
300 762 240 610 180 457 701 17.8 1142 29.0 90 229 17 43 24 61
WXGA model
Screen size (16:10) Projection distance (L) Lens shift height
Lens shift width
(W1)
Diagonal size Width (W) Height (H) Shortest (Wide) Longest (Tele) H1 H2
inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm
40 102
34 86 21 54
- - 159 4.0 10 25 5 12 3 9
60 152
51 129 32 81
147 3.7 241 6.1 15 37 7 17 5 13
80 203
68 172 42 108
197 5.0 323 8.2 19 49 9 23 7 17
100 254
85 215 53 135
248 6.3 406 10.3 24 62 11 29 9 22
150 381
127 323 79 202
374 9.5 611 15.5 36 92 17 43 13 33
200 508
170 431 106 269
500 12.7 816 20.7 49 123 23 58 17 44
250 635
212 538 132 337
627 15.9 1021 25.9 61 154 28 72 21 55
300 762
254 646 159 404
753 19.1 1227 31.2 73 185 34 86 26 65
WUXGA model
Screen size (16:10) Projection distance (L) Lens shift height
Lens shift width
(W1)
Diagonal size Width (W) Height (H) Shortest (Wide) Longest (Tele) H1 H2
inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm
40 102 34 86 21 54 - - 151 3.8 10 26 4 10 3 8
60 152 51 129 32 81 139 3.5 229 5.8 15 39 6 15 5 12
80 203 68 172 42 108 187 4.8 308 7.8 21 52 8 20 7 17
100 254 85 215 53 135 235 6.0 386 9.8 26 66 10 25 8 21
150 381 127 323 79 202 355 9.0 581 14.8 39 98 15 37 12 31
200 508 170 431 106 269 475 12.1 776 19.7 52 131 20 50 16 42
250 635 212 538 132 337 595 15.1 972 24.7 65 164 24 62 20 52
300 762 254 646 159 404 716 18.2 1167 29.6 77 197 29 75 25 62
The above numbers are approximate and may be slightly different from the actual measurements.
The lens shift height and width show distances from the factory default position.
L
L
W1W1
H1 H2H
W
Maximum projection area
Center of the lens
1. Loosen the four screws (a) of the Side cover and release the
Side cover in the direction of the arrow (b) from the unit.
Release the Side cover of the left and right.
2. Remove the six screws (c) securing the Top cover.
(There are three screws each on the left and right.)
Release the Top cover in the direction of the arrow (d) from the unit.
3. Release the connector (e) for the zoom/focus motor of the standard
lens.
4. While holding down the lock button (f), slightly turn the fixed ring (g)
counterclockwise to release the lock.
5. While holding the lens to prevent it from falling, turn the fixed ring (g)
6.
fully counterclockwise to unlock the lens.
Remove the standard lens in the arrow’s direction.
ar re. (Remove the lens caps before e positioned as shown by the figu
attaching the option lens.)
8.
7.
Turn the fixed ring (g) until it is put into place (and the lock button (f)
clicks into place) to secure it.
9. Lock the connector for the zoom/focus motor of the option lens.
10. Mount the top cover in the reverse order of removal.
11. Mount the side cover of the left and right in the reverse order of removal.
Attach the option lens in the arrow’s direction so that the motors (h)
13/12/2013
Printed in Hyogo Japan
•
•
•
•
•
•
•
•
•
•
•
•
•
(e)
(
f
)
(g)
(
h
)
Option lens
Lens cap
Direction to release
the side covers from the unit.
Top cover
Side cover
Side cover
(c)
(c)
(c)
(d)
(b)
(a)
(a)
(a)
(a)
