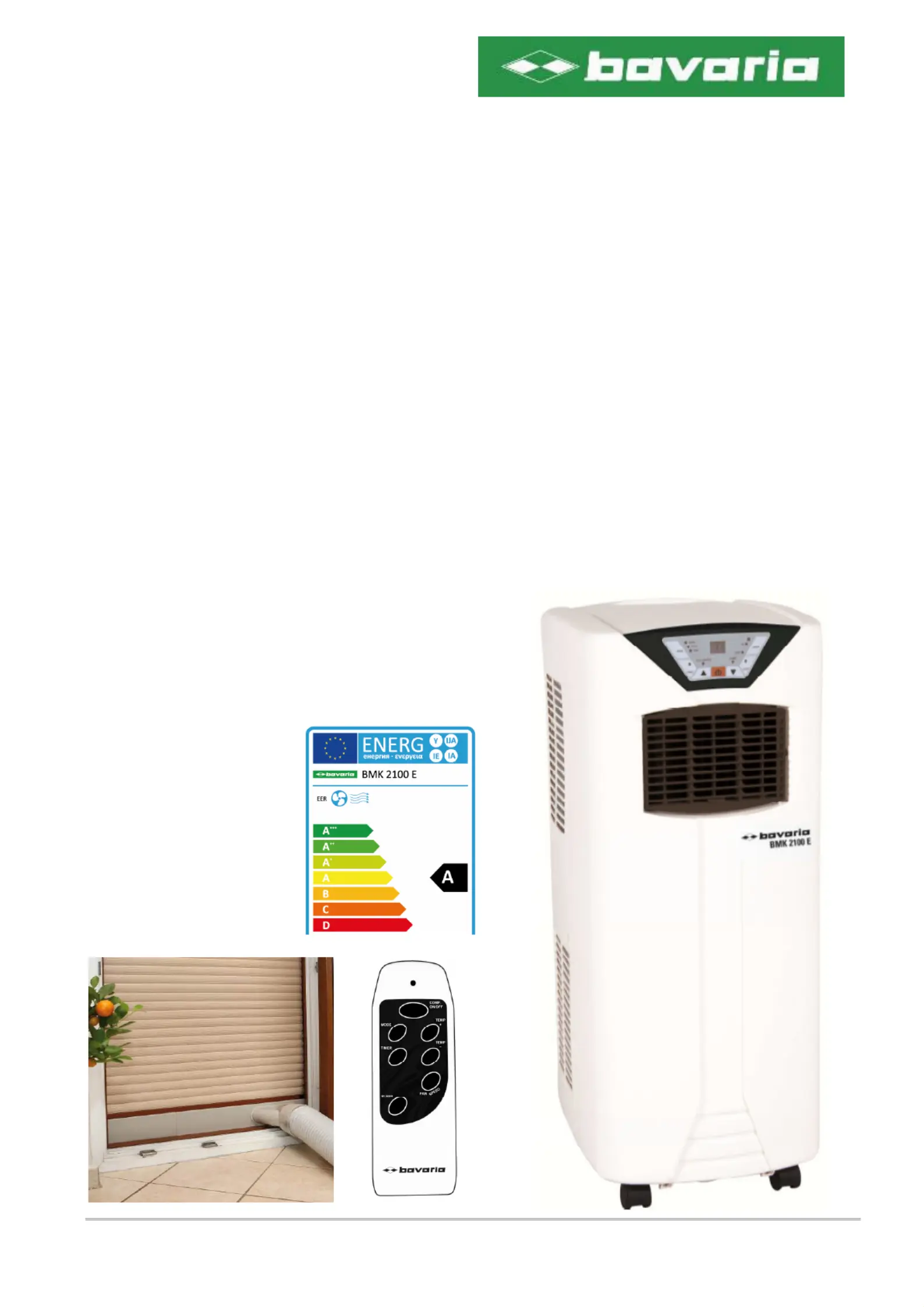

Mobile and compact air conditioner, which provides a comfortable indoor climate. Cooling and dehumidifying in one
unit. The unit is completely assembled and ready for service after the exhaust hose has been connected. With soft keys
and the remote control all operating levels can be set and also the air conditioner can be switched on/off. The thermostat
regulation provides a well-balanced indoor climate. This model is suitable for rooms of max. 50 m
- Energy-Efficiency-Class: A
- Energy use when cooling: 403 kWh per year
- Mains: 220 – 240 V ~ 50 Hz
- Cooling capacity: 2,100 W
- Air circulation max.: 370 m³/h
- Exhausted room humidity
max. (30° C / 80% RH): approx. 14 l a day
- Quantity of coolant: 350 g
- Housing dimensions H x W x D: 752 x 305 x 383 mm
- Net weight approx.: 20.5 kg
- Gross weight approx.: 24 kg
- Large control panel with LED-Display
- Air discharge opening lamellas are adjustable
mechanically in vertical and horizontal position
- Exhaust air hose with adaptor (L max. 150 cm)
- Air suction filter with activated carbon filter
- Condensate return in the cooling operation – no
condensate box emptying necessary
- Integrated condense water box (approx. 0.85 l capacity)
- by very high humidity (> 80%) is a constant drainage via
a condense water hose possible
- Temperature level: +18° C up to +32° C
- Operating level section (Mode): Autom., cooling, fan
- Power on-time / Switch-on delay: 1 to 12 h, Continuous
- Automatic, cooling, fan
- Condense water box full
