Your Avion® Home Theater Furniture is engineered for easy assembly.

Carefully follow this procedure to prevent any damage.

Placement and Maintenance

Avion® Home Theater Furniture is designed for indoor use on level floors.

Clean glass with glass cleaner, and steel parts and wood veneer with a

moist cloth.

Step 1

Unpack and identify the components at left. Note that some components

are shipped inside the cabinet. The assembly workspace should be a non-

marring surface such as carpet. For missing hardware pieces, please

contact BDI Customer Service at customerservice@bdiusa.com. For all

other concerns, please contact your BDI Retailer.

Step 2

Build and Install Base Assembly

First, remove all internal components from the cabinet including shelves,

hardware box and legs. Carefully lay Assembled Cabinet (F) back-side

down. Using the Hollow Bolt Wrench (C), remove the four (4) pre-installed

Hollow Bolts (D) Metal Leg (H).from Screw the Metal Rail (G) to the top

of with Metal Leg (H) Hollow Bolts (D).

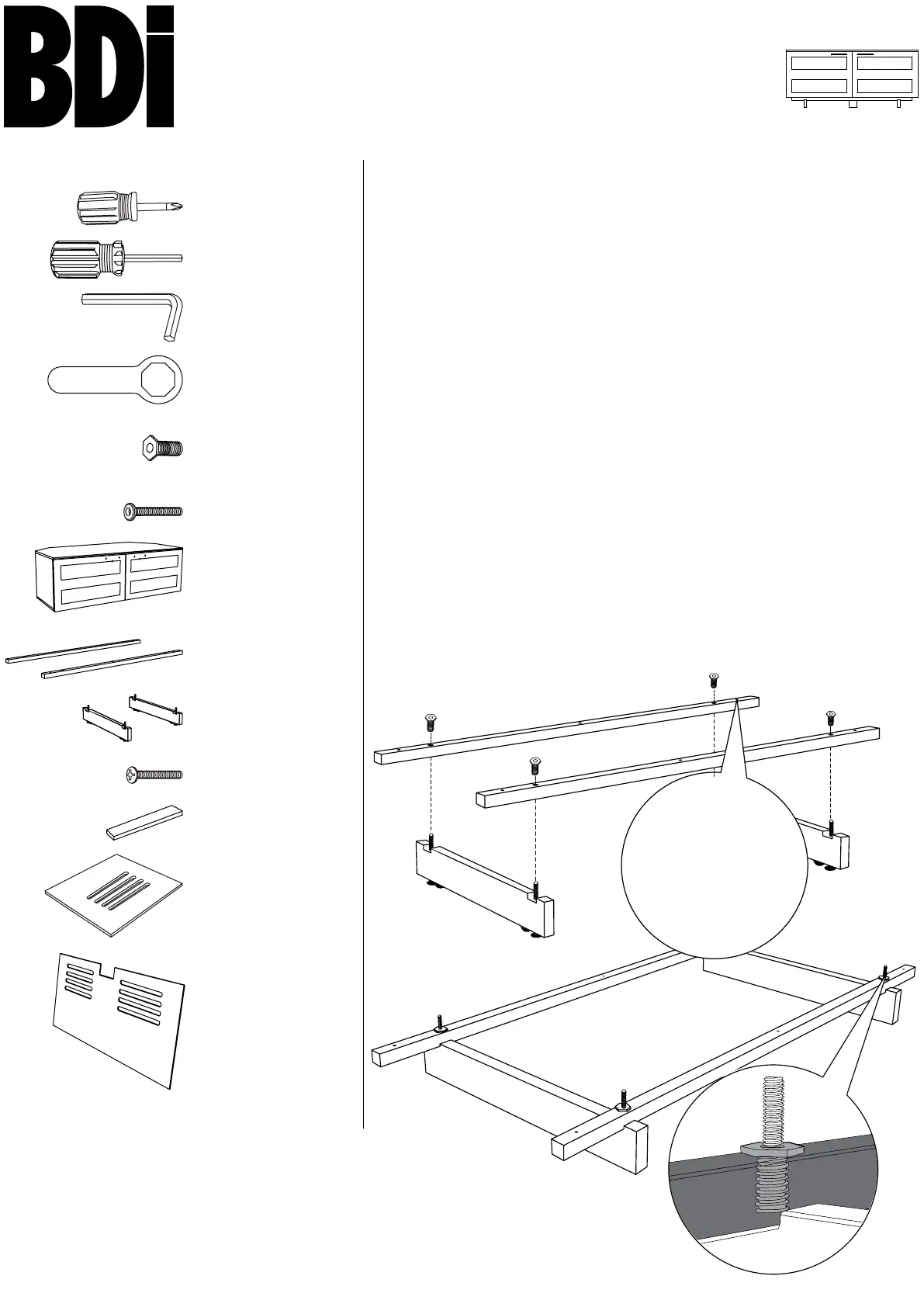

Component List

These distinctive product configurations are protected by US and international

patents, trade dress, and/or copyright laws. “Avion” and BDI are trademarks of

Made in China. 102909v289225REV

Av i o n

8925

a s s e m b l y i n s t r u c t i o n s

bdiusa bdiusa.com customerservice@ .com

D - Hollow Bolts x 4

Pre-installed on

Metal Legs (H)

A - Phillips Screwdriver

x 1

C - Hollow Bolt Wrench

x 1

F - Assembled Cabinet

x 1

E - 1/4”-20 x 2”

Machine Screw x 6

G - Metal Rail x 2

I - M4 x 25mm Screws

x 4

J - Handle x 2

K - Adjustable Shelf

x 2

M - Back Panel x 1

H - Metal Leg x 2

B - 4mm Hex Driver

x 2

Completed base assembly

Detail view of Hollow Bolts (D)

connecting the to Metal Rail (G)

the top of .Metal Leg (H)

NOTE: Make sure

that the larger bolt

opening on Metal Rail

(G) faces toward the

floor.

assembly instructions

bdiusa bdiusa.com customerservice@ .com

Step 4

Install on the doors and drawers using theHandles (J) M4 x

25mm Screws (I) Phillips Screwdriver (A) and the supplied.

Step 3

Carefully lay Assembled Cabinet (F) back-side down. Using

one of , attach the completed base 4mm Hex Drivers (B)

assembly to the bottom of the Assembled Cabinet (F) with

1/4”-20 x 2” Machine Screws (E). *Note: Each of the

metal legs has levelers that can be adjusted from inside the

cabinet using one of the 4mm Hex Drivers (B).

Adjustable shelf pins (pre-installed) may be repositioned,

allowing you to raise or lower the adjustable shelf to the

desired level. Install Adjustable Shelf (K) inside the left and

right cabinet area. *Note: To place the adjustable shelf

inside the cabinet, the shelf must be tilted sideways to clear

the door opening.

Completed base

assembly

E x 6
