GB
GENERAL SAFETY RECOMMENDATIONS
- Please read this manual prior to using the unit.
- Keep the manual for further reference.
- Keep the original packaging to ensure safe transport of the unit.
- For indoor use only in dry premises.
- Ensure that there is sufficient cooling around the unit.
- Do not use the unit near heat sources or in direct sunlight.
- If the plug or mains lead are damaged, they need to be repaired by a qualified technician.
- If the unit is damaged to an extent that you can see internal parts, do not plug the unit into a
- mains outlet.
- Make sure that no small objects or liquids enter the housing.
- Clean the unit only with a damp cloth. Do not use detergents or solvents!
- Other than those specified in the manual, . the unit doesn’t contain any user serviceable parts
- Repairs should only be carried out by an authorized SkyTronic repair service.
- FIRE HAZARD: install the mirror ball and motor at least 0.5m away from inflammable materials
(e.g. decoration objects, etc.)
- DANGER: Prior to first using the mirror ball motor combination, the installation must be check –ed
by a specialist.
- The mounted units need to be checked regularly and at least once a year by a specialist.
- Regularly check the chain between the motor and the mirror ball including the anchorage points in
the motor and the ball.
- Use strong materials for the mounting of the motor.
General Description

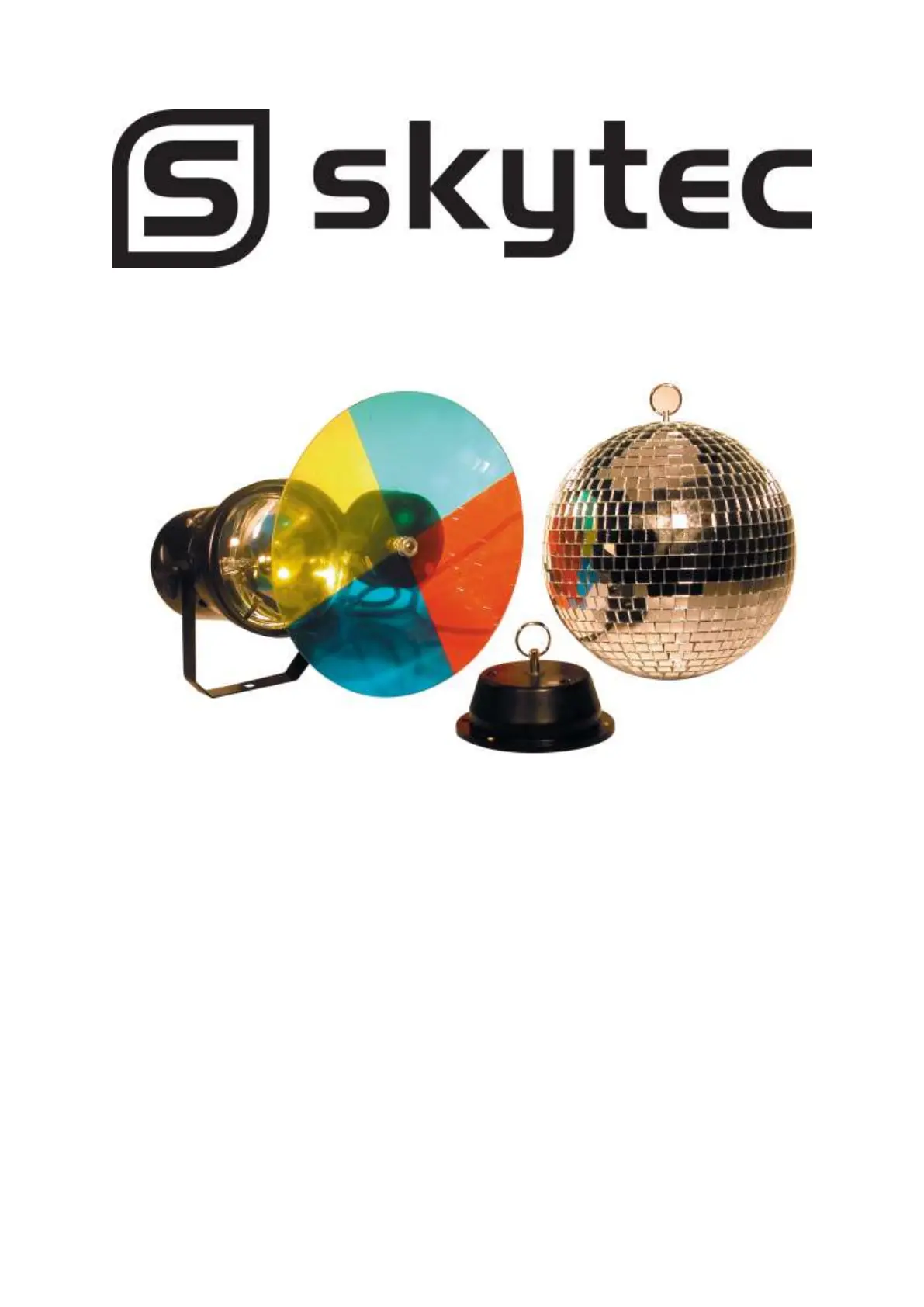

The complete Disco lighting set includes:
- Mirror ball (20cm for the set ref. no. 151.725 30cm for the set ref. no.151.727) ,
- Mirror ball motor
- PAR36 spot light with colour wheel
MIRROR BALL MOTOR
INSTALLATION:
NOTE: Follow the instructions carefully and use your brains when mounting the motor and mirror ball.
A falling mirror ball can cause serious injuries!!
- The installation must be done in such a way that it can support 10 times the weight of the
mirror ball for at least 1 hour without showing any distortion.
- The motor needs to be installed perfectly horizontally. Check the position with a level. The
battery-powered version can be hung vertically.
- Motor and mirror ball must be installed out of the reach of persons.
- Use all screw openings in the housing.
- Use a chain of sufficient strength for the installation of the mirror ball below the motor. The
supplied chains are made to the load of the motor.
- Connect the assembly to an earthed wall outlet.
