UNCRATING

Carefully examine the carton(s) for damage before opening. If the carton is damaged, immediately notify the shipping

company. Remove the banding straps. Open the carton(s) and remove all protective packaging. If the unit(s) were shipped

on wooden skids, remove all protective wood and all bolts securing the unit to the bottom of the skid. Retain the shipping

carton(s) until the unit(s) are installed and properly operating.

ACCESSORIES: If the unit(s) were ordered with optional electrical accessories (door switch, control panel, etc.), the

accessories may be found in the carton containing the unit or in a separate carton(s) accompanying the unit(s). Check all

of the cartons/skids for accessories before discarding.

IMPORTANT: A minimum of 6” is required above the top of the unit to allow for wiring to motor junction box(es).

This space is NOT required if the unit is supplied with a unit mounted control panel.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE

FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.

B. Beforeservicingorcleaningunit,switchpoweroatservicepanelandlocktheservicedisconnectingmeanstoprevent

power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

C. Installationworkandelectricalwiringmustbedonebyqualiedperson(s)inaccordancewithallapplicablecodesand

standards,includingre-ratedconstruction.

D. Sucientairisneededforpropercombustionandexhaustingofgasesthroughtheue(chimney)offuelburningequipment

to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published

by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning

Engineers (ASHRAE), and local code authorities.

E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

F. Warning,ToReduceTheRiskOfFireOrElectricShock,DoNotUseThisFanWithAnySolid-StateSpeedControlDevice.

Only applicable to UL and cUL listed products.

INDUSTRIAL

Direct Drive 16 / 20

AIR CURTAIN SERIES IDC16 / IDC20

INDUSTRIAL

Belt Drive 16 / 20 / 30 / 40 / 50

AIR CURTAIN SERIES IBC16 / IBC20 / IBC30 / IB40 / IB50

Industrial Direct Drive & Belt Drive

Air Curtain Series

#IDC16, IDC20,

IBC16, IBC20, IBC30, IB40 & IB50

www.Berner.com

WHEN THE DOORS ARE OPEN

™

save energy & create healthy, comfortable environments

Thank you for choosing Berner.

Berner International has been saving energy and creating healthy, comfortable environments for our customers

for over 60 years. Berner oers unmatched quality, performance, and dependability—not to mention our service.

At Berner, we stand behind our products.

II-112

January, 2024

©Copyright, 2024 Berner International

READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING AIR CURTAIN

Berneraircurtainsaredesignedtocreateaneectivebarrieragainst

exterior elements: cold drafts in the winter, hot air in the summer,

dust,dirt,debrisandyinginsects.Foryear-aroundprotection,

units should be mounted on the inside of the building and as close

to the top of the door opening as possible or vertically mounted

as close to the side of the opening as possible (vertical mount not

suitable for gas heated units). Units installed on the outside of the

building are to be used exclusively for protection against insects.

I. MOUNTING

A. Bernermodelsaredesignedtobemountedbytheirendanges,

without the need for intermediate support. The unit may be

attached to the wall, suspended from overhead or supported by

brackets. The style of door will determine the best mounting

method. All hangers and supports are to See Figures 1-6.

be supplied by others. Air curtain(s) must be installed so that

nothingwillinterferewiththeairstreamwhenitisdeected

± 20° to either side of the opening. If the air stream does strike

anobstruction, itseciency willbe greatlyreduced. Floor

brackets are available for vertical mounting.

B. IMPORTANT See Figures 1-6. The unit should be mounted

level with the top of the door opening or level with the side

of the opening (for vertical mount). The outlet nozzle shall

be located no more than 1” above the top/side of the opening.

If the air curtain must be mounted higher, then it must be

spaced out from the wall

/8” for every inch the unit is above

the opening (4.5” per foot). If the unit is mounted 6” or more

away from the opening, side shields are recommended See

Figure 1.

II. STEAM/HOT WATER

HEATED MODELS

Piping should be done in accordance with local codes and

regulations and standard practice. Condensate traps should be sized

for three times the amount of condensate expected. All piping,

traps and temperature controls are provided by others.

- 2 -

III. ELECTRIC WIRING

All electrical wiring should be done in accordance with: N.E.C.,

C.E.C., local codes and regulations. Each motor is internally

wired to a junction box located on the outside of the unit (one for

each motor), or to an optional motor control panel. Control panel

wiring diagrams are located on the inside cover of the enclosure.

Make sure the correct voltage as marked on the unit is used. For

amp rating, see the name plate located on each junction box or on

the control panel.

IV. METHODS OF CONTROL

For convenience of operation, single phase air doors may be oper-

atedmanuallythroughanOn/OSwitchorautomaticallythrough

a door switch (activates the unit each time the door opens). Three

phase units require a motor starter control panel which may also

includeanOn/OSwitch,anHand/O/AutomaticSwitch,oran

Automatic Door Switch (activates the unit each time the door opens,

and deactivates the unit each time the door closes). The control

panel may be unit mounted or remote mounted.

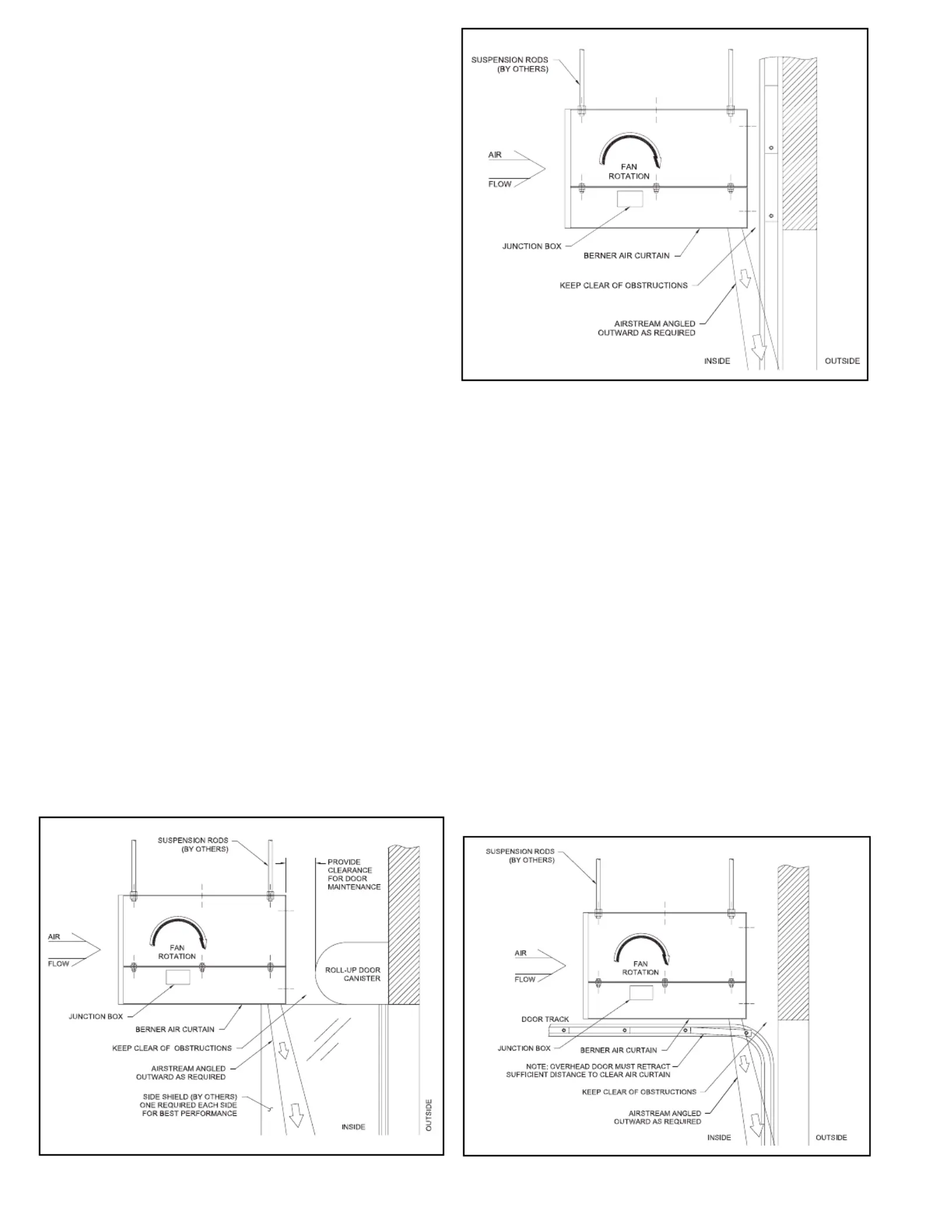

Figure 1

Figure 2

Figure 3
