Installation, Service and User Instructions

(French version page 10)

DIMENSIONS: 36 1/2 1/4’’ (925 mm)(W) x 21 ’’ (540 mm)(D)

Models B3H0..Q7X(2 or 5)D Type ‘A’

Models B3K0..U7X(2 or 5)D Type ‘B’

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR’S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

OBSERVE ALL GOVERNING CODES AND ORDINANCES.

WARNING: If the information in this manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury or death.

Do not store or use gasoline or other flammable vapors and liquid in the vicinity of

this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electrical switch.

- Do not use any phone in your building.

- Immediately call your gas supplier from a neighbor’s phone. Follow

the gas supplier’s instructions.

- If you cannot reach your gas suppliers, call the fire department.

Installation and service must be performed by a qualified installer, service agency

or the gas supplier.

Read this instruction booklet before installing and using the appliance.

The manufacturer will not be responsible for any damage to property or to persons caused by

incorrect installation or improper use of the appliance.

The manufacturer reserves the right to make changes to its products when considered necessary and useful,

without affecting the essential safety and operating characteristics.

This appliance has been designed for non-professional, domestic use only.

Cod. 310498

Built-in gas hotplates

BERTAZZONI

INDEX:

Installation Instructions……………………………………..………………………..pag.2

Inserting the hotplate……………………………………………..…………………..pag.3

Requirements……………………………………..……………………………….…..pag.3

Attaching the hotplate……………………………………..………………………….pag.4

Gas connection……………………………………..…………………………………pag.4

Electrical connection……………………………………..……………………….…..pag.5

Wiring diagrams……………………………………..…………………………….…..pag.5

Room ventilation…………………………………….…………………………………pag.5

Location and venting…………………………………….…………………………….pag.5

Replacement of nozzles……………………………………..………………………..pag.5

Regulation of burners……………………………………………...………………….pag.6

Descriptions…………………………………………………………………………….pag.6

Service & maintenance instructions……………………………..…………………..pag.6

Greasing the valves……………………………………………..…………………….pag.7

User instructions……………………………………………..………………………..pag.7

Using burners……………………………………………………..……………………pag.7

Cleaning the appliance……………………………………………..…………………pag.8

Figures………………………………………………...…………..……………………pag.19

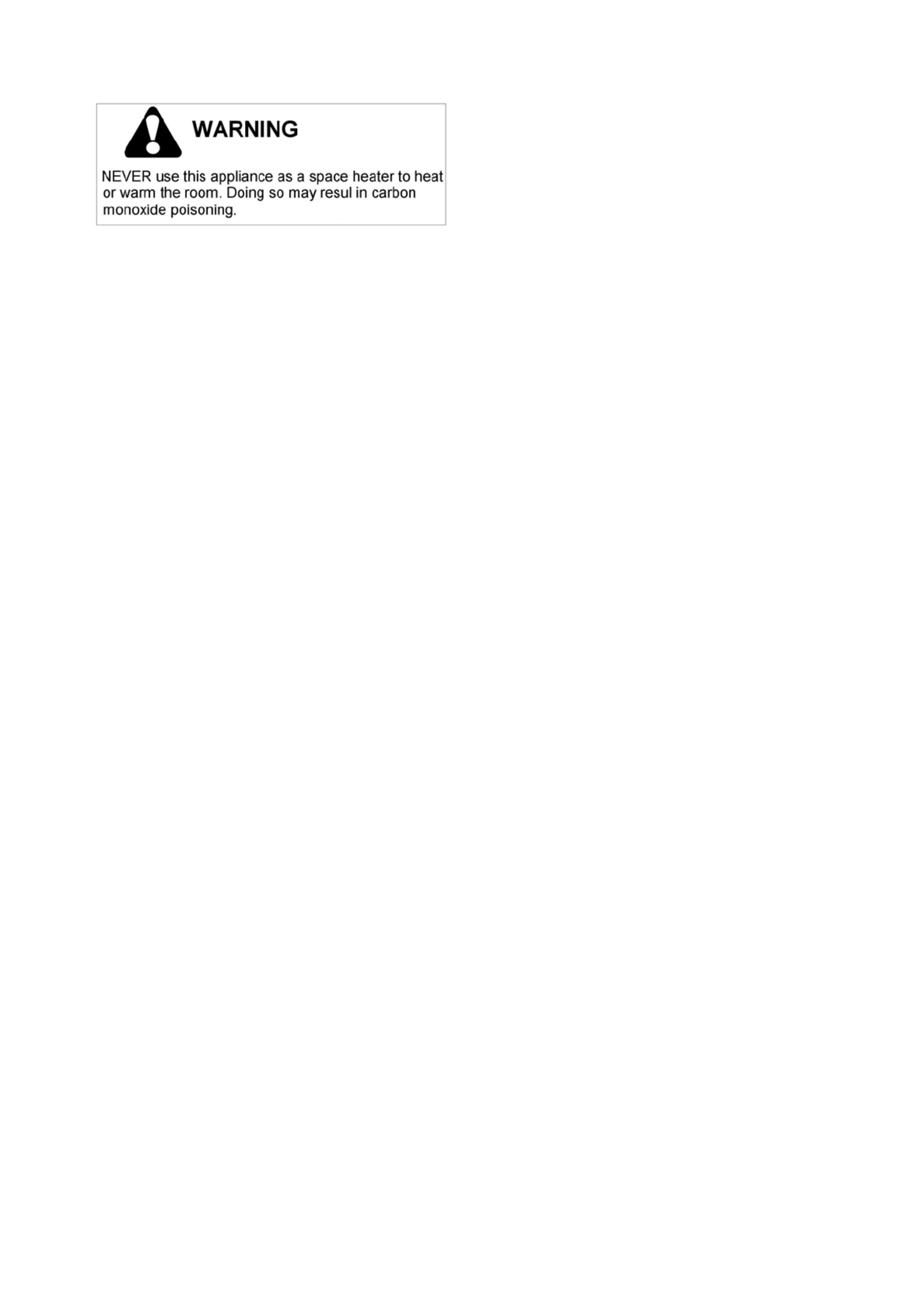

Installation instructions

This appliance shall only be installed by an authorized person. This appliance shall be installed in

accordance with the manufacturers installation instructions, IMPORTANT: this appliance must be

installed in accordance with the norms in force of the country concerned.

The installation of this appliance must conform to local codes and ordinances. In the absence of

local codes, Installations must conforms to American National Standards, National Fuel Gas Code

ANSI Z223.1 – latest edition** or B149.1.

If local codes permit, a flexible metal appliance connection with the new AGA or CGA certified

design, max. 5 feet (1,5 m) long, ½” I.D. recommended for connecting this cooktop to the gas supply

line. Do not bend or damage the flexible connector when moving the cooktop. The pressure regulator

has ½” female pipe thread. You will need to determine the ﬁtting required, depending on the size of

your gas supply line, the flexible metal connector and the shutoff valve.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in

the absence of local codes, with the National Electrical Code, ANSI/NFPA 70.

The appliance and its individual shutoff valve must be disconnected from the gas supply piping

system any pressure testing of that system at test pressure in excess of ½ psi (3,5 kPa).

The appliance must be isolated from the gas supply piping system by closing its individual manual

shutoff valve during any pressure testing of the gas supply piping system at test pressures equal

to or less than ½ psi (3.5 kPa).

For use with a pressure regulator. The regulator supplied must be used with this appliance.

The gas appliance pressure regulator must be set for the gas with which the appliance is used.

This appliance can be used with Natural Gas and LP Gas. It is shipped from the factory adjusted for

use with Natural Gas: CONVERSION FIXED ORIFICES ARE LOCATEDIN THE LITERATURE PACK

SUPPLIED WITH THE UNIT.

Injectors kit for the change of type of gas are contained inside the package jointly with the hob

installation kit and Instruction booklet.

The maximum inlet gas supply pressure incoming to the gas appliance pressure regulator is 20’’

water column (5 kPa) .

Produkt Specifikationer

Mærke:	Bertazzoni
Kategori:	Komfur
Model:	QB36 6 00 X
Bredde:	925 mm
Dybde:	540 mm
Højde:	- mm
Produktfarve:	Rustfrit stål
Kontroltype:	Dreje
Indbygget skærm:	Ingen
Strøm:	1 A
Placering af apparat:	Indbygget
Installationsrum bredde:	905 mm
Installationsrum dybde:	520 mm
Installationsrum højde:	69 mm
Komfurtype:	Gaskomfur
Overfladetype:	Rustfrit stål
Antal kogeplader / madlavningsområde:	6
Blus/kogeplade zone 1 strøm:	1750 W
Blus/kogeplade zone 2 strøm:	5000 W
Blus/kogeplade zone 1 type:	Regelmæssig
Kogezone 1 form:	Rund
Blus/kogeplade zone 1 position:	Venstre bagende
Blus/kogeplade zone 1 strømkilde:	Gas
Blus/kogeplade zone 2 type:	Ekstra stor
Kogezone 2 form:	Rund
Blus/kogeplade zone 2 position:	Venstre front
Blus/kogeplade zone 2 strømkilde:	Gas
Kontrolposition:	Øverst til højre
Blus/kogeplade zone 3 type:	Regelmæssig
Blus/kogeplade zone 4 type:	Regelmæssig
Blus/kogeplade zone 4 strømkilde:	Gas
Kogezone 4 form:	Rund
Blus/kogeplade zone 3 strømkilde:	Gas
Kogezone 3 form:	Rund
Blus/kogeplade zone 3 position:	Midt bagende
Blus/kogeplade zone 4 position:	Midt forside
Blus/kogeplade zone 5 position:	Højre bagende
Blus/kogeplade zone 5 strømkilde:	Gas
Antal gasbrændere:	6
Blus/kogeplade zone 5 type:	Stor
Blus/kogeplade zone 4 strøm:	1750 W
Blus/kogeplade zone 5 strøm:	3000 W
Blus/kogeplade zone 3 strøm:	1750 W
Kogezone 5 form:	Rund
Elektronisk tænding:	Ja
Understøttet grydemateriale:	Støbejern
Wokbrænder:	Ja
Tændblussikring:	Ja
Wokbrændeposition:	Venstre front
Blus/kogeplade zone 6 position:	Højre forside
Blus/kogeplade zone 6 strømkilde:	Gas
Blus/kogeplade zone 6 strøm:	1000 W
Blus/kogeplade zone 6 type:	Simre
Kogezone 6 form:	Rund
