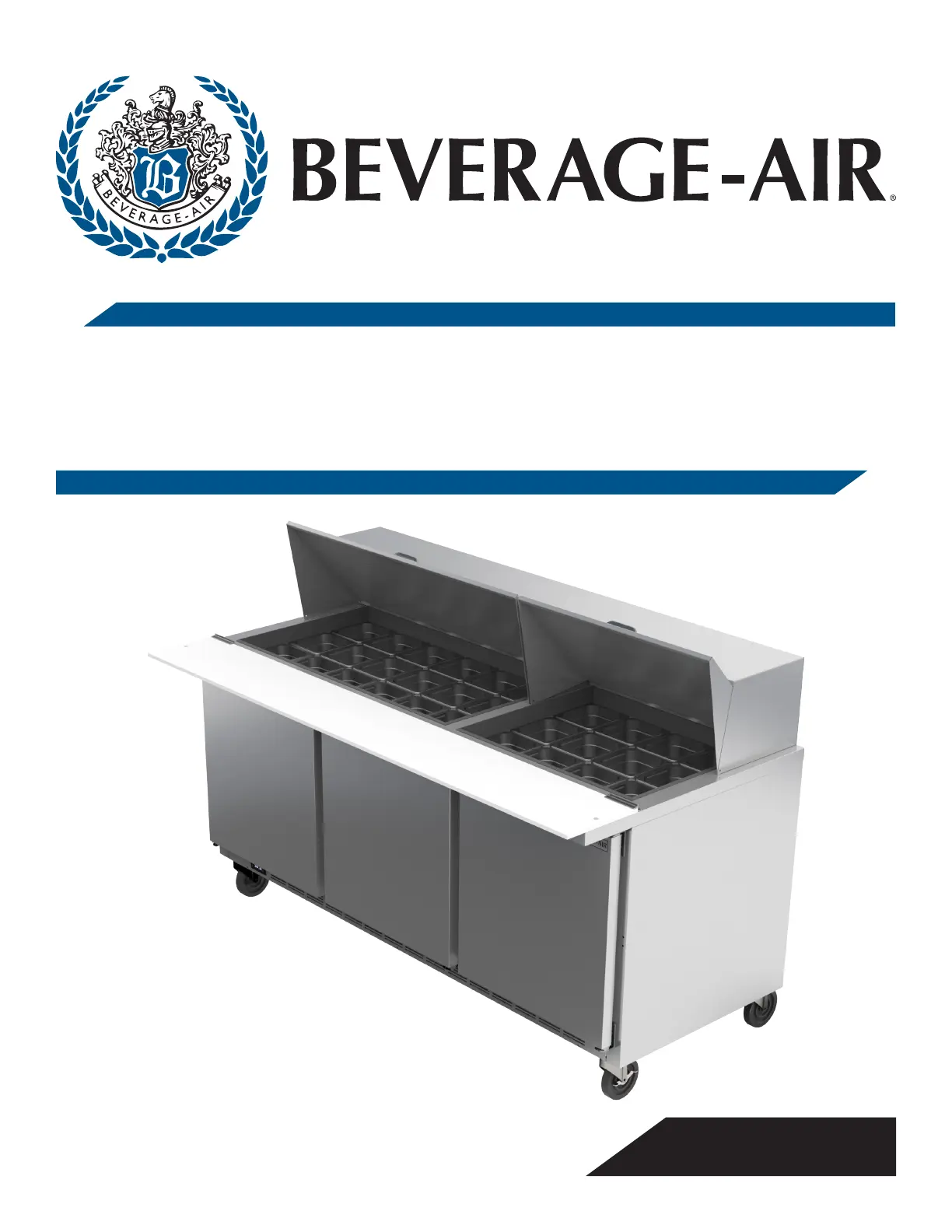

INSTALLATION AND OPERATING INSTRUCTIONS
for all Hydrocarbon
SPE Models
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com
809-168A Rev A 04/11/2022 SEE BACK COVER FOR
WARRANTY REGISTRATION
User Manual for SPE Beverage-Air
Rev. 04/22Beverage-Air2
WELCOME
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR USING, IF RECOMMENDED PROCEDURES
ARE NOT FOLLOWED, WARRANTY CLAIMS MAY BE
DENIED.
• Your warranty registration information is located with this
manual. Please complete the card and submit it to
Beverage-Air within TEN days of installation. Failure to
properly register equipment may limit or void the warranty.
• Beverage-Air reserves the right to change specications
and product design without notice. Such revisions do not
entitle the buyer to corresponding changes, improvements,
additions, or replacements for previously purchased
equipment.
Thank you for purchasing a Beverage-Air cabinet. This series
has passed our strict quality control inspection and meets the
high standards set by Beverage-Air Refrigeration! You have
made a quality investment that with proper maintenance will
give you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit. If you have
any questions, Please call our Technical Service Department at
(800) 684-1199. 8:00 AM to 5:00 PM EST.
Contents
Welcome 2 ...................................................................................................................................................................
Safety 3 ........................................................................................................................................................................
Important Information 4 ..........................................................................................................................................
Product Information 5 ..............................................................................................................................................
Clearance and Placement 6 .....................................................................................................................................
Unpacking and Set Up 7 ............................................................................................................................................
Shelf Installation 8 .....................................................................................................................................................
Drawer Maintenance 9 .............................................................................................................................................
Electrical 10 ..................................................................................................................................................................
Door Reversal Instructions 11 ..................................................................................................................................
Using The Unit - Danfoss Controller 12 ..................................................................................................................
Sequence of Operations Refrigerator......................................................................................................13
Using The Unit - Eliwell Controller 17 ....................................................................................................................
Sequence of Operations Refrigerator......................................................................................................18
Cleaning and Maintenance 21 .................................................................................................................................
Pan Use 22 ...................................................................................................................................................................
Condenser Cleaning 23 ..............................................................................................................................................
Methods For Cleaning Stainless Steel.............................................................................................................24
Help 25 ..........................................................................................................................................................................
For The Service Tech 26 ............................................................................................................................................
For The Service Tech - Wiring Diagrams 27 .........................................................................................................
Limited Warranty 29 .................................................................................................................................................
Limited Warranty (continued) 30 ...........................................................................................................................
User Manual for SPE Beverage-Air
Rev. 04/22 Beverage-Air 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Beverage-Air recommended technician certied
to repair R290 equipment.
• Use ONLY Beverage-Air factory service parts. Use of
non OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the and Caution Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION
User Manual for SPE Beverage-Air
Rev. 04/22 Beverage-Air 5
Base Model Cabinet Dimensions
w x d x h (Inches) Door Count Drawers Full Load
Amps Power Cord Refrigerant Type /
Charge g /Charge oz
SPE27HC 27 x 31 x 45 3/8 1 2
5-15P
R-290/50/1.76
SPED27HC-2 27 x 32 1/8 x 45 3/8 2 2
SPE32HC 32 x 32 x 45 1/8 1 2
R-290/110/3.9
SPED32HC-2 32 x 32 x 45 1/8 2 2
SPE36HC 36 x 32 x 45 2 2
SPED36HC-2 36 x 32 1/4 x 45 2 2
SPE48HC 48 x 32 x 45 1/4 2 2.2
SPED48HC-2 48 x 32 x 45 1/4 1 2 2.2
SPED48HC-4 48 x 32 x 45 1/4 4 2.2
SPE60HC 60 x 32 x 45 2 5.4
R-290/95/3.4
SPED60HC-2 60 x 32 x 45 1 2 5.4
SPED60HC-4 60 x 32 x 45 4 5.4
SPE72HC 72 x 32 x 45 3 5.4
SPED72HC-2 72 x 38 3/8 x 45 1/8 2 2 5.4
SPED72HC-4 72 x 32 x 45 1/8 1 4 5.4
SPED72HC-6 72 x 38 3/8 x 45 1/8 6 5.4
Height includes casters.
PRODUCT INFORMATION
• All models will maintain product temperature between 36º F and 38ºF.
• All models are 115 volts, 60 Hz AC.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• All models have a 8 foot power cord with 5-15P NEMA plug.
• There are no access valves on the refrigeration system.
User Manual for SPE Beverage-Air
Rev. 04/22Beverage-Air6
CLEARANCE AND PLACEMENT
Placement
Consider the following when selecting a location for your cooler:
• 2 inches at back. None at sides. Clearance:
• the oor on which the cooler is located must be even and level, free from vibrations, and strong enough to Floor Load:
support the combined weights of the unit and maximum product load.
• Ventilation: Grile area at front must be free and clear of any object or wall.
• Power Outlet: The installation of this appliance requires a dedicated power outlet located within the length of the
unit's power cord and be accessible for the purpose to disconnect power.
33
16
"
BOTTOM
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
2"
REAR
MINIMUM
CLEARANCE
User Manual for SPE Beverage-Air
Rev. 04/22 Beverage-Air 7
UNPACKING AND SET UP
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. Do
NOT contact the manufacturer.
Uncrating
Tools Needed: ¾” box wrench, adjustable wrench, level,
Phillips head screw driver, and box cutter.
1. Remove the cardboard top capping, all clear tape,
and all staples including those at the bottom of the
cardboard carton and skid.
2. Start from the top of the carton. Using the box cutter,
carefully make one continuous cut to the bottom of the
skid. Remove cardboard carton and discard.
Note: additional clear plastic protective wrap is applied
directly to any product with a glass door.
3. Move unit as close to nal position as possible before
removing the skid.
Note: The skid must be removed before the casters or
legs can be attached.
Do NOT tip unit on its front or sides. If tipped onto the back,
unit must not be started for 3 hours.
Skid Removal and Caster Attachment
Tip the unit forward and remove the skid.
Risk of personal injury.
Unit must be securely supported
while attaching casters or legs.
WARNING
1. These units have metal bands which slip into the unit's
rear base rail and a metal band screwed to the front kick
plate/front grille, which are screwed to the skid with
Philips head screws.
2. None of the threads on the leg or caster stem should be
visible once screwed in.
3. Tilt the cabinet in one direction approximately 8” and
block it securely with pieces of 2x4 lumber or other
suitable material.
4. Thread the stem casters or legs into the ½ -13 holes in
the bottom of the cabinet. Tighten by hand as much
as possible. Some models may already have levelers
installed. If so, then the levelers will need to rst be
removed and discarded.
5. Once the caster or leg cannot be turned any further,
use a 3/4 inch wrench to tighten the nut in between the
mounting plate and the wheel of the caster until snug.
6. Repeat this procedure with unit secured in the opposite
direction so as to access the remaining legs/casters/
levelers.
7. If plate casters or legs are installed instead of stem
casters or legs, then repeat step 3 above and secure
the plate with either #14 AB screws, or ¼-20 screws,
depending upon which are required.
8. If levelers are employed, then repeat step 3 above and
thread the leveler in place. Then repeat step 6.
Leveling:
Cabinets must be leveled when installed. Level should be
measured on the headrail.
Failure to level your cabinet may result in door not sealing,
closing correctly, or condensed water draining not draining
properly.
For cabinets with legs, rotate the foot of the leg with an
adjustable wrench to achieve desired height for leveling.
For cabinets with casters, leveling can be achieved by
placing large washers in between the ½’ stud and the holes
located on the bottom of the case.
Do NOT loosen casters to level the
cabinet. Casters MUST be tightly
secured to cabinet for full strength.
Install or attach any accessories that will be used
Remove any plastic covering the stainless steel.
CAUTION
User Manual for SPE Beverage-Air
Rev. 04/22Beverage-Air8
1. Determine the proper location for the shelf clips.
The reference numbers on the pilaster can serve as a
guide to ensure all clips are properly located.
2. Insert the top tab of the shelf clip into the desired
hole of the pilaster. The retaining tab MUST be facing
up as shown.
3. Rotate the clip downwards and insert the bottom tab
into the matching hole in the pilaster. The clip may
need to be squeezed slightly during installation.
4. Install all remaining clips.
5. Install shelves onto clips with the product retention
bar facing up. Be careful not to dislodge clips during
installation.
6. Place shelves so that the retaining tab on the clip
captures the shelf as shown.
7. Conrm that the shelf is resting on ALL 4 clips and
that the clips are securely attached to the pilasters.
8. Improper shelf clip installation could cause the shelf
and / or the product on it to fall, resulting in damage
to the unit and possible bodily injury.
9. Do NOT overload the shelves. The unit is designed to
use all shelves that are supplied in an equally spaced
manner. Contact Beverage-Air customer service if
fewer shelves or a dierent conguration to ensure
shelf overloading will not occur.
SHELF INSTALLATION
User Manual for SPE Beverage-Air
Rev. 04/22Beverage-Air10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
front grille area, and cool air will ow from the inside
blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it is ammable.
ELECTRICAL
User Manual for SPE Beverage-Air
Rev. 04/22 Beverage-Air 11
DOOR REVERSAL INSTRUCTIONS
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
User Manual for SPE Beverage-Air
Rev. 04/22Beverage-Air12
USING THE UNIT - DANFOSS CONTROLLER
Operation is simple, just keep it connected to the correct
power supply and the refrigerator will maintain the
internal temperature it has been set to. Keep the doors
and / or drawers closed as much as possible to avoid
unnecessary run time.
The controller displays the current internal temperature.
Adjusting the set temperature lower will NOT cause the
system to lower the temperature faster. When on, the
refrigeration system is always operating at maximum.
For best results, make certain the unit remains powered
and has achieved the desired set point before loading
it with product. Pull down time will vary depending
upon the type of unit and ambient conditions. Freshly
cooked product, or otherwise warm product placed
into the appliance will also increase the pull down time
signicantly since this model is designed for storage and
not for rapid pull down.
The temperature was set at the factory at 38
º F, but
you can adjust it to your own selected temperature. 30
seconds after adjustment, the display automatically
reverts to showing the current temperature.
The refrigerator will automatically defrost as needed,
there is no set time for defrost. Push and immediately
release the "melting snowake" or defrost button for a
manual defrost.
Note: Holding the defrost button in too long will shut the
controller o.
The pans must be kept in place for proper temperature
control.
The internal fan will be on all the time.
The compressor and condenser fan motor will only be on
when the controller senses an increase in internal cabinet
temperature passed the set point.
38.0
oF
Select
Defrost Increase
Decrease
In most cases the only thing displayed will be the cabinet temperature. When something other than normal operation has
occurred, a message will be shown.
Message Displayed Why What to do
dEF Unit is defrosting Nothing. Normal operation.
Hi Cabinet temperature too warm Conrm doors or drawers are closed.
dOr Door is open Close door, if message does not
change, call for service.
LEA Compressor run time too long Check doors or drawers closed. If yes,
call for service.
E01, E02, E03, E04 Sensor unplugged or has failed Call for service.
User Manual for SPE Beverage-Air
Rev. 04/22 Beverage-Air 13
Produkt Specifikationer
| Mærke: | Beverage-Air |
| Kategori: | Køleskab |
| Model: | SPE72HC-18-CL |
Har du brug for hjælp?
Hvis du har brug for hjælp til Beverage-Air SPE72HC-18-CL stil et spørgsmål nedenfor, og andre brugere vil svare dig
Køleskab Beverage-Air Manualer
28 December 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
Køleskab Manualer
- Køleskab Frilec
- Køleskab SPT
- Køleskab Waltham
- Køleskab Ravanson
- Køleskab HABAU
- Køleskab Engel
- Køleskab Sub-Zero
- Køleskab Milectric
- Køleskab EvaKool
- Køleskab AEG
- Køleskab U-Line
- Køleskab United
- Køleskab Vintec
- Køleskab Bomann
- Køleskab CaterCool
Nyeste Køleskab Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
6 April 2025
6 April 2025
6 April 2025
6 April 2025
5 April 2025
5 April 2025
