HEX70CS-KIT QUICK REFERENCE GUIDE
Quick Reference Guide
HEX70CS-KIT
01
Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™
extender set offers market leading features and outstanding value utilising
CSC technology. The product extends HDMI,Bi-directional IR & RS-232 and
Bi-directional PoH (PoE) up to lengths of 70m (4K 40m).The Transmitter
includes a HDMI loop-out for integrating local displays or cascading to
multiple devices. The Receiver features simultaneous analogue stereo and
digital coax audio breakout.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080P video up to 70m
• Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR pass through
• Supplied with Blustream 5V IR receiver and emitter
• Advanced EDID management
• HDCP 2.2 Support
Mo de
RS-232 IR OutIR In
0
RS-232 DC 12V
Po we r
HDB T Out
Upgrade
EDI D
3210
1
IR Out IR In
HDM I In HDMI Out
Li nk
Li nk
HEX70CS-KIT QUICK REFERENCE GUIDE
www.blustream.co.uk
02

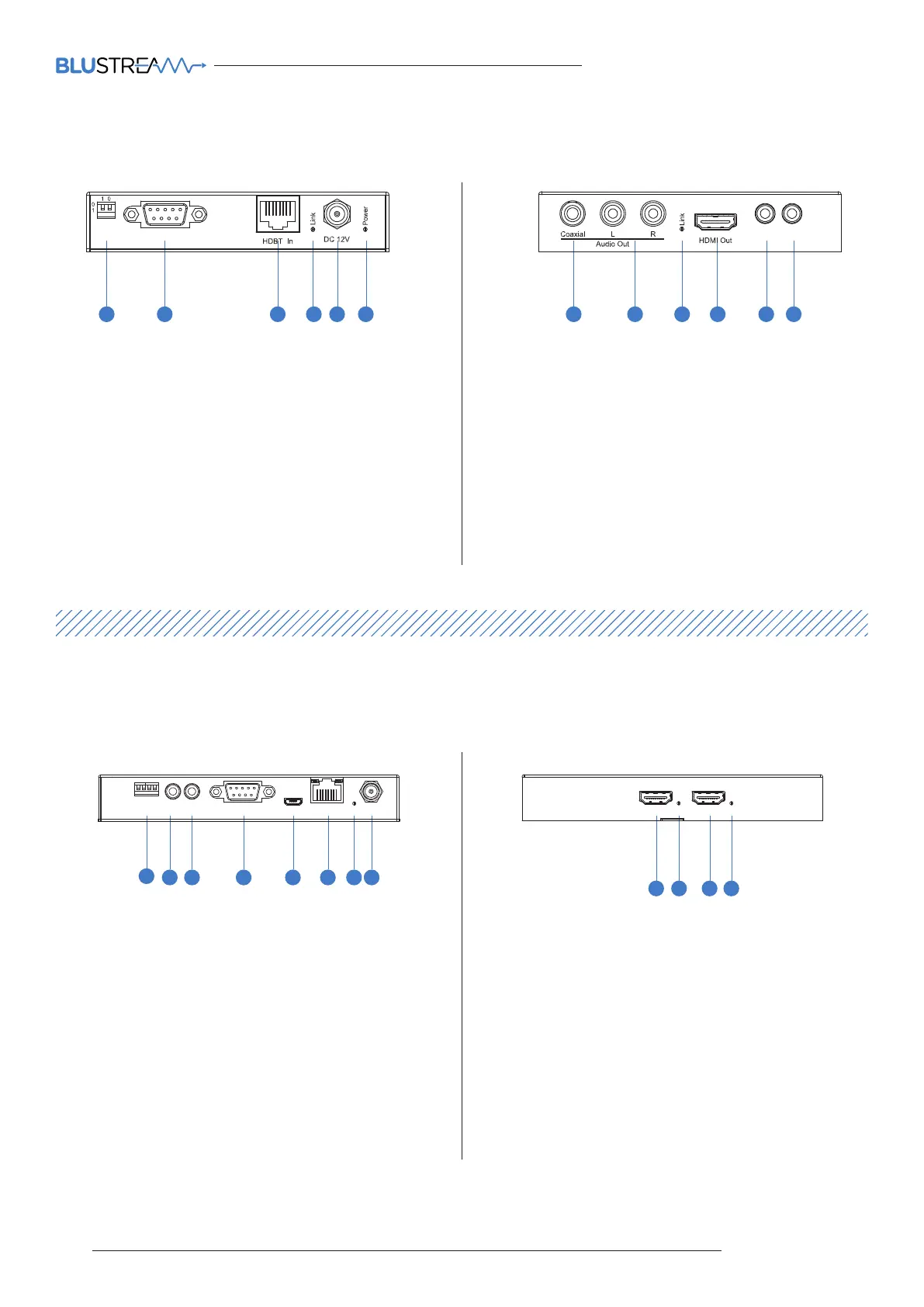

Panel Description HEX70CS-RX
Panel Description HEX70CS-TX
12
1 Mode dip-switch - To switch RS-232 serial port
between pass-through and firmware update mode
2 RS-232 / serial connector
3 HDBaseT input
4 HDBaseT signal link indicator
5 DC 12V screw type connector
6 Power status indicator
9 HDMI input
q HDMI link indicator
w HDMI output
e HDMI link indicator
7 Coaxial digital output - de-embedded from HDMI input
8 Analogue audio Le/Right output (3.5mm stereo jack
de-embedded from HDMI input. Supports stereo
2CH PCM audio only
9 HDMI signal link indicator
q HDMI Output
w IR IN (to Blustream 5V 3.5mm IR receiver)
e IR OUT (to Blustream 5V 3.5mm IR emitter)
3 4 5 6 7
1 EDID DIP switch (UP=0, DOWN=1)
2 IR OUT (to Blustream 5V 3.5mm IR emitter)
3 IR IN (to Blustream 5V 3.5mm IR receiver)
4 RS-232 / Serial connector
5 USB Upgrade port - For future use
6 HDBaseT output
7 Power status indicator
8 DC 12V screw type connector
9 10 11 12
1 2 3 4 5 7 8 9 10 116 12
8
Mode
RS-232 IR OutIR In
0
RS-232 DC 12V
Power
HDBT Out Upgrade
EDID
3210
1
IR Out IR In
HDMI In HDMI Out
Lin k
Lin k
