Quick Installation Guide
GLP/GSTCK

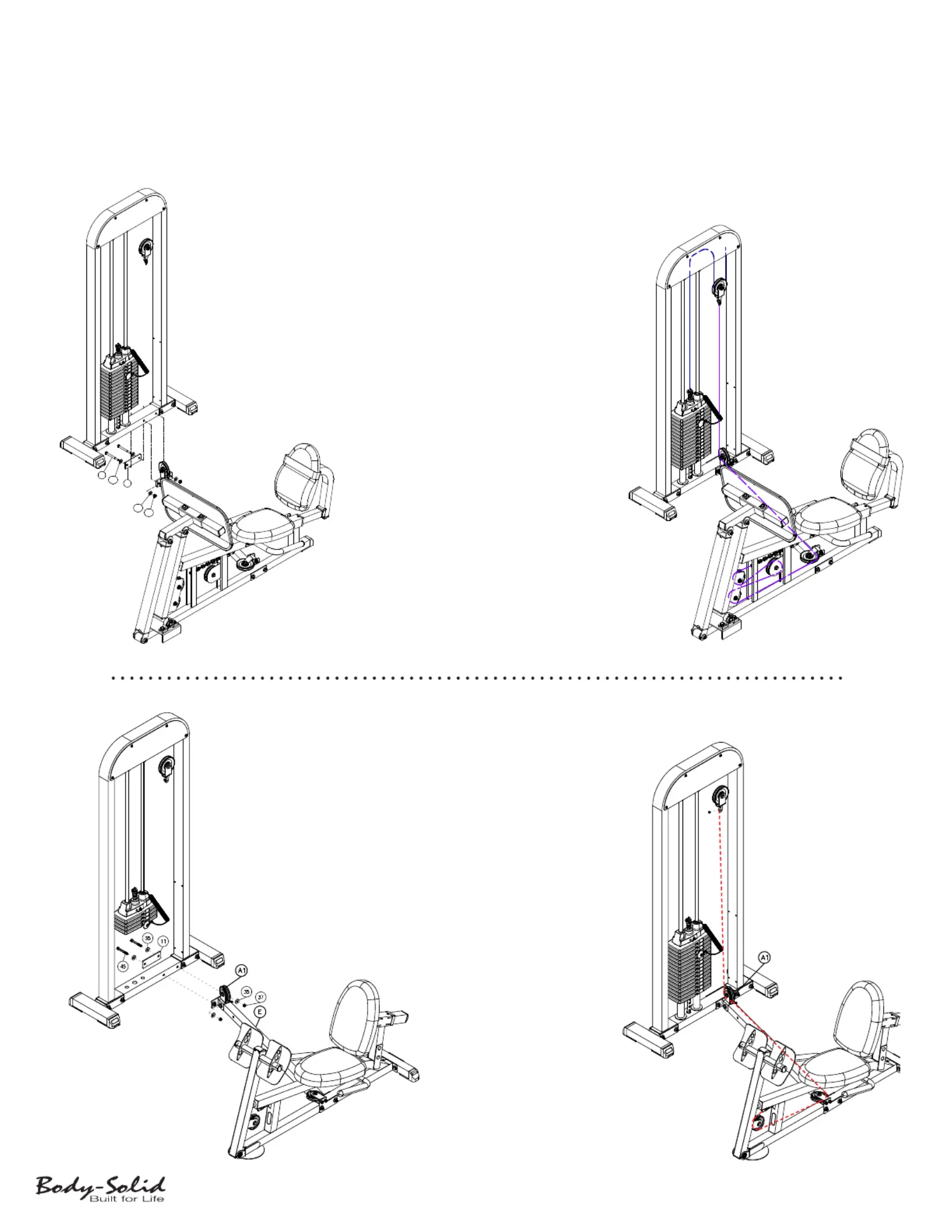

A. Connect Linkage Frame (A) and Flat Plate (J) to
the GSTCK using:
Two 6 (M10x110 hex head bolt)
Two 15 (M10 nylon lock nut)
B. Connect Cable (37) to the GSTACK as shown.
GFLP/GSTCK
A. Connect Sleeve Tube Assembly (Telescopic
Extension) (E) and Flat Plate (11) to the GSTCK
using:
Two 45 (M10x95 hex head bolt)
Two 37 (M10 nylon lock nut)
B. Connect Cable (43) to the GSTACK as shown.
v. 080610
Please refer to the original
owners manual hardware.
Please refer to the original
owners manual hardware.
D4
D2
D5
D1
D5
M4x8 bolt
D4
D2
D5
snap link
D4

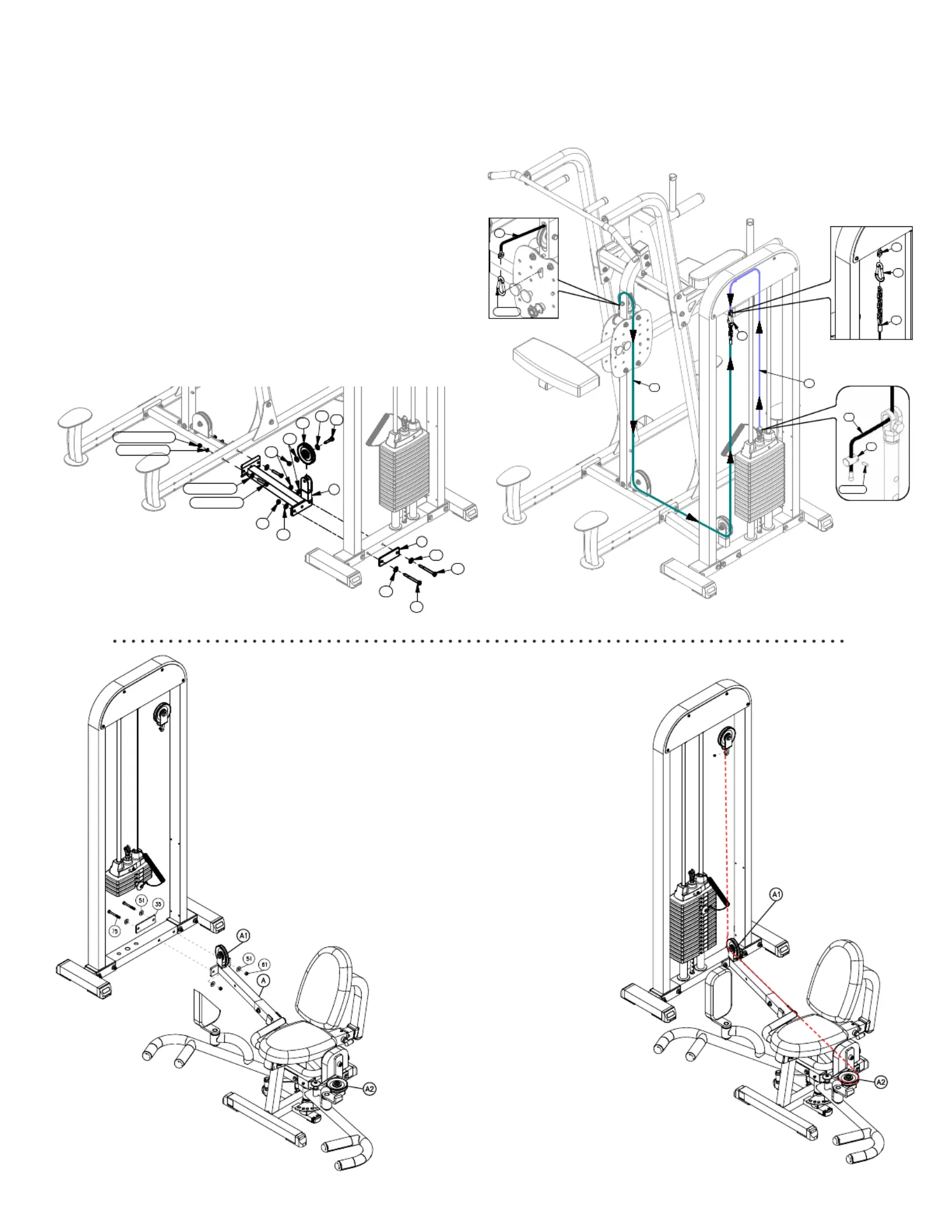

GIOT/GSTCK
A. Connect Main Base Frame (A) and Flat Plate (35)
to the GSTCK using:
Two 75 ( x 4 hex head bolt)3/8 ¼
Four 51 ( washer)3/8
Two 61 ( nylon lock nut)3/8
B. Connect Cable (15) to the GSTACK as shown.
A2
D3
C1
B1
C1
B1
M10x60 bolt x2
M10 washer x2
M10 washer x2
M10 nylon nut x2
C1
A
B
C1
A1
C1
A1
FCDWA/GSTCK
A. Connect FCDBRKT (A) and Flat Plate (B)
to the GSTCK using:
Two A1 (M10x105 hex head bolt)
Four C1 (M10 washer)
Two B1 (M10 nylon lock nut)
B. Connect FCDBRKT (A) to the FCDWA using:
Two (M10x60 hex head bolt)
Four (M10 washer)
Two (M10 nylon lock nut)
C. Connect Cable (D4) to the GSTACK as shown.
Please refer to the original
owners manual hardware.
Please refer to the original
owners manual hardware.
