Side 1/2

004 TDA26..GB/07/12

Customer Service

Great Britain

Bosch Customer Service

Grand Union House

Old Wolverton Road

Milton Keynes

MK12 5PT

UK +44 (0)844 892 8923

IRL +353 (0)1450 2655

www.bosch-home.co.uk

Operating instructions

Solving Minor Problems Yourself

Problem Possible Causes Solution

The iron does

not work or is not

heating up.

Temperature control (I)

on a very low setting.

Turn the temperature control to

the desired position.

Connection problems. Check that the plug is inserted

into the mains socket correctly.

The clothes tend

to stick.

Temperature control (I)

setting is too high.

Turn the temperature control to

a lower setting.

Water comes out

of the soleplate

together with

steam.

Temperature control (I)

setting is too low.

Turn the temperature control to

a higher setting.

Steam regulator (A)

is set too high in

conjunction with a low

temperature.

Turn the steam regulator to a

lower setting.

You have pressed the

shot of steam button

(L) repeatedly wihhout

waiting for 5 seconds

between each press.

Wait 5 seconds between each

press of the shot of steam

button.

Tap or part distilled

water has not been used

(see“Filling the water

tank“ section) or other

products such as fragant

water have been added

to the tank.

Mix distilled water with tap

water as directed in the „Filling

the water tank“ section, and

never add any other products

to the water tank.

Iron is not

steaming.

Steam regulator (A) in

“0” or “calc” position.

Turn the steam regulator to “1”

or “2” position.

No water in tank. Fill the tank.

Scale obstruction of

internal components.

Remove the steam regulator

(A) and clean it. If this does not

help contact an Authorised

Technical Service Centre.

Spray does not

work.

No water in the tank. Add water to the water tank.

Obstructed mechanism. Contact an Authorised

Technical Service Centre.

Water comes

out from the

soleplate before

plugging the

iron in.

The steam regulator (A)

is not properly closed.

Place the steam regulator in the

“0” position.

Deposits come

out through

the holes in the

soleplate.

Traces of lime scale are

coming out of the steam

chamber.

Carry out a cleaning cycle “(see

“Multiple de-scaling system”

section)

The iron begins

to smoke when

switched on.

During first use: Certain

components on the

appliance have been

lightly greased at

the factory and may

produce a little smoke

when initially heated.

This is completely normal and

will stop after a short while.

Flashing lamp on

top of handle (*)

Auto-shut off has been

activated.

Move the iron gently fromside

to side to re-start it.

The lamp will then flash once

before it re-heats.

ca lc

TDA 26..

sensi B1xx

(*) Model dependent

You can download this manual from the local homepages of Bosch

Thank you for buying the TDA26 steam iron from Bosch. This iron has a

lightweight design and is built to perform.

These instructions contain valuable information about the unique features

of this iron and some hints to make ironing easier for you.

Please visit www.bosch-home.co.uk for more product information

or to register your product, just follow the link to the Online

guarantee registration.

Before using the Iron for the first time

Please carry out the following steps:

1. Remove the protective cover from the soleplate before using the iron.

2. While the iron is unplugged, fill the water tank (E) with tap water and

set the temperature control (I) to “max” by lining it up with the pointer

(H).

3. Plug the appliance into the mains and when the iron has reached the

correct temperature (the pilot light [K] goes out), set the steam regulator

(A) to the “2” position.

4. Hold the iron horizontally and repeatedly press the shot of steam button

(L). Any residue should come out of the soleplate (G). It may smoke

and smell – this is normal and will cease after a short while.

5. If necessary, carefully clean the soleplate down with a dry, folded cloth.

Cleaning and Maintenance

! Attention! Risk of burns!

For general cleaning, follow the information below:

Problem Solution

Dirty/lightly marked iron

body or soleplate

Clean the body of iron or soleplate with a

damp cloth then dry it..

Mark develops on

soleplate during use

Set the iron to its maximum temperature

setting. Rub the iron a few times over with

a dry cotton cloth folded several times.

Heavily stained soleplate

While the iron is cold, iron a linen cloth

soaked in white vinegar. Then dampen a

cloth with water and wipe the soleplate

clean and dry thoroughly.

DO NOT de-scale or clean the water tank with cleaning products or

solvents, as these could cause the iron to drip when using the steam

function.

DO NOT use a “professional steam cleaner” for cleaning the appliance.

DO NOT use sharp objects or abrasive products to clean the soleplate or

any other part of the appliance. To keep the soleplate in good condition,

do not allow it to come into contact with metal objects.

GUARANTEE TERMS

The terms of the guarantee for this appliance are in accordance with that

stated by our representative for the country in which it is sold. Details

of those conditions can be obtained from the retailer from whom the

appliance was purchased. The SALES RECEIPT must be presented when

making any claims against the terms of this guarantee. We reserve the

right to make technical modifications.

Environmental Care

This iron has been designed according to ecological criteria related to

sustainable development; analysing its whole lifecycle, from material

selection to its later reuse or recycling; evaluating the improvement

possibilities from a technical, ecological and environmental point of view.

Before throwing a used appliance away, you should make it noticeably

inoperable e.g. cut off the mains lead and be certain to dispose of it in

accordance with current laws and regulations.

Your retailer, town council or local council can give you detailed

information about these.

This appliance is labelled in accordance with

European Directive 2002/96/EG concerning used

electrical and electronic appliances (waste electrical

and electronic equipment – WEEE).

The guideline determines the framework for the

return and recycling of used appliances as applicable

throughout the EU.

Important

This iron has been designed according to ecological criteria,

related to the sustainable development; analyzing its whole

lifecycle, from material selection to its later reusing or recycling;

evaluating the improvement possibilities, from a technical,

economical and environmental point of view.

This appliance has been designed exclusively for domestic use

and must not be used for industrial purposes.

Carefully read through the operating instructions for the appliance

and safeguard them for future reference.

General safety instructions

• The iron must not be left unattended while it is

connected to the supply mains.

• Remove the plug from the socket before filling the

appliance with water or before pouring out the

remaining water after use.

• The appliance must be used and placed on a stable

surface.

• When placed on its stand, make sure that the surface

on which the stand is placed is stable.

• The iron should not be used if it has been dropped,

if there are visible signs of damage or if it is leaking

water. It must be checked by an authorized Technical

Service Centre before it can be used again.

• With the aim of avoiding dangerous situations, any

work or repair that the appliance may need, e.g.

replacing a faulty mains cable, must only be carried

out by qualified personnel from an Authorised

Technical Service Centre.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without

supervision.

• Keep the iron and its cord out of reach of children less

than 8 years of age when it is energized or cooling

down.

• This appliance is to be connected and used in accordance with the

information stated on its characteristics plate.

• This appliance must be connected to an earthed socket. If it is

absolutely necessary to use an extension cable, make sure that it is

suitable for 16A and has a socket with an earth connection.

• If the safety fuse fitted in the appliance blows, the appliance will be

rendered inoperative. To restore normal operation the appliance will

have to be taken to an authorised Technical Service Centre.

• In order to avoid that, under unfavourable mains conditions, phenomena

like transient voltage drops or lighting fluctuations can happen, it is

recommended that the iron is connected to a power supply system

with a maximum impedance of 0.27 . If necessary, the user can ask Ω

the public power supply company for the system impedance at the

interface point.

• The appliance must never be placed directly under the tap to fill the

water tank.

• Unplug the appliance from the mains supply after each use, or if a fault

is suspected.

• The electrical plug must not be removed from the socket by pulling

the cable.

• Never immerse the iron in water or any other fluid.

• Do not leave the appliance exposed to weather conditions (rain, sun,

frost, etc.)





2 Filling the water tank

Set the steam regulator (A) to the “0” position (no steam) by

lining it up with the pointer (B) on the iron and unplug the iron

from the mains!

1. Place the iron at an angle of 45° with the point facing upwards.

2. Fill the water tank (E) via the water tank inlet (C) but never above the

“max” mark (F) using the beaker * (N).

Use only clean water from the tap and do not mix anything with it. The

addition of other liquids, such as perfume, will damage the appliance.

DO NOT use condensation water from tumble dryers, air conditioners

or similar appliances. This appliance has been designed to use normal

tap water.

To prolong the optimum steam function it is possible to mix tap water

with distilled water 1:1. If the tap water in your district is very hard, mix

tap water with distilled water 1:2.

You can inquire about the water hardness with your local water supplier.

3 Setting the temperature

The temperature control (I) adjusts the temperature of the

soleplate (G).

1. Check the temperature instructions shown on the care label of the

garment you are ironing and set the temperature control (I) to the

corresponding position by lining it up with the temperature control

pointer (H) on the iron:

Fabric Temperature Setting

Synthetics •

Silk - Wool ••

Cotton - Linen •••

2. If you are unsure what type of material the garment is made from, start

ironing on the lowest temperature setting and increase accordingly. If

the garment is made from mixed fabrics, set the temperature for the

most delicate material.

3. For silk, woollen or synthetic materials iron the reverse side of the fabric

to prevent shiny patches. Avoid using the spray function to prevent

stains.

4. Sort your garments based on their care labels, always starting with

those that have to be ironed at the lowest temperature.

5. The pilot light on the top of the handle (K) will stay lit while the iron

is heating up and go out once the selected temperature has been

reached. Wait for a few seconds after the light goes out before you

start ironing. Once the iron is ready, you can continue to iron even if

the pilot lamp comes on again.

6. If your iron has auto shut-off and the pilot light is flashing, the auto-shut

off has activated. Gently move the iron from side to side to restart it.

4 Ironing with steam

The steam regulator (A) is used to adjust the amount of steam

produced when ironing.

1. Make sure that there is water in the tank (E).

2. Adjust the temperature control (I) and then set the steam regulator (A)

according to the table below by lining it up with the steam regulator

pointer (B). Steam will automatically be produced.

Temperature

Setting

Steam Regulator

Setting

••• to “max” 2

•• 1

3. You can get extra steam by pressing and holding the steam regulator

(A) for a maximum of 2 seconds.

Note: At a temperature setting of “•”, the soleplate is not hot enough to

produce steam, so the steam regulator (A) should be set to the “0” position

to avoid water dripping from the soleplate (G).

5 Ironing with shot of steam

This can be used to remove stubborn wrinkles or to press in a

sharp crease or pleat. It cannot be used on a synthetic setting

for delicate items.

1. Make sure that there is water in the tank (E).

2. Set the temperature control (I) to the “•••” or “max” position and the

steam regulator (A) to the “2” position.

3. Press the shot of steam button (L) on the handle repeatedly at intervals

of 5 seconds.

6 Vertical steaming with shot of steam

This can be used to remove creases from hanging clothes,

curtains etc. It cannot be used on a synthetic setting for

delicate items.

WARNING! Do not vertical steam while the item is being worn.

Never spray or aim steam at people or animals!

1. Make sure that there is water in the tank (E).

2. Set the temperature control (I) to the “•••” or “max” position and the

steam regulator (A) to the “2” position.

3. Hold the iron in an upright position about 15 cm away from the garment

being steamed.

4. Press the shot of steam button (L) on the handle at intervals of 5

seconds, however, after 4 jets of steam, wait for 10 seconds to allow

for continued steam production.

7 Ironing without steam

This function enables the iron to be used for dry ironing.

1. Set the steam regulator (A) to the “0” position.

2. Select an appropriate temperature for the type of material being

ironed.

8 Spray

This can be used to remove stubborn wrinkles.

1. Do not use the spray function with silk as staining may occur.

2. Make sure that there is water in the tank (E).

3. When ironing, press the spray button (M) and water will spray out of

the spray outlet (D) onto the garment.

9 After finishing each ironing session

1. Unplug the iron from the mains socket.

2. Set the steam regulator (A) to the “0” position.

3. Hold the iron upside down over a sink and shake it gently until all the

water has come out from the water tank inlet (C).

4. Set the iron aside in a vertical position to cool down.

5. Coil the power cable (J) loosely around the heel of the iron before

storing.

6. Store the iron in an upright position.

10 Multiple de-scaling system

This range of irons is equipped with the following descaling

features “AntiCalc”.

A. self-clean

Each time you use the steam regulator (A), the “self-clean” system cleans

the mechanism of any scale deposits.

B. calc’n clean

The “calc’n clean” function helps to remove scale particles out of the

steam chamber. Use this function approximately every 2 weeks:

1. Fill the water tank (E) with water.

2. Set the temperature control (I) to the “•••” or “max” position and plug

in the iron.

3. After the necessary warm-up period, unplug the iron.

4. Hold the iron over a sink (the correct way up) and remove the steam

regulator (A) by turning it to the “calc” position while pressing it down,

then carefully taking out the spring wrapped around the needle.

5. Using one fully filled beaker * (approximately 150 ml) slowly pour water

into the steam regulator hole (see picture below).

6. Gently shake the iron. Boiling water and steam will come out of the

soleplate (G), carrying scale or deposits that might be there. When the

iron stops dripping, reassemble the steam regulator by reinserting it,

lining up the “calc” position with the pointer, pressing it in and turning

it to the “0” position.

7. If the steam regulator needle is soiled, remove any deposits from the

tip with vinegar and rinse it off with clean water.

C. anti-calc (model dependent)

The anti-calc cartridge has been designed to reduce the build-up of scale

produced during steam ironing, helping to extend the useful life of your

iron. Nevertheless, the “anti-calc” cartridge cannot remove all of the scale

that is produced naturally over time.

11 Anti-drip system "Drip Stop"

The irons in this range are equipped with an anti-drip system.

This will automatically stop the iron producing steam when the selected

temperature setting is too low to prevent water from dripping out of the

soleplate.

You may hear a clicking sound when this system is in operation.

Using Your Iron

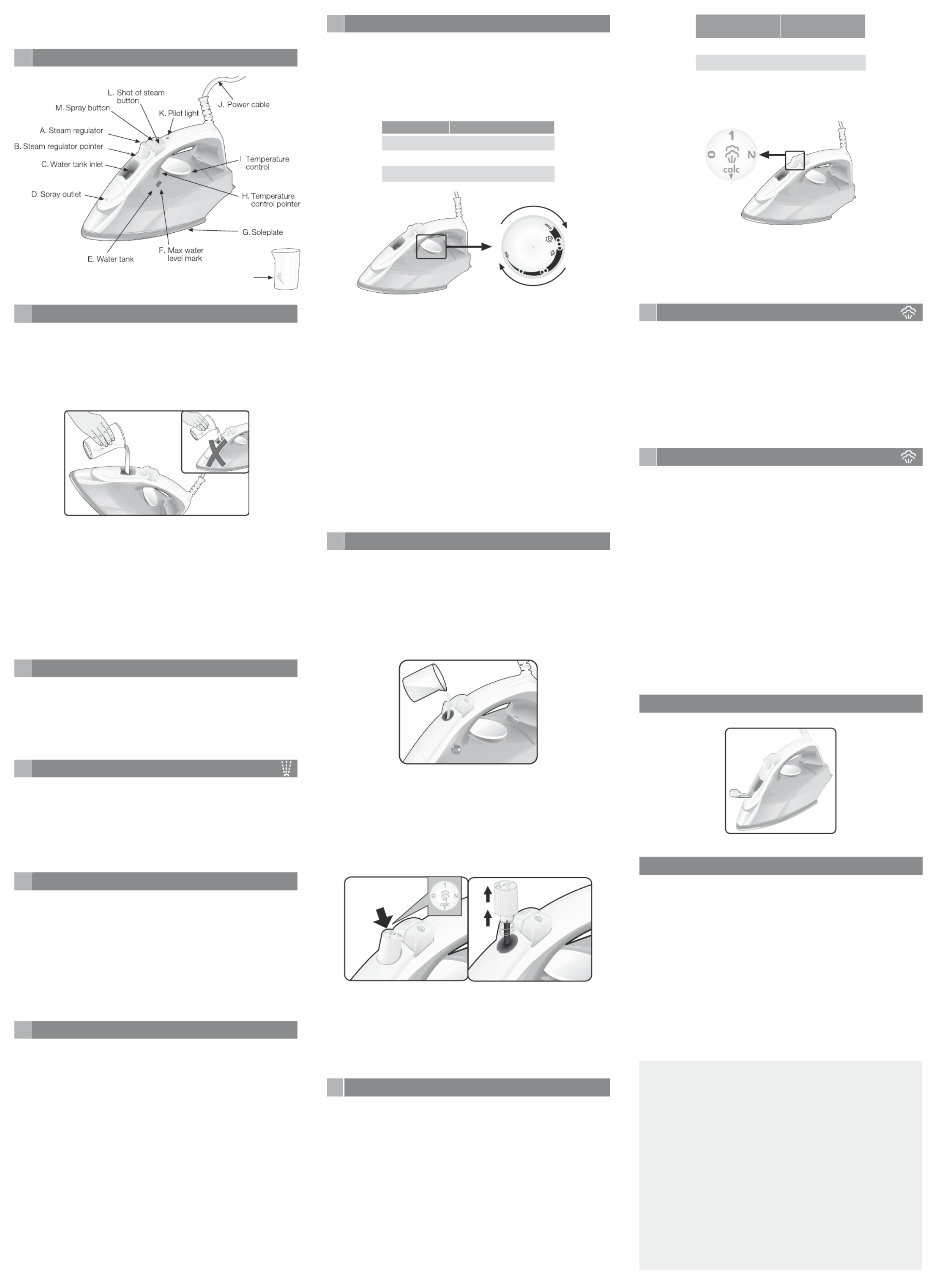

1 Your iron

Additional Features (Model Dependent)

Large filling inlet with lid

Auto shut-off “Secure”

Some irons in this range are equipped with an auto-shut off system.

The “Secure” auto shut-off function switches off the iron automatically

when it is not being used, thus helping to prevent accidents and saving

energy. When the appliance is first plugged in, this function will be inactive

for the first 2 minutes to allow it to reach the set temperature.

If during ironing, the iron is not moved for a certain length of time, the

iron will automatically switch off. The length of time will depend on the

position the iron has been left in:

Horizontally (flat) or on its side: 30 seconds

Vertically (upright): 8 minutes

The pilot light on the top of the handle (K) will flash when auto shut-off

has been activated. To switch the iron back on, move it gently from side

to side. The light will stop flashing.

Tips to help you save energy

Steam production consumes the most energy. To help minimise the

energy used, follow the advice below:

• Start by ironing the fabrics that require the lowest ironing

temperature.

• Regulate the steam according to the selected ironing temperature.

• Only use steam if necessary. If possible, use the spray function

instead.

• Try to Iron the fabrics while they are still damp and reduce the steam

setting. Steam will be generated from the fabrics rather than the iron.

If you tumble dry your fabrics before ironing them, set the tumble

drier to the ‘iron dry’ programme.

• If the fabrics are damp enough, turn off the steam regulator

completely.

• Stand the iron upright during pauses. Resting it horizontally with the

steam regulator on generates wasted steam.

Produkt Specifikationer

Mærke:	Bosch
Kategori:	Strygejern
Model:	Sensixx'x B1 TDA2623GB
Type:	Dampstrygejern
Vekselstrømsindgangsspænding:	220 - 240 V
Vekselstrømsindgangsfrekvens:	50/60 Hz
Bredde:	280 mm
Dybde:	115 mm
Højde:	140 mm
Vægt:	1066 g
Produktfarve:	Green,Translucent,White
Strøm:	2000 W
Ledningslængde:	2.5 m
Pakkevægt:	1200 g
Pakkedybde:	292 mm
Pakkebredde:	120 mm
Pakkehøjde:	156 mm
Vandtank volumen:	0.29 L
Indikatorlampe:	Ja
Certificering:	CE, VDE
Pallens bruttobredde:	800 mm
Pallens bruttolængde:	1200 mm
Pallens bruttohøjde:	2080 mm
Automatisk anti-kalk:	Ja
Ledningsfri:	Ingen
Anti-dryp funktion:	Ja
Watt strygejern:	2000 W
Konstant damp:	Ja
Vertikal dampfunktion:	Ja
Strygesål, type:	Keramisk strygesål
Ydeevne for damp:	80 g/min
Damp funktion:	Ja
Sprøjte funktion:	Ja
Designet til rejser:	Ingen
