Boston Acoustics Bravo II Manual

Boston Acoustics Højttaler Bravo II

Læs gratis den danske manual til Boston Acoustics Bravo II (8 sider) i kategorien Højttaler. Denne vejledning er vurderet som hjælpsom af 11 personer og har en gennemsnitlig bedømmelse på 4.6 stjerner ud af 6 anmeldelser. Har du et spørgsmål om Boston Acoustics Bravo II, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/8

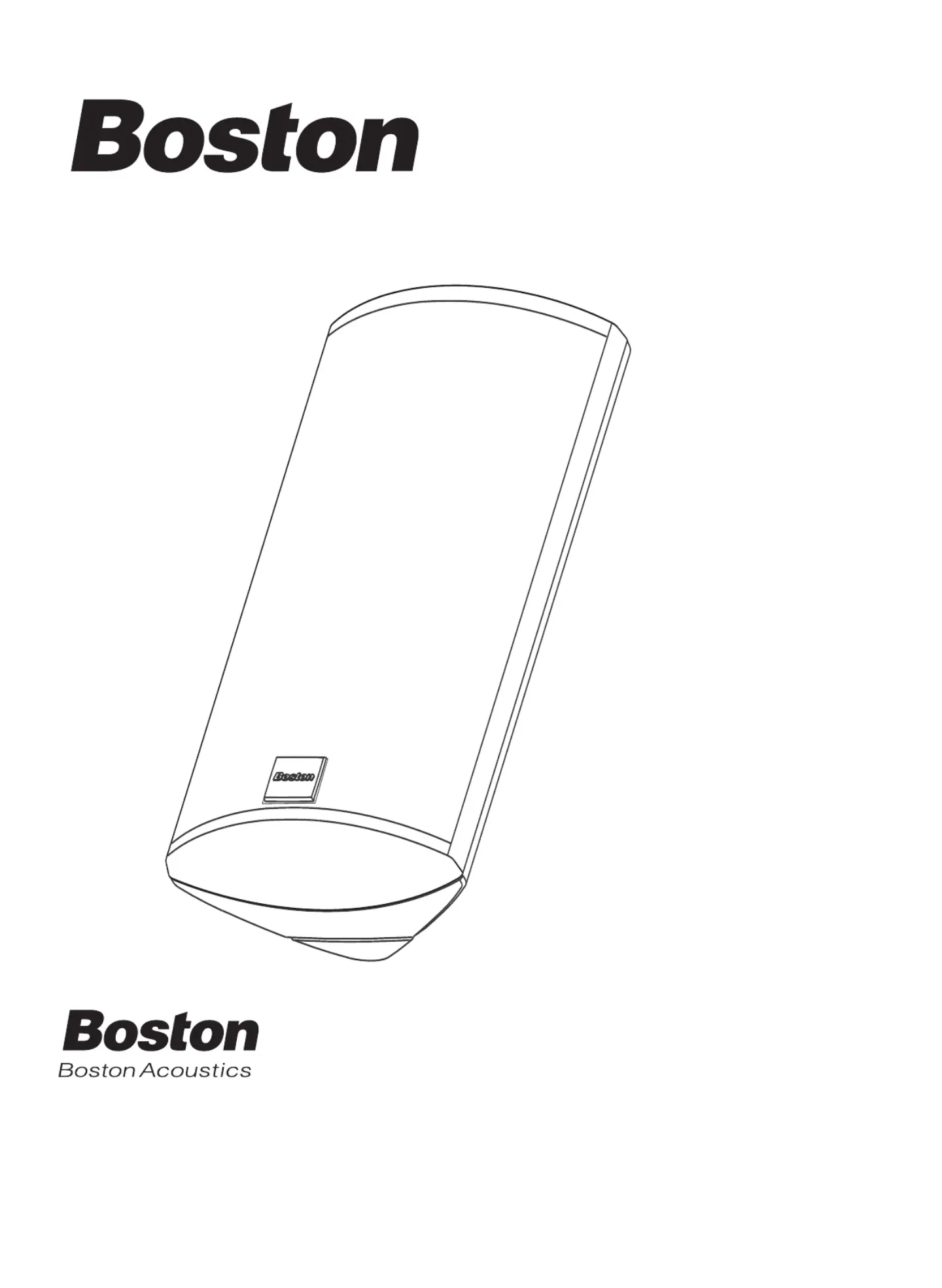

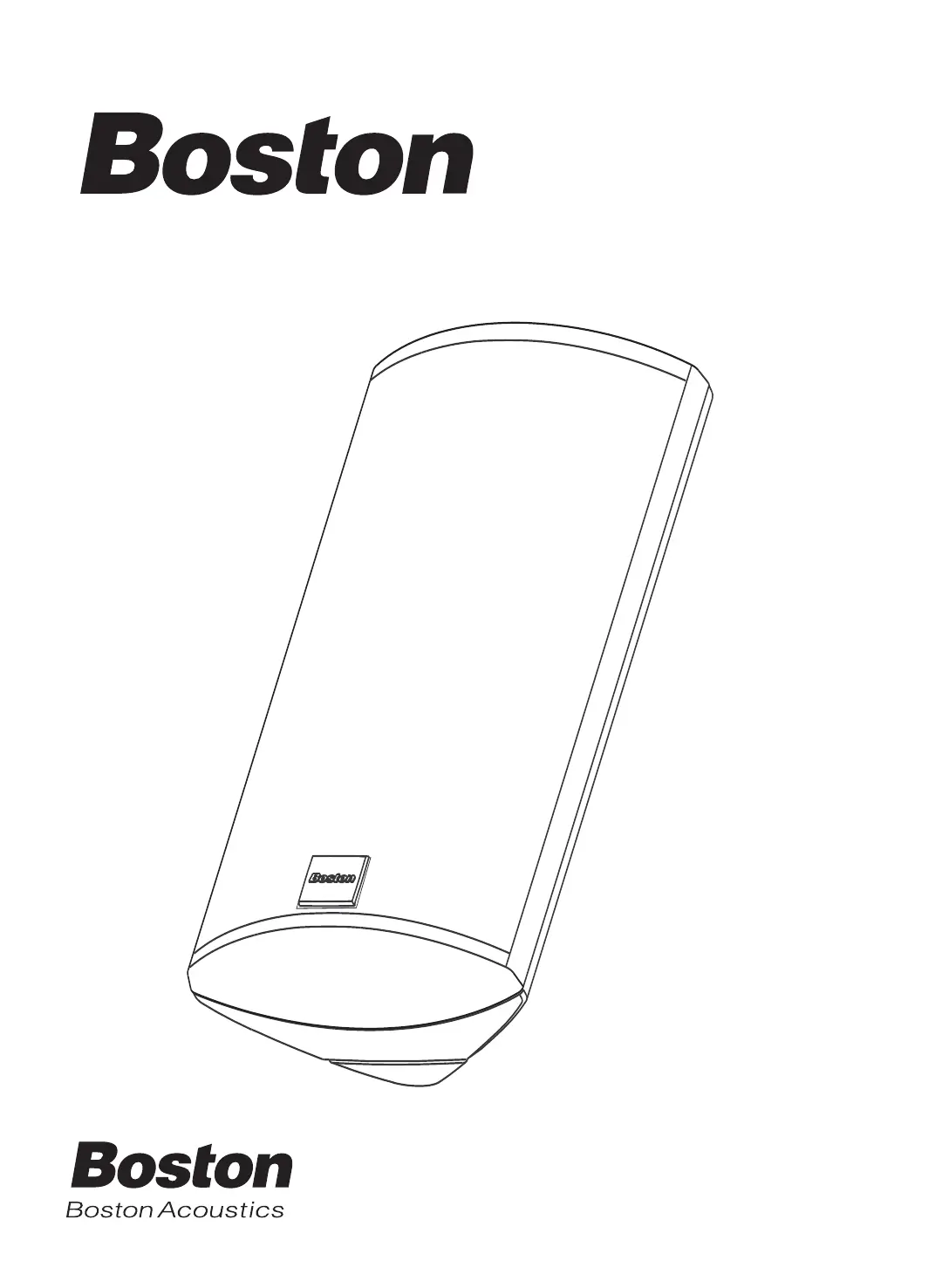

High Performance Multi-Purpose Speaker

Bravo II

Speciﬁcations

Frequency Response (±3dB) 80Hz–20,000Hz

Recommended Ampliﬁer Power 15–125 watts

Nominal Impedance 8 ohms

Sensitivity [1 watt (2.83v) at 1m] 89dB

Bass Unit 4

⁄2"(115mm) copolymer

Tweeter 1"(25mm) black anodized

aluminum dome with AMD

Crossover Frequency 2500Hz

Dimensions (HxWxD) with corner ﬁllers 14

⁄4x 6

⁄2x 5

⁄4" (362 x 166 x 134mm)

Dimensions (HxWxD) without corner ﬁllers 14

⁄4x 6

⁄2x 4

⁄4" (362 x 166 x 108mm)

Weight 5 lbs (2.25kg)

Finish White, black, or silver textured ABS

with matching metal grille

Description

The Boston Bravo

™

II is a multi-purpose, high performance compact loudspeaker. The Bravo II, which uses Boston’s

patented one-inch aluminum dome VR

tweeter with AMD and a 4

⁄2-inch woofer, can be combined with its supplied

mounting bracket or rear stand to be mounted or placed virtually anywhere in any room.

The Bravo II is essentially one-quarter of a cylinder, allowing it to be mounted vertically at any height in a corner, or hori-

zontally at the top of a wall, where wall and ceiling meet. Attaching the Bravo II to any surface is as simple as mounting

the bracket to the wall, removing the grille from the speaker, and then attaching the speaker to the bracket using the sup-

plied screws. Once the grille is placed back on the speaker, the means of attachment becomes virtually invisible.

Additionally, the Bravo II can be placed either horizontally or vertically on any ﬂat surface, such as a table or a shelf.

Horizontally, it can either angle upward by resting on its two corner ﬁllers or sit untilted using the rear stand.

Because it is designed as a high-performance, general-purpose speaker, the Bravo II is suitable for any high-ﬁdelity appli-

cation where it is important that the speaker blends into its surroundings. The Bravo II is well suited for background and

whole house music applications. The Bravo II’s highly ﬂexible mounting bracket allows it to be placed in a wide variety of

locations, and to for the speaker to be angled for optimum sound quality and three-dimensional imaging. When a pair is

placed vertically in the corners of a room, the Bravo II creates an unusually wide listening window, providing true stereo

sound reproduction over a broad area.

For full-range applications, it is recommended that the Bravo II be used in conjunction with one of Boston’s powered sub-

woofers. The Bravo II’

s low frequency limit is 80Hz, allowing for a great deal of placement ﬂexibility for the subwoofer. The

Bravo II’

s r

obust design allows it be used with full-range signals and ampliﬁers rated between 15 and 125 watts. Please

note that the Bravo II is not magnetically shielded. Therefore, it should not be placed closer than 18 inches from a tube

television. The Bravo II may be used safely near pr

ojection and plasma televisions.

Also available; The Boston Bravo II Center. The Bravo II Center is sonically matched to the Bravo II and features

Magnaguard

magnetic shielding allowing for use on or near tube televisions without interference.
