MODELS 670, 671, 671MX, 688 & 689

CEILING/WALL FANS

READ AND SAVE

THESE INSTRUCTIONS

To register this product visit

In USA: www.broan-nutone.com

In Canada: www.broan-nutone.ca

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE

THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact

the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock the service

disconnecting means to prevent power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a prominent warning device, such as a

tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualiﬁ ed person(s) in accordance with

all applicable codes and standards, including ﬁ re-rated construction codes and standards.

4. Sufﬁ cient air is needed for proper combustion and exhausting of gases through the ﬂ ue

(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment

manufacturer's guideline and safety standards such as those published by the National Fire

Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden

utilities.

6. Ducted fans must always be vented to the outdoors.

7. Acceptable for use over a bathtub or shower when installed in a GFCI protected branch circuit.

8. Install fan at least ﬁ ve feet (1.52 m) above the ﬂ oor.

9. Never place a switch where it can be reached from a tub or shower.

10. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials

and vapors.

2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall

spray, construction dust, etc. off power unit.

3. Please read speciﬁ cation label on product for further information and requirements.

USE AND CARE

DISCONNECT ELECTRIC POWER SUPPLY AND LOCK OUT SERVICE PANEL BEFORE

SERVICING THE UNIT.

PREVENTATIVE MAINTENANCE

A clean fan provides better service. Disconnect the power supply and clean the fan as

described below:

TO CLEAN GRILLE - Use a mild detergent, such as dishwashing liquid, and dry with a soft

cloth. DO NOT USE ABRASIVE CLOTHS, STEEL WOOL PADS, OR SCOURING POWDERS.

TO CLEAN FAN ASSEMBLY - Unplug motor cord from receptacle. To remove motor plate:

Find the single tab on the motor plate (located next to the receptacle). Push up near motor

plate tab while pushing out on side of housing. Or insert a straight-blade screwdriver into

slot in housing (next to tab) and twist screwdriver. Gently vacuum fan, motor and interior

of housing. METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

TO REASSEMBLE ALL ABOVE PARTS - Reverse all procedures explained above.

MAINTENANCE

The motor is permanently lubricated and never needs oiling. If the motor bearings are

making excessive or unusual noises, replace the motor with the exact service motor. You

should replace the impeller at the same time.

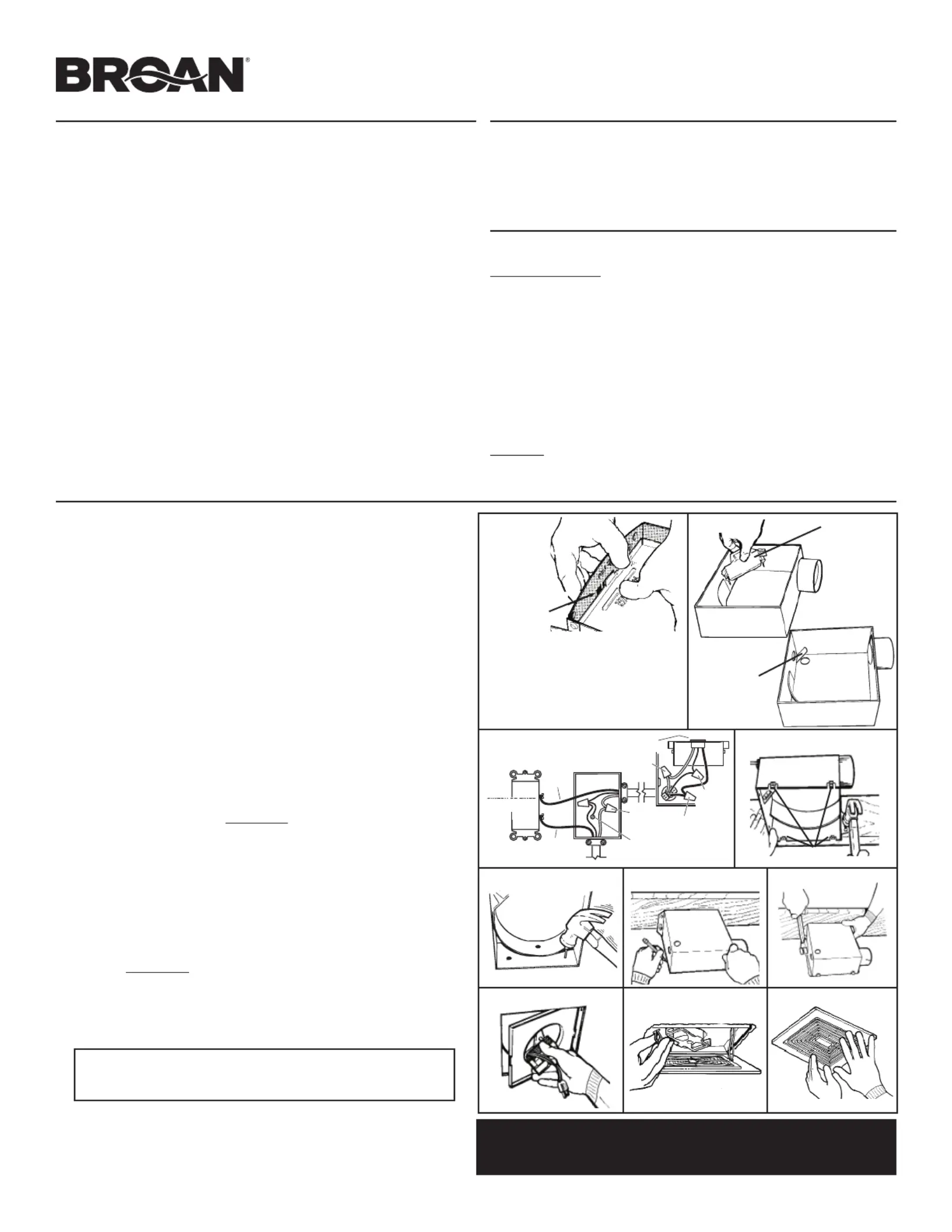

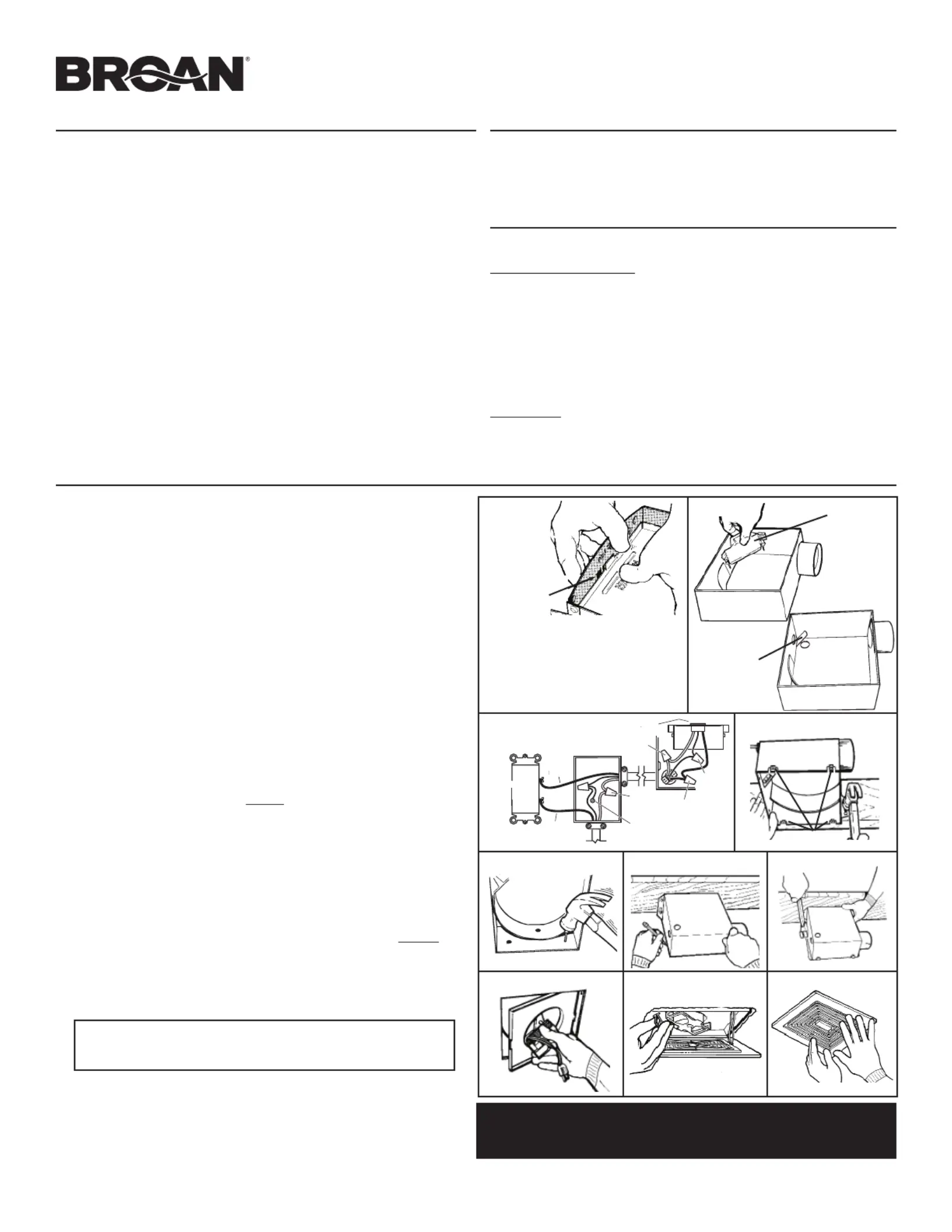

INSTALLATION

1. Remove motor plate from housing by pushing down on rib in plate while pulling out

on side of housing. Motor plate may also be removed by inserting a straight-blade

screwdriver into slot in housing and twisting sc (FIG. 1).rewdriver

2. Remove wiring cover from housing by pulling straight out. Unit is shipped ready

to wire through the top of housing. To wire through the side, bend housing flap to

cover top hole and expose side hole. DO NOT BREAK OFF FLAP. If flap breaks,

Plug unused hole using standard electrical hole plug (FIG. 2).

3. Turn off electrical power at service entrance and connect power cable to housing

using appropriate connector. Wire black to black, white to white, and green to green

or bare wire.

Push all wiring up into corner of unit and replace wiring cover. Make sure cover

holds housing flap in place against side or top of housing.

CAUTION: DO NOT ALLOW WIRES TO EXTEND OUTSIDE OF WIRING BOX.

Wire left exposed will become pinched or cut when motor plate is installed.

Electrical shock may result (FIG. 3).

4. Choose the location for your fan. For best performance, use the shortest possible

duct run and a minimum number of elbows. For wall installations: Position unit so

damper flap closes when unit is off.

WIRING

COVER

HOUSING

FLAP

SCREWDRIVER

SLOT

FIG. 3

FIG. 1

120 VAC LINE IN

BLACK

GROUND

WHITE TO

WHITE

SWITCH OR TIMER

GREEN TO

GREEN OR

BARE WIRE

SWITCH BOX

RECEPTACLE

WHITE TO

WHITE

BLACK TO

BLACK

FIG. 2

FIG. 4

FIG. 5

FIG. 6 FIG. 7

FIG. 8 FIG. 9 FIG. 10

TABS



5. New installation prior to finishing the ceiling or wall:

MAKE SURE HOUSING WILL BE FLUSH WITH FINISHED CEILING OR WALL.

Slotted tabs are provided to locate housing flush with 1/2" ceiling or wall material.

Bend tabs outward 90°

(use a screwdriver if desired) and position housing so that

tabs rest against bottom edge of joists (or front of stud). Nail housing to joist or stud

using four nails to ensure a solid, quiet installation. Ceiling installations: Tabs on

opposite side of housing can be bent outward to rest on top of 1/2" ceiling material

and provide extra stability (FIG. 4).

5. Replacement installation:

Position housing so that it is centered in existing opening. MAKE SURE HOUSING

IS FLUSH WITH FINISHED CEILING OR WALL. After making electrical and

ductwork connections (see steps 4, 5 and 6), nail housing in place. Drive nails

through the housing where indicated by arrows (FIG. 5).

5. New installation in an existing ceiling or wall:

From above ceiling or behind wall, position housing against stud or joist. Trace

outline of housing on ceiling or wall material (FIG. 6). Set housing aside and cut

opening. Place housing in opening such that its BOTTOM EDGE IS FLUSH WITH

FINISHED CEILING OR WALL. 1/2" ceiling or wall material: Bend tabs outward 90°

(use a sc desired) to rest on top of ceiling or wall material and provide rewdriver if

extra stability. Nail in place using four nails to ensure a solid, quiet installation (FIG. 7).

6. Install 3" round duct onto damper/duct connector. If rigid ductwork is used, its seam

should be positioned at top of damper/duct connector. Tape the joint and extend

ducting to a wall cap or roof cap. Make sure the damper operates freely. Ceiling or

wall can now be finished.

NOTE: If damper detaches from duct connector, re-insert it by squeezing duct

connector top-to-bottom while guiding posts on damper flap into holders in duct

connector. The horizontal rib should be on the outside surface of damper flap

and damper flap should move freely inside of duct connector.

7. Replace the motor plate removed in Step 1. Insert two motor plate tabs into slots

in housing and then pivot motor plate up until the third tab on plate snaps into

matching slot in housing. Make sure tabs hold motor plate securely in place. Plug

in motor (FIG. 8).

8. Squeeze grille springs together and insert springs into slots in motor plate (FIG. 9).

Push grille up against ceiling or wall (FIG. 10).

1111063A
