Installation Microwave Oven

Instructions Built-In Trim Kits

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions

for local inspector’s use.

• IMPORTANT — Observe all governing codes

and ordinances.

• Note to Installer – Be sure to leave these instructions

with the Consumer.

• Note to Consumer – Keep these instructions for future

reference.

• Skill level – Installation of this appliance requires basic

mechanical and electrical skills.

• Completion time – 1 to 3 hours

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not

covered under the Warranty.

• This kit is for use on model: CEB515

• This kit and microwave are approved for installation

alone or above any single electric wall oven. Do not

mount adjacent (within 2 feet) to any range, cooktop,

gas oven, or other microwave.

• This product is to be installed 3 feet above floor level.

• Do not alter or modify any part of this kit or the oven.

• For easier installation and personal safety, we

recommend that two people install this microwave

oven.

• Unplug the microwave oven before attempting

installation of this kit.

This oven must be plugged into a

properly grounded 3-hole, 120 volt receptacle as required

by the National Electrical Code.

Before beginning the installation,

switch power off at service panel and lock the service

disconnecting means to prevent power from being

switched on accidentally. When the service disconnecting

means cannot be locked, securely fasten a prominent

warning device, such as a tag, to the service panel.

PARTS INCLUDED

NOTE: This kit has extra screws to prevent the

technician from spending extra time locating

a replacement in case they lose one during

installation.

CX152, CX153

PART QUANITY

Rear Duct 1

Bottom Duct

Trim Kit

Frame 1

Rail

Short Screws

16 required

3 extra

Long Wood

Screws 4 required

2 extra

If you have questions, visit our website at: cafeappliances.com

WARNING

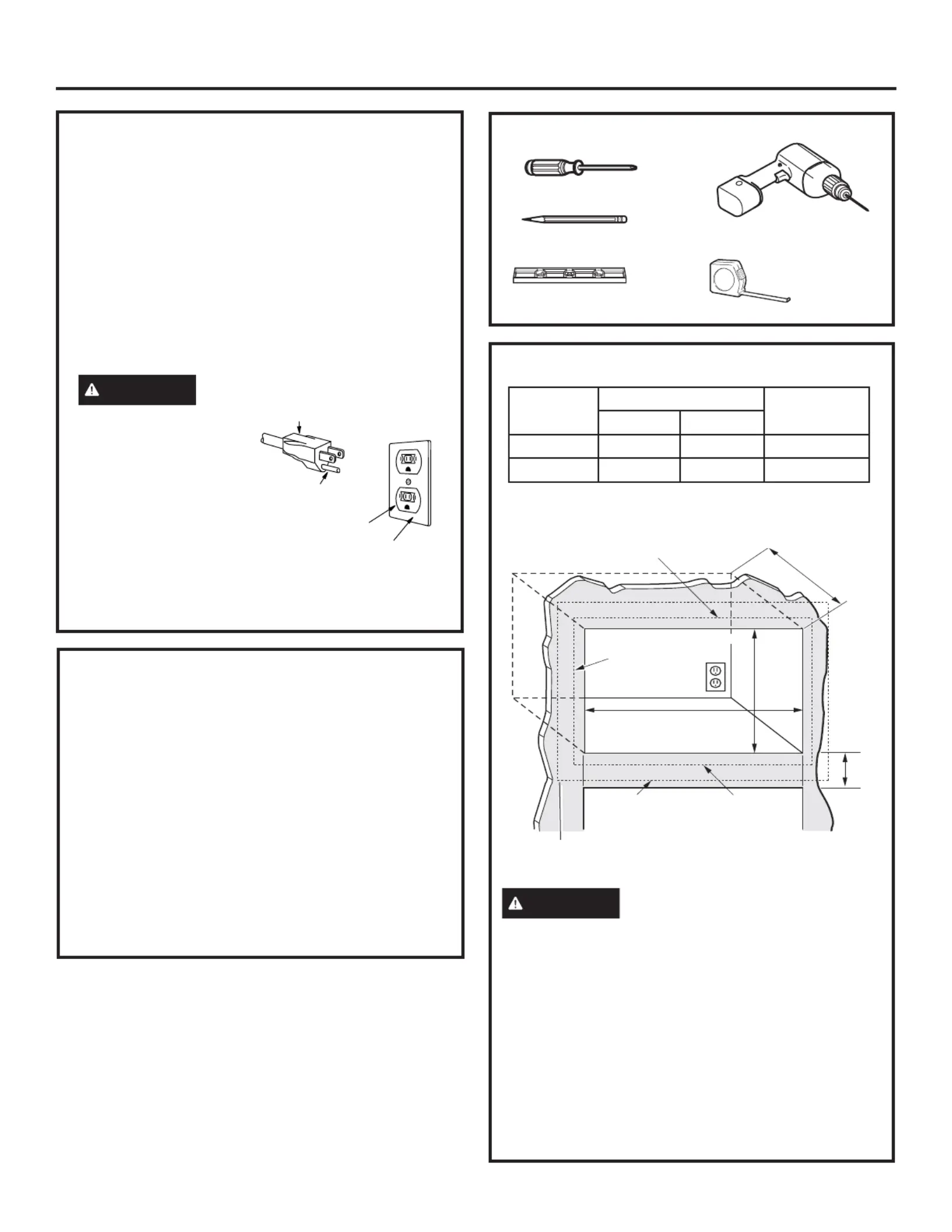

CUTOUT DIMENSIONS

This trim kit uses air flow from the top, bottom and

sides of the trim frame. Blocking the air flow can

cause the microwave to function improperly and may

cause damage to the microwave.

Allow a 1” clearance beyond the edge of the trim kit

frame to provide proper air flow.

FOR INSTALLATION ABOVE A BUILT-IN OVEN:

Microwave oven should be installed on a 3/8”

plywood base and supported by 2x4 or 1x2

equivalent runners on all sides. Base must be

capable of supporting a minimum of 100 lbs.

Installation Instructions

Min. depth with receptacle outside cutout – 22

”

Min. depth with receptacle inside cutout – 23 1/2

”

120 volt – 60 Hertz grounded power receptacle.

TOOLS YOU WILL NEED

2 Phillips Screwdrivers (#1 & #2)

Drill with 3/32” Drill Bit

Pencil

Level

Tape Measure

Depth

Height

1” Overlap

Width

1” Overlap

1” Clearance beyond

trim frame

(on all sides)

3” Min.

27”models: 1 7/8” overlap

30”models: 3 5/16” overlap

Bottom of trim kit must be

minimum of 36” from floor

Dimen-

sion

Trim Kit Cutout

27” 30”

Height 19 1/8” 19 1/8” 17 1/8 ± 1/ ”8

Width 26 7/8” 29 3/4” 23 1/4 ± 1/ ”8

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event

of an electrical short circuit, grounding reduces

the risk of electric shock by providing an escape

wire for the electric current. This appliance

is equipped with a cord having a grounding

wire with a grounding plug. The plug must be

plugged into an outlet that is properly installed

and grounded.Consult a qualified electrician or

serviceman if the grounding instructions are not

completely understood, or if doubt exists as to

whether the appliance is properly grounded.

Improper use of the

grounding plug can

result in a risk of

electric shock.

Do not use an

extension cord. If the

power supply cord

is too short, have a

qualified electrician or

serviceman install an

outlet near the appliance.

Permanent and Correct Installation

3-Prong plug

Grounding pin

3-Prong receptacle

Grounded receptacle box

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 14

amps and 1.60 kilowatts. This product must

be connected to a supply circuit of the proper

voltage and frequency. Wire size must conform

to the requirements of the National Electrical

Code or the prevailing local code for this kilowatt

rating. The power supply cord and plug should

be brought to a separate 15 to 20 ampere

branch circuit single grounded outlet. The outlet

box should be located in the cabinet above the

oven. The outlet box and supply circuit should be

installed by a qualified electrician and conform

to the National Electrical Code or the prevailing

local code.

WARNING
