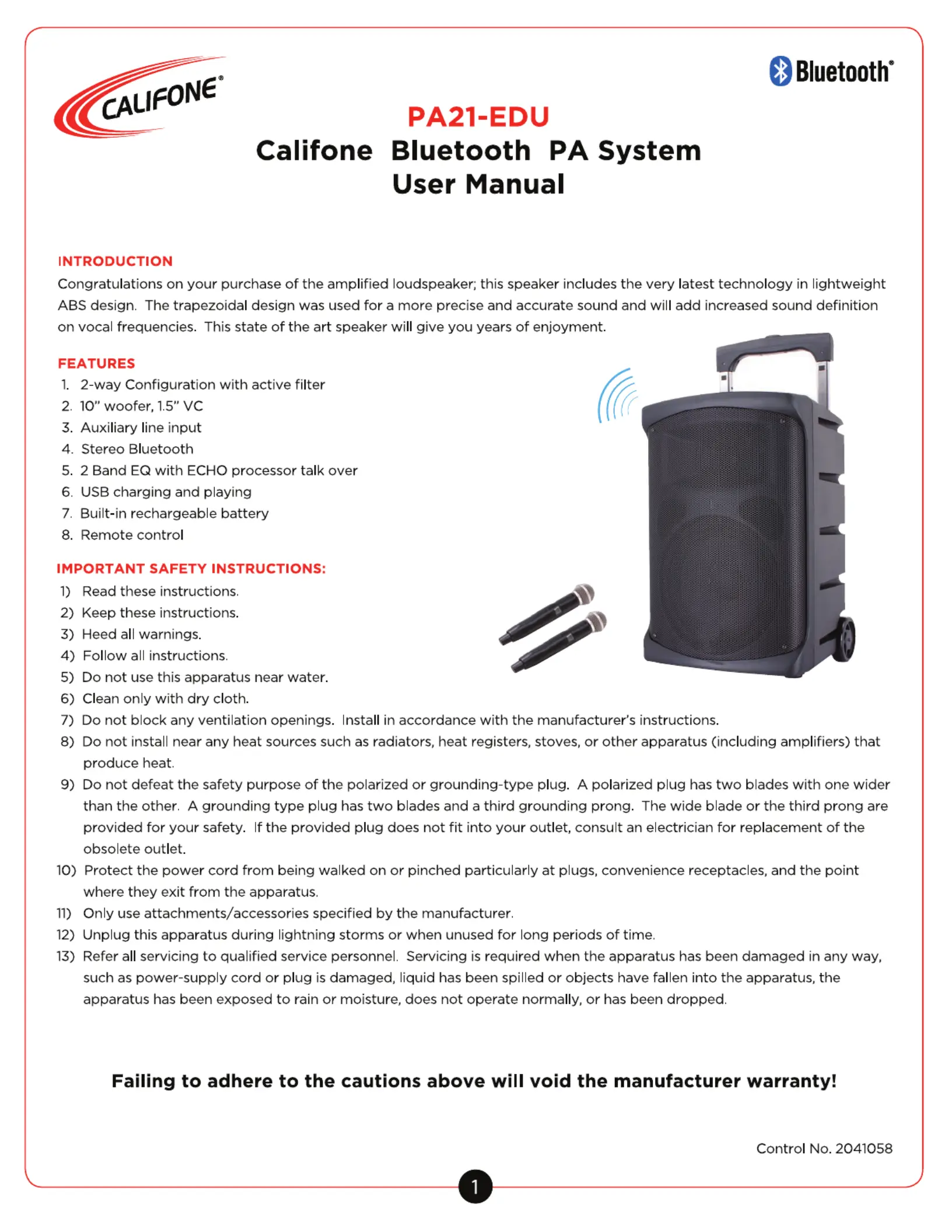

INTRODUCTION

Congratulations on your purchase of the ampliﬁed loudspeaker; this speaker includes the very latest technology in lightweight

ABS design. The trapezoidal design was used for a more precise and accurate sound and will add increased sound deﬁnition

on vocal frequencies. This state of the art speaker will give you years of enjoyment.

FEATURES

1. 2-way Conﬁguration with active ﬁlter

2. 10” woofer, 1.5” VC

3. Auxiliary line input

4. Stereo Bluetooth

5. 2 Band EQ with ECHO processor talk over

6. USB charging and playing

7. Built-in rechargeable battery

8. Remote control

IMPORTANT SAFETY INSTRUCTIONS:

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that

produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider

than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the

obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11) Only use attachments/accessories speciﬁed by the manufacturer.

12) Unplug this apparatus during lightning storms or when unused for long periods of time.

13) Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Failing to adhere to the cautions above will void the manufacturer warranty!

Control No. 2041058

PA21-EDU

Califone Bluetooth PA System

User Manual

A B

AN NN ATE

AN E NNT B

S CYN

D NOW

LE VE L B

MI N MAX MI N MAXUH F WERPOI. R

MI MIC CLI NE LI NE

MI N MAX N MA XMI

EC MI C EFHO - F

LE LE V LEVE L EL V EL

I N

OUT

CH 1 CH 2 ELI N

MI MIN MA X MI N MAX N MAX

MI C

PR I TYOR I

BA SS HI GH

-1 2 +1 2 -1 2 +1 2

P KEA

MA STE R

MI N MAX

TW SMO DE

US B

I. R

3332

STOP

MODE EQ

1 2 3

4 5 6

789

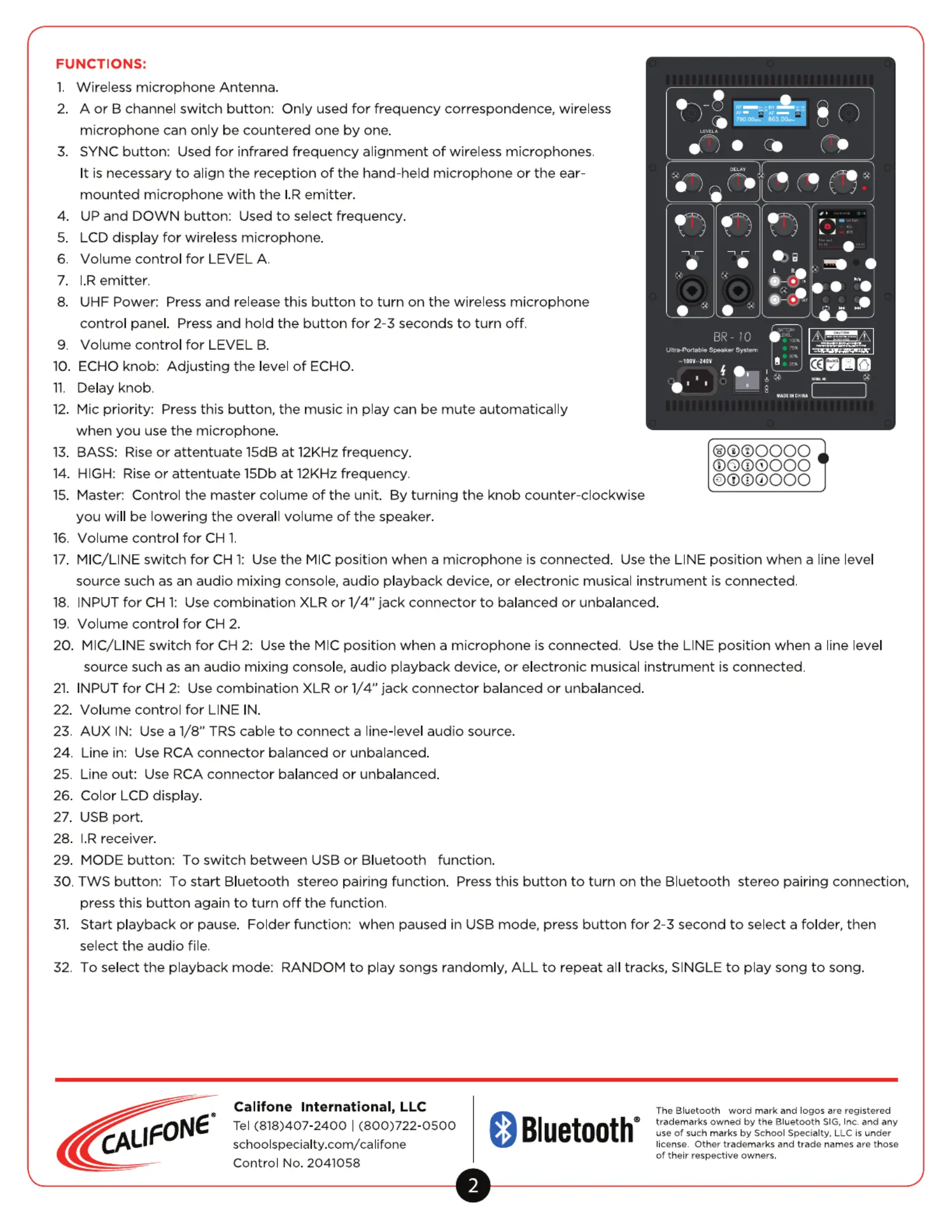

FUNCTIONS:

1. Wireless microphone Antenna.

2. A or B channel switch button: Only used for frequency correspondence, wireless

microphone can only be countered one by one.

3. SYNC button: Used for infrared frequency alignment of wireless microphones.

It is necessary to align the reception of the hand-held microphone or the ear-

mounted microphone with the I.R emitter.

4. UP and DOWN button: Used to select frequency.

5. LCD display for wireless microphone.

6. Volume control for LEVEL A.

7. I.R emitter.

8. UHF Power: Press and release this button to turn on the wireless microphone

control panel. Press and hold the button for 2-3 seconds to turn o.

9. Volume control for LEVEL B.

10. ECHO knob: Adjusting the level of ECHO.

11. Delay knob.

12. Mic priority: Press this button, the music in play can be mute automatically

when you use the microphone.

13. BASS: Rise or attentuate 15dB at 12KHz frequency.

14. HIGH: Rise or attentuate 15Db at 12KHz frequency.

15. Master: Control the master colume of the unit. By turning the knob counter-clockwise

you will be lowering the overall volume of the speaker.

16. Volume control for CH 1.

17. MIC/LINE switch for CH 1: Use the MIC position when a microphone is connected. Use the LINE position when a line level

source such as an audio mixing console, audio playback device, or electronic musical instrument is connected.

18. INPUT for CH 1: Use combination XLR or 1/4” jack connector to balanced or unbalanced.

19. Volume control for CH 2.

20. MIC/LINE switch for CH 2: Use the MIC position when a microphone is connected. Use the LINE position when a line level

source such as an audio mixing console, audio playback device, or electronic musical instrument is connected.

21. INPUT for CH 2: Use combination XLR or 1/4” jack connector balanced or unbalanced.

22. Volume control for LINE IN.

23. AUX IN: Use a 1/8” TRS cable to connect a line-level audio source.

24. Line in: Use RCA connector balanced or unbalanced.

25. Line out: Use RCA connector balanced or unbalanced.

26. Color LCD display.

27. USB port.

28. I.R receiver.

29. MODE button: To switch between USB or Bluetooth function.

30. TWS button: To start Bluetooth stereo pairing function. Press this button to turn on the Bluetooth stereo pairing connection,

press this button again to turn o the function.

31. Start playback or pause. Folder function: when paused in USB mode, press button for 2-3 second to select a folder, then

select the audio ﬁle.

32. To select the playback mode: RANDOM to play songs randomly, ALL to repeat all tracks, SINGLE to play song to song.

Califone

International, LLC

Tel (818)407-2400 | (800)722-0500

schoolspecialty.com/califone

Control No. 2041058

The Bluetooth word mark and logos are registered

trademarks owned by the Bluetooth SIG, Inc. and any

use of such marks by School Specialty, LLC is under

license. Other trademarks and trade names are those

of their respective owners.


