Fig. 1
RT.1_ii_201106
Tel: 714-891-7797
Fax: 714-891-2478
Toll Free: 800-822-8855
www.calfaucets.com
& HAND HELD SHOWER
P 1

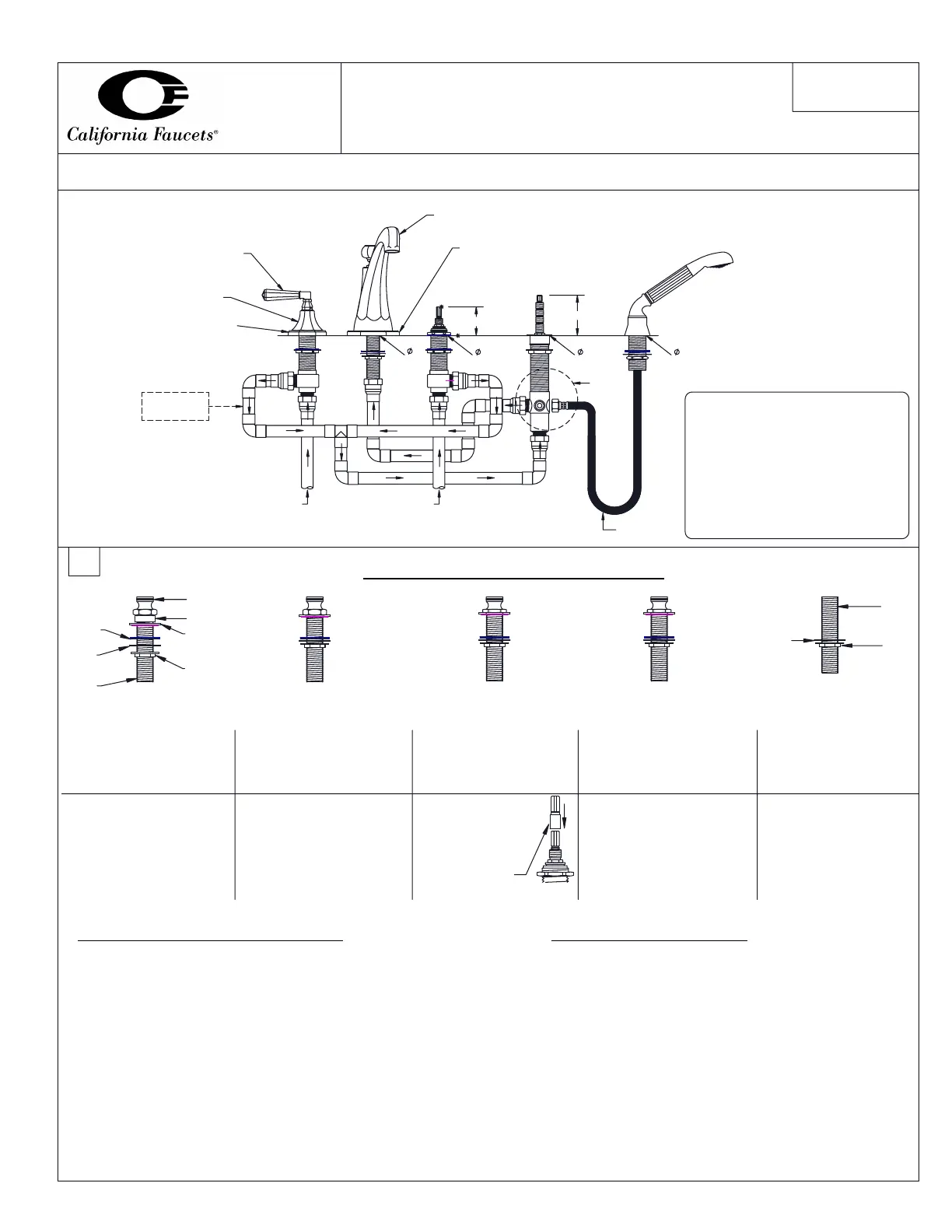

INSTALLATION
INSTRUCTIONS
ROMAN TUB SET WITH DIVERTER
Series 6308 uses
Broach Adapter
Quick Connect
Model #: QC-63
Use With Rough Kit #:
08-75-63
For Series #:
6308
-Remove brass nut, plastic washer and rubber washer from
Quick Connect assembly.
-Ensure that O-ring is properly seated in brass washer.
-Insert Quick Connect assembly through hole in deck.
-Place Rubber Washer, Plastic Washer and Brass Nut onto
Shank from below and firmly tighten.
-Seat Spout onto Quick Connect.
-Rotate Spout to desired position and tighten setscrew.
-Use thread sealant to seal all fittings with threads.
Rubber
Washer
Brass Washer
w/ O-Ring
Brass Nut
For all Quick Connect except: 08-75-75
For Series #:
Use With Rough Kit #:
Model #: QC-50
Quick Connect
5008
Shank
Plastic
Washer
08-75-50
3208 3308 3408 3508
3608 3808 4008 4208
4408 4508 4508X 4608
4708 5108 5508 5808
5908 6008 6108 6408
6708 6808 6908
For Series #:
08-75-99
Use With Rough Kit #:
Model #: QC-99
Quick Connect
Brass Spacer
O-Ring
1
3/4"
Shank
Washer
Model #: QC-75
Use With Rough Kit #:
-Apply thread selant to one end of the Shank and
tighten into Spout.
-Place spout base ring (if applicable) onto deck, over
the spout shank.
-Insert Shank through deck hole and from below place
Washer and Nut onto Shank.
-Rotate Spout to desired postion and firmly tighten nut.
-Use thread sealant to seal all fittings with threads.
For Quick Connect: 08-75-75
Quick Connect
Use With Rough Kit #:
Model #: QC-63
For Series #:
Fig. 3
08-75-65
For Series #:
5208 5208F
5208K 5308
5308F 5308K
7008 7208
7308
3/4" Nipple
08-75-75
Nut
Roman Tub Spout Connectors
Fig. 2A
Fig. 2B
Fig. 2C Fig. 2D
Fig. 2E
Hot
Inlet
Cold
Inlet
Handle
Escutcheon
Base Ring
(if applicable)
Spout
Base Ring
(if applicable)
IMPORTANT:
All soldering shall be performed prior to attaching fitting to Valves and Quick
Connect, otherwise severe damage may take place and void warrantee
1"
Hole Size
1-1/2"
Hole Size
"A"
"A"
1-1/4"
Hole Size
1-1/4"
Hole Size
See
Step 4
Handshower
Hose
Use Rigid
Copper Pipe
California Faucets reserves the right to make modification and specification changes at any time. Please visit www.calfaucets.com for most current technical data.
CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED BY A LICENSED ROFESSIONAL
NOTE:
-Must use rigid copper piping
(not flex) for all connections
between spout and valves.
-It is also recommended that an
access panel be provided for
all Roman Tub installations.
3008 3008K 3008F
3008X 3008XK 3008XF
3108 3108K 3108F
3108X 3108XK 3108XF
4808 4808X 6508
6608
