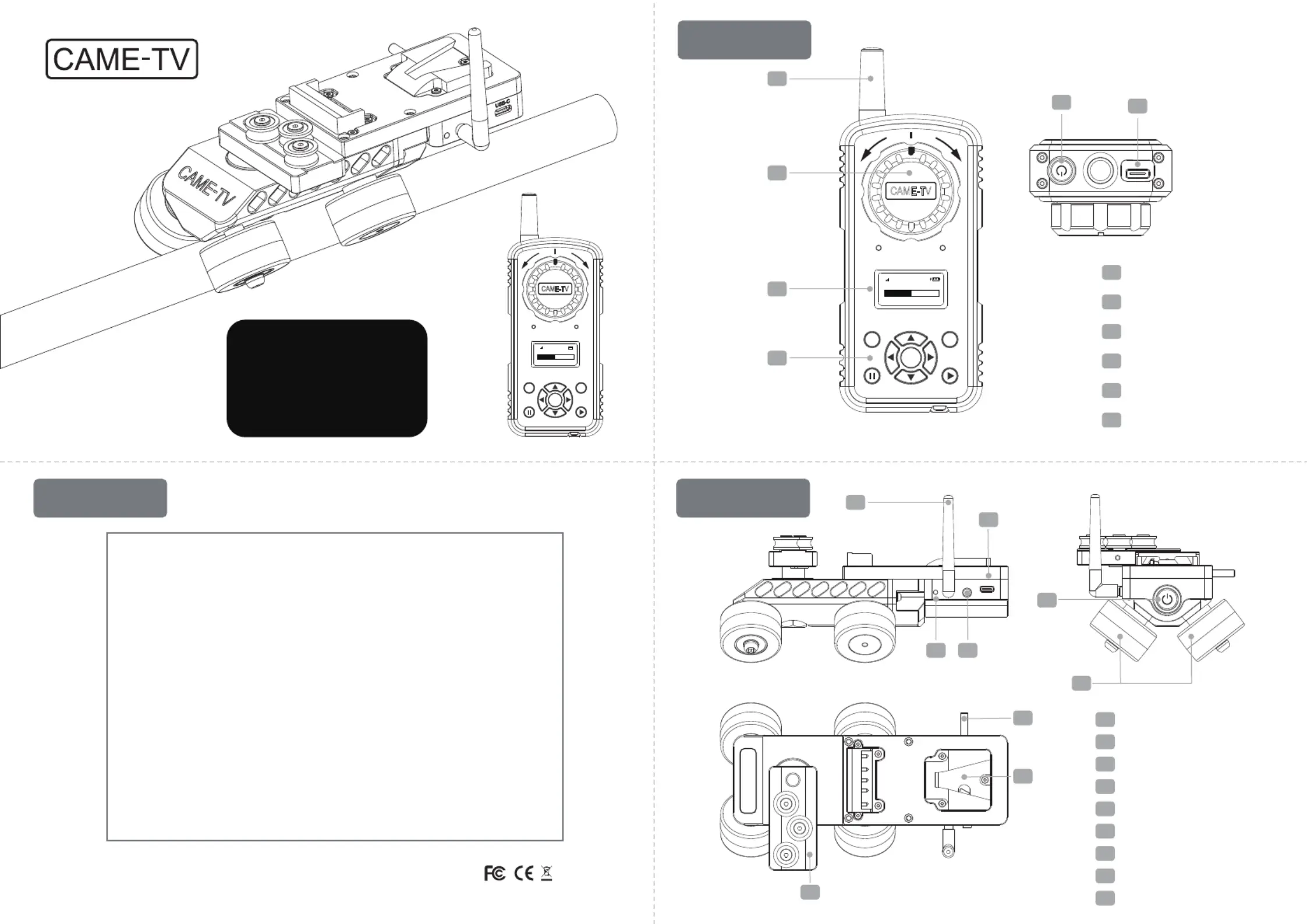

On /Off Button

Type-C USB

Transmit Antenna

Adjust the Wheel

Display Screen

Function Key Area

Receiver Antenna

Type-C USB

Wireless Pair Button

Indicator Light

On / Off Button

Power Drive Wheel

V-mount Battery Lock

V-mount Battery Plate

Dolly Connector

10S“STOP”

50%

I I

CAME-TV

100%

Power Track Dolly

User Manual

Specification:

Frequency:2.4G

Transmitter:Built-in 3.7v/1000mah Battery

Receiver:External battery rated voltage 14.8v

Max.Payload:20KG

Max.Speed:22s/m

Min.Speed:160s/m

Movement Distance:Unlimited

Rail diameter:25mm

RoHS

MADE IN CHINA

Controller

ReceiverParameters

10S OK“STOP”

50%

I I

CAME-TV

100%

I I

Wireless signal Battery level

Trip distance data

Pause Charging

Calibration completeRunning speed

Function button

S10 OKSTOP

50%

Trip progress bar

Point BPoint A

Point A

Menu Up / Speed Up

Menu Down / Speed Down

Menu Confirmation

Menu Back

Point B

Pause

Start

Menu and Confirmation

I I

14.8V

SET USB-C

14.8V

Type-C USB

IN 5V/1A

Controller charging and receiver battery installation

Operation Instructions

Press and hold

for 3 seconds

to switch on/off

Press and hold

for 3 seconds

to switch on/off

Important: Please correctly select the Type-C USB data cable and the adapter with 5V/1A to

charge the controller, otherwise it is easy to cause bad or serious consequences!

Important: Please correctly select the 12V--16.8V V mount Battery for photography to supply

power to the device, otherwise it is easy to cause bad or serious consequences!

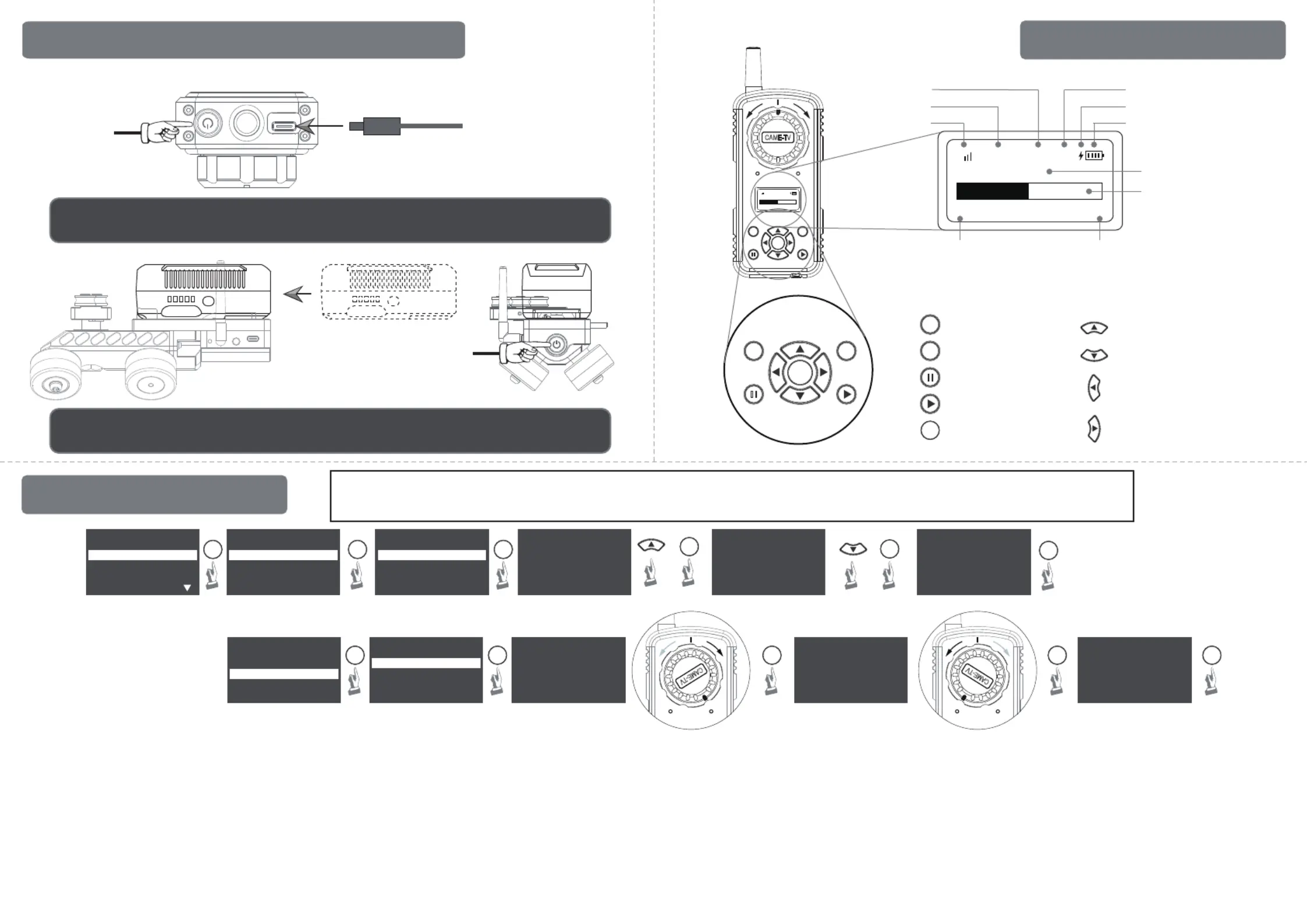

Display Screen Interface

CALIBRATE

PAIRING

POWER OFF

DEFAULT

CALIBRATE

Receiver

Emitter

CALIBRATE

Receiver

Emitter

RECEIVER

START

Emitter-hand

START

Emitter-hand

XX.X%

MAX-POINT

Emitter-hand

XX.X%

MIN-POINT

Emitter-hand

DONE

RECEIVER

POSITIVE

RECEIVER

REVERSE

RECEIVER

DONE

CAME-TV

100%

CAME-TV

100%

CALIBRATE Press OK to display START, then press OK to display POSITIVE, long press or short press the menu up button. Control the receiver to run in the positive direction to the desired position or the ：1.Receiver Calibration:

positive limit position and stop. That is to confirm that the point is the forward limit position. Press the OK key to display REVERSE to enter the reverse stroke setting. Then long press or short press the menu down button to control the

receiver to run in the reverse direction to the desired position or the reverse limit position and stop. That is to confirm that the current position is the reverse limit position. Short press the OK key to display DONE and then OK again to

set successfully and return to the main menu interface.)

2.Emitter Calibration: Press the OK key to display START and then press the OK key to display MAX-POINT. Turn the handwheel clockwise to the maximum limit and stop. Then press the OK key, display MIN-POINT.

At this time reverse Turn the handwheel clockwise to the minimum limit and stop. Then press the OK key to display DONE and press the OK key to return to the main menu. The setting should be set after this process.

OK OK

OK OK OK OK OK

PAIRING: 1.CONNECT: To pair the transmitter with the receiver, Press the receiver pairing button for more than 3 seconds to enter the pairing mode. At this time, the transmitter enters the CONNECT interface. Select START. If the interface displays

Connect, it means that the transmitter is in pairing mode. When the interface displays Connect.....->OK, it means the pairing is successful.

To avoid interferences, when the singal is bad, press the up or down button to modify the channel, the channel modification range is 20~36.2.CHANNEL:

POWER OFF：Auto stand-by and sleep mode: 10 minutes, 30 minutes, 60 minutes, never off

DEFAULT Restore the factory default Settings, but the calibration process of the receiver will remain unchanged.：

ABOUT Display the firmware version number of the transmitter and receiver. If the receiver is not connected, the receiver part will display "Unknown".：

The remote and dolly are paired at the factory and ready for use when they are powered on.

They can be connected automatically and no need to pair again.
