Side 1/3

adamhall.com

Features and speciﬁcations

subject to change without notice.

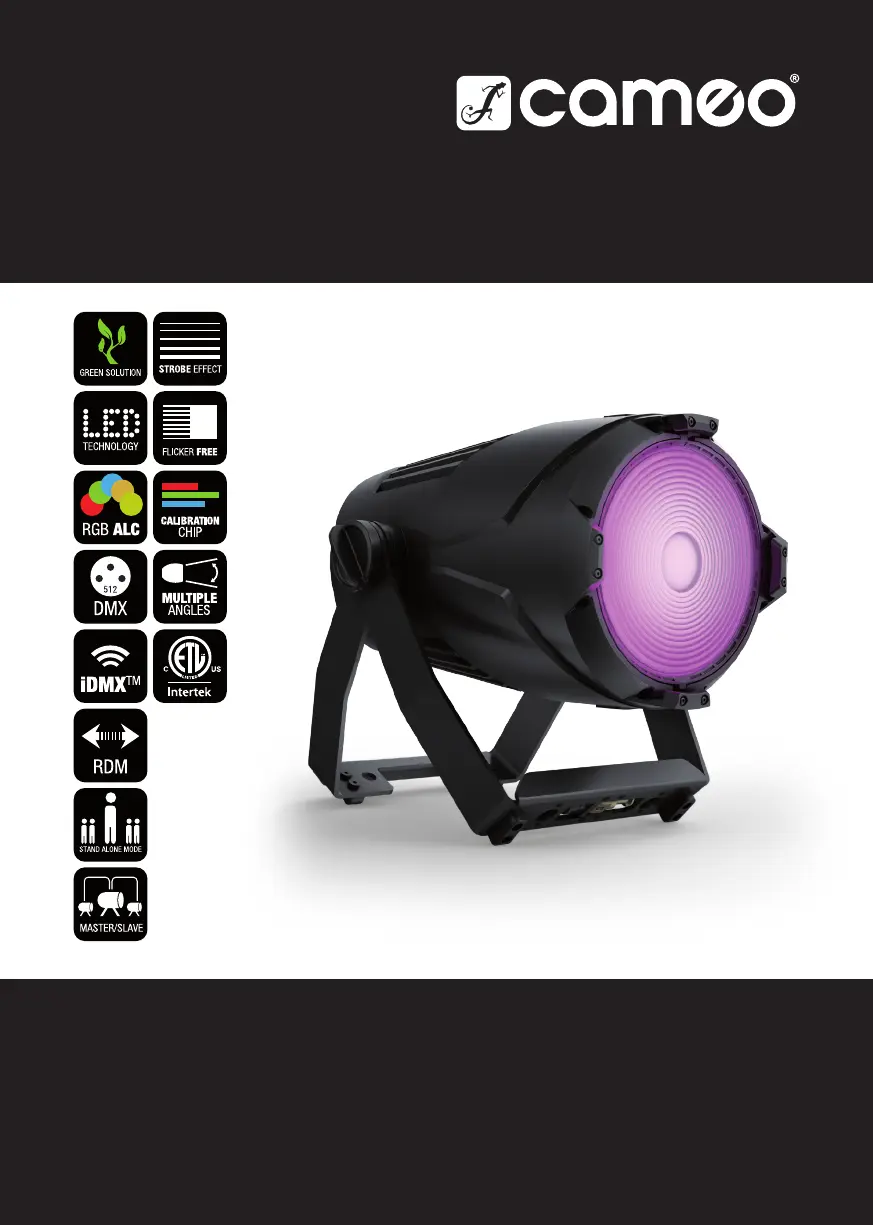

LUXIS® FC

FULL COLOUR LED PAR 200 W RGBALC

 Static spotlight with RGBALC single source COB light source

 Compatible with the patented SPIN16® technology (CLZSPIN16)

 No multishadows or unsightly colour edges

 High CRI 94Ra, strong light output of over 8500lm

 CCT infinitely variable from 1900K - 8000K

 Strong primary colours and beautiful pastel shades

 Easily exchangeable front lens for beam angles between 9° and 48

 Push encoder on the back for simple and quick operation of the

most important functions such as dimmer, CCT or Green-Magenta Shift

 Very quiet fan with different fan modes for every application purpose

 Calibrated LED for cross-batch colour fidelity

 USB port for optionally available iDMX® stick

DESCRIPTION

Innovative standard at the highest level of lighting technology

As a lighting designer or lighting technician, you depend on high-quality

lighting components. In TV or ﬁlm studios, in the theatre and generally on

any stage you have to illuminate, you make no compromises. PAR spot-

lights are part of your indispensable basic equipment. It is all the more

important that these spotlights with rich colours, high light output and in-

novative functionality leave no questions unanswered. The Cameo LUXIS

FC meets all these challenges with ﬂying colours.

Optimal light quality with high CRI free of multishadows

When it comes to colours and mixed colours, the LUXIS

® FC literally gives

you the full range. The 6-in-1 COB LED provides you with strong primary

colours and beautiful pastel shades with very good colour rendering. Due

to the single source COB light source, there are no multishadows or un-

wanted colour edges. The high colour rendering index of CRI 94Ra speaks

its own unmistakable language of quality. Not to mention that an LED cali-

bration is installed ex works, which ensures colour ﬁdelity across batches.

Practical operation at the central hub

In the live scenario, the LED PAR spotlight scores with intuitive control and

operability. Depending on your individual setup, you can control the LUXIS

FC wired via DMX-512 or wirelessly via W-DMX with the optionally avai-

lable iDMX

® stick from Cameo. A USB port is on board for the use of this

function. You can also access the most important functions such as dim-

mer, CCT or green magenta shift quickly and easily via the practical push

encoder on the back of the unit. You can also access the intuitively structu-

red menu via the control buttons and the double-line OLED display without

delay. As a lighting technician, you have many things, but certainly no time:

the front lens can be changed between 9° and 48° in just a few steps.

Attractive design and minimal noise

Especially in theatre and genre-similar locations, spotlights must not be-

come a visual end in themselves. Rather, the lighting components must be

subordinate to the overall picture in a harmonious and unpretentious way.

This fact results in a high challenge for the sophisticated and well thought-

out design. The LUXIS

® FC is designed with an elegant and discreetly roun-

ded, edge-free housing shape that is second to none. At the same time,

the „acoustic design factor“ has been taken into account: extremely quiet

fans are installed for cooling. You can choose from different fan modes,

which makes the Cameo LUXIS® suitable for any application and also for

noise-sensitive events.

adamhall.com

Features and speciﬁcations

subject to change without notice.

LUXIS® FC

FULL COLOUR LED PAR 200 W RGBALC

SPECIFICATIONS

Product type LED PAR Lighting

Colour spectrum RGBALC

LED type 200 W 6in1 RGBALC COB LED

Refresh rate 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz,

25000 Hz

Dispersion Beam Angle: 21 - Field Angle: 29 °, Beam Angle: 51

- Field Angle: 63 °, Beam Angle: 9 - Field Angle: 16 °

DMX input 3-Pol XLR, 5-Pol XLR

DMX output 3-pin & 5-pin, 3-Pol XLR, 5-Pol XLR

DMX mode 10-channel, 12-channel, 16-channel, 1-channel,

20-channel, 3-channel, 5-channel, 6-channel,

7-channel, 9-channel

DMX Functions Colour presets, Colour temperature correction, De-

vice Settings, Dimmer, Dimmer Response, EZ-Chase,

RGBALC, Signal Fail, strobe

Standalone modes Auto programs, Dimmer Mode, Loop, preset, Static

Controls Down, Enter, menu, Push encoder, Up

Indicators OLED Display

PHOTOMETRICAL DATA

Don‘t forget useful accessories

Everything you need as a TV/ﬁlm, theatre, stage or dry hire operator is included. The SPIN16

® adapter (CLZSPIN16), lockable power cable and beam, narrow

and wide lenses are included. With optional accessories such as the Quicklock bracket, wing barn door, IDMX

® stick and the asymmetrical 10° x 60° lens,

you can complete the accessories for an all-round perfect application.

243k

27k

9.7k

136

2.4k

147

272

607

294

544

Illuminance (full on) [lux]

Beam width (1/2 peak) [cm]

Beam width (1/10 peak) [cm]

Beam angle

(1/2 peak): 8.4°

Field angle

(1/10 peak): 15.5°

Distance (m) 1 3 5 10 20

12°

8.4° 15.5°

Light distribution curv 0.1 0.5 1

Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz

Power consumption 280 W

Housing material Die-cast aluminium, Magnesium

Cabinet colour Black

Protection class IP IP20

Cooling low-noise fan

Luminous ﬂux 8500 lm

CRI 94 Ra

Ambient temperature (operating) -10 - 40 °C

Width 302 mm

Height 466 mm

Length 216 mm

Weight 7,9 kg

53k

5.9k

108

153

2.1k

181

255

533

362

510

133

723

1020

Illuminance (full on) [lux]

Beam width (1/2 peak) [cm]

Beam width (1/10 peak) [cm]

Beam angle

(1/2 peak): 20.5°

Field angle

(1/10 peak): 28.6°

Distance (m) 1 3 5 10 20

24°

20.5° 28.6°

Light distribution curv 0.1 0.5 1

12k

123

1.3k

285

368

502

475

613

126

950

1.2k

31.4

1.8k

2.4k

Illuminance (full on) [lux]

Beam width (1/2 peak) [cm]

Beam width (1/10 peak) [cm]

Beam angle

(1/2 peak): 50.8°

Field angle

(1/10 peak): 63°

Distance (m) 1 3 5 10 20

45°

50.8° 63°

Light distribution curv 0.1 0.5 1

Luminous ﬂux Chromaticity coordinates

7590 lm

840 lm

1710 lm

420 lm

5330 lm

1240 lm

9110 lm

8540 lm

8280 lm

Full on

Red

Green

Blue

Amber

Cyan

Lime

3200K

5600K

x 0.306 y 0.301

x 0.677 y 0.296

x 0.177 y 0.603

x 0.160 y 0.036

x 0.521 y 0.402

x 0.112 y 0.258

x 0.390 y 0.488

x 0.442 y 0.419

x 0.337 y 0.357

CCT Ra

2700-6500 97.4

400 500 600 700

Wavelength [nm]

UV IR

Full on - RAW
