Side 1/4
1
Programmable
Temperature
Transmitter
SINEAX V 611
V611 Be 152 497-03 03.17
PM1000793 000 01
Camille Bauer Metrawatt LTD
Aargauerstrasse 7
CH-5610 Wohlen/Switzerland
Phone +41 56 618 21 11
Fax +41 56 618 21 21
info@cbmag.com
www.camillebauer.com
Operating Instructions
The instruments must only be disposed of in
the correct way!
The following symbols in the Operating Instructions indicate
safety precautions which must be strictly observed:
Contents
1. Safety notes ......................................................................1
2. Scope of supply .................................................................1
3. Brief description .................................................................1
4. Technical data ....................................................................1
5. Mounting ............................................................................2
6. Electrical connections ........................................................2
7. Confi guring the transmitter ................................................3
8. Commissioning ..................................................................4
9. Maintenance .......................................................................4
10. Accessories and spare parts ..............................................4
11. Releasing the transmitter ...................................................4
12. Dimensional drawings ........................................................4
1. Safety notes
The proper and safe operation of the device as-
sumes that the Operating Instructions are read and
the safety warnings given in the various Sections
5. Mounting
6. Electrical connections
8. Commissioning
are observed.
The device should only be handled by appropriately trained
personnel who are familiar with it and authorised to work in
electrical installations.
Unauthorized repair or alteration of the unit invalidates the
warranty!
2. Scope of supply (Figs. 1 and 2)
Transmitter (1)
Order Code: Signifi cance of the 2nd. digit
611– K x
↑
0 Basic confi guration programmed
1 Confi gured to order
Fig. 1 Fig. 2
1 Operating Instructions (2) each in German, French and
English
(1)
(2)
3. Brief description
The programmable SINEAX V 611 is a two-wire transmitter.
It is used for measuring temperature in conjunction with a thermo-
couple or resistance thermometer. Thermocouple non-linearities
are automatically compensated. The output signal is a current
in the range 4…20 mA.
Measured variable, measuring range, signalling and other
parameters are programmed with the aid of a PC and the cor-
responding software.
The sensor circuit is monitored for open and short-circuits and
the output responds in a defi ned manner if one is detected.
The power supply of 12…30 V DC is connected together with the
signal by the two leads connected to the measurement output
(loop powered).
Transmitters supplied as standard versions are confi gured as
follows:
– Measuring input:
– Measuring range:
– Measuring output:
– Open-circuit supervision:
– Mains ripple suppression:
Pt 100 for three-wire
connection
0 … 600 °C
4 … 20 mA
Output 21.6 mA
For frequency 50 Hz
4. Technical Data
Measuring input
Input variable and measuring range confi gured
Input variables
Measuring ranges
Limits
Min.
span
Max.
span
Temperatures with resi-
stance thermometers
for two, three or
four-wire connection
Pt 100, IEC 60 751 – 200 to 850 °C 50 K 850 K
Ni 100, DIN 43 760 – 60 to 250 °C 50 K 250 K
Temperatures with
thermocouples
Type B, E, J, K, N, R, S, T
acc. to IEC 60 584-1
Type L and U, DIN 43710
Type W5 Re/W26 Re,
Type W3 Re/W25 Re
acc. to ASTM E 988-90
acc. to type 2 mV 80 mV
2
Cold junction compensation
Internal: Incorporated Pt 100
or
with Pt 100 connected to the terminals
External: Via cold junction thermostat
0…60 °C, confi gurable
Measuring output
(output/powering circuit)
Output signal IA: Impressed DC current, linear with tem-
perature
Standard range: 4…20 mA, 2-wire technique
External resistance
(load):
R
ext
max.
[kΩ]
=
Power supply [V] – 12 V
Max. output current [mA]
900
12 24
36
0
600
Load max. [Ω] with
20 mA output
Power supply [V]
30
10
Programming connector on the transmitter
Interface: Serial interface
Open and short-circuit sensor circuit supervision
Signalling modes: Output signal confi gurable to…
… the value the output had immediately
prior to the open or short-circuit* (hold
value)
… a value between 4 and 21.6 mA
* The short-circuit indicator is only active
for the RTD ≥ 100 Ω at 0 °C, three and
four-wire measuring mode
Power supply
DC voltage: Supply 12 … 30 V DC
max. residual ripple 1% p.p.
(supply must not fall below 12 V)
Protected against wrong polarity

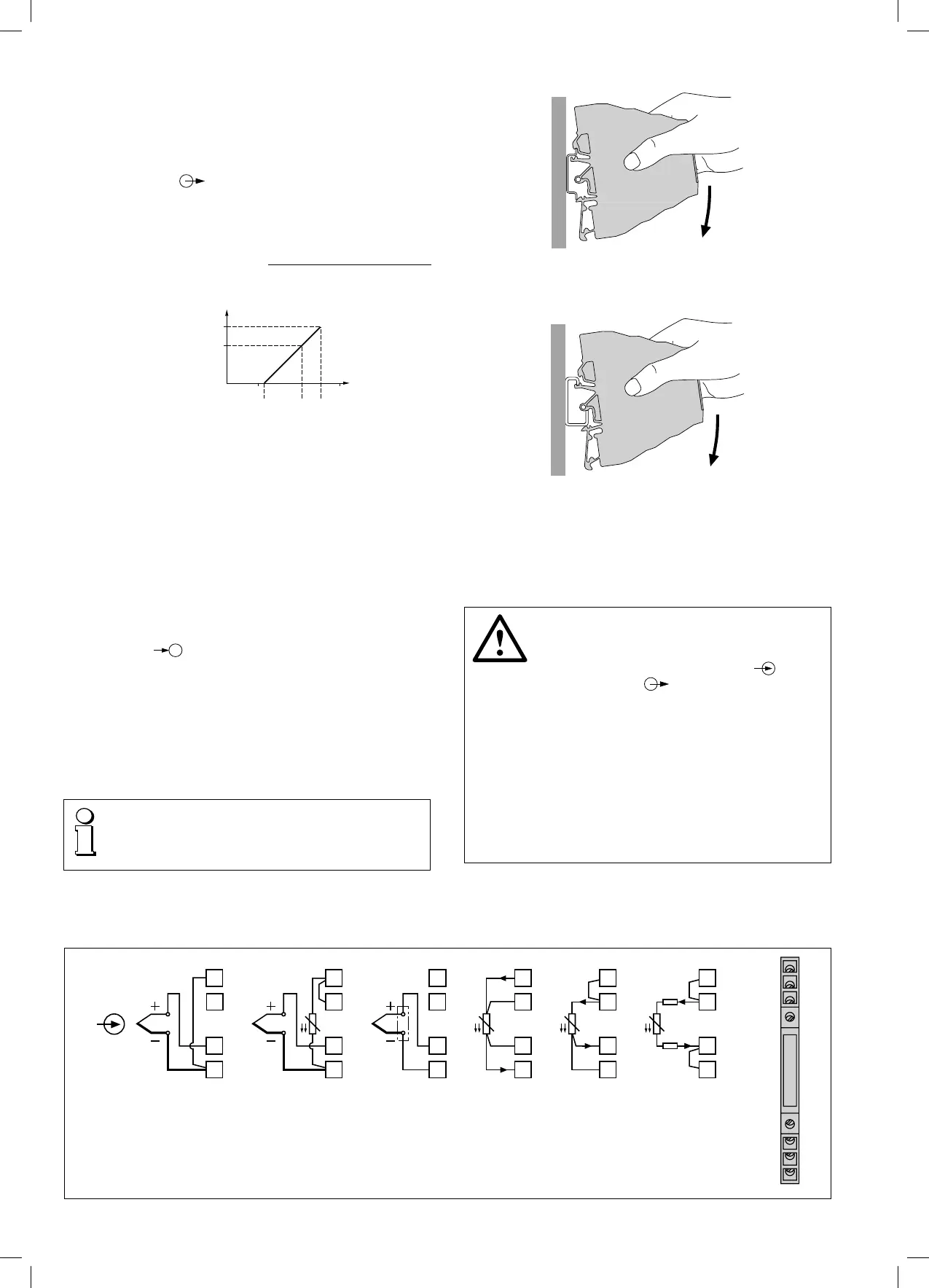

5. Mounting
The SINEAX V 611 can be mounted on a top-hat rail or on a
rail “G”.
When deciding where to install the transmitter (measu-
ring location), take care that the limits of the operating
temperature are kept:
– 25 and + 55 °C
Table 1: Measuring input
Simply clip the device onto the top-hat rail (EN 50 022) (see
Fig. 3).
Fig. 3. Mounting onto top-hat rails 35 ×15 or 35×7.5 mm.
Simply clip the device onto the rail “G” EN 50 035-G32 (see
Fig. 4).
Fig. 4. Mounting onto rail “G”.
6. Electrical connections
The leads are connected to the screw terminals for max. 4 mm
2
(single wire) and 2.5 mm
2
(fi ne wire) on the front of the transmitter.
The applicable enclosure Protection Class for the terminals is
IP 20 according to EN 60 529.
Also note that, ...
... the data required to carry out the prescribed
measurement must correspond to those marked
on the nameplate of SINEAX V 611 (
sensor,
measuring range,
measuring output, Supply
Voltage (see Fig. 6)!
... the total loop resistance connected to the output (receiver
plus leads) does not exceed the maximum permissible value
R
ext.
max., see “Measuring output” in Section “4. Technical
data”!
… the measurement input and output cables should be
twisted pairs and run as far as possible away from heavy
current cables!
In all other respects, observe all local regulations when selecting
the type of electrical cable and installing them!
6.1 Alternative measurement connections
Connect the measuring leads to suit the application as given
in Table 1.
ϑ
Rw1
Rw2
ϑϑϑ
D
C
A
TC
Internal cold
junction
compensation
with incorporated
Pt 100
TC
Internal cold
junction
compensation
with Pt 100
connected to
the terminals
TC
External cold
junction
compensation
RTD
Four-wire
connection
RTD
Three-wire
connection
RTD
Two-wire
connection
B
D
C
B
A
D
C
A
B
D
C
A
B
D
C
A
B
D
C
A
B
D
C
A
B
