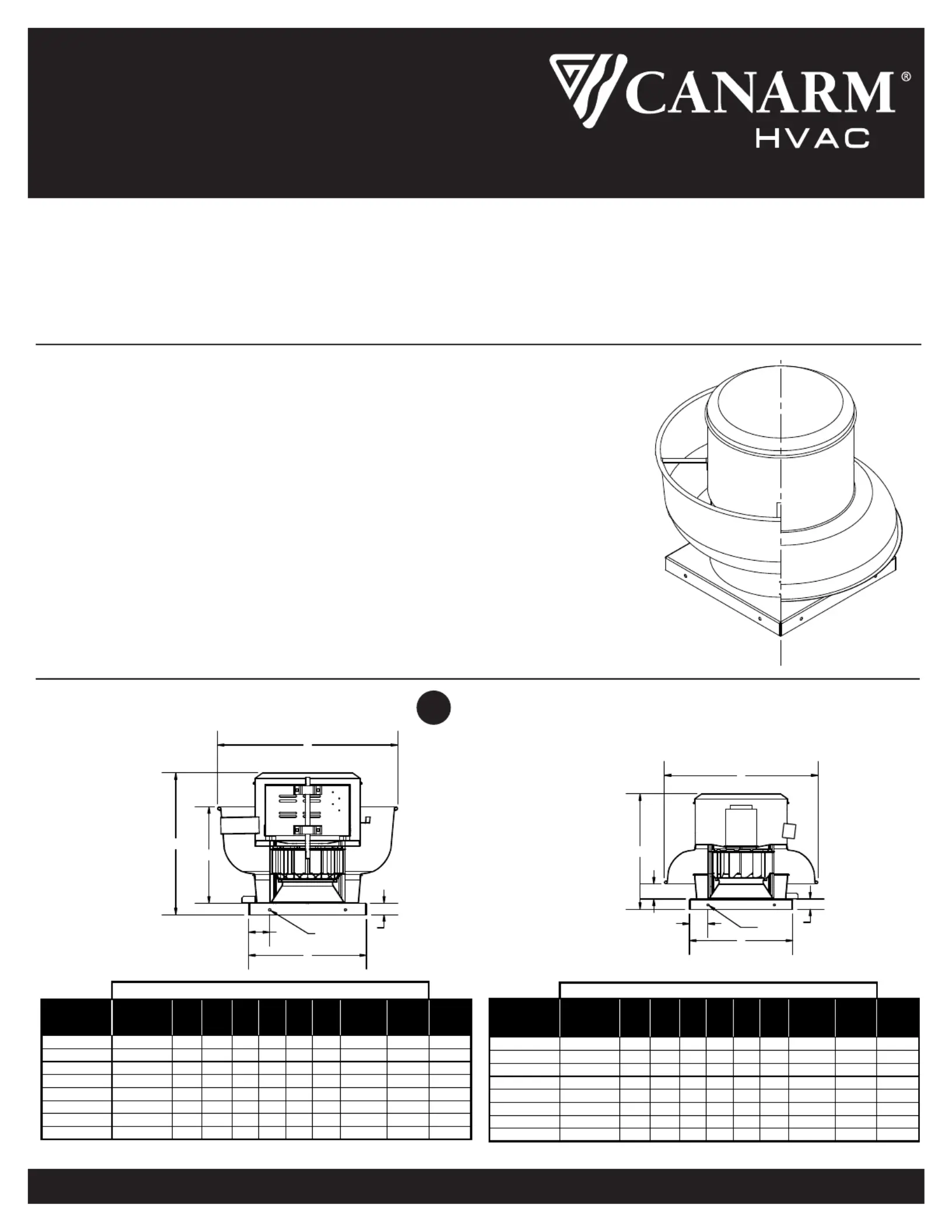

ALX SERIES

SPUN ALUMINUM EXHAUSTER

OPERATION INSTRUCTIONS AND PARTS MANUAL

READ AND SAVE THESE INSTRUCTIONS

GENERAL SAFETY

1. All electrical work must be done in accordance with all applicable electrical codes by a

qualified electrician.

2. Prior to wiring ensure the power supply is locked in the OFF position and that the motor

nameplate voltage matches the supply voltage.

3. Do not install or operate this fan in an environment where combustible materials, gases or

fumes are present.

4. Caution: the fan contains rotating parts and electrical service. Appropriate safety

precautions should be taken during installation, operation and maintenance.

When servicing the fan motor may be hot, allow time for cooling down.

5. Before starting the unit, ensure the wheel rotates freely.

6. Check and tighten where necessary all nuts, bolts & set screws prior to fan start up (as

some may have loosened during shipment).

7. Please follow all applicable national, state/provincial and local codes, all of them will

supersede this manual.

8. Failure to follow the safety instructions in this manual may cause serious injury or

death due to electrical shock or high speed rotating parts.

The purpose of this manual is to aid in the proper installation and operation of the blowers. These instructions are intended to supplement good

general practices and are not intended to cover detailed instruction procedures.

IT IS THE RESPONSIBILITY OF THE PURCHASER TO ASSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS EQUIPMENT IS

HANDLED BY QUALIFIED PERSONNEL.

Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER’S BILL OF LADING AND FILE A

CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.

DO NOT LIFT THE UNIT BY THE HOOD OR MOTOR. PLEASE LIFT THE UNIT BY HORIZONTAL SUPPORTS.

DIMENSION & COMPONENT

ALX-M-10_04_16 Page 1 of 6

UPBLAST

MODELS

DOWNBLAST

MODELS

NOTE: DUE TO MOTOR MANUFACTURERS VARIANCES IN DESIGN,

PLEASE SEE PAGE 5 FOR MOTOR DIMENSIONAL GUIDELINES.

DOWNBLAST UPBLAST

Downblast Direct

Drive Shown

Note: Belt drive units are weighted without motor & drives.

Upblast Belt

Drive Shown

Motor plate detail varies

on different sizes

Model A B C D E F G Ø

Wheel

Diameter

Roof

Opening

Net

Weight

(lbs)

ALX105-DD 18.00 25.00 19.00 2.50 1.50 3.50 0.38 10.50 15.00 33

ALX120-DD 19.00 25.00 19.00 3.50 1.50 3.50 0.38 12.25 15.00 35

ALX135-DD/DB 22.25 / 25.25 31.25 21.00 3.13 2.00 3.75 0.44 13.50 17.00 51 / 59

ALX150-DD/DB 23.13 / 26.13 31.25 21.00 3.75 2.00 3.75 0.44 15.00 17.00 56 / 65

ALX165-DD/DB 27.13 / 31.13 36.25 24.75 5.00 2.00 4.00 0.44 16.50 20.75 100 / 106

ALX180-DD/DB 27.75 / 31.75 36.25 24.75 5.50 2.00 4.00 0.44 18.25 20.75 104 / 110

ALX210-DB 36.25 43.75 33.13 5.25 2.50 4.00 0.44 21.25 29.00 176

ALX245-DB 37.00 43.75 33.13 5.88 2.50 4.00 0.44 24.50 29.00 181

Dimensions (inches)

Model A B C D E F G Ø

Wheel

Diameter

Roof

Opening

Net

Weight

(lbs)

ALX105-UD 17.63 25.00 19.00 13.00 1.50 3.50 0.38 10.50 15.00 35

ALX120-UD 18.63 25.00 19.00 13.00 1.50 3.50 0.38 12.25 15.00 37

ALX135-UD/UB 22.25 / 25.25 32.13 21.00 17.13 1.50 3.75 0.44 13.50 17.00 53 / 62

ALX150-UD/UB 23.13 / 26.13 32.13 21.00 17.13 1.50 3.75 0.44 15.00 17.00 58 / 67

ALX165-UD/UB 27.13 / 31.13 37.50 24.75 21.13 2.00 4.00 0.44 16.50 20.75 100 /108

ALX180-UD/UB 27.75 / 31.75 37.50 24.75 21.13 2.00 4.00 0.44 18.25 20.75 108 / 116

ALX210-UB 36.25 43.75 33.13 25.50 2.50 4.00 0.44 21.25 29.00 178

ALX245-UB 37.00 43.75 33.13 25.50 2.50 4.00 0.44 24.50 29.00 183

Dimensions (inches)
