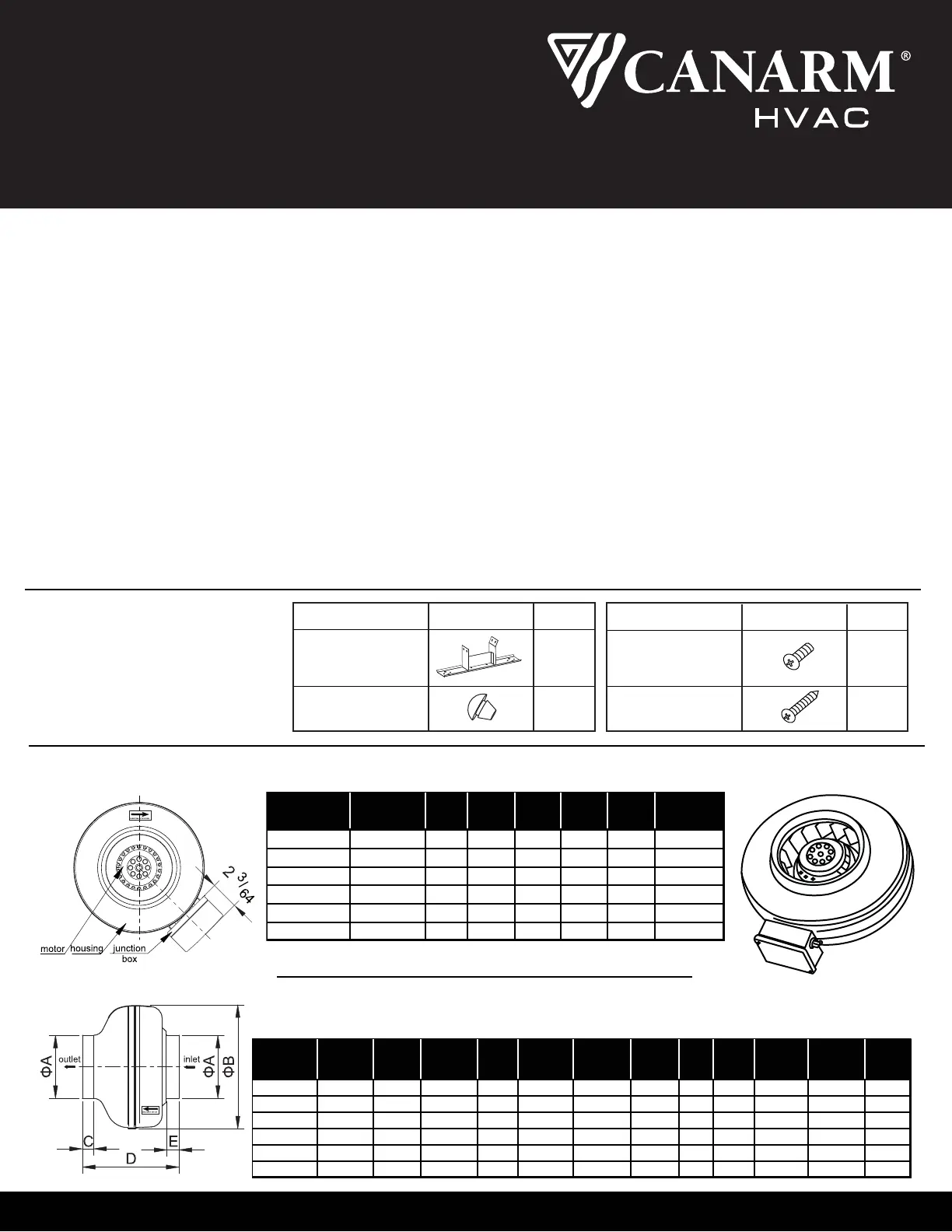

DFRC-ES SERIES
CIRCULAR DUCT FANS
OPERATION INSTRUCTIONS AND PARTS MANUAL
READ AND SAVE THESE INSTRUCTIONS
DIMENSIONS
PARTS
Check to make sure you have all of
the parts show at right before you
begin.
Mounting Bracket 1
Rubber Stopper 4
DESCRIPTION IMAGE QTY
DFRC-ES-M 05/17/16 Page 1 of 2
ELECTRICAL RATINGS
GENERAL SAFETY
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY, PLEASE OBSERVE THE FOLLOWING GUIDELINES.
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
2. Before servicing or cleaning this unit, switch power off at service panel and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning label to
the service panel.
3. CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS
AND VAPORS.
4. CAUTION: THIS UNIT HAS AN UNGUARDED IMPELLER. DO NOT USE IN LOCATIONS READILY ACCESSIBLE TO PEOPLE OR
ANIMALS.
5. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, OBSERVE THE FOLLOWING
GUIDELINES:
a) Installation work and electrical wiring must be done by a qualified electrician in accordance with all applicable codes and
standards, including fire-rated construction.
b) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring and other hidden utilities.
c) Ducted fans must always be vented to outdoors.
d) If this unit is to be installed over a bath tub or shower, it must be marked as appropriate for the application and be connected to
GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.
6. CAUTION: This duct fan shall be installed a minimum of one meter from any accessible opening of the duct.
Screw (ST5X10) 4
Screw (ST4.2X25) 4
DESCRIPTION IMAGE QTY
MODEL PART # ØA ØB C D E
IMPELLER
DIAMETER
DFRC-4ES DJT10-25H 4" 9 1/2" 5/8" 8 3/8" 5/8" Ø6 1/8"
DFRC-5ES DJT12-35H 5" 9 1/2" 7/8" 7 1/2" 1" Ø6 7/8"
DFRC-6ES DJT15-46H 6" 10 5/8" 3/4" 7 5/8" 5/8" Ø7 1/2"
DFRC-8ES DJT20-56H 8" 13 1/2" 1 1/8" 9" 7/8" Ø8 5/8"
DFRC-10ES DJT25-66H 10" 13 1/2" 1 1/8" 9" 1 1/8" Ø9 1/2"
DFRC-12ES DJT31-66J 12" 15 3/4" 1 1/8" 10 1/4" 1 1/8" Ø9 7/8"
MODEL PART #
RATED
VOLTAGE
(V~)
RATED
FREQUENCY
(Hz)
INPUT
POWER
(W)
ELECTRIC
CURRENT
(A)
MAX. STATIC
PRESSURE
(inch W.G.)
MAX AIR
VOLUME
(CFM)
SPEED
(RPM)
SOUND
LEVEL
(dB)
INSULATION
CLASS
VALUE OF
CAPACITOR
(μF)
NET
WEIGHT
DFRC-4ES DJT10-25H 120 60 40 0.35 1.12 130 2912 60 F 2 6.61 lbs
DFRC-5ES DJT12-35H 120 60 53 0.45 1.28 160 2593 62 F 3 6.61 lbs
DFRC-6ES DJT15-46H 120 60 74 0.63 1.60 230 2534 61 F 3.5 7.28 lbs
DFRC-8ES DJT20-56H 120 60 128 1.19 2.20 450 3158 70 F 6 12.35 lbs
DFRC-10ES DJT25-66H 120 60 140 1.20 2.64 550 3028 71 F 8 12.35 lbs
DFRC-12ES DJT31-66J 120 60 203 1.77 3.08 710 2443 70 F 8 15.21 lbs
