GSQ-D SERIES

GSQ-D EC SERIES

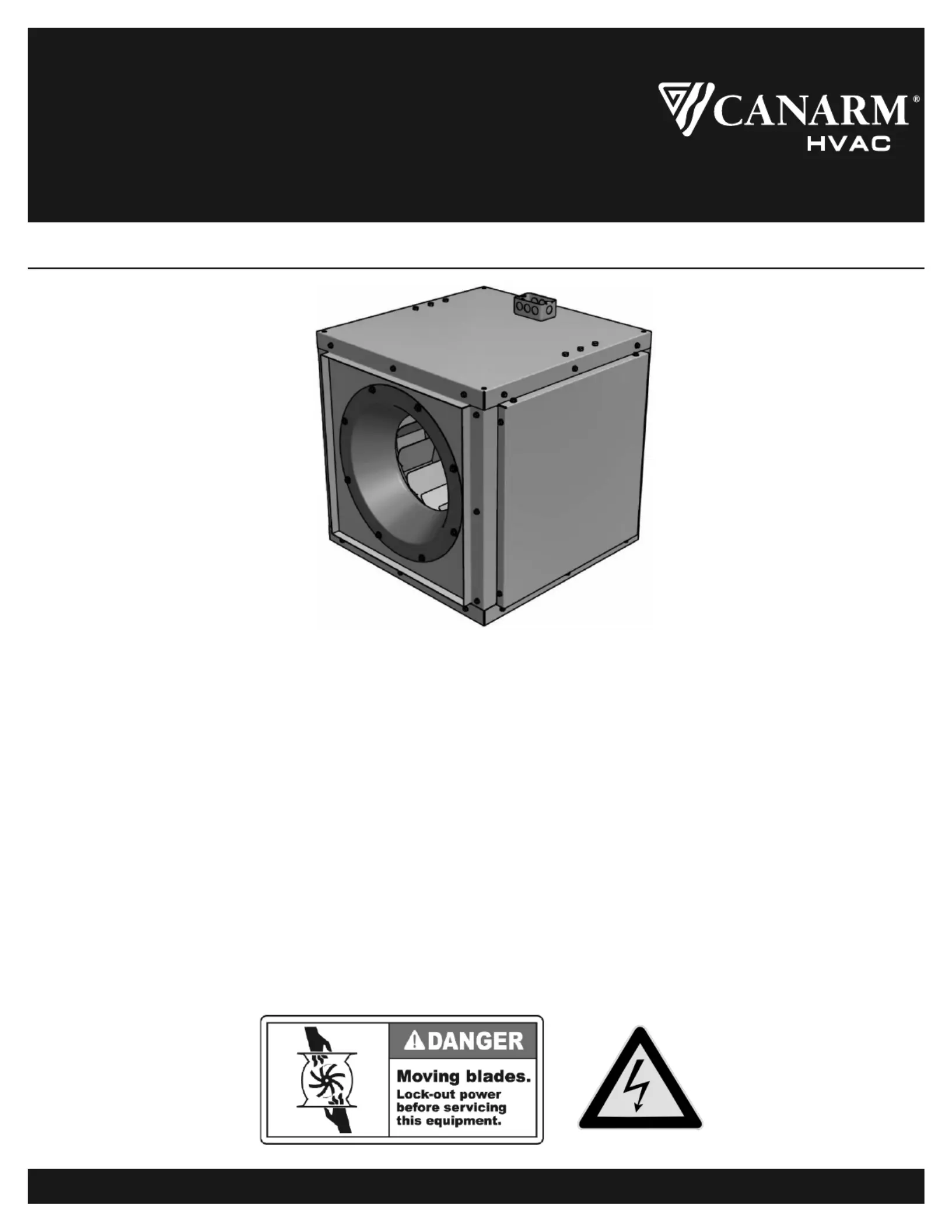

DIRECT DRIVE GALVANIZED SQUARE INLINE BLOWER

OPERATION INSTRUCTIONS AND MANUAL PARTS

PLEASE READ AND SAVE THESE INSTRUCTIONS

M_GSQ_D_06_16_2022 Page 1 of 5

GENERAL SAFETY

GSQ-D SERIES MODELS: GSQ105-D, GSQ120-D, GSQ135-D, GSQ150-D, GSQ165-D, GSQ180-D

1. All electrical work must be done in accordance with all applicable electrical codes by a qualified electrician.

2. Prior to wiring ensure the power supply is locked in the position and that the motor nameplate voltage matches the supply OFF

voltage.

3. Do not install or operate this fan in an environment where combustible materials, gases or fumes are present.

4. the fan contains rotating parts and electrical service. Appropriate safety precautions should be taken during installation, Caution:

operation and maintenance.

5. Before starting the unit, ensure the wheel rotates freely.

6. Check and tighten where necessary all nuts, bolts & set screws prior to fan start up (as some may have loosened during shipment).

7. Please follow all applicable national, state/provincial and local codes, all of them will supersede this manual.

8. Failure to follow the safety instructions in this manual may cause serious injury or death due to electrical shock or high

speed rotating parts.

The purpose of this manual is to aid in the proper installation and operation of the blowers. These instructions are intended to supplement

good general practices and are not intended to cover detailed instruction procedures.

IT IS THE RESPONSIBILITY OF THE PURCHASER TO ENSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS

EQUIPMENT IS HANDLED BY QUALIFIED PERSONNEL.

Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER’S BILL OF LADING

AND FILE A CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.

GSQ-D SERIES

GSQ-D EC SERIES

DIMENSIONS

INSTALLATION

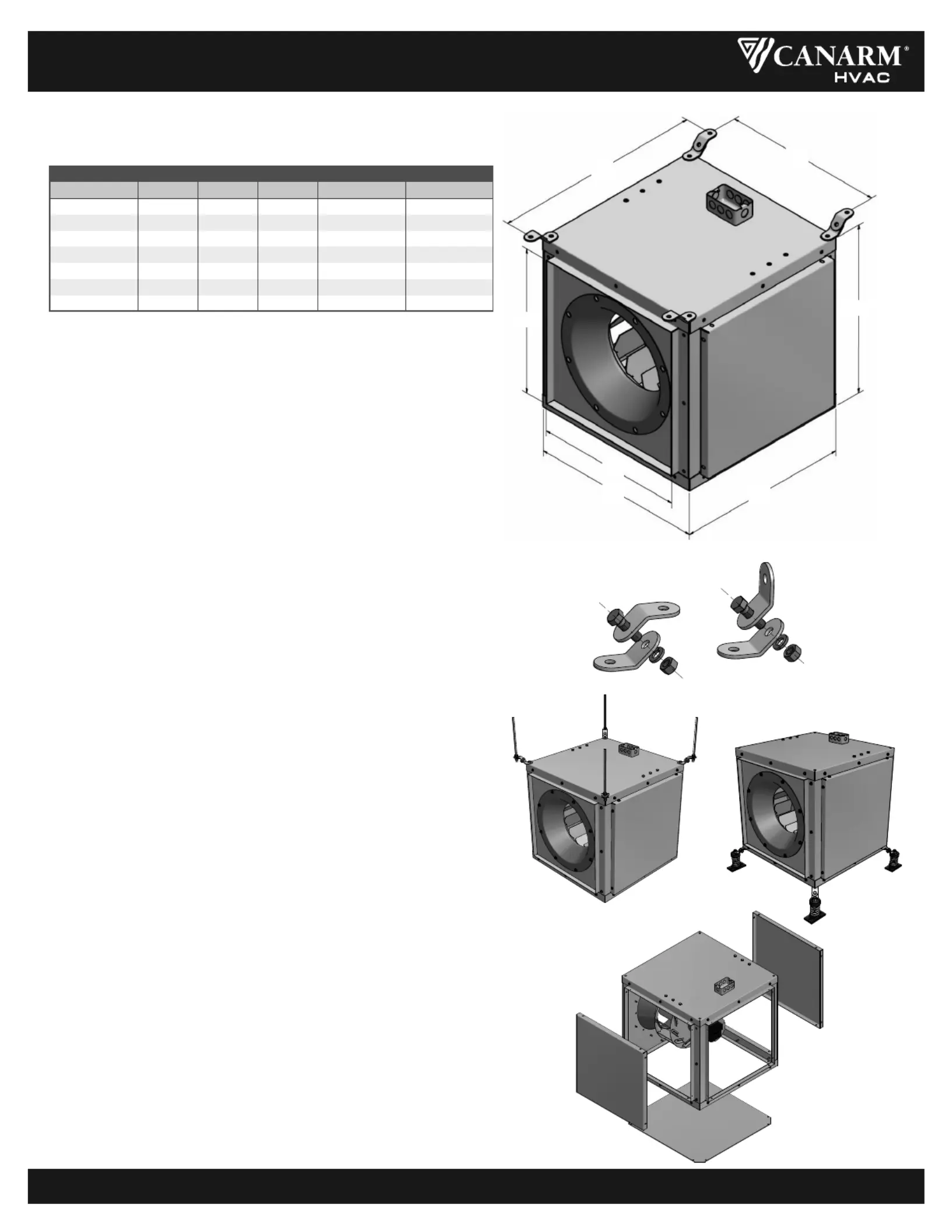

Suspension mounting: move the mounting brackets to desired

corners using the hardware provided, secure the unit to 4 customer

provided suspension rods.

Base mounting: move the mounting brackets to desired corners

using the hardware provided, secure the unit to the base. Vibration

isolators (available as accessory) are recommended for both

suspension and base mount to provide quiet operation.

In order to change the direction of discharge, relocate the access

door to leave desir

ed direction open.

M_GSQ_D_06_16_2022 Page 2 of 5

!"#$% & ' &( '( )

*+,-.-/#/$0 !"#"$%&' !!#"$%&' !(#)*$%& !! !"#*$!%'

*+,(-1/#/$0 !*#!$(' !&#"$(' +!#!$+' !"#)$(' !(#!"$!%'

*+,(2-/#/$0 +,' !*' +&#)$(' !*#)$&' +!#!)$!%'

*+,(31/#/$0 ++' !(#)$&' +%#)$(' !-#!$+' +)#!)$!%'

*+,(1-/#/$0 +&#!$+' +,#*$(' )(#)$(' +!#"$(' +%#"$!%'

*+,(41/#/$0 +%#)$&' +)' )!#!$(' +)#)$&' +(#-$!%'

*+,(5-/#/$0 +-#"$(' +"#)$(' )&' +%#!$(' )!#*$!%'

*+,/#/$06#78$096#87:$6'&0;<&8#67=0%7=$#6+,>&8$67=%7=$6'%"<$8

A A

The 8 brackets provided in parts bag could accommodate different

mounting direction/style, either base or suspension mounting.
