Side 1/8

200 & IDB SERIES

INLINE DUCT BLOWERS

OPERATION INSTRUCTIONS AND PARTS MANUAL

PLEASE READ AND SAVE THESE INSTRUCTIONS

200 SERIES MODELS: 207, 209, 210, 212, 215, 218

IDB SERIES MODELS: IDB07, IDB09, IDB10, IDB12, IDB15, IDB18

GENERAL SAFETY

Rotating parts, (pulleys, shafts and belts) on fans should not be exposed. Where these components are not protected by ductwork, cabinets

or covers, appropriate guards should be employed to restrict exposure to rotating parts. Access doors should not be opened with the fan

operating to avoid foreign objects being drawn into the system. On initial start-up, a careful inspection should be carried out to ensure no

foreign material is present which could become airborne in the system.

Read installation and operation instructions carefully before attempting to install, operate or service Canarm/Delhi 200 Series or

Canarm/Delhi IDB Series Blowers. Failure to comply with instructions could result in personal injury and/or property damage. Retain

instructions for future reference.

BEFORE YOU BEGIN

Inspect unit for damage, report any shipping damage to carrier. Check all fasteners, re-tighten as required. Rotate the blower wheel by

hand to ensure free rotation. If rubbing occurs, loosen the set screw(s), re-position the wheel to the shaft center, re-tighten set screws.

INSTALLATION

SUSPENSION MOUNTING

Suspend the unit using 4 threaded rods

through the (4) 7/8" clearance holes

located at the top of the unit

(see Figure 1) or by an angle iron cradle

(supplied by others) under the unit.

MODEL WEIGHTMAX. HP SHAFT DIAMETER

207, IDB07 3/4 3/4" 43 lbs

209, IDB09 3/4 3/4" 55 lbs

210, IDB10 1 1/2 3/4" 65 lbs

212, IDB12 1 1/2 3/4" 82 lbs

215, IDB15 3 1" 140 lbs

218, IDB18 5 1" 158 lbs

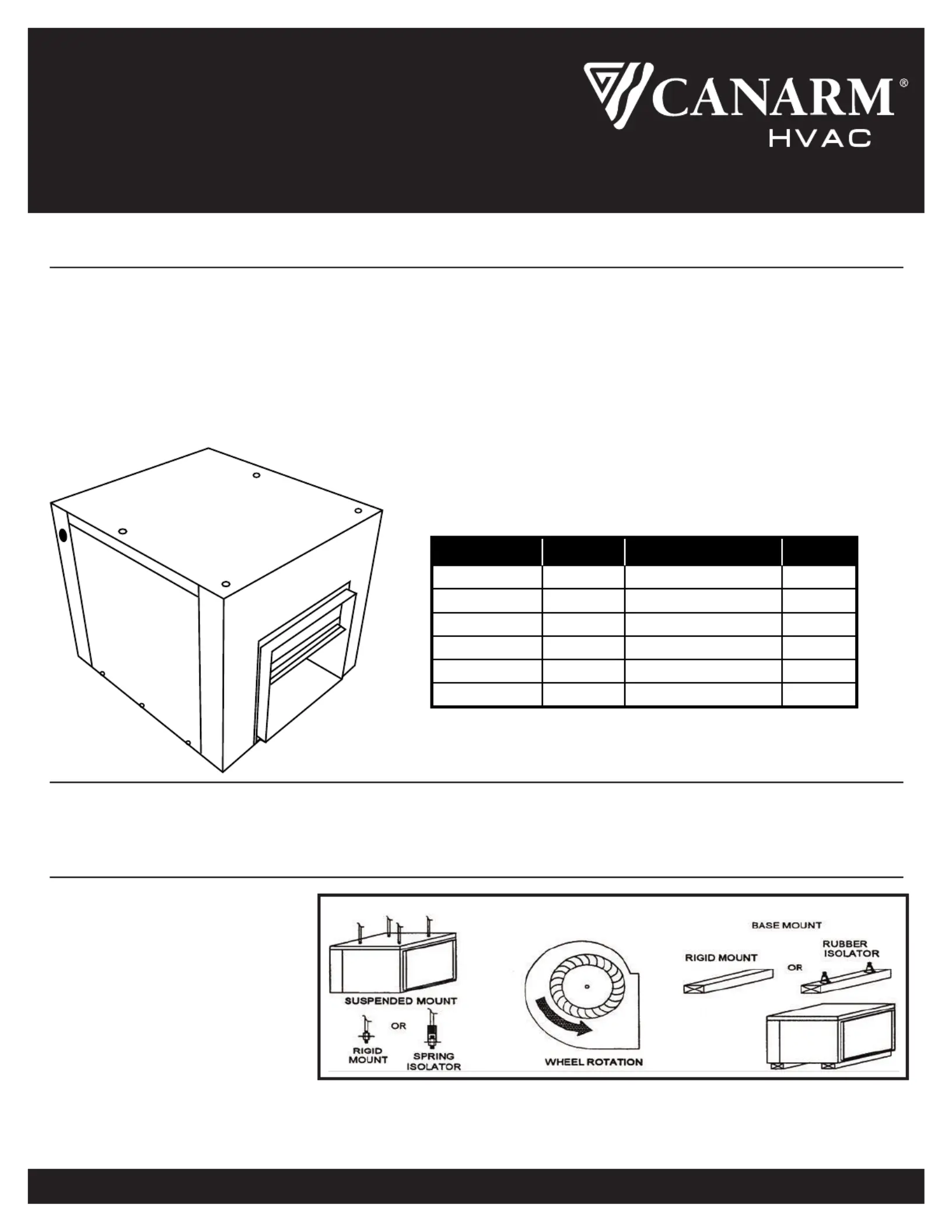

FIGURE 1

BASE MOUNTING

Secure unit through the 4 internal 7/8" clearance holes to a solid base. Ensure unit is level. Complete installation of inlet & outlet ducts.

NOTE: Flexible inlet & outlet duct collars are recommended to minimize vibration transmission.

200_IDB-M-03_07_22 Page 1 of 4

200 & IDB SERIES

INLINE DUCT BLOWERS

MOTOR, PULLEYS & BELTS (See Table below)

1. Mount the blower pulley on the blower shaft and tighten the set screw securely on the key of the shaft.

2. Mount the motor pulley on the motor shaft. Leave some clearance between the pulley and the motor end bell. Tighten the set screws

on the key of the motor shaft.

3. Install the motor on the motor platform using the hardware provided.

4. With the platform in its minimum position, install the V-belt within the pulley grooves. Position the motor on the motor platform to

ensure proper pulley alignment (see ) and secure to the motor platform. (A straight edge across the face of the driven pulley Figure 2

should be parallel to the belt once proper alignment has been achieved).

Note: Adjustments in the variable speed pulley require pulley re-alignment.

5. Pivot the motor platform to tension the V-belt and lock in place using the 2 bolts on both sides of the blower. (Ideal belt tension is the

lowest tension at which the belt will not slip during start up. A rule of thumb suggests that 3/4" of deflection mid-span under medium

finger pressure (2-3 lbs.) for every foot of span is appropriate.)

WARNING

EXCESSIVE BELT TENSION IS THE MOST FREQUENT CAUSE OF BEARING WEAR AND RESULTING NOISE.

PROPER BELT TENSION IS CRITICAL FOR QUIET EFFICIENT OPERATION.

Ideal belt tension is the lowest value under which belt slip will not occur at peak load conditions.

207 / IDB07 209 / IDB09 210 / IDB10 212 / IDB12 215 / IDB15 218 / IDB18

3/4 3/4 3 51 - 1/2 1 - 1/2

Motor

Pulley

Blower

Pulley

RPM

Range

FRAME

56T/143T & 145T

FRAME

56T/143T & 145T

FRAME

56T/143T & 145T

FRAME

182T/184T

FRAME

- - - - - - - - - - - - - -

IVL34 AL104 335-511 - - - - - - - - 4L530 4L570 - -

& AL94 373-569 - - - - - 4L480 4L510 4L550 - -

1VP34 AL84 421-642 - - 4L430 4L460 4L490 4L530 - -

AL74 483-737 4L370 4L410 4L440 4L480 4L510 - -

AL64 567-865 4L360 4L390 4L420 4L450 4L490 - -

3/4 HP AL51 685-1046 4L340 4L370 4L400 4L440 4L470 - -

MAX. AK41 862-1316 4L310 4L360 4L390 4L420 4L450 - -

AK30 1170-1786 4L290 4L340 4L360 4L400 - - - -

BK160H 168-333 - - - - - - - - B66

BK140H 308-384 - - - - - - - - B61

BK130H 333-416 - - - - - - B56 B59

BK120H 363-454 - - - - - - B54 B57 IVL34

IVL34 BK110H 398-500 - - - - B48 B52 B55 &

& BK100H 440-555 - - - - B46 B50 B53 1VP34

1VP34 BK90H 492-625 4L400 4L430 B44 B48 B51 not

BK80H 559-714 4L380 4L410 B42 B46 B50 available

BK70H 646-833 4L360 4L400 B40 B44 B48 1-1/8"

BK60H 766-1000 4L340 4L380 B39 B43 B46 bore

BK50H 940-1230 4L320 4L360 B37 B41 B45

BK40H 1150-1553 4L310 4L350 B36 B39 - -

BK130H 431-546 - - - - - - B57 B60 B65

BK120H 469-595 - - - - B51 B55 B58 B63

BK110H 514-655 - - 4L480 B49 B53 B56 B62

BK100H 568-728 - - 4L460 B47 B51 B54 B60

IVP44 BK90H 636-819 4L410 4L440 B45 B49 B53 B58

BK80H 722-936 4L390 4L430 B44 B47 B51 B56

BK70H 835-1092 4L370 4L410 B42 B46 B49 B54

BK60H 990-1309 4L350 4L390 B40 B44 B48 - -

BK50H 1215-1607 4L330 4L370 B38 B41 - - - -

BK40H 1509-2048 4L310 - - - - - - - - - -

MODEL

DRIVE TABLE

MAX HP

200_IDB-M-03_07_22 Page 2 of 4
