Side 1/2

●❶

●❷ - ●Ⓐ

●❸

●❷ - ●Ⓑ

●❹

●❻

●❺

●❼

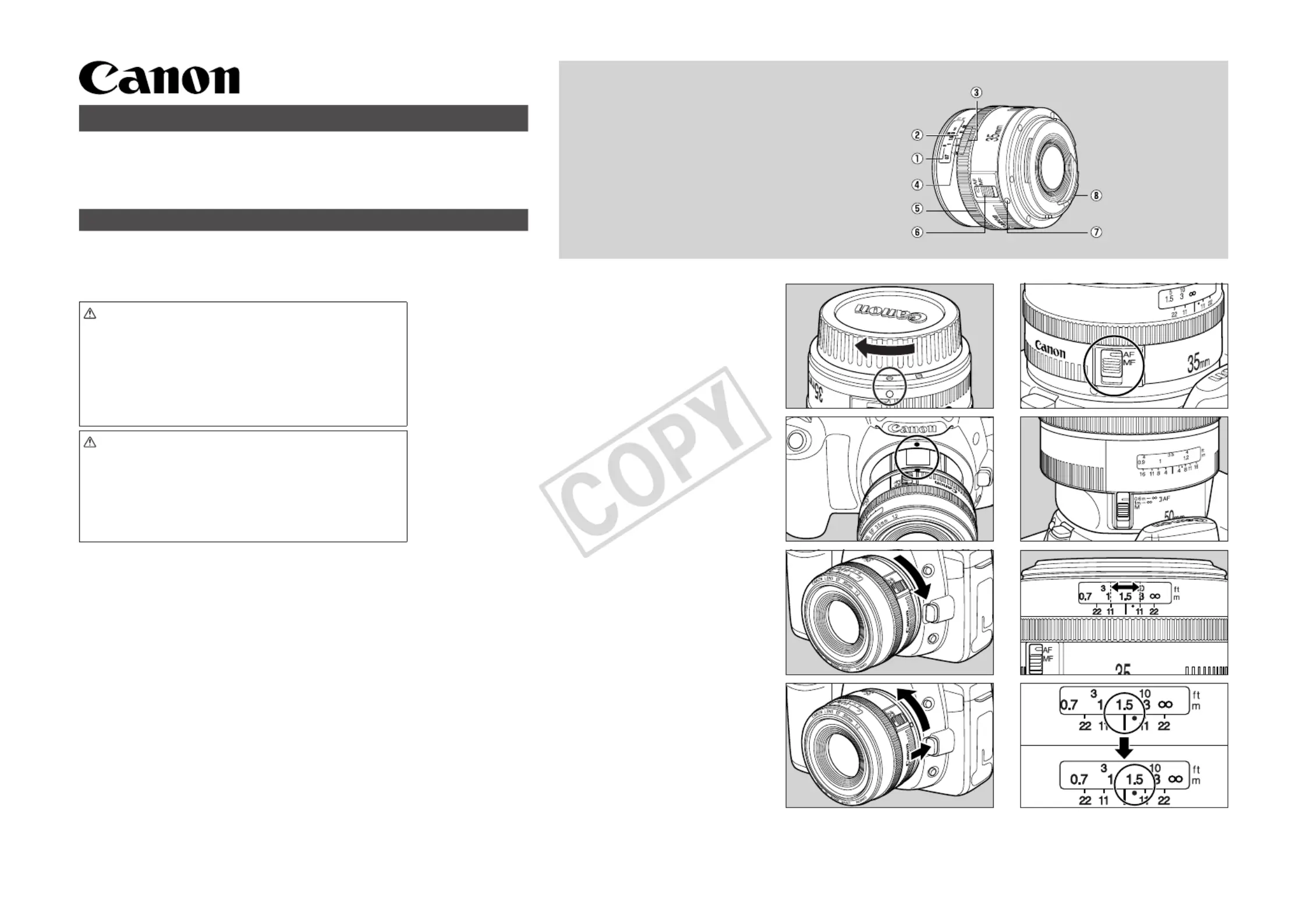

Thank you for purchasing a Canon product.

Safety Precautions

Do not look at the sun or a bright light source through

the lens or camera.

Doing so could result in loss of

vision. Looking at the sun directly through the lens is

especially hazardous.

Whether it is attached to the camera or not, do not

leave the lens under the sun without the lens cap

attached.

This is to prevent the lens from concentrating

the sun’s rays, which could cause a fire.

Handling Cautions

If the lens is taken from a cold environment into a warm

one, condensation may develop on the lens surface and

internal parts.

To prevent condensation in this case, first

put the lens into an airtight plastic bag before taking it

from a cold to warm environment. Then take out the lens

after it has warmed gradually. Do the same when taking

the lens from a warm environment into a cold one.

Handling the EF50mm f/1.0L USM and EF85mm f/1.2L

USM

The EF50mm f/1.0L USM and EF85mm f/1.2L USM are

ultra-high-precision lenses. Take care not to subject them to

shocks or impacts. Also ensure that the lenses are set to the

“

∞

” setting before putting them in the case.

1. Mounting and Detaching the Lens

See your camera’s instructions for details on mounting

and detaching the lens.

• After detaching the lens, place the lens with the rear end

up to prevent the lens surface and contacts from getting

scratched.

• If the contacts get soiled, scratched, or have fingerprints

on them, corrosion or faulty connections can result. The

camera and lens may not operate properly.

• If the contacts get soiled or have fingerprints on them,

clean them with a soft cloth.

• If you remove the lens, cover it with the dust cap. To

attach it properly, align the lens mount index and the



index of the dust cap, and turn clockwise. To remove it,

reverse the order.

2. Setting the Focus Mode

To shoot in autofocus (AF) mode, set the focus mode switch

to AF

❹

To shoot in manual focus (MF) mode, set the focus mode

switch to MF, and focus by turning the focusing ring.

Setting the Focusing Range (for EF50mm f/1.0L USM)

Two autofocus ranges are selectable with the lens

❺

0.6-

∞

: From closest focusing distance to infinity.

∞

: From 1 m to infinity.

3. Depth-of-Field Scale

The depth of field is the distance in front of and behind the

plane of focus on the subject that appears sharp. The depth

of field is indicated by the area between the depth-of-field

scale lines below the distance scale. The numbers on the

scale are F values, and for example, if the shooting distance

is 1.5 m/5 ft. and the aperture is f/11 with the EF35mm

f/2, the sharp area will extend from about 1.2 m/4 ft. to 2.8

m/9.3 ft.

❻

• The depth-of-field scale is an approximate indicator.

4. Infrared Index

The infrared index corrects the focus setting when using

monochrome infrared film. Focus on the subject in MF,

then adjust the distance setting by moving the focusing ring

to the corresponding infrared index mark

❼

• The infrared index position is based on a wavelength of

800 nm.

• Be sure to observe the manufacturer’s instructions when

using infrared film.

• Use a red filter also when you take the picture.

Nomenclature

●①

Distance scale

●②

Infrared index

●③

Depth-of-Field scale

●④

Distance index

●⑤

Focusing ring

●⑥

Focus mode switch

●⑦

Lens mount index

●⑧

Contacts

EF Lenses

EF15mm f/2.8 Fish-eye

EF24mm f/2.8

EF28mm f/2.8

EF35mm f/2

EF50mm f/1.0L USM

EF50mm f/1.8

EF85mm f/1.2L USM

Instructions

CT1-7543-005 © CANON INC. 1986 2008.5

●❽

●❾

●❿

●⓫

●⓬

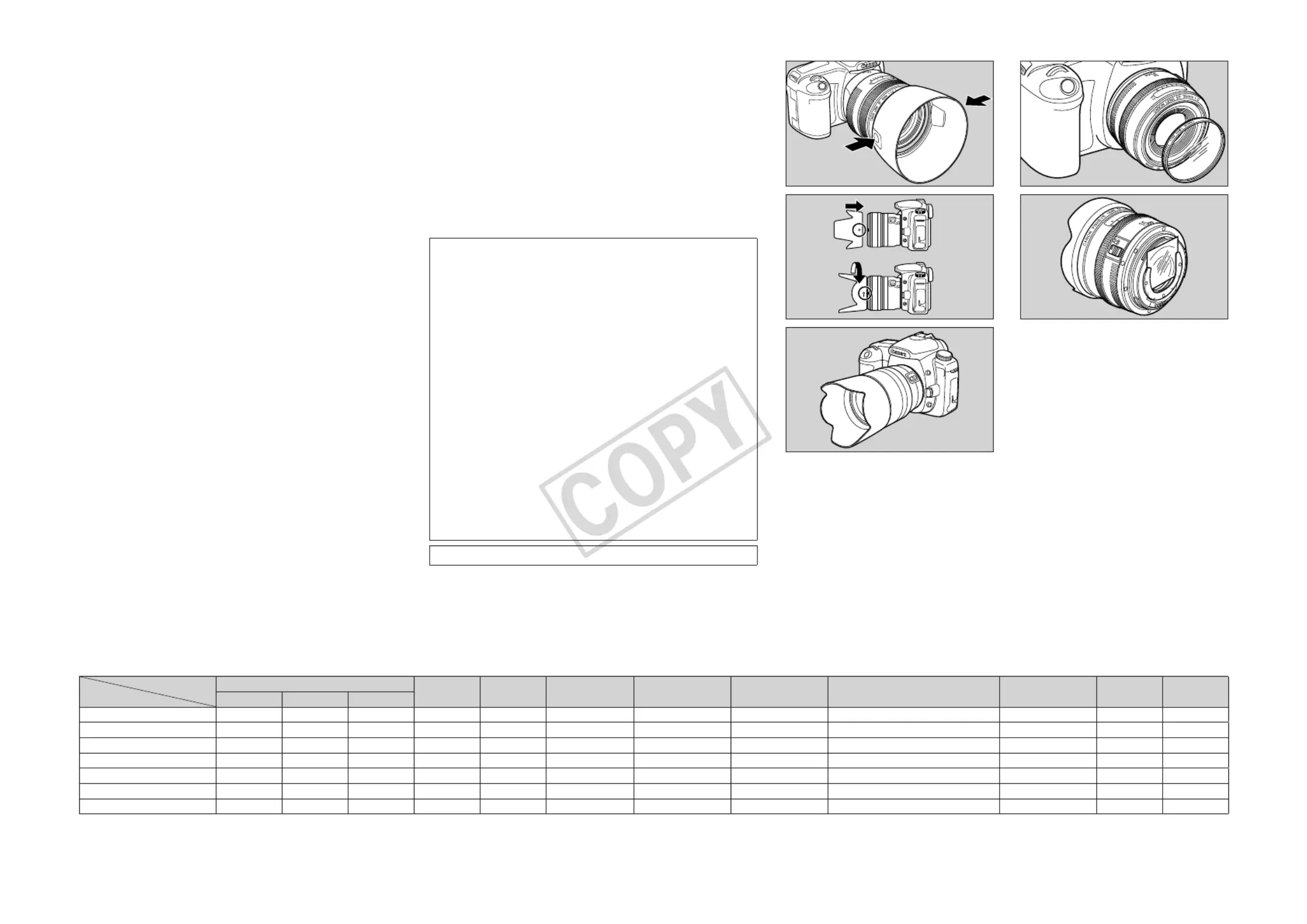

5. Hood

The lens hood can keep unwanted light out of the lens, and

also protects the lens from rain, snow, and dust.

EF24mm f/2.8

To attach the hood, align the hood’s attachment position

mark with the red dot on the front of the lens, then turn the

hood in the direction of the arrow until the lens’s red dot is

aligned with the hood’s stop position mark

❾

❿

EF24mm f/2.8, EF28mm f/2.8, EF35mm f/2, EF50mm

f/1.0L USM, EF50mm f/1.8, and EF85mm f/1.2L USM

Press the buttons on both sides of the hood to attach

❽

The hood can be reverse-mounted on the lens for storage.

• Part of the picture may be blocked if the hood is not

attached properly.

• When attaching or detaching the hood, grasp the base of

the hood to turn it. To prevent deformation, do not grasp

the rim of the hood to turn it.

6. Filters

You can attach filters to the filter mounting thread on the

front of the lens

⓫

• Only one filter may be attached.

• Use a polarizing Canon filter.

Filter Holder for the EF15mm f/2.8 Fish-eye

There is a gelatin filter holder at the rear of the lens

⓬

. Cut

the gelatin filter to fit within the white frames. Then insert

the gelatin filter into the filter holder.

The lens length is measured from the mount surface to

the front end of the lens. Add 21.5 mm when including

the lens cap and dust cap. (Add 16.8 mm for EF15mm

f/2.8 Fish-eye)

The size and weight listed are for the lens only, except as

indicated.

Aperture settings are specified on the camera.

All data listed is measured according to Canon

standards.

Product specifications and appearance are subject to

change without notice.

Case and hood not provided with some models.

Filters sold separately.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

Do not make any changes or modifications to the equipment

unless otherwise specified in the instructions. If such changes

or modifications should be made, you could be required to stop

operation of the equipment.

This equipment has been tested and found to comply with the

limits for a class B digital device, pursuant to part 15 of the FCC

Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for

help.

This Class B digital apparatus complies with Canadian ICES-003.

Specifications

Angle of view

Lens

construction

Minimum

aperture

Max.

magnification

Min. focusing

distance

Filter diameter Max. diameter and length Weight Hood Case

Diagonal Vertical Horizontal

EF15mm f/2.8 Fish-eye 180° — — 7-8 22 0.14 × 0.2 m/0.7 ft. *1 73 × 62.2 mm (2.9” × 2.4”) 330 g/11.6 oz. *2 LP814

EF24mm f/2.8 84° 53° 74° 10-10 22 0.16 × 0.25 m/0.8 ft. 58 mm 67.5 × 48.5 mm (2.7” × 1.9”) 270 g/9.5 oz. EW-60 II LP811

EF28mm f/2.8 75° 46° 65° 5-5 22 0.13 × 0.3 m/1 ft. 52 mm 67.4 × 42.5 mm (2.7” × 1.7”) 185 g/6.5 oz. EW-65 II LP1011

EF35mm f/2 63° 38° 54° 5-7 22 0.23 × 0.25 m/0.8 ft. 52 mm 67.4 × 42.5 mm (2.7” × 1.7”) 210 g/7.4 oz. EW-65 II LP1011

EF50mm f/1.0L USM 46° 27° 40° 9-11 16 0.11 × 0.6 m/2 ft. 72 mm 91.5 × 81.5 mm (3.6” × 3.2”) 985 g/34.7 oz. ES-79 II LP1219

EF50mm f/1.8 46° 27° 40° 5-6 22 0.15 × 0.45 m/1.5 ft. 52 mm 67.4 × 42.5 mm (2.7” × 1.7”) 190 g/6.7 oz. ES-65 III LP1014

EF85mm f/1.2L USM 28°30’ 16° 24° 7-8 16 0.11 × 0.95 m/3.2 ft. 72 mm 91.5 × 84 mm (3.6” × 3.3”) 1025 g/36.2 oz. ES-79 II LP1219

*1 Built-in gelatine filter holder

*2 Built-in
