Side 1/2

EF55-200mm f/4.5-5.6 USM

EF55-200mm f/4.5-5.6 II USM

EF80-200mm f/4.5-5.6 USM

●❸

●❶

●❷ - ●Ⓐ

●❷ - ●Ⓑ

●❹

●❺

Thank you for purchasing a Canon product.

Safety Precautions

Do not look at the sun or a bright light source through

the lens or camera.

Doing so could result in loss of

vision. Looking at the sun directly through the lens is

especially hazardous.

Whether it is attached to the camera or not, do not

leave the lens under the sun without the lens cap

attached.

This is to prevent the lens from concentrating

the sun’s rays, which could cause a fire.

Handling Cautions

If the lens is taken from a cold environment into a warm

one, condensation may develop on the lens surface and

internal parts.

To prevent condensation in this case, first

put the lens into an airtight plastic bag before taking it

from a cold to warm environment. Then take out the lens

after it has warmed gradually. Do the same when taking

the lens from a warm environment into a cold one.

1. Mounting and Detaching the Lens

See your camera’s instructions for details on mounting

and detaching the lens.

• After detaching the lens, place the lens with the rear end

up to prevent the lens surface and contacts from getting

scratched.

• If the contacts get soiled, scratched, or have fingerprints

on them, corrosion or faulty connections can result. The

camera and lens may not operate properly.

• If the contacts get soiled or have fingerprints on them,

clean them with a soft cloth.

• If you remove the lens, cover it with the dust cap. To

attach it properly, align the lens mount index and the



index of the dust cap as shown in diagram

❶

, and turn

clockwise. To remove it, reverse the order.

2. Setting the Focus Mode

To shoot in autofocus (AF) mode, set the focus mode switch

to AF

❹

To shoot in manual focus (MF) mode, set the focus mode

switch to MF, and focus by turning the focusing ring.

• Do not touch the rotating parts of the lens while AF is

active.

• Do not focus in MF when the focus mode switch is set to

AF.

• When the hood (sold separately) is installed to the EF55-

200mm f/4.5-5.6 USM, EF55-200mm f/4.5-5.6 II USM

and EF80-200mm f/4.5-5.6 USM, you can turn the hood

to adjust with MF.

3. Zooming

To zoom, turn the lens’ zoom ring

❺

• Be sure to finish zooming before focusing. Changing the

zoom ring after focusing can affect the focus.

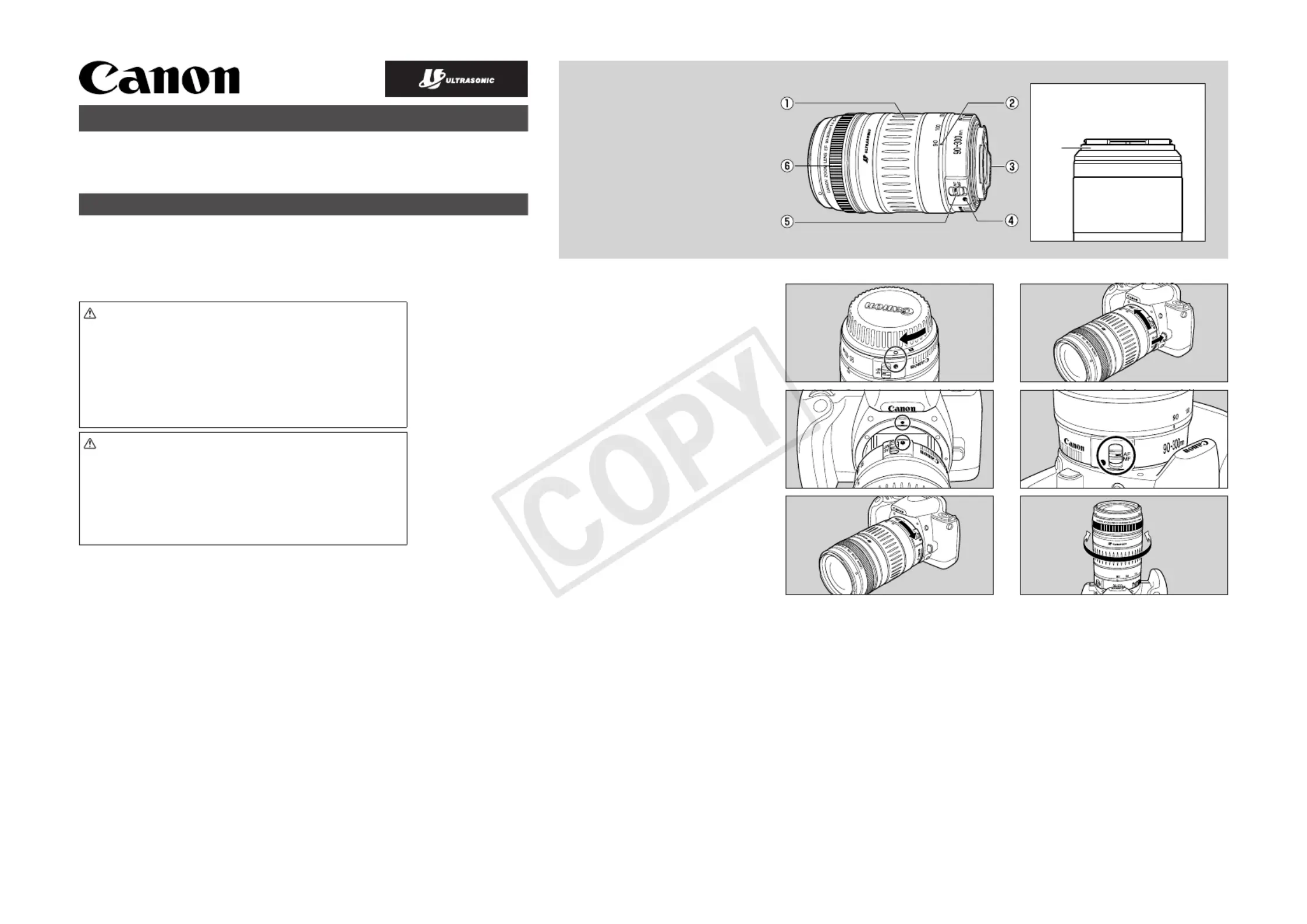

Nomenclature

●①

Zoom ring

●②

Zoom position index

●③

Contacts

●④

Lens mount index

●⑤

Focus mode switch

●⑥

Focusing ring

EF Zoom Lenses

EF55-200mm f/4.5-5.6 USM

EF55-200mm f/4.5-5.6 II USM

EF80-200mm f/4.5-5.6 USM

EF75-300mm f/4-5.6 II USM

EF75-300mm f/4-5.6 III USM

EF90-300mm f/4.5-5.6 USM

Instructions

CT1-8531-003 1208SZ © CANON INC. 2006

●❻

●❼

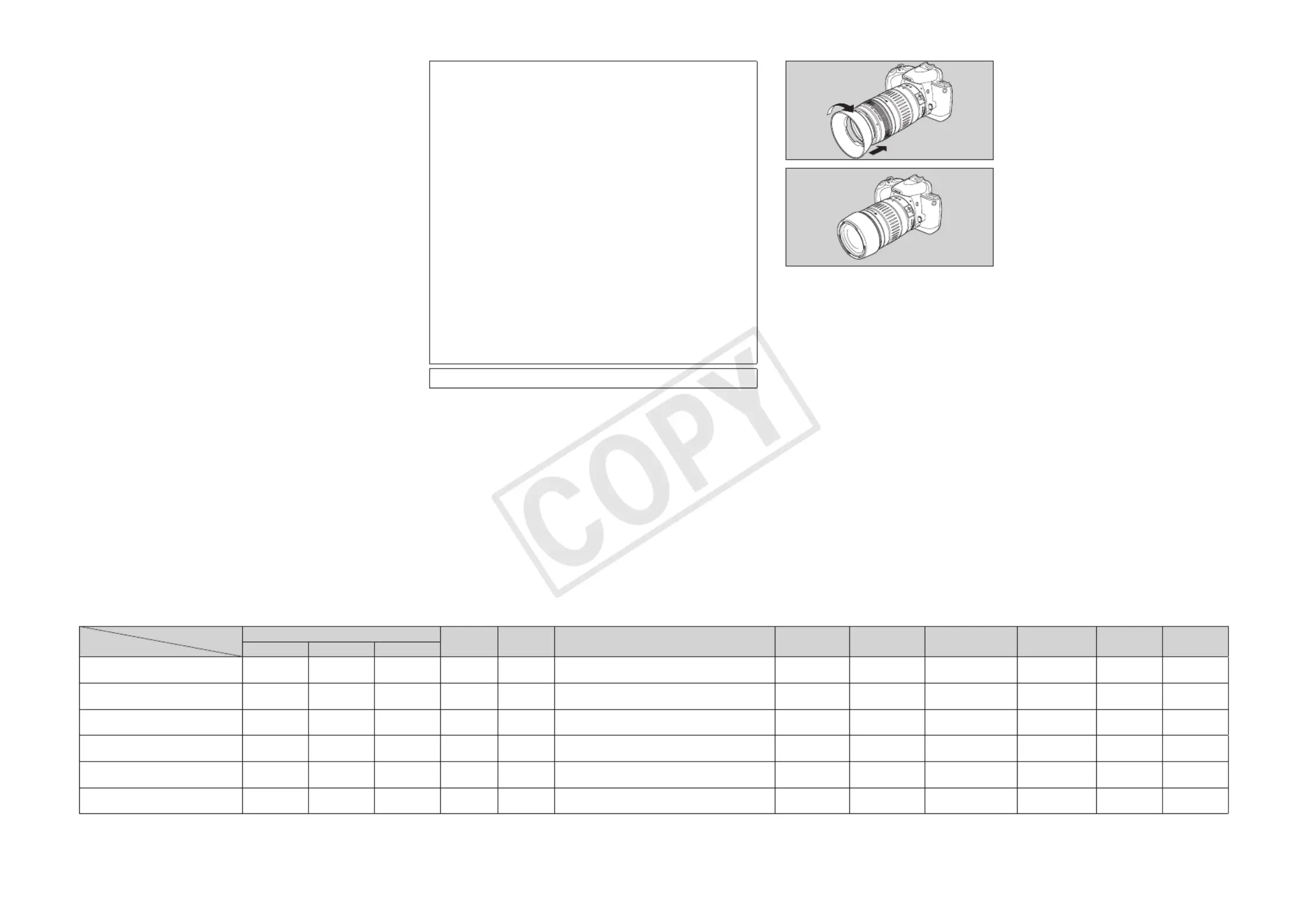

4. Hood

The lens hood can keep unwanted light out of the lens, and

also protects the lens from rain, snow, and dust.

Fit the hood to the hood mount, then turn it in the direction

of the arrow to attach it securely

❻

The hood can be reverse-mounted on the lens for storage

❼

• Partofthepicturemaybeblockedifthehoodisnot

attached properly.

• Whenattachingordetachingthehood,graspthebaseof

the hood to turn it. To prevent deformation, do not grasp

the rim of the hood to turn it.

5. Filters

You can attach filters to the filter mounting thread on the

front of the lens.

• UseapolarizingCanonfilter.

The lens length is measured from the mount surface to

the front end of the lens. Add 21.5 mm to include the

E-58Ulenscapanddustcap,and24.2mmfortheE-58II.

Thesizeandweightlistedareforthelensonly,exceptas

indicated.

Aperture settings are specified on the camera. The

camera automatically compensates for variations in the

aperturesettingwhenthecameraiszoomedinorout.

AlldatalistedismeasuredaccordingtoCanon

standards.

Productspecificationsandappearancearesubjectto

change without notice.

Caseandhoodnotprovidedwithsomemodels.

Filters sold separately.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

Do not make any changes or modications to the equipment

unless otherwise specied in the instructions. If such changes

or modications should be made, you could be required to stop

operation of the equipment.

This equipment has been tested and found to comply with the

limits for a class B digital device, pursuant to part 15 of the FCC

Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Consultthedealeroranexperiencedradio/TVtechnicianfor

help.

This Class B digital apparatus complies with Canadian ICES-003.

Specications

Angle of view

Lens

construction

Minimum

aperture

Max.magnificationandfieldofview

Min. focusing

distance

Filter diameter

Max.diameter

and length

Weight Hood Case

Diagonal HorizontalVertical

EF55-200mmf/4.5-5.6USM 43°-12° 25°-7° 36°-10° 22-2713-13

55mm:0.06X/406×615mm(16”×24.2”)

200mm:0.21X/112×166mm(4.4”×6.5”)

1.2m/3.94ft 52 mm

70.4×97.3mm

(2.8”×3.8”)

310g/10.9oz ET-54 LP1016

EF55-200mmf/4.5-5.6IIUSM 43°-12° 25°-7° 36°-10° 22-2713-13

55mm:0.06X/406×615mm(16”×24.2”)

200mm:0.21X/112×166mm(4.4”×6.5”)

1.2m/3.94ft 52 mm

70.4×97.3mm

(2.8”×3.8”)

310g/10.9oz ET-54 LP1016

EF80-200mmf/4.5-5.6USM 30°-12° 17°-7° 25°-10° 7-10 22-27

80mm:0.07X/366×546mm(14.4”×21.5”)

200mm:0.16X/153×226mm(6”×8.9”)

1.5m/4.92ft 52 mm

69×78.5mm

(2.7”×3.1”)

260g/9.1oz ET-54 LP1014

EF75-300mmf/4-5.6IIUSM 32°11’-8°15’ 18°11’-4°35’ 27°-6°50’ 9-13 32-45

75mm:0.07X/372×558mm(14.6”×22”)

300mm:0.25X/95×142mm(3.7”×5.6”)

1.5m/4.92ft 58 mm

71×122.1mm

(2.8”×4.8”)

495g/17.3oz LP1019ET-60

EF75-300mmf/4-5.6IIIUSM 32°11’-8°15’ 18°11’-4°35’ 27°-6°50’ 9-13 32-45

75mm:0.07X/372×558mm(14.6”×22”)

300mm:0.25X/95×142mm(3.7”×5.6”)

1.5m/4.92ft 58 mm

71×122mm

(2.8”×4.8”)

480g/16.8oz LP1019ET-60

EF90-300mmf/4.5-5.6USM 27°-8°15’ 15°10’-4°35’ 22°40’-6°50’ 9-13 38-45

90mm:0.08X/311×464mm(12.2”×19.4”)

300mm:0.25X/95×141mm(3.7”×5.6”)

1.5m/4.92ft 58 mm

71×114.7mm

(2.8”×4.5”)

420g/14.8oz LP1019ET-60

Produkt Specifikationer

Mærke:	Canon
Kategori:	Linse
Model:	EF 90-300mm f/4.5-5.6 USM
Vægt:	420 g
Produktfarve:	Sort
Diameter:	71 mm
Forstørrelse:	0.25x x
Længde:	114.7 mm
Nærmeste fokuseringsafstand:	1.5 m
Objektivstruktur (elementer/grupper):	13/9
Filterstørrelse:	58 mm
Antal membranblade:	7
Mindste blænderåbnimg tal:	38
AF aktuator:	Micro Motor
Objektivets synsvinkel, vandret:	22.40 °
Objektivets synsvinkel, lodret:	15.10 °
