Side 1/6

（Unit : mm）

30.5

17.9

36.5

φ80

φ72

26.4

17°

11°

45°

45.2

15°

Display

Focus Characteristics Curve Selector Switch

Torque Adjusting

Knob

AUX1 Switch

AUX2 Switch

Connector to Lens

Rose Joint

Reverse Switch

Index

Mark 1

EXEC Switch

Control Keys

Display Switch

Operation Knob

Index

Mark 2

[

External view

]

1 PRODUCT LIST

Make sure all of the following items are included in the packing box. If you nd any item missing,

please contact your Canon sales representive or dealer.

・Focus Demand

・Clamper<CR-30>

・Demand Cable

・Operation Manual “Before Using The Product”

・Operation Manual “Regulations”

1/6© CANON INC. 2025BT1-D017-B-ENG

Before using the product, make sure to read the "GENERAL SAFETY INFORMATION"

and be sure to use the product correctly.

Thank you for purchasing a focus demand <FDJ-G01>. This focus demand

<FDJ-G01> is an accessory used to perform focus servo operations of a box type

lens. The focus can be operated remotely by using this demand.

Lens Accessory

Focus Demand

FDJ-G01

OPERATION MANUAL

This product comes with the following documents:

• Operation Manual "Before Using The Product" （Included with the product）

• Operation Manual "Regulations" （Included with the product）

• Operation Manual （Web）

2 MOUNTING AND CONNECTING

2-1. Mounting the Focus Demand

1. Loosen the large and small lock knobs of the clamper

supplied with the focus demand, and mount the

clamper to the pan handle of the tripod.

2. After mounting the clamper to the pan handle, tighten

the large and small lock knobs to secure the clamper.

3. Mate the rose joint of the focus demand with the rose

joint of the clamper. Then tighten the mounting knob

of the clamper to rmly secure the focus demand.

2-2. Connecting the Demand Cable

1. Plug the male connector of the demand cable into

the receptacle labeled “TO SERVO CONTROL” at

the rear bottom of the lens, then turn the xing ring of

the connector clockwise to tighten the demand cable

securely.

2. Plug the other end of the cable into the connector of

the focus demand.

3 BASIC OPERATION

3-1. Focusing operation

Turning the operation knob on the focus demand brings the object into focus. The lens is

focused on a farther object by turning the operation knob clockwise (as viewed from the

operation knob). By turning the operation knob counterclockwise, the lens is focused on a

closer object.

3-2. Changing the focus direction

The demand is set at the factory that turning the operation knob clockwise focuses on

a farther object. However it can be reversed by shifting the reverse switch of the focus

demand to other side. Then, turning the operation knob clockwise focuses on a closer

object.

3-3. Adjusting the operation knob torque

Turning the torque adjusting knob on the focus demand clockwise increases the torque

for the operation knob’s rotation. To decrease the torque, turn it counterclockwise.

Lock

Fastening Knob

Clamper

<CR-30>

Pan Handle

Mounting Knob

TO SERVO CONTROL .

Lock

Fixing Ring

3-4. Selecting the focusing characteristics curve

Focus characteristics curve selector switch can be used to select one of the focus curves

from the following three modes.

Standard mode :

Standard characteristics where the focus lens

group is moved almost linearly, relative to the

operation knob rotation angle.

Far mode :

Focusing resolution for farther objects is

intentionally increased. This enables fine and

easy adjustment work for farther objects near to

innity.

Near mode :

Focusing resolution for closer objects is

intentionally increased. This enables fine and

easy adjustment work for closer objects near to

M.O.D.

4 EXPANDED OPERATION AND FUNCTION

The following functions can be assigned to either AUX1 switch, AUX2 switch or EXEC switch.

Refer to “5 Display operation” for the detailed assignment procedures.

4-1. Return operation

While the switch is pressed, the external video picture sent to the TV camera head can be

seen on its viewnder.

To use this function (RET1/RET2/RET3/RET4

*1 *2

/RET5

*1 *2

/RET6

*1 *2

/RET7

*1 *2

/RET8

*1 *2

)

Return function has to be assigned to either AUX1 switch, AUX2 switch

or EXEC switch.

*1 To use the RET4-8 function, the camera, lens, and demand must each support this function. This product supports

the RET4-8 function with the latest rmware.

*2 RET4-8 settings are listed when the setting to activate or deactivate these functions is set to on, which enables

function assignment.

*3 By sending RET1-8 signals to the camera, the camera will execute the functions set for each of RET1-8. For

details, refer to the camera operation manual.

*4 The default setting of AUX2 switch at the shipment from the factory is RET1 function.

4-2. Memory operation

This function is used for the setting when Focus Range Limit, Fine Focus Mode 1, Control

Range Limit or Focus Preset functions are assigned. To use this Memory (Memo) function,

Memo function has to be assigned to either AUX1 switch, AUX2 switch or EXEC switch. (The

default setting of AUX1 switch at the shipment from the factory is Memo function.)

Knob Position

Focus Position

M.O.D.

Infinity

Standard Mode

Near Mode

Far Mode

2/6© CANON INC. 2025BT1-D017-B-ENG

4-3. Focus Preset operation

The preset focus position moves from any present focus position to the preset position

by pressing the switch. If the operation is cancelled, the focus position returnes to the

position corresponding to the knob position. Two Focus Preset position can be set at FPr1

and FPr2. To use this function (FPr1/FPr2), set Focus Preset position using the switch

which Memo function is assigned after assigning Focus Preset function to either AUX1

switch, AUX2 switch or EXEC switch. Knob operation after Focus Preset operation of

focus preset function has two modes, One-Shot mode and Continuous mode which can

be selected in Preset screen of display. In One-Shot mode, Focus Preset operation is

cancelled by operating the operation knob after the focus position moves to the preset

position, and the focus position returns to the position corresponding to the knob position.

In Continuous mode, after the focus position moves to the preset position, the focus can

be adjusted continuously from the preset position by following the knob operation. Focus

Preset operation is cancelled when the switch in which Focus Preset function is assigned

is pressed again after the focus position moves to the preset position in Continuous mode.

(Focus Preset operation is not cancelled before the focus position reaches the preset

position even if the switch is pressed.) When the function which limits the control range of

this demand is activated, the focus position does not move to outside of the control range.

Focus Preset operation in One-Shot mode and Continuous mode is also cancelled in

the following situations.

1. When Focus Preset allocation is cancelled during the preset operation (ex.

During FPr1 operation, the allocation to the switch is cancelled or the switch in

which FPr1 is assigned becomes unavailable due to the user switching.)

2. When Focus Range Limit/Fine Focus Mode 1/Control Range Limit function is

activated during Focus preset operation

3. When the settings of One-Shot/Continuous modes are changed during Focus

preset operation

To set Focus Preset position, focus to the position to set, and press the switch in which

Focus Preset function is assigned while Memo switch is pressed.

*In Continuous mode after Focus preset operation, the focus characteristics curve is xed in Standard mode.

4-4. IS operation

ON/OFF operation of IS function (Image Stabilizer) becomes possible when used with the

lens with IS function. For ON/OFF operation of IS function, IS function has to be assigned

to either AUX1 switch, AUX2 switch or EXEC switch.

To activate IS function, press the switch in which IS function is assigned. For details, refer

to the operation manual of the lens.

4-5. Talk Back (microophone) operation

While the switch is pressed, the communication with Engineer (ENG) and Producer (PD)

becomes possible. To use Talk Back function, Talk Back function has to be assigned to

either AUX1 switch, AUX2 switch or the EXEC switch.

4-6. Focus Range Limit function

By limitting the range of the focal length (subject distance), the focusing within the required

range becomes possible. This setting is e󰀨ective for the shooting in the situation where the

focus range is xed on to some extent such as the shooting of the stage performance etc.

Set Focus Range Limit using the switch which Memo function is assigned after assigning

Focus Range Limit setting function to EXEC switch on the display.

To set Focus Range Limit, focus to the position to set, and press the switch in which Focus

Range Limit function is assigned while Memo switch is pressed. Set Focus Range Limit

while observing Indiction Range screen as a general guideline. When set the other side of

the range limit, release Memo switch once, then press the switch in which Focus Range

Limit is assigned while pressing Memo switch again.

To activate Focus Range Limit function, press the switch in which Focus Range Limit

function is assigned.

4-7. Fine Focus Mode 1 function

Improves the precision of focusing by limiting the focus range and widen the operation

range to the the whole knob operation range. This function is useful in the situation which

the ne focus adjustment is required within the xed focus range. Set Fine Focus Mode

1 function range using the switch in which Memo function is assigned after assigning this

function to EXEC switch on the display.

To set Fine Focus Mode 1 range, focus to the position to set and press the switch in which

Fine Focus Mode 1 function is assigned while Memo switch is pressed. Set the range while

observing Indiction Range screen as a general guideline. When set the other side of the

range limit, release Memo switch once, then press the switch in which Fine Focus Mode 1

function is assigned while pressing Memo switch again.

To activate Fine Focus Mode 1 function, press the switch in which Fine Focus Mode 1

function is assigned.

4-8. Fine Focus Mode 2 function

This function improves the focusing precision at the present focus position without setting

the focus mode range (subject distance). This function limits the actual focus mode range.

Fine Focus Mode 2 function can be assigned on the display.

To activate Fine Focus Mode 2 function, press the switch in which Fine Focus Mode 2

function is assigned.

*In Fine Focus Mode 2, the focus characteristics curve is xed in Standard mode.

4-9. Control Range Limit function

By setting the dead zone in the operation range of the demand, the large focus limitation

by small rotation angle becomes possible without changing the focus mode range. This

function is useful when the alternate focusing, such as shooting of the tennis rally, is

required. Set Control Range Limit using the switch which Memo function is assigned after

assigning Control Range Limit setting function to EXEC switch on the display.

To set Control Range Limit range, adjust the operation knob to the position to set, and

press the switch in which Control Range Limit function is assigned while Memo switch

is pressed. Set Focus Range Limit while observing Indiction Range screen as a general

guideline. When set the other side, release Memo switch once, then press the switch in

which Control Range Limit is assigned while pressing Memo switch again.

To activate Control Range Limit function, press the switch in which Control Range Limit

function is assigned.

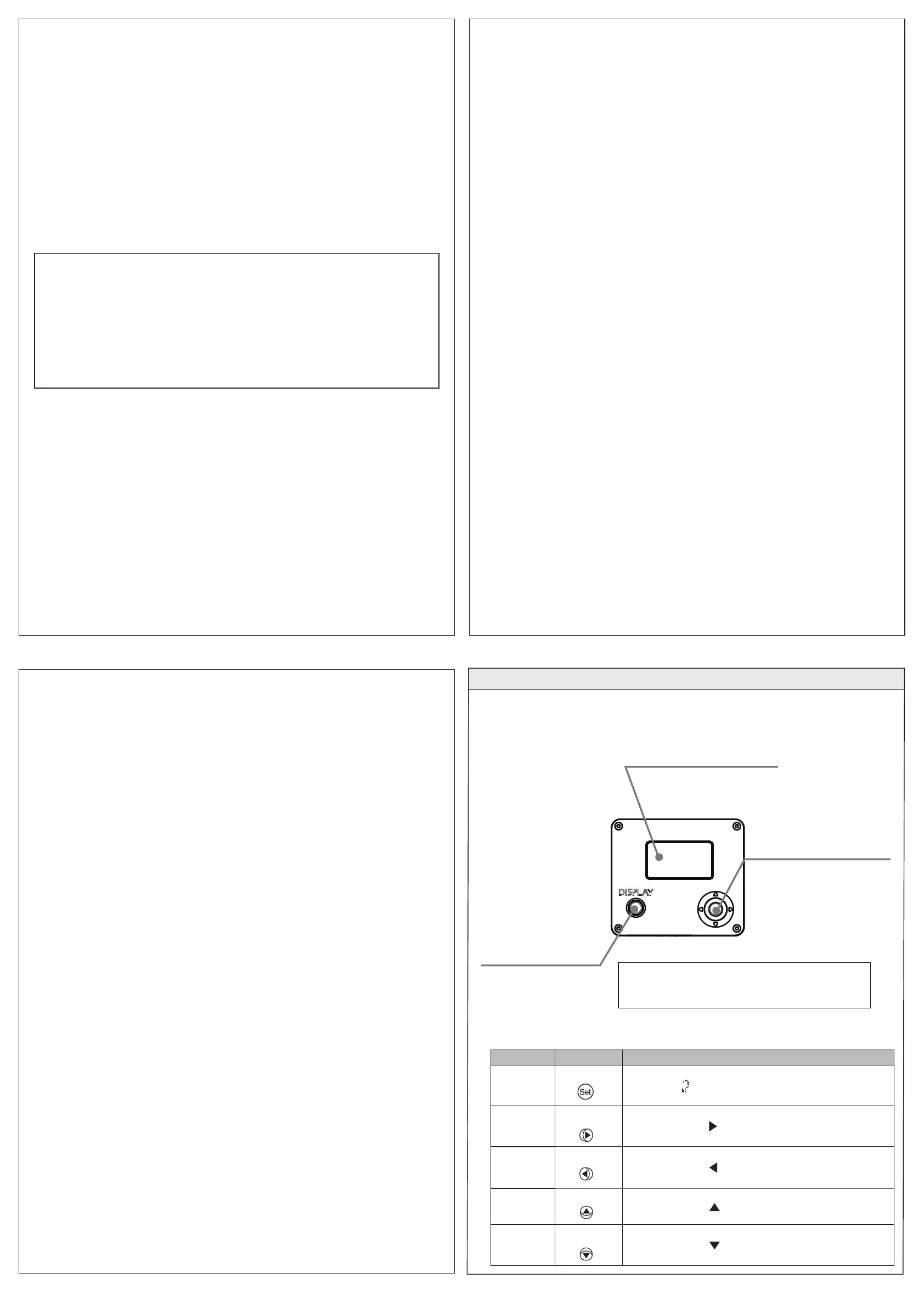

DISPLAY OPERATION

Customizable function

The settings of each function can be changed on the informtion display on the side of the focus demand by

selecting the menu.

5-1. Information display

Key Operation Details

Set key

Press straight in

Press when

『

』

is displayed, or when entering a selection.

Right key

Press right

Can be used when

『

』

is displayed.

Left key

Press left

Can be used when

『』

is displayed.

Up key

Press up

Can be used when

『』

is displayed.

Down key

Press down

Can be used when

『』

is displayed.

Display

Activated when the Display switch is

pressed.

Turns o󰀨 automatically if left idle for

two minutes.

Display switch

Press to activate the display.

One press turns on the display,

and another turns it o󰀨.

Control keys

Used to configure all settings shown

on the display.

Identified with five key names,

depending on how this interface is

used.

(See the following table

Indiction Range screen is displayed when Display switch is pressed

in case that one of Focus Range Limit, Fine Focus Mode 1/2, or

Control Range Limit function is assigned to EXEC switch.

5-2. Using the control keys

Produkt Specifikationer

Mærke:	Canon
Kategori:	Linse
Model:	FDJ-G01

Har du brug for hjælp?

Hvis du har brug for hjælp til Canon FDJ-G01 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Linse Canon Manualer

Canon EF 90-300mm f/4.5-5.6 USM Manual

10 August 2025

Canon CN-E14-35mm T1.7 L SP Manual

9 August 2025

Canon CN10x25 Manual

9 August 2025

Canon CN-E31.5-95mm T1.7 L S Manual

8 August 2025

Canon CN7x17 KAS S E1/P1 Manual

8 August 2025

Canon CN-E14-35mm T1.7 L S Manual

8 August 2025

Canon ZDJ-S01 Manual

8 August 2025

Canon CN-E24mm T1.5 FP X Manual

8 August 2025

Canon FDJ-S01 Manual

8 August 2025

Canon 75-300mm f/4-5.6 II Manual

8 August 2025

Linse Manualer

Nyeste Linse Manualer

Panasonic VW-LED1 Manual

14 August 2025

Olympus ED 40-150mm f4.0-5.6 R Manual

13 August 2025

Olympus ED 25mm F1.2 PRO Manual

13 August 2025

Olympus ED 17mm F1.2 PRO Manual

13 August 2025

Olympus ED 12-200mm f3.5-6.3 Manual

13 August 2025

Olympus ED 12mm F2.0 Manual

13 August 2025

Panasonic VW-LF49N Manual

12 August 2025

Olympus 35mm F3.5 1:1 Macro Manual

12 August 2025

Olympus FCON‑T01 Manual

12 August 2025

Olympus ED 14-150mm F4.0-5.6 II Manual

12 August 2025
