2 MOUNTING AND CONNECTING

2-1. Mounting the Zoom Demand

Mount the zoom demand onto the pan handle of the tripod by one of the two procedures below.

A. For a demand that is put onto the pan handle

Put the sleeve onto the pan handle of the

tripod until it stops, then turn the lock lever to

secure the sleeve.

The applicable pan handle is

28.25-28.45

mm in diameter.

B. For a clamper(CR-30)-mounted demand

1. Loosen the large and small fastening

knobs of the clamper, then mount the clamper to the pan

handle of the tripod.

2. After mounting the clamper to the pan handle of the

tripod, tighten the large and small fastening knobs of the

clamper to secure the clamper.

3. Mate the rose joint of the zoom demand with the rose

joint of the clamper.

4. Tighten the mounting knob of the clamper rmly to x the

clamper to the zoom demand.

NOTE

1. The mounting angle of the zoom demand can be

adjusted according to how the rose joints are mated.

2. This zoom demand has three rose joints. Mount the

zoom demand using the rose joint at the desirable

position for easy operation.

2-2. Connecting the Demand Cable

Follow the procedures below to connect the demand cable to the lens.

1. Plug the male connector of the demand cable into the receptacle labeled “TO SERVO

CONTROL” at the rear bottom of the lens, then turn the fixing ring of the connector

clockwise to tighten the demand cable securely.

2. Plug the other end of the cable into the connector on the zoom demand.

Sleeve

Lock Lever

28.25-28.45

Pan Handle

Clamper(cylinder type)

Lock

Fastening Knob

Clamper(CR-30)

Pan Handle

Zoom Demand

Clamper(CR-30)

Mounting

Knob

Rose Joint

[

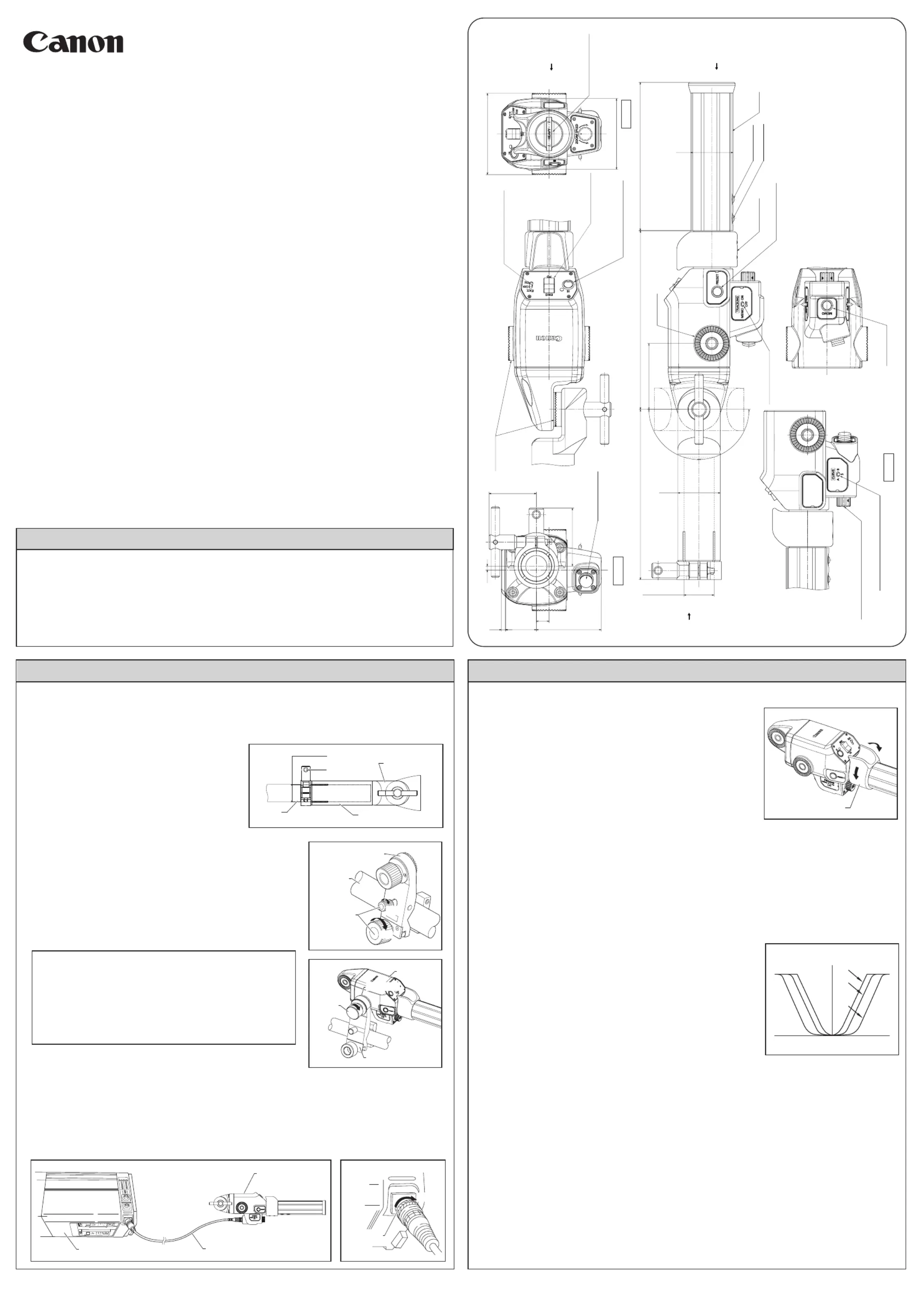

External view

]

66.6

76.5

View B

(ENG/PD)

3.8

3.7

44.5

ViewＡ

54.5

90°

160

φ40

168.1

Tracking Switch

(MEMO/OFF/ON)

139.4

φ40

(Unit : mm)

MEMO Switch

φ28.25 28.45-

View C

Rose Joint

Extender Selector Switch

Torque Adjusting Knob

Talk-Back Switch

IS Switch

(Lights green when IS is on）

Connector to Lens

Grip

Frame Preset Switch

Thumb Ring

Rose Joint

(A/S/B)

Zoom Output Curve Selector Switch

Maximum Zoom Speed Adjusting Knob

90°

RET1 Switch

RET2 Switch

Make sure all of the following items are included in the packing box. If you find any item

missing, please contact your dealer.

・

Zoom Demand

・

Clamper

（

cylinder type

）

・

Demand Cable

・

Operation Manual "Before Using The Product"

・

Operation Manual "Regulations"

1 PRODUCT LIST

3 OPERATION AND FUNCTION

3-1

Zoom Operation

The lens is zoomed toward the telephoto end by turning the thumb

ring of the zoom demand clockwise, as viewed from the grip of the

demand.

The lens is zoomed toward the wide angle end by turning the -

thumb ring counterclockwise.

The zoom speed varies according to the rotation angle of the

thumb ring.

During zooming, the approximate focal length can be checked

with the indicator on the left side of the lens, as viewed from the

camera.

3-2. Maximum Zoom Speed Adjustment

The maximum zoom speed obtained by completely turning the thumb ring of the zoom demand can

be changed with the maximum zoom speed adjusting knob.

Turn it clockwise to increase the zoom speed. And, turn it counterclockwise to decrease the speed.

3-3. Torque Adjustment

Turning the torque adjusting knob on the zoom demand clockwise to increase the torque for the

thumb ring rotation.

To decrease the torque, turn the knob counterclockwise.

3-4. Selecting the Zoom Output Curve

Zoom speed characteristic curve (zoom output curve) with respect

to the rotation angle of thumb ring is selectable among three kinds.

Use the zoom output curve selector switch “Curve” for selecting a

zoom output curve.

3-5. Talk Back (Microphone)

Operation

When the camera has a talk back function, the talk back switch on

the top of the zoom demand can be used.

When it is pushed to “ENG” side, it is locked and a cameraman

can talk with an engineering sta󰀨. So long as it is pushed to “PD”

side, a cameraman can talk with a producer.

3-6. Return Operation

There are two RET switches (RET1, RET2) on the grip of the zoom demand.

While the RET switch is held down, on air picture/being recorded picture can be seen in the

viewnder through camera control system when multi cameras are connected to its system.

3-7. Extender Selector Switch

Operate the extender by switching the extender selector switch on the zoom demand.

“ON” side : Extender function is enabled

“OFF” side : Extender function is cancelled(1x)

Lens

Demand Cable

Zoom Demand

TO SERVO CONTROL .

Lock

Fixing Ring

Thumb Ring

←　　→Rotation angle of thumb ring

Output Curve

← 　　→ 0 Zoom Speed MAX

Before using the product, make sure to read the "GENERAL SAFETY INFORMATION"

and be sure to use the product correctly.

Thank you for purchasing a zoom demand ZDJ-S01. This zoom demand ZDJ-S01 is an

accessory used to perform zoom servo operations of a box type lens. The zoom can be

operated remotely by using this demand.

This product comes with the following documents:

• Operation Manual "Before Using The Product"

（

Included with the product

）

• Operation Manual "Regulations"

（

Included with the product

）

• Operation Manual

（

Web

）

Lens Accessory

Zoom Demand

ZDJ-S01

OPERATION MANUAL

3-8. IS Operation

ON/OFF operation of IS function (Image Stabilizer) becomes possible when used with the lens with

IS function.

Lens IS function ON : LED next to the IS switch is lit (green)

Lens IS function OFF : LED next to the IS switch is o󰀨

To activate IS function, press IS switch. For details, refer to the operation manual for the lens.

3-9. MEMO Switch

The MEMO switch is used to set the framing preset function.

3-10. Zoom Track Function

（

Tracking

）

The zoom control range (zoom track) can be restricted.

This function provides that the range can be virturally set at any position.

(Both the Tele and Wide ends are within a limited area.)

[How to store the memory position for zoom track]

Zoom to any desired zoom track position (Tele side or Wide side) to be memorized by the

thumb ring operation.

Move to “MEMO” side on the zoom track switch.

By above steps (1) and (2), the memory position on each of the Tele and Wide sides is

stored. Also, storing only on either side is possible.

To change the setting, perform step 1 to 2. (The position set last overwrites the setting in

the memory.)

NOTE

1. The memory position of the zoom track can be stored once on each of the Tele and Wide

sides. However, the zoom track memory cannot be stored more than one on each of the

Tele and Wide sides.

2. The stored memory remains, even after the power is turned o󰀨.

3. When a zoom track position has been set already, and of the zoom track position changes

as a new position that goes over from the restricted range of the telephoto end and the

wide-angle end, turn the zoom track switch o󰀨 so that the new zoom track position can be

set.

[ON / OFF for the zoom track function]

The ON / OFF for the zoom track function indicates as follows:

ON : Virtual zoom control range

Press “ON” side on the zoom track switch.

OFF : Normal zoom control range

Press “OFF” side on the zoom track switch.

NOTE

In case the present zoom position is outside of the restricted range when the zoom track

function turns on, the lens will automatically zoom to the end position of the restricted range.

3-11. Framing Preset Function

This framing preset function can be moved at the maximum speed from any zoom position (optional

position) to a previous memory zoom position by pressing the frame preset switch.

[How to store the framing preset position]

1. Zoom to any desired framing preset position to be memorized by the thumb ring operation.

2. Press the frame preset switch while holding down the MEMO switch. The memory position

will be stored.

[How to recall the framing preset position]

Press the frame preset switch.

NOTE

1. When the zoom track function is activated, and if the framing preset position is outside of

the zooming range under the restriction by the zoom track function, the zoom track function

has a priority.

2. The stored framing preset position remains in the memory, even after the power is turned

o󰀨.

this operation manual may be

reproduced or copied in any from

or b y an y me ans with o u t th e

written permission of Canon Inc.

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

GENERAL SAFETY INFORMATION

The safety warnings and cautions provided on the product or in this operation manual must be observed.

Failure to observe these warnings and cautions provided to guard against hazards may result in injury

or accident. Read this operation manual carefully to familiarize yourself with its contents and ensure

that you can operate the product properly. Also, keep this manual in a safe place where it can easily be

referenced whenever required.

This manual uses the following symbols and terms in the warning and caution notices for preventing accidents

and protecting the safety of the customer and others.

WARNING

This indicates a potentially hazardous situation which, if not heeded, may

result in death or serious injury to you or others. Be sure to heed all warning

notices to ensure safe operation at all times.

CAUTION

This indicates a potentially hazardous situation which, if not heeded, may

result in a minor injury to you or others, or damage to property. Be sure to

heed all caution notices to ensure safe operation at all times.

NOTE

This indicates cautions and recommendations for operation. It contains

information which, if not heeded, may result in this product failing to function

properly. These notices also contain useful information for operation.

HANDLING THE PRODUCT

WARNING

1. Do not get this product wet or allow liquid inside. If water gets inside, stop using the product

immediately. Continuing to use the product under this condition may cause a re or electric shocks.

2. Be sure to hold the connector when disconnecting the cable. Pulling on the cable may sever or

damage it and pose a risk of a re or electric shocks from a short circuit.

CAUTION

1. Be careful not to drop the product when carrying it. Dropping the product may cause injury.

2. Ensure that all mountings are securely tightened. If a mounting becomes loose, parts may fall o󰀨

and cause injury.

3. Inspect mountings regularly (about every six months to one year) to ensure they are securely

tightened. If a mounting becomes loose, parts may fall o󰀨 and cause injury.

NOTE

1. Striking or dropping the lens may cause the malfunction of the product.

2. This product is not waterproof. Take measures to avoid direct contact with rain, snow, or moisture.

Otherwise it may cause the malfuction of the product.

3. In dusty environments, cover the product when attaching or removing the product. If dust enters

inside, it may cause the malfunction of the product.

4. Before use in particular environments, such as places where chemical products are used, contact

your Canon sales representative or dealer. Otherwise it may cause the malfuction of the product.

DEALING WITH ABNORMALITIES

WARNING

If any of the following situations occurs, immediately disconnect the power plug from the power

outlet and contact your Canon sales representative or dealer.

・

Smoke, fumes, or unusual noises

・

Entry of foreign objects (such as liquid or metal objects) inside the product

MAINTENANCE AND INSPECTION

WARNING

Be sure to disconnect the cable and remove the lens from the camera before cleaning outside

of the lens. Do not use benzene, thinner, or other ammable substances to clean the product.

Otherwise it may cause a re or electric shocks.

NOTE

Routine inspection about once a year is recommended, depending on the conditions and

environment of use. Request overhaul, if needed.

STORAGE

NOTE

Immediately wipe off any moisture on the lens from misty or foggy environments, using a dry

cloth. Seal the lens in a plastic bag with a desiccant (preferably new) to prevent moisture inside.

Otherwise it may cause the mold or the malfunction of the product.

TO THE CUSTOMER

1. Canon shall bear no responsibility for damage resulting from improper operation of this product by

the customer.

2. Canon shall make no guarantees about the product quality, functions, or operation manual

and its marketability and suitability for the customer’s purpose. Moreover, Canon shall bear no

responsibility for any damage, direct or incidental, that results from usage for the customer’s

purpose.

3. The product specifications, configuration, and appearance are subject to change without prior

notice.

4. For further information on repairs, maintenance, or adjustments not mentioned in this operation

manual, contact your Canon sales representative or dealer.

5. Note that Canon may be unable to undertake servicing or repair of a product if it is modied without

consulting Canon or your Canon sales representative.

Produkt Specifikationer

Mærke:	Canon
Kategori:	Linse
Model:	ZDJ-S01

Har du brug for hjælp?

Hvis du har brug for hjælp til Canon ZDJ-S01 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Linse Canon Manualer

Canon EF 90-300mm f/4.5-5.6 USM Manual

10 August 2025

Canon CN-E14-35mm T1.7 L SP Manual

9 August 2025

Canon CN10x25 Manual

9 August 2025

Canon CN-E31.5-95mm T1.7 L S Manual

8 August 2025

Canon CN7x17 KAS S E1/P1 Manual

8 August 2025

Canon CN-E14-35mm T1.7 L S Manual

8 August 2025

Canon ZDJ-S01 Manual

8 August 2025

Canon CN-E24mm T1.5 FP X Manual

8 August 2025

Canon FDJ-S01 Manual

8 August 2025

Canon 75-300mm f/4-5.6 II Manual

8 August 2025

Linse Manualer

Nyeste Linse Manualer

Olympus ED 40-150mm f4.0-5.6 R Manual

13 August 2025

Olympus ED 25mm F1.2 PRO Manual

13 August 2025

Olympus ED 17mm F1.2 PRO Manual

13 August 2025

Olympus ED 12-200mm f3.5-6.3 Manual

13 August 2025

Olympus ED 12mm F2.0 Manual

13 August 2025

Panasonic VW-LF49N Manual

12 August 2025

Olympus 35mm F3.5 1:1 Macro Manual

12 August 2025

Olympus FCON‑T01 Manual

12 August 2025

Olympus ED 14-150mm F4.0-5.6 II Manual

12 August 2025

Olympus ED 100-400mm F5.0-6.3 IS Manual

12 August 2025
