A NOTE ABOUT SAFETY
Any time you see this symbol in manuals, instructions and on the
unit, be aware of the potential for personal injury. There are three levels
of precaution:
DANGER identifies the most serious hazards which will result in severe
personal injury or death.
WARNING signifies hazards that could result in personal injury or
death.
CAUTION is used to identify unsafe practices which would result in
minor personal injury or product and property damage.
NOTE is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.

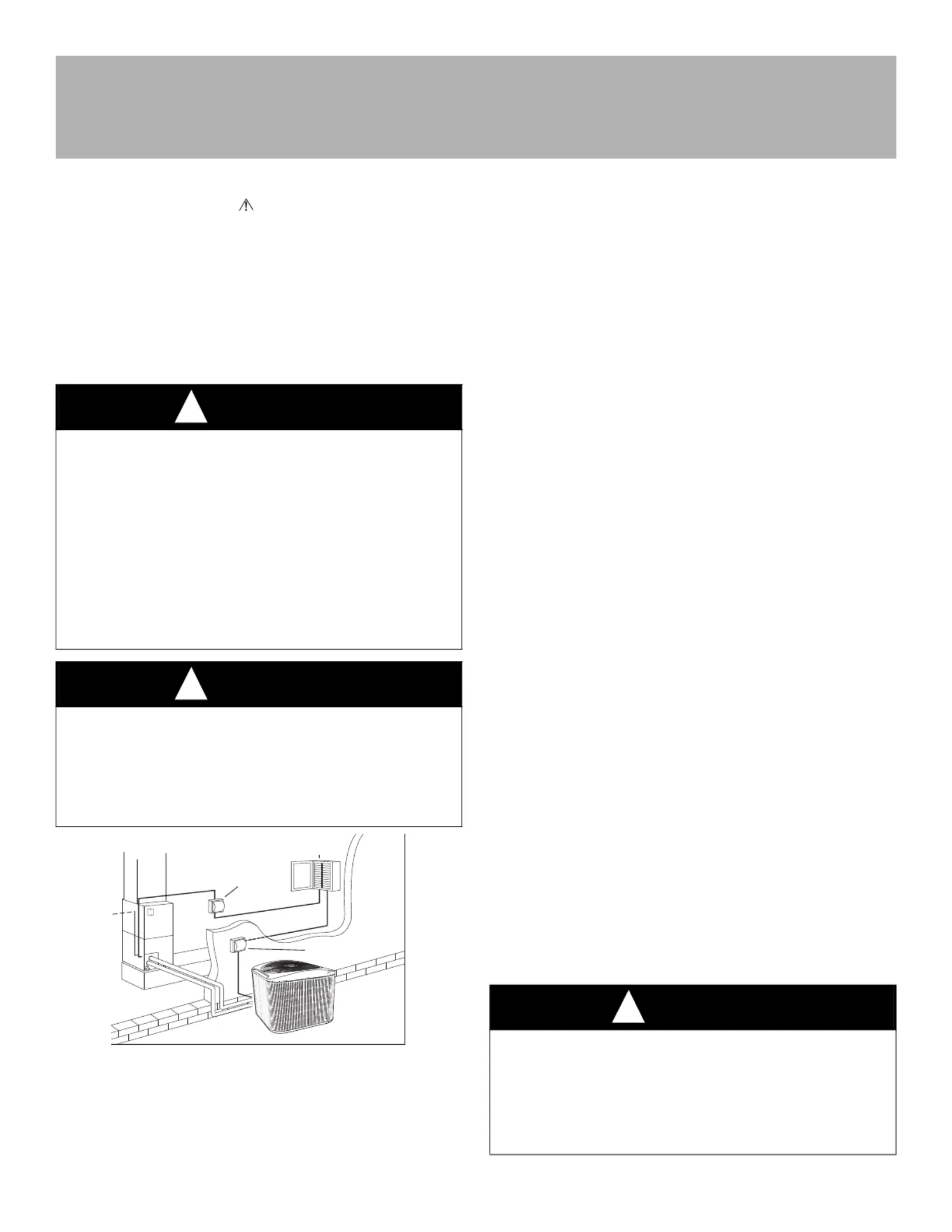

A07903
Fig. 1 – Electrical Disconnects
ABOUT YOUR AIR CONDITIONING SYSTEM
Our products are designed, tested and built in accordance with US
Department of Energy standardized procedures and other standards;
however, actual operating results and efficiencies may vary based on
manufacturing and supplier tolerances, equipment configuration,
operating conditions and installation practices.
Identifying Your System
Your new air conditioning system is called a ”split system.” It has an
outdoor unit and an indoor unit connected to each other with copper
tubing called refrigerant lines. Each of these units has a rating plate with
the model and serial numbers you will need to reference when calling an
authorized dealer about your system.
Take a few moments now to locate those numbers and record them for
future reference.
Using Your New System
Your air conditioning system is controlled by a wall-mounted thermostat
installed inside your home. Because there are so many thermostats
available, please refer to the owner’s manual supplied with your
thermostat for complete details on system operation.
2-Stage Operation
If you own a two-stage air conditioning system, you may notice your
system runs for longer periods of time. When appropriately sized, nearly
80% of the time it’s running, it is operating in low-stage, and your indoor
temperature will remain more consistent with fewer drafts, better
humidity control, enhanced comfort and enhanced energy efficiency.
Cooling Your Home
For cooling operation, make sure the System or Mode control is set for
Cooling. Then, adjust the Temperature control to your desired setting.
Finally, use the Fan control to select Automatic (turns on and off as
cooling is needed) or On (runs continuously).
Operation Under Extreme Conditions
Your air conditioner will run as long as necessary to maintain the indoor
temperature selected on your thermostat. On extremely hot days, your air
conditioner will run for longer periods at a time than on moderate days.
Your system will also run for longer periods of time under the following
conditions:
• Frequent opening of exterior doors
• Operating laundry appliances
• Taking hot showers
• More than the usual number of people present in the home
• More than the normal number of electric lights in use
• Drapes or blinds are open on the sunny side of the home
ROUTINE MAINTENANCE
Simple, routine maintenance as described below will enhance your air
conditioning system’s ability to operate economically and dependably.
Always remember the following safety precautions:
OWNER’S MANUAL
SPLIT-SYSTEM AIR CONDITIONER
USING R-410A REFRIGERANT
WARNING
!
PERSONAL INJURY, DEATH AND / OR PROPERTY
DAMAGE HAZARD
Failure to follow this warning could result in personal injury, death or
property damage.Improper installation, adjustment, alteration, service,
maintenance, or use can cause explosion, fire, electrical shock, or other
conditions which may cause personal injury or property damage.
Consult a qualified installer, service agency, or your distributor or
branch for information or assistance. The qualified installer or service
agency must use factory-authorized kits or accessories when modifying
this product.Read and follow all instructions and warnings, including
labels shipped with or attached to unit before operating your new air
conditioner.
WARNING
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
Disconnect all electrical power to the indoor air handler or furnace
before removing access panels to perform any maintenance.
Disconnect power to both the indoor and outdoor units.
NOTE: There may be more than one electrical disconnect switch.
Main
Disconnect
Indoor
Disconnect
Outdoor
Disconnect
ostat
CAUTION
!
PERSONAL INJURY AND/OR PRODUCT AND
PROPERTY DAMAGE HAZARD
Failure to follow this caution may result in personal injury or product
and property damage.Although special care has been taken to minimize
sharp edges in the construction of your unit, be extremely careful when
handling parts or reaching into the unit.
©2019 CAC/BDP
7310 W. Morris Street • Indianapolis, IN 46231 Catalog No: OG-ACR410GEN-03
Edition Date: 08/19 Replaces: OG-ACR410GEN-02
OWNER’S MANUAL SPLIT-SYSTEM AIR CONDITIONER USING R-410A REFRIGERANT:
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
2
• Keep Filter Clean
A clogged or improperly installed air filter on your indoor unit will
increase operating costs and shorten the life of the unit. For detailed
filter cleaning information refer to indoor unit literature.
• Do Not Block Floor, Wall or Ceiling Vents
When drapes, furniture, toys or other common household items block
vents, the restricted airflow lessens the system’s efficiency and life span.
• Do Not Cover or Block Outdoor Unit
The outdoor unit needs unrestricted airflow. Do not cover it or place
items on or next to it. Do not allow grass clippings, leaves, or other
debris to accumulate on the sides or top of the unit. And, maintain a 12”
(304.8 mm) minimum clearance between the outdoor unit and tall grass,
vines, shrubs, etc.
• Check Condensate Drain
Your air conditioner removes humidity from your home during the
cooling season. After a few minutes of operation, water should trickle
from the condensate drain of the indoor coil. Check this occasionally to
be sure the drain system is not clogged. Drainage will be limited if you
live in a very dry environment.
• Do Not Operate Below 55°F/13°C
Your outdoor unit is not designed to operate when outdoor temperatures
are lower than 55_F/13°C without modification. If operation below this
temperature is required, consult your authorized dealer.
• Coil Cleaning
Your indoor coil is located in a sealed cabinet on your indoor unit and
will require minimal cleaning with routine filter maintenance. Longer
operating cycles and reduced energy efficiency may indicate the need for
a coil cleaning by your authorized dealer.
• Base Pan Drainage
Periodically check for and remove debris that has settled around the base
of your outdoor unit. This will ensure proper drainage of the base pan
and eliminate standing water inside the outdoor unit.
• Level Installation
Your authorized dealer will install the outdoor unit in a level position. If
the support base settles or shifts and the unit is no longer level, be sure to
re-level it promptly to assure proper drainage. If you notice water or ice
collecting beneath the unit, arrange for it to be drained away from the
unit.
Sea Coast Coil Maintenance
Coastal locations often require additional maintenance of the outdoor
unit due to highly corrosive airborne ocean salt. Although your new
system is made of galvanized metal and is protected by top-grade paint,
take the additional precaution of periodically washing all exposed
surfaces and the outdoor coil approximately every 3 months. Consult
your installing dealer for proper cleaning intervals and procedures for
your geographic area or ask about a service contract for regularly
scheduled professional cleaning and inspections.
TROUBLESHOOTING
Before you request dealer service, check for these easily solved
problems:
• Check the indoor and outdoor disconnect switches Also check your
main electrical panel circuit breakers or fuses.
• Check for sufficient airflow. Air filter(s) should be reasonably clean
and interior vents should be open and unobstructed.
• Check thermostat settings. For cooling, your desired temperature
setting should be LOWER than the displayed room temperature, and
the System/Mode control should be on Cool or Auto. For heating,
your temperature setting should be HIGHER than the displayed room
temperature, and the System/Mode control is set to Heat or Auto.
• Time delays - depending on the air conditioner you have, there may be
delays in unit operation that are built-in to protect the equipment and
your comfort. Don't be alarmed if you notice a time delay in
operation. It may be a standard protection feature of your equipment.
Check with your authorized Dealer for more information on time
delays.
If you need to contact your authorized dealer for troubleshooting and/or
repairs, be sure to have the model and serial numbers of your equipment
available (there are spaces on the cover for you to write this
information). With this information, your dealer may be able to offer
helpful suggestions over the phone or save valuable time through
knowledgeable preparation for the service call.
Regular Dealer Maintenance
In addition to the routine maintenance that you perform, your home
comfort system should be inspected regularly by a properly trained
service technician. Many dealers offer this service at a reduced rate with
a service contract. Some service contracts offer additional benefits such
as parts discounts and no additional charge for ”after hours” or
emergency service.
Monthly maintenance items and outdoor unit rinsing may be performed
by the consumer. All other maintenance items and all service work must
be performed by a qualified service technician. Read all waring labels.
* Monthly maintenance items and outdoor unit rinsing may be performed by the consumer. All other maintenance items and all service work must be performed by a qualified service technician. Read all waring labels.
Notes:
1. The above list may not include all maintenance items. Inspection intervals may vary depending on climate and operating hours. Consult your HVAC dealer about a service contract for seasonal inspections.
2. Do not use harsh chemicals or high pressure water on coils. More frequent rinsing is required for units near a sea coast.
Maintenance Checklist Recommended
Interval*
Outdoor unit specific: Monthly Annual
Clear away debris and vegetation near unit. X
Inspect cabinet for damage. Replace components that are damaged or severely rusted. X
Inspect electrical disconnect for proper function. Repair or replace as necessary. X
Inspect electrical wiring and connections. Tighten loose connections. Inspect and perform functional test of equipment as needed to ensure proper
function. Repair or replace damaged or overheated components and wiring. X
Check refrigerant system subcooling and/or superheat (system dependent). X
Inspect inside of unit. Clean if debris is present. X
Inspect condenser coil. Clean if dust, dirt, or debris is present. Rinse unit with fresh water (see Note 2). X
Inspect motor and fan for damage. Make sure fan spins freely. X
Indoor specific: (for fossil fuel furnaces and accessories, refer to unit specific literature)
Inspect, clean, or replace air filter if dirty. X
Inspect and clean blower assembly (includes blower housing, wheel, and motor). X
Inspect internal and external of cabinet. Clean as needed. X
Inspect electrical disconnect for proper function. Repair or replace as necessary. X
Inspect electrical components, wiring, and connections. Tighten loose connections. Repair or replace damaged components and wiring. X
Inspect evaporator coil. Clean if dust, dirt, or debris is present (see Note 2). X
Clean condensate pan, trap, and drain lines (more frequent maintenance may be required in humid climates - consult your local HVAC dealer). X
Inspect airflow system (ductwork). Check for leaks and repair as needed. X

Produkt Specifikationer

Mærke: Carrier
Kategori: Aircondition
Model: Infinity 24ANB7

Har du brug for hjælp?

Hvis du har brug for hjælp til Carrier Infinity 24ANB7 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Aircondition Carrier Manualer

Carrier

Carrier 51AKP210E Manual

12 Januar 2025
Carrier

Carrier Holiday Green 51AKB065 Manual

23 September 2024
Carrier

Carrier HolidayAKC009 Manual

21 September 2024
Carrier

Carrier Holiday Green 51AKB008G Manual

18 September 2024
Carrier

Carrier Holiday 51AKS013 Manual

17 September 2024
Carrier

Carrier Holiday 51AKS112 Manual

11 September 2024
Carrier

Carrier 42NQV-G Manual

7 September 2024
Carrier

Carrier Comfort 24ABB3 Manual

28 August 2024
Carrier

Carrier Comfort 24ACC4 Manual

28 August 2024
Carrier

Carrier Comfort 24ABC6 Manual

28 August 2024

Aircondition Manualer

Nyeste Aircondition Manualer

Eurom

Eurom AC4201 Manual

6 Juli 2025
Eurom

Eurom AC5201 Manual

5 Juli 2025
Eurom

Eurom Airflow LED Cordless Manual

13 Juni 2025
Daikin

Daikin FXNQ63A2VEB Manual

9 April 2025
Daikin

Daikin FXNQ20A2VEB Manual

9 April 2025
Frigidaire

Frigidaire GHWW125TE1 Manual

9 April 2025
Frigidaire

Frigidaire GHWW105TE1 Manual

9 April 2025
Frigidaire

Frigidaire FHPH142AA1 Manual

9 April 2025
Frigidaire

Frigidaire GHPC142AA1 Manual

9 April 2025
Frigidaire

Frigidaire GHPH142AA1 Manual

9 April 2025
