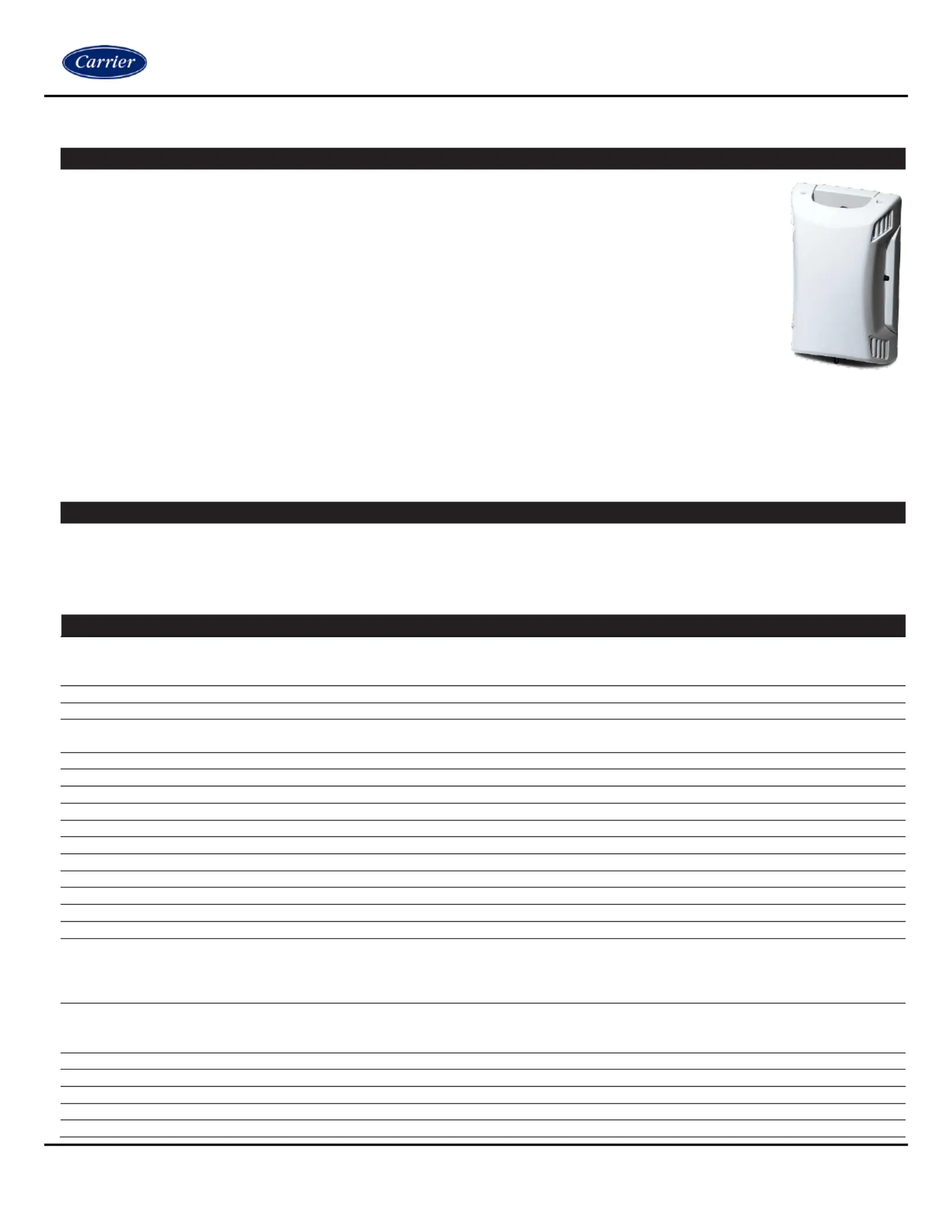

RH Room Thermistor

Installation and Operation

#NSA-HH/RH2- - -C NSA-HH/RH3- - -C /14/2019 CP R2 , CP R2 –11

Specications subject to change without notice.

Catalog No. - - - Page of 11 808 778 01 1 9

Overview

The Carrier Relative Humidity with Thermistor Room Series utilizes a thermoset polymer capacitive

sensing element with a factory tted hydrophobic lter to improve its moisture resistance. The sensing

elements multilayer construction also provides excellent resistance in applications where dust, dirt, oils

and common environmental chemicals are found. The RH room sensors include on board DIP switches

which allow the user to select the desired output signal and can be powered by AC or DC power

sources. Single point field calibration can be performed by using the increment and decrement

calibration DIP switches to adjust your curve up or down in +/- 0.5% increments with each toggle of the

corresponding switches. These enhancements provide increased exibility and outstanding long-term

reliability without the need to replace the sensors in the eld. There are two enclosure options in this

series which should satisfy most commercial decors. Both enclosures feature four-way airow to

minimize self-heating. Three and Five-point NIST Calibration Certificates are available and must be

ordered separately when placing your order.

Applications: Humidication, Dehumidication, Monitoring Indoor Space Humidity, Clean Rooms, Hospitals, Process

Control, Laboratories, Museums, Schools, Oice Buildings, Data Centers, ESD (Anti-Static) Control

Part Numbers

NSA-HH/RH2- - -C NSA-HH/RH3- - -C CP R2 CP R2

Specications

RH Supply Voltage:

(Reverse Polarity Protected):

4-20 mA: 250 Ohm Load: 15 - 40 VDC / 18 - 28 VAC

500 Ohm Load: 18 - 40 VDC / 18 - 28 VAC

0-5 VDC 0-10 VDC: 12 - 40 VDC / 18 - 28 VAC | : 18 - 40 VDC / 18 - 28 VAC

RH Supply Current (VA):

Voltage Output Current Output: 8 mA max (0.32 VA) | : 24 mA max (0.83 VA)

RH Output Load Resistance:

4-20 mA 0-5 VDC or 0-10 VDC: 700 Ohms max | : 4K Ohms min

RH Output Signal:

2-wire: 4 - 20 mA (Factory Default)

3-wire: 0-5 or 0-10 VDC & 4 - 20 mA (Field Selectable)

RH Accuracy @ 77°F (25°C ):

+/- 1% over 20% RH Range between 20 to 90% | +/- 2%, 3%, or 5% from 10 to 95%

RH Measurement Range:

0- 100%

Operating RH Range:

0 to 95% RH, non-condensing

Operating Temperature Range:

35 to 122°F (1.5 to 60°C)

Storage Temperature Range:

-40 to 149°F (-40 to 65°C)

RH Stability | Repeatability | Sensitivity:

Less than 2% drift / 5 years | 0.5% RH | 0.1% RH

RH Response Time (T63):

20 Seconds Typical

RH Sensor Type:

Capacitive with Hydrophobic Filter

RH Transmitter Stabilization Time:

30 Minutes (Recommended time before doing accuracy veri cation) fi

RH Connections | Wire Size:

Screw Terminal Blocks (Polarity Sensitive) | 16 (1.31 mm²) to 26 AWG (0.129 mm²)

RH Terminal Block Torque Rating:

4.43 to 5.31 lb-in (0.5 to 0.6 Nm)

RH NIST Test Points:

Default Test Points: 3 Points (20%, 50% & 80%) or 5 Points (20%, 35%, 50%, 65%

& 80%)

1% NIST Test Points: 5 Points within selected 20% Range (ie. 30%-50% are 30, 35,

40, 45 & 50)

Nominal Thermistor Resistive Output @

77°F (25°C) (Lead Wire Colors) Non- ear Lin

NTC (Negative Temperature Coecient):

10KΩ Nominal

Thermistor Accuracy 32-158°F (0-70°C):

+/- 0.36°F (0.2°C)

Thermistor Power Dissipation Constant:

3 mW/°C

Thermistor Sensor Response Time (T63):

10 Seconds nominal

Temperature Connections | Wire Size:

Screw Terminal Blocks (Polarity Sensitive) | 16 (1.31 mm²) to 26 AWG (0.129 mm²)

Temp Terminal Block Torque Rating:

4.43 to 5.31 lb-in (0.5 to 0.6 Nm)

RH Room Thermistor

Installation and Operation

#NSA-HH/RH2- - -C NSA-HH/RH3- - -C /14/2019 CP R2 , CP R2 –11

Specications subject to change without notice.

Catalog No. - - - Page of 11 808 778 01 2 9

Enclosure Material (Color):

ABS (White)

Enclosure Flammability Rating:

UL94- HB

Product Dimensions (L x W x D):

4.50” (114.3 mm) x 2.75” (69.85 mm) x 1.12” (28.45 mm)

Product Weight:

0.17 lbs. (0.077 kg)

Agency Approvals:

CE, RoHS2, WEEE

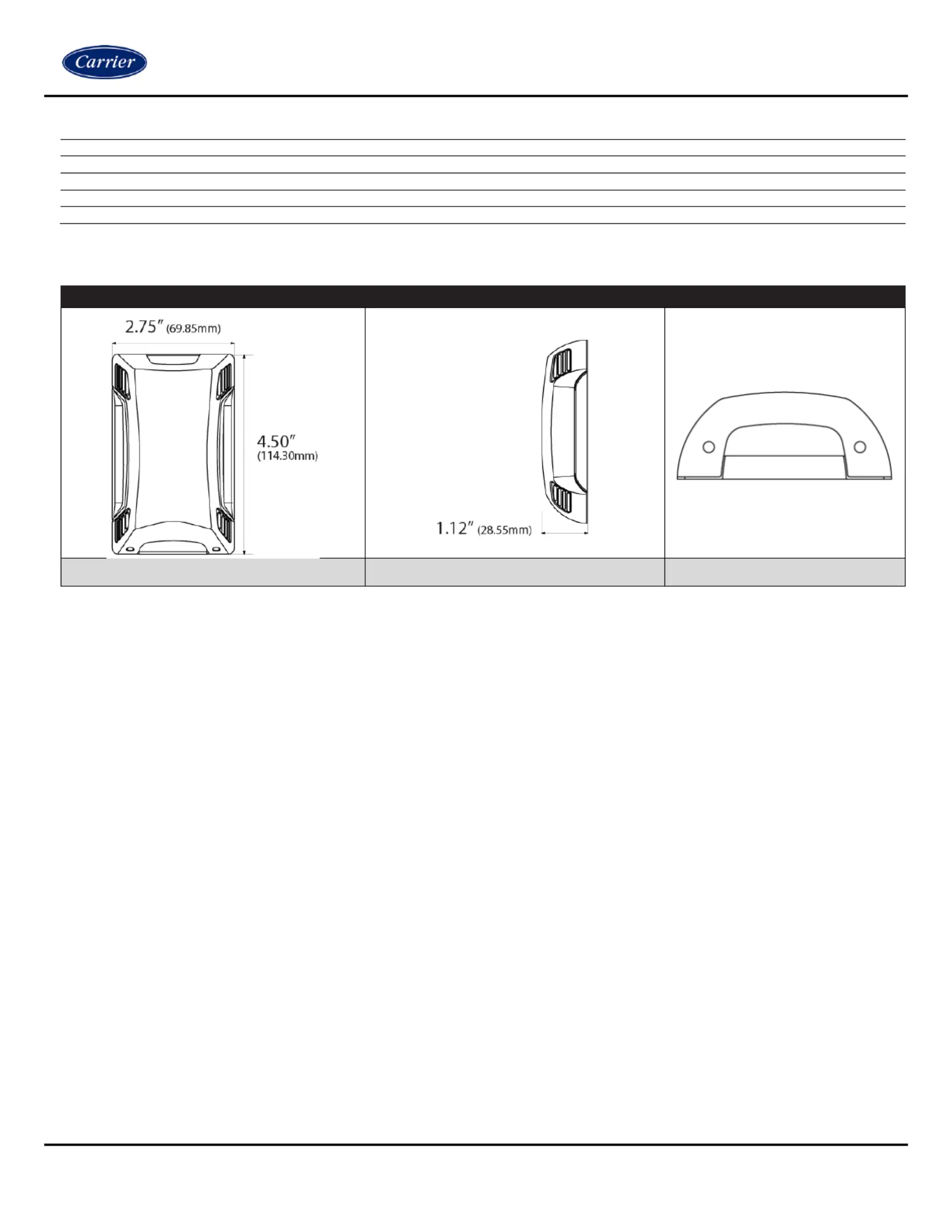

Dimensional Drawing

Front View

Right View

Top View

Figure 1
