The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chamberlain.com
CONTENTS
Preparation .............................. 1-4
Assembly ................................. 5-9
Installation ............................ 10-19
Install the Door Control ............. 20-21
Install the Protector System® ...... 22-25
Power .................................. 26-27
Adjustments .......................... 28-30
Operation.................................. 31
Features ................................... 32
Door Control .......................... 33-34
Remote Control ...................... 34-35
To Erase the Memory .................... 35
To Open the Door Manually ............ 36
Maintenance .............................. 37
Troubleshooting ...................... 38-39
Accessories ............................... 40
Warranty .................................. 41
Repair Parts .......................... 42-43
1/2 hp Chain Drive
Garage Door Opener
Please read this manual and the enclosed safety materials carefully!
Fasten the manual near the garage door after installation.
The door WILL NOT CLOSE unless the Protector System® is connected and
properly aligned.
Periodic checks of the garage door opener are required to ensure safe operation.
The model number label is located on the left side panel of your garage
door opener.
This garage door opener is compatible with MyQ ® and Security 2.0™ accessories.
Only enable the Timer-to-Close* or MyQ
® remote operation feature* when the garage
door opener is installed on a sectional door. (*Not available on all models)
Serial Number:
Date of Purchase:
Model Number:
Models
• PD612EV
• HD420EV
FOR RESIDENTIAL USE ONLY
Write down the following information
for future reference:
.
.
1

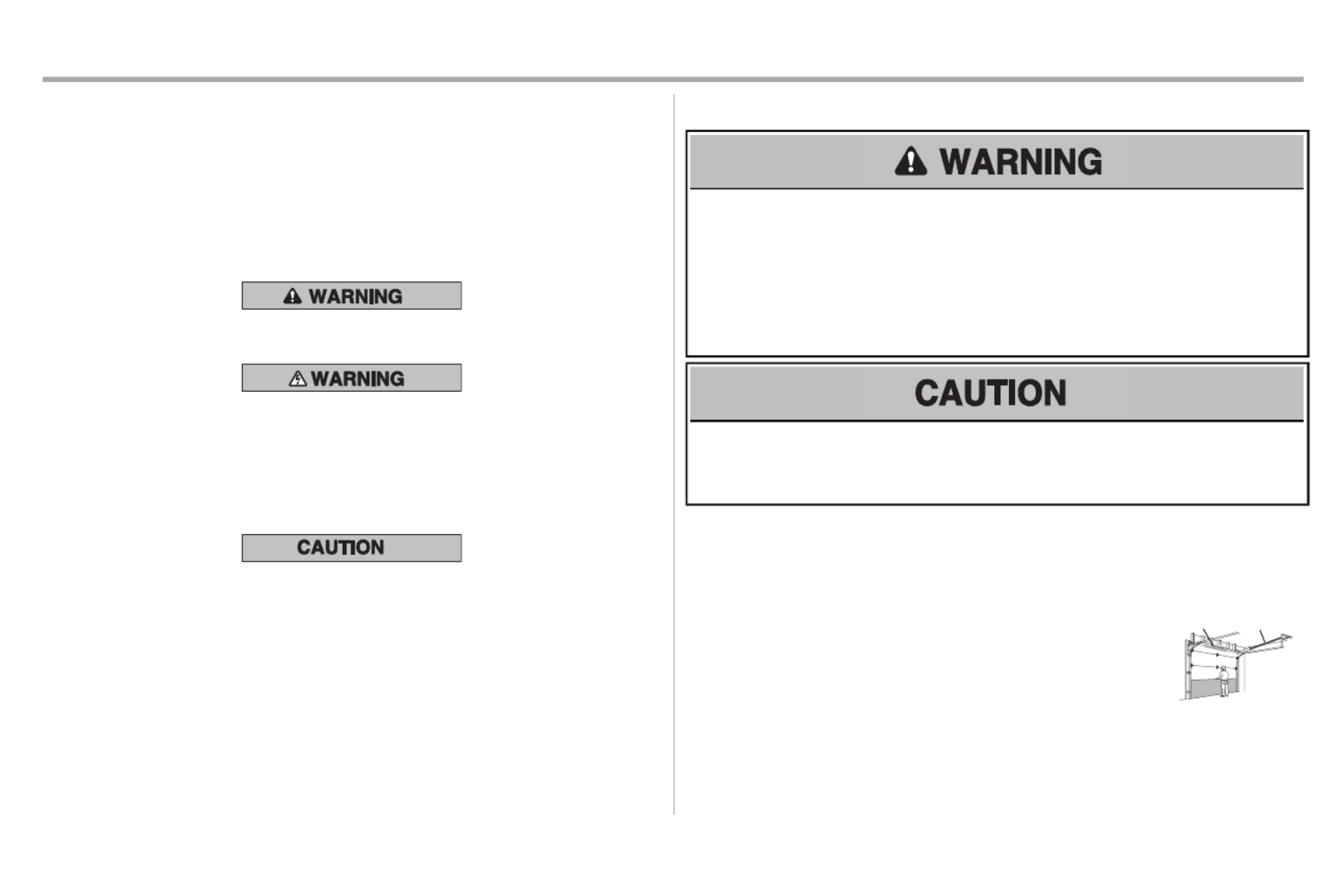

Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed,
operated, maintained and tested in strict accordance with the instructions and warnings contained in this
manual.
When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the
possibility of serious injury or death if you do not comply with the warnings that accompany them. The
hazard may come from something mechanical or from electric shock. Read the warnings carefully.
Mechanical
Electrical
When you see this Signal Word on the following pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if you do not comply with the cautionary statements that
accompany it. Read them carefully.
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance.
An unbalanced garage door may NOT reverse when required.
• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their
hardware, ALLof which are under EXTREMEtension.
• Disable ALLlocks and remove ALLropes connected to garage door BEFORE installation and
operating garage door opener to avoid entanglement.
To prevent damage to garage door and opener:
• ALWAYS disable locks BEFORE installing and operating the opener.
• ONLY operate garage door opener at 120 V, 60 Hz to avoid malfunction and damage.
1. Disable locks and remove any ropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should
stay in place, supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. If your
door binds, sticks, or is out of balance, call a trained door systems
technician.
4. Check the seal on the bottom of the door. Any gap between the
floor and the bottom of the door must not exceed 1/4 inch (6 mm).
Otherwise, the safety reversal system may not work properly.
5. The opener should be installed above the center of the door. If
there is a torsion spring or center bearing plate in the way of the
header bracket, it may be installed within 4 feet (1.2 m) to the left or
right of the door center. See page 13.
Torsion
Spring
Extension
Spring
OR
Preparation
