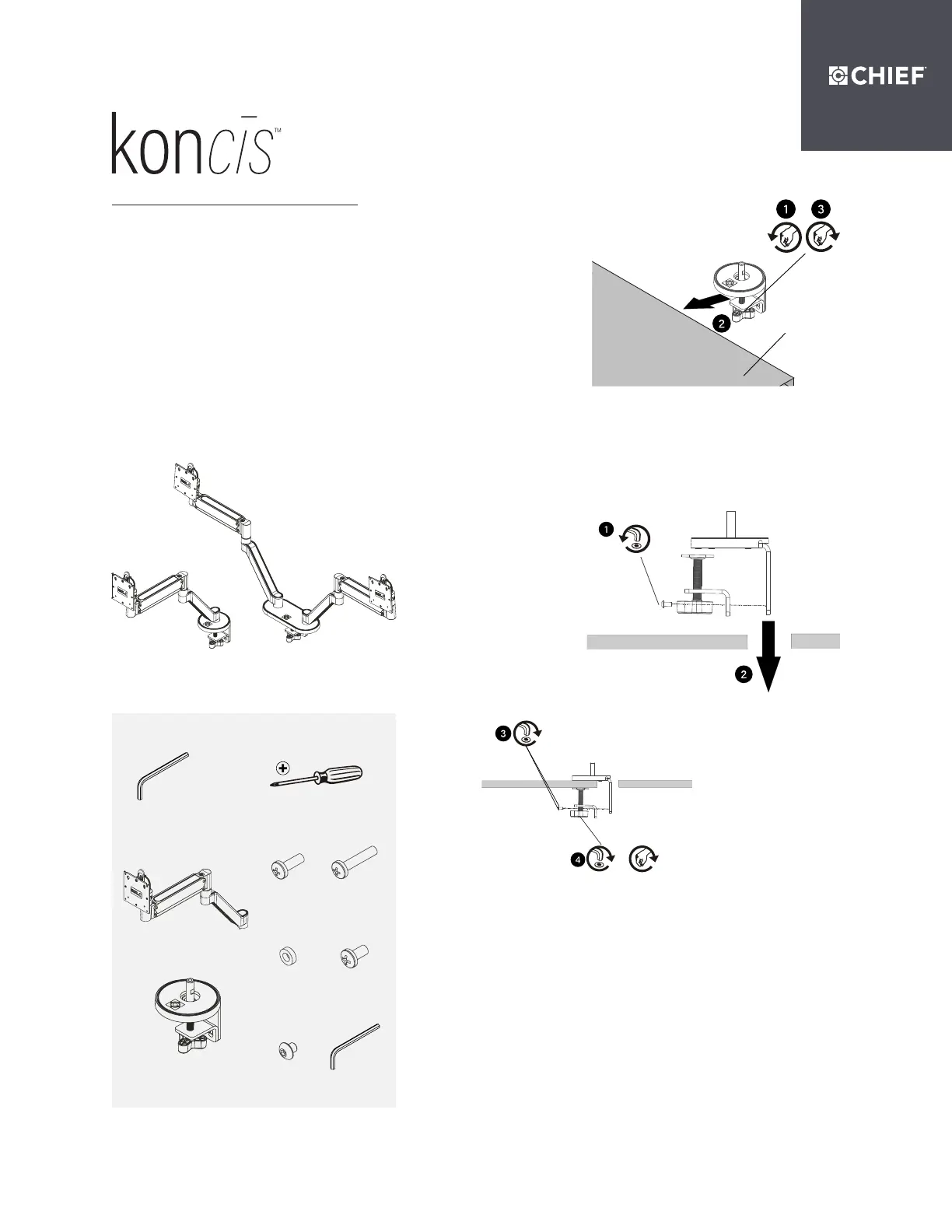

Quick Setup Guide

For complete installation instructions, refer to the

Installation Manual included with this product.

This Quick Setup Guide is meant to provide only an overview

of the various installation steps.

ALWAYS read the Installation Instructions in its entirety before

beginning the Installation.

DMA

DMA

desk

Option A

Step 1: Clamp Base to Desk Edge Option

Loosen clamp screw on base, place on desk

and tighten.

Reattach removed piece of clamp and

screws and tighten clamp screw.

8800-003249, Rev00 10/2020

Option B

Step 1: Clamp Base through Grommet Hole Option

Remove lower piece of clamp from assembly by removing two

button head cap screws and install remaining part of clamp

through grommet hole.

DMA1 Single Monitor Arm

DMA2 Dual Monitor Arm

Tools Required for Installation

Parts

5/32” (included)

A (1)

[Arm assembly]

(DMA1 shown)

B (1)

[Base assembly]

(DMA1 shown)

H (1)

5/32”

D (4/8)*

M4 x 20mm

E (4/8)*

M10 x 5.3 x 10

F (4/8)*

M4 x 4mm

G (12)*

#10-32-3/8

C (4/8)*

M4 x 10mm

DISCLAIMER

Legrand | AV and its ailiated corporations and subsidiaries (collectively “Legrand | AV”), intend

to make this manual accurate and complete. However, Legrand | AV makes no claim that the

information contained herein covers all details, conditions or variations, nor does it provide

for every possible contingency in connection with the installation or use of this product. The

information contained in this document is subject to change without notice or obligation of any

kind. Legrand | AV makes no representation of warranty, expressed or implied, regarding the

information contained herein. Legrand | AV assumes no responsibility for accuracy, completeness

or suiciency of the information contained in this document.

WEIGHT CAPACITY WARNING

Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is

the installer’s responsibility to make sure the combined weight of all components and accessories

attached to the DMA Series Monitor Arm up to (and including) the display is between the weight

ranges listed below. Use with products heavier than the maximum weight indicated may result in

collapse of the mount and its accessories causing possible injury. Use with products lighter than

the minimum weight indicated may result in the mount not functioning properly.

Produkt Specifikationer

Mærke:	Chief
Kategori:	Vægophæng
Model:	DMA1S
Antal pr. pakke:	1 stk
Produktfarve:	Sølv
Monteringstype:	Skrivebord
Nem at installere:	Ja
Harmoniseret systemkode (HS):	85299097
Højdejustering:	Ja
Hældningsvinkelområde:	-10 - 65 °
Montering:	Klemme
Rotationsvinkel:	180 °
Rotation:	Ja
Maksimal vægtkapacitet:	6.8 kg
Hældningsindstilling:	Ja
Forbedret kabelstyring:	Ja
Maksimal skærmstørrelse kompatibilitet:	32 "
Orientering:	Landskab/portræt
Antal understøttede skærme:	1
Minimal skærmstørrelse kompatibilitet:	- "
Montering interface kompatibilitet (min.):	75 x 75 mm
Montering interface kompatibilitet (maks.):	100 x 100 mm
Højdejusteringstype:	Vejledning
Skrivebord tykkelse (min):	13 mm
Skrivebord tykkelse (maks.):	63 mm
