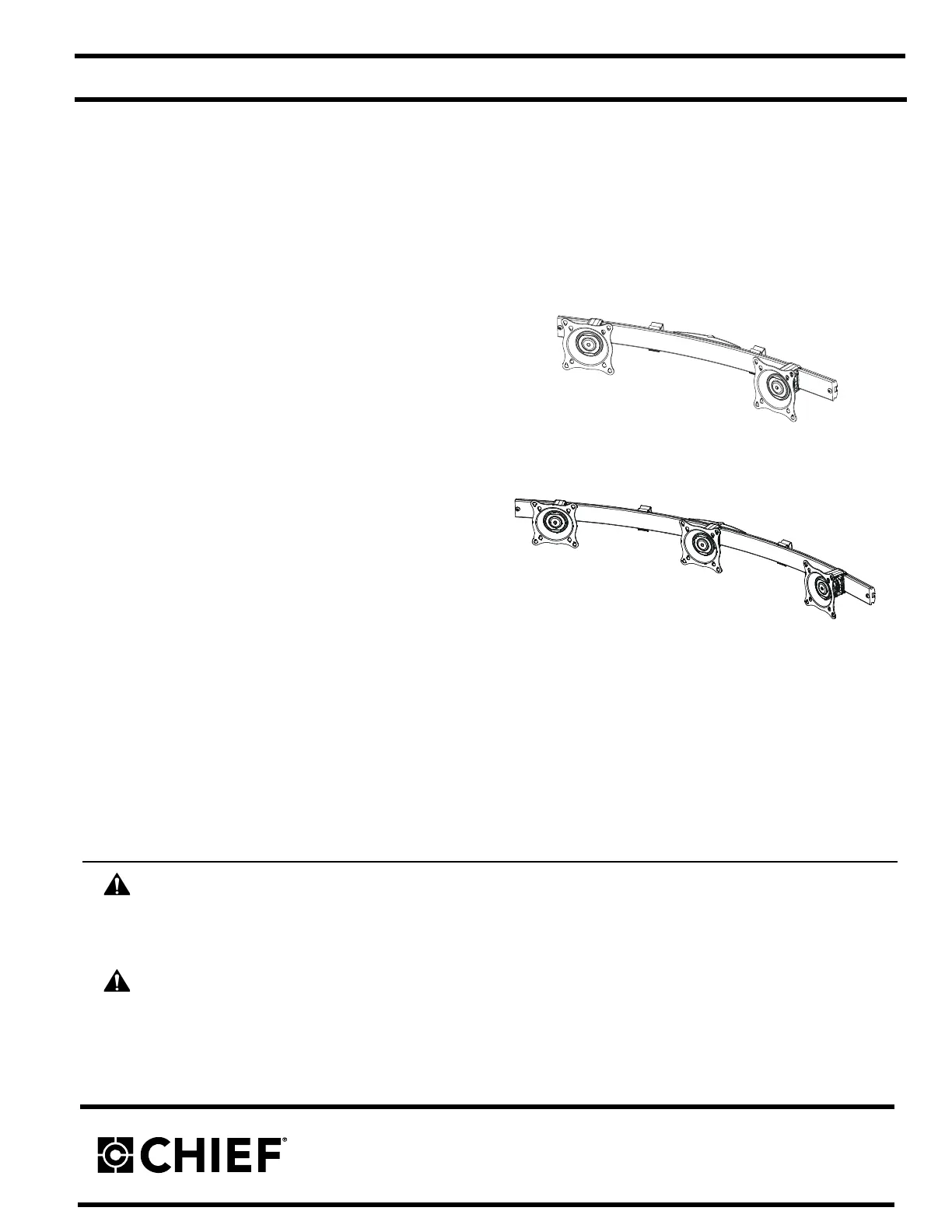

Side 1/8

I N S T A L L A T I O N I N S T R U C T I O N S

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY, STE 700

SAVAGE, MINNESOTA 55378 USA

8832-000141 Rev E

www.chiefmfg.com

11/08

BEFORE YOU BEGIN

Horizontal Array Pole Clamp

Models: KTA-220/225 and KTA-320/325

The KTA-220/225 and KTA-320/325 pivot arrays allow

horizontal (yaw), vertical (pitch), and roll display

adjustment. The pitch adjustment range is 30° (15° up /

15° down).

The KTA is designed to mount two or three 17" displays.

The KTA accommodates standard VESA® 75mm/100mm

compliant displays.

KTA-220/225

KTA-320/325

CAUTION: To prevent damage to your display, which could affect or void the Factory warranty, thoroughly study all

instructions and illustrations before you begin to install the mount. Pay particular attention to the "Important Warnings

and Cautions" on Page 2.

CAUTION: The combined weight of the displays installed must not exceed 70 lbs (31.8 kg) for the KTA-220 and

KTA-225 and 90lbs (40.8 kg) for the KTA-320 and KTA-325, the maximum load capacity of the mounts. The weight of

each individual display must not exceed 35 lbs (15.9 kg) for the KTA-220 and KTA-225 or 30 lbs (13.6 kg) for the

KTA-320 and KTA-325.

Models: KTA-220/225 and KTA-320/325 Installation Instructions

• IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: RISK OF ELECTRIC SHOCK ! Using the wrong screws could result in severe personal injury or damage

to your display. If your display uses a longer screw size than those included in the kit, DO NOT use the screws

provided with the kit. Use the screws provided with your display or contact the manufacturer.

WARNING: Improper installation can result in serious personal injury! Make sure that the mounting surface can

support a redundant weight factor five times the total weight of the equipment. If not, reinforce the mounting surface

structural members before installing the mount.

WARNING: Be aware of the potential for personal injury or damage to the unit if it is not adequately mounted.

WARNING: The installer is responsible for verifying that the mounting surface to which the KTA is anchored will

safely support the combined load of all attached components or other equipment.

WARNING: Watch for pinch points. Do not put your fingers between movable parts.

WARNING: Make sure the mount is correctly oriented.

WARNING: The combined weight of the displays installed must not exceed 70 lbs (31.8 kg) for the KTA-220 and

KTA-225 and 90lbs (40.8 kg) for the KTA-320 and KTA-325, the maximum load capacity of the mounts. The weight of

each individual display must not exceed 35 lbs (15.9 kg) for the KTA-220 and KTA-225 or 30 lbs (13.6 kg) for the

KTA-320 and KTA-325.

CAUTION: Check the unit for shipping damage before you begin the installation.

CONTENTS

IMPORTANT WARNINGS AND CAUTIONS!................... 2

TOOLS REQUIRED FOR INSTALLATION........................ 3

Parts................................................................................... 3

INSTALLATION ................................................................. 4

Display Installation ......................................................... 4

Attach Centris Head to Flush Mount Display.............. 4

Attach Centris Head to Recessed Mount Display....... 5

ADJUSTMENTS............................................................. 6

Array Adjustment............................................................ 6

Display Adjustment......................................................... 6

Display Horizontal Position Adjustment...................... 6

Display Pitch, Roll, and Yaw Adjustment.................... 6
