I N S T A L LA T I O N I N S T R U C T I O N S

CHIEF MANUFACTURING, a division of Milestone AV Technologies, Inc. 8840-000095

1-800-582-6480 952-894-6280 FAX 952-894-6918 2008© Milestone AV Technologies

8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 04/08

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4

TIMES THE COMBINED WEIGHT OF ALL COMPONENTS

PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT

SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE

REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS

125

POUNDS (

.74

KG).

MSB-6015

FLAT PANEL DISPLAY MOUNTING BRACKET

Prior to assembly, unpack carton completely and verify contents.

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480

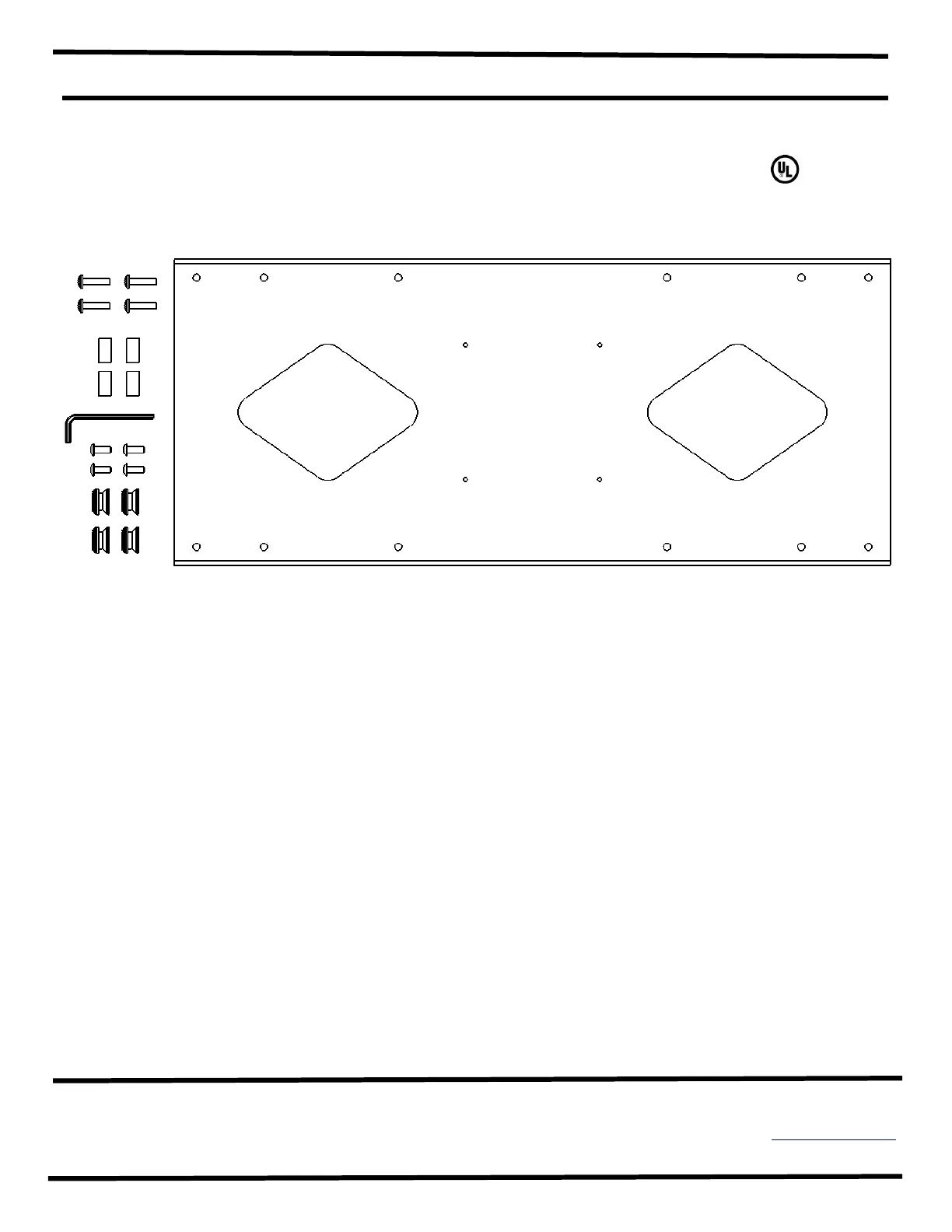

(1) Interface Bracket (4) Mounting Button – Tapped

(4) 10-24 x .5 Button Head Cap Screw (4) M5 x 20 Phillips Head Screws

(4) 18 OD x 8.3 ID x 10 L Metric Nylon Spacer (1) 1/8 Allen Key

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

DISPLAYS ARE EXTREMELY FRAGILE.

CAUTION!

Figure 1

WARNING!

NOTE: If installing screen on a Chief J-series wall mount, proceed

to Step 2 (J-Series VESA Interface Installation).

1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with

chamfered hole of mounting button (larger surface) facing bracket, to top and bottom brackets (four places) (see

Figure 2 & Figure 3).

2. Place Nylon spacers over mounting holes on back of screen. Attach mounting brackets to display using the M5

screws (see Figure 4 & Figure 5). Use the inner set of holes for 32” and 37” screens and the outer set of holes

for 42” and 47” screens.

3. With the aid of another person, lift your display up to the Chief Mount, aligning buttons of mounting brackets

with slots in the Chief Mount. Lower safety latch on the Chief Mount to secure your display, making sure latch

is completely engaged. If using a Chief J-series wall mount, use the M4 screws provided with the wall mount

to attach the wall mount to the interface plate.

Figure 2 Figure 3

Figure 4 Figure 5
