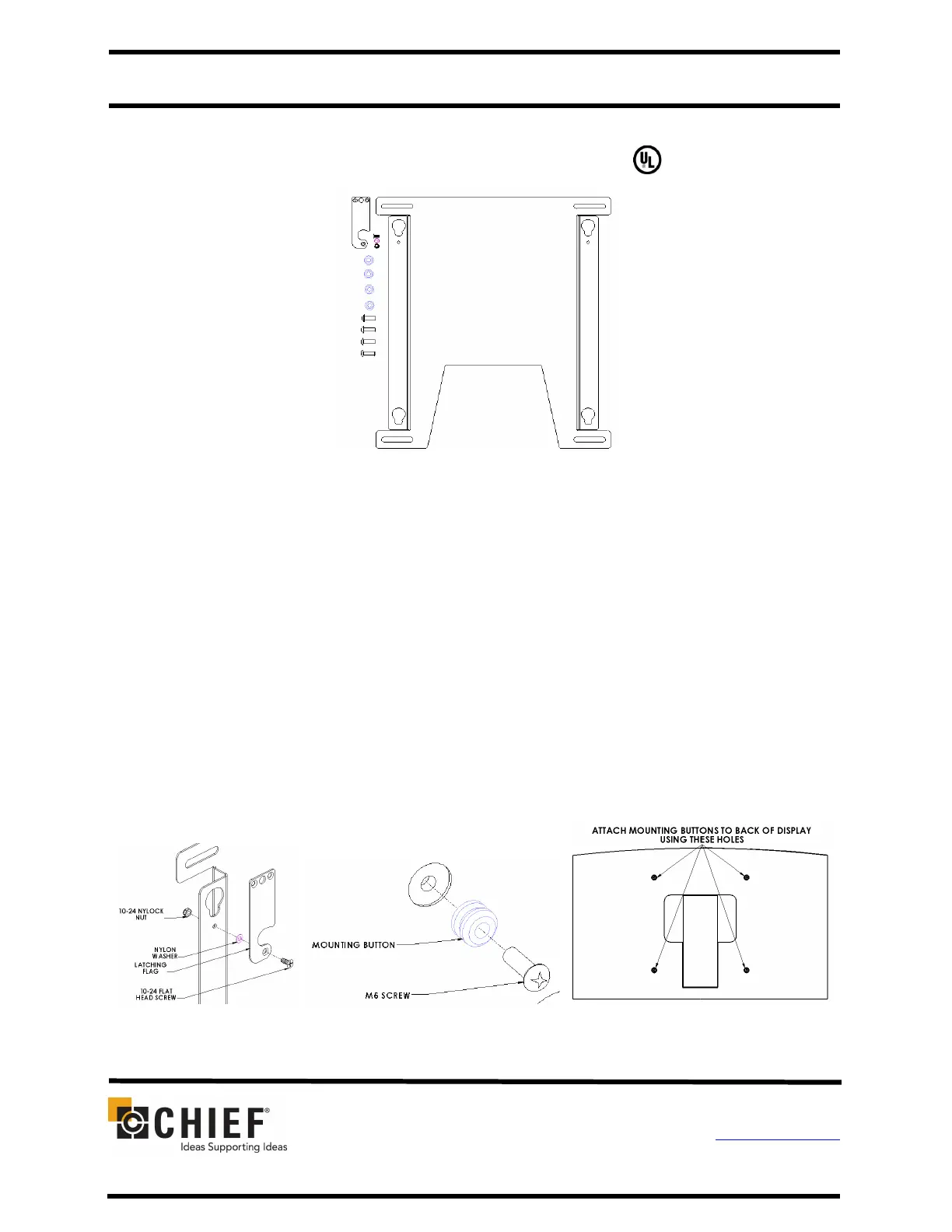

I N S T A L LA T I O N I N S T R U C T I O N S

CHIEF MANUFACTURING INC. 8805-000239

1-800-582-6480 952-894-6280 FAX 952-894-6918 2007 Chief Manufacturing

8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 09/07

DISPLAY STATIC MOUNT

PSM-2029

(1) Plasma Static Mount (4) Mounting Buttons – Clear Zinc

(4) M6 x 25mm Phillips Head Screw (1) Nylon Washer

(1) Latching Flag (1) 10-24 Nylock Nut

(1) 10-24 x .5 Flat Head Undercut Screw

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read

installation instructions completely. If you are missing any of the listed components, please

contact Customer Service at 1-800/582-6480.

Plasma Displays are Extremely Fragile.

1. Attach latching ﬂag to mount using the 10-24 Phillips ﬂat head screw, Nylon washer, and

Nylock nut (see Figure 2). Tighten until friction will hold the flag in place.

2. Attach mounting buttons to display using four M6 screws provided (see Figure 3 &

Figure 4).

CAUTION!

Figure 2

Figure 1

Figure 3 Figure 4

3. Securely anchor the static mount to wall studs or supporting framework (see WARNING).

4. Make sure the flag is lowered before attempting to place the screen on the mount.

5. With the aid of another person, lift the display up to the mount, align the mounting buttons

on the display with the teardrop slots in the mount, and set the display into place (see

Figure 5).

6. Position (raise) the flag to secure the display.

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES

THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE

EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT

THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT

IS 175 POUNDS (79.38 KG).

Figure 5
