INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8805-000095 REV C

1-800-582-6480 952-894-6280 FAX 952-894-6918 2006 Chief Manufacturing

8401 EAGLE CREEK PARKWAY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 10/06

FLAT PANEL DISPLAY STATIC MOUNT

PSM-2394

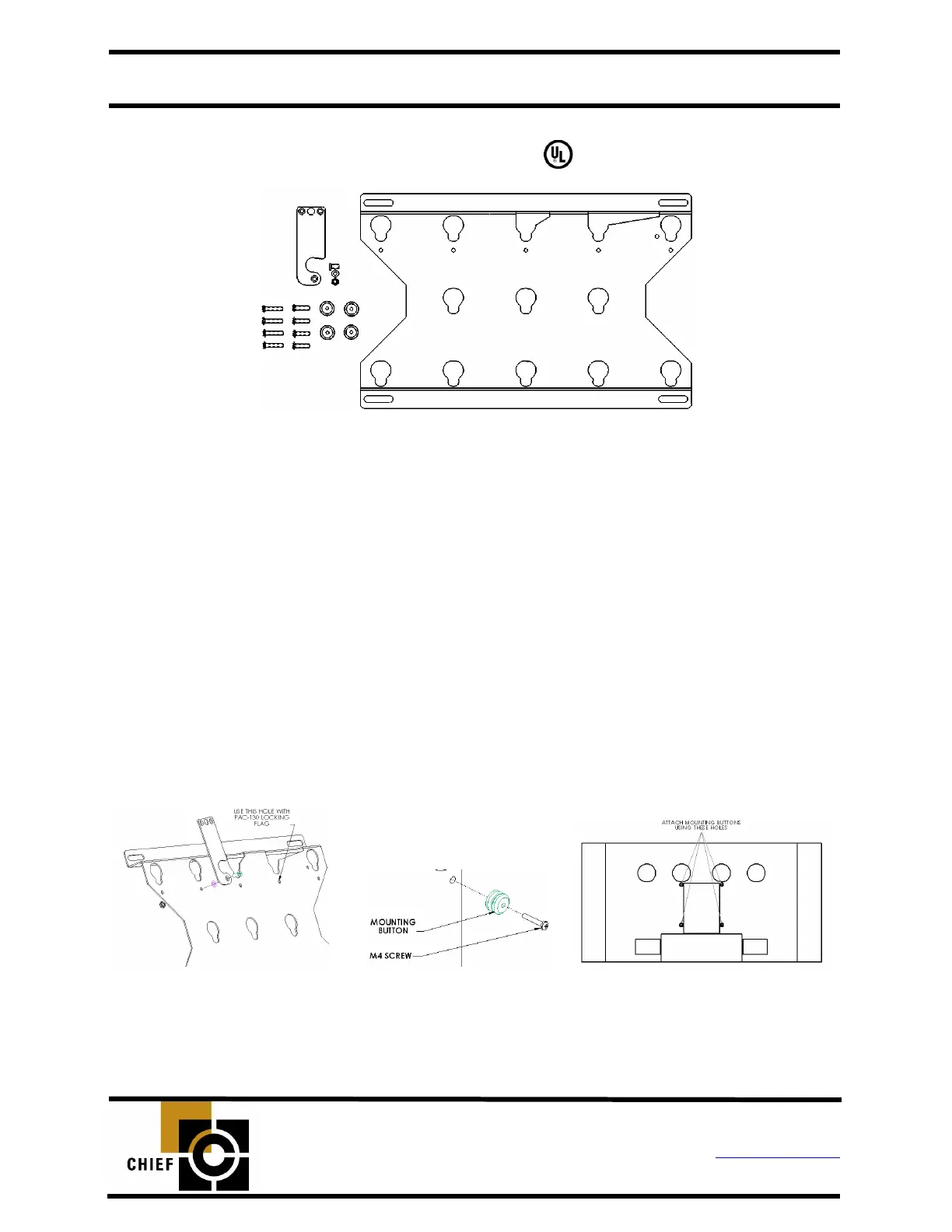

(1) Flat Panel Display Static Mount (1) 10-24 x .5 Phillips Flat Head Screw

(1) Latching Flag (1) Nylon Washer

(4) M4 x 25mm Phillips Head Screw (4) M4 x 20mm Phillips Head Screw

(4) Mounting Buttons-Yellow Zinc (1) 10-24 Nylock Nut

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read

installation instructions completely. If you are missing any of the listed components, please

contact Customer Service at 1-800/582-6480.

Displays are Extremely Fragile.

1. Attach latching flag to mount using the 10-24 Phillips flat head screw, Nylon washer, and

Nylock nut (see Figure 2). Tighten until friction will hold the flag in place.

2. Attach mounting buttons to display using four M4 screws provided (see Figure 3 &

Figure 4).

CAUTION!

Figure 2

Figure 1

Figure 4

Figure 3

3. Securely anchor the flat panel display static mount to wall studs or supporting framework

(see WARNING).

4. Make sure the flag is lowered to the side before attempting to place the display on the mount.

5. With the aid of another person, lift the display up to the mount, align the mounting buttons

with the teardrop slots in the mount, and set the display into place (see Figure 5).

6. Position (raise) the flag to secure the display.

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING FOUR

TIMES THE COMBINED WEIGHT OF ALL COMPONENTS

PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT

SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE

REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE

MOUNT IS

175

POUNDS (

79.37

KG).

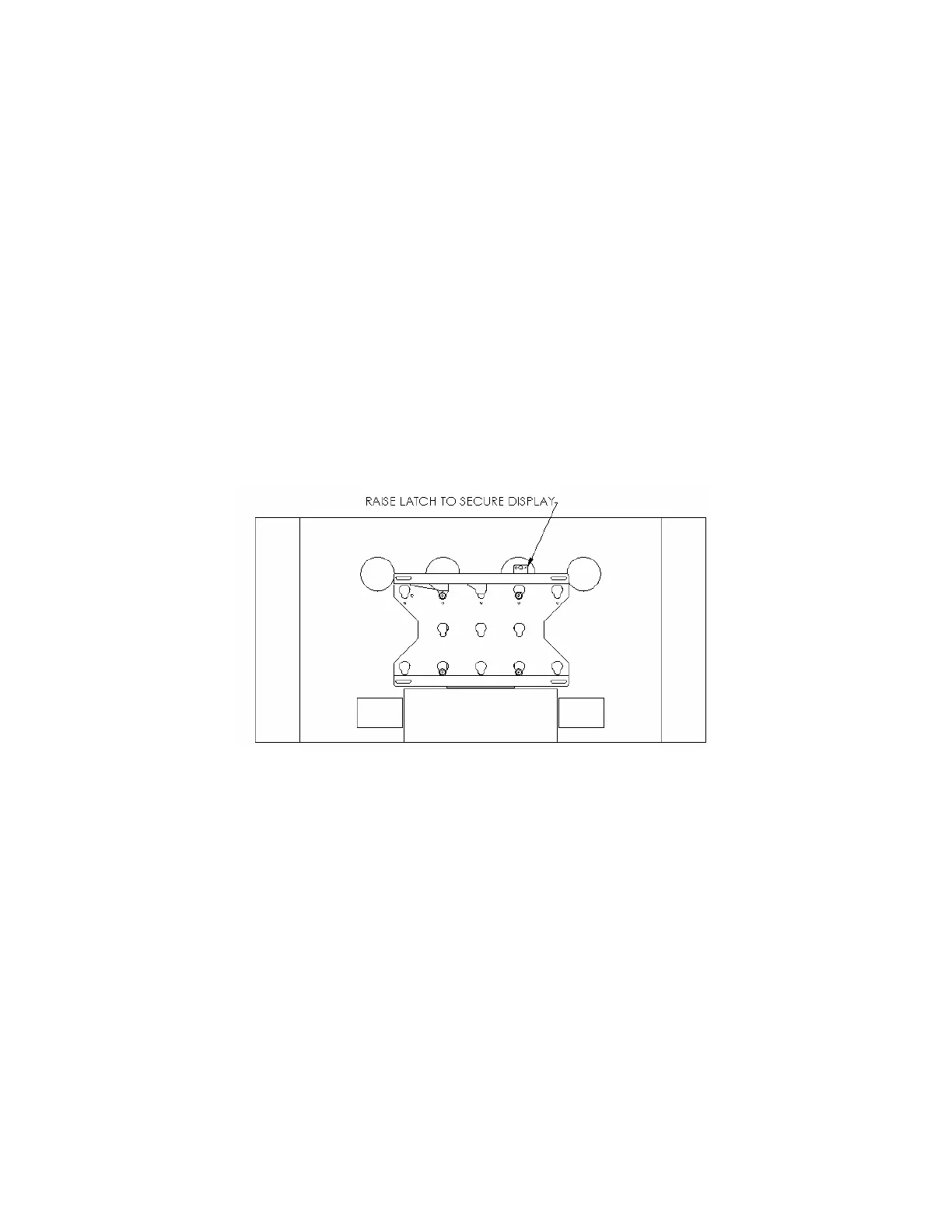

Figure 5

WARNING

Produkt Specifikationer

Mærke:	Chief
Kategori:	Vægophæng
Model:	PSM2394
Brugervejledning:	Ja
Produktfarve:	Sort
Panel montering grænseflade:	Ingen mm
Certificering:	TUV Approved, UL Listed
Monteringstype:	Væg
Maksimal vægtkapacitet:	79.4 kg
Maksimal skærmstørrelse kompatibilitet:	65 "
Minimal skærmstørrelse kompatibilitet:	32 "
