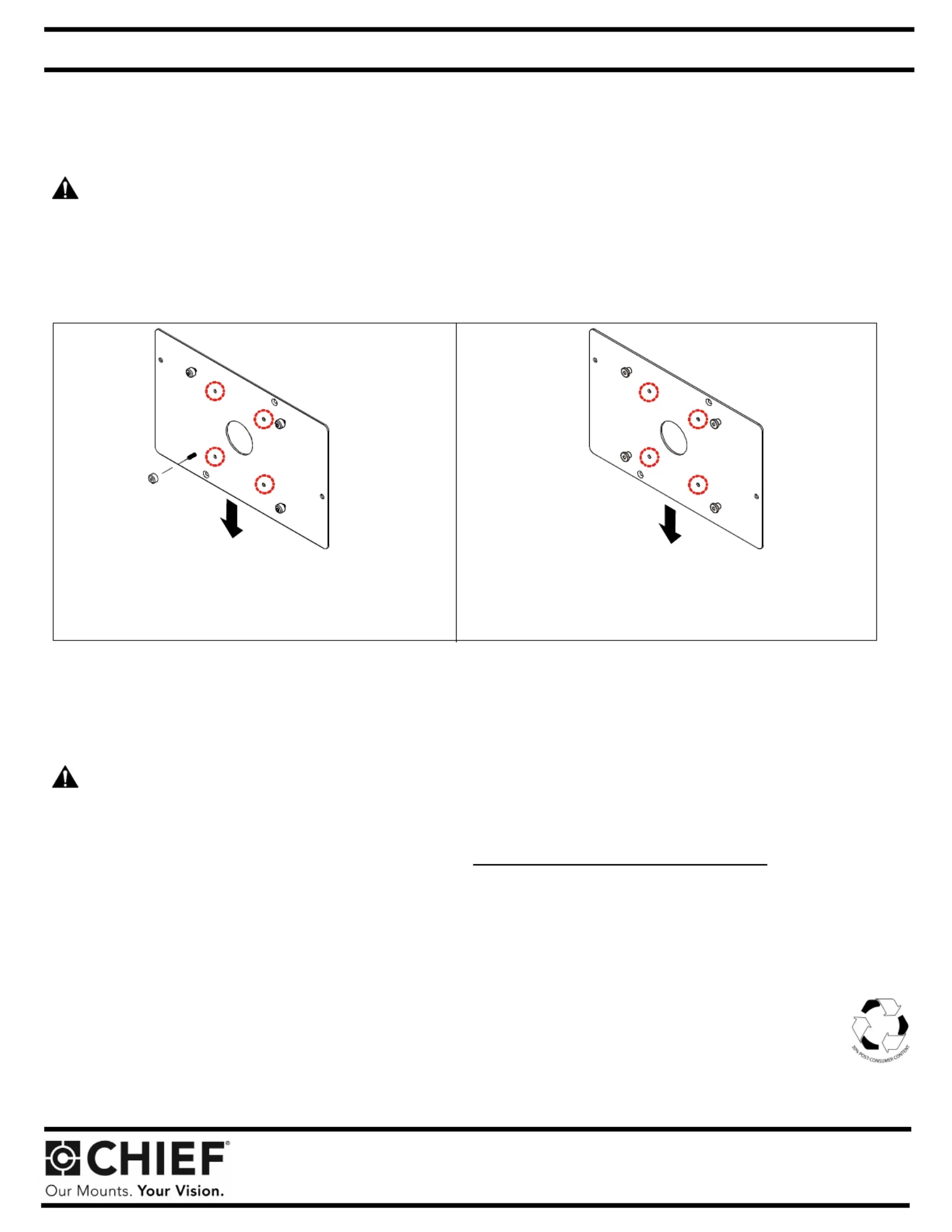

SSB-191, SSM-191, SLB-191 and SLM-191 Interface Brackets
SSB-191, SSM-191, SLB-191 and SLM-191 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation Instructions
WARNING: OVERTIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUPIMENT! DO NOT over tighten screws when installing interface brackets.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place 1/2" nylon spacers over the threaded inserts in the bottom of the projector.
4. Place the interface bracket onto the 1/2" nylon spacers on the bottom of the projector and align the mounting holes in the bracket with the
nylon spacers.
5. Using the M4 x 20mm pan head screws and M4 washers, position screws with washers into the side holes and position the M4 flat head
screws in the counter sink holes. Tighten all fasteners at this time, securing the bracket to the projector.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation
instructions in the All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Interface Bracket (2) Screw, Phillips pan head, M4 x 20mm
(4) 10-24 Thumb Nuts ** (2) Screw, Phillips flat head, M4 x 20mm
(1) All-Points Security Kit (4) Spacer, Nylon, 1/2" x .194 x 1/2"
(2) Washer, Flat, M4
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style
interface bracket installation.
SLB-191 SLM-191
(
