I N S T A L L A T I O N I N S T R U C T I O N S

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes

no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use

of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or

implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief Manufacturing, a products division of Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918

8802-002087 Rev01

a Duchossois Group Company

12/11

**Only used when installing SLB/SSB interface brackets.

NOTE: Specific to SSB-style and SSM-style interface bracket installation: All appropriate screws come pre-installed in the circled locations

above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket

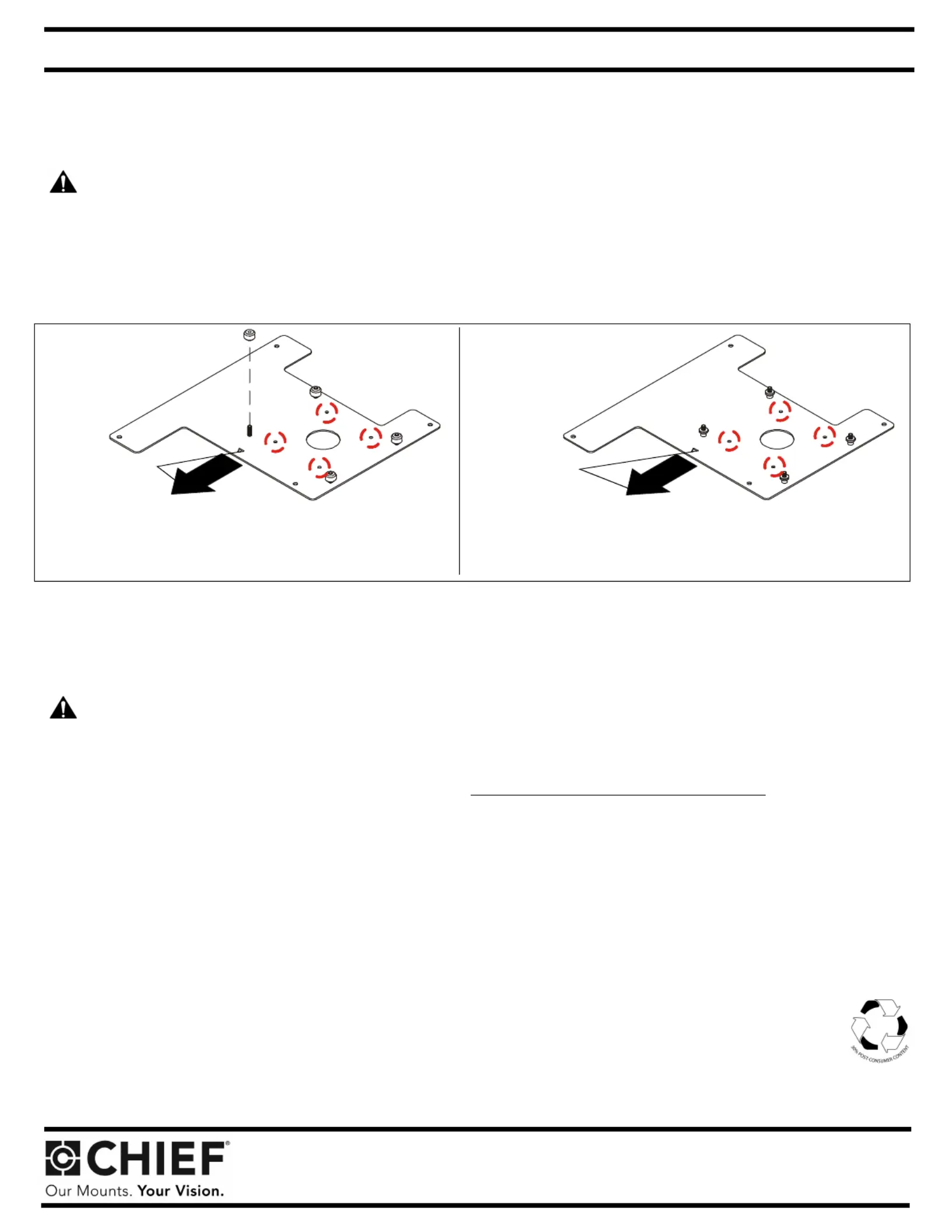

SSB-280, SSM-280, SLB-280 and SLM-280 Interface Brackets

SSB-280, SSM-280, SLB-280 and SLM-280 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific

installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.

NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.

2. Turn projector upside down on a flat surface.

3. Place spacers onto the bottom of the projector, aligning the spacers with the threaded inserts in the projector.

4. Place the interface bracket onto the spacers, aligning the mounting holes in the bracket with the spacers and threaded inserts in the bottom

of the projector and ensuring that triangle in bracket points towards front of projector.

5. Position M4 x 25mm mounting screws (OR four M5 x 25mm mounting screws) with four M4 (OR four M5) flat washers into the bracket

mounting holes and threaded inserts. Tighten all fasteners at this time, securing the bracket to the projector.

NOTE: Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation instructions in the

All-Points Security Kit.

(1) Interface Bracket (4) Screw, Phillips Pan Head, Machine, M4 x 25mm*

(4) 10-24 Thumb Nuts ** (4) Screw, Phillips Pan Head, Machine, M5 x 25mm*

(1) All-Points Security Kit (4) Washer, M4*

(1) 5/32" Security Hex Key (4) Washer, M5*

(4) Spacer, .500 x .316 x .500

* Verify correct size screw and washer needed to install bracket.

Note: SSB-style interface bracket connections are circled.

Note: SSM-style interface bracket connections are circled.

SLB-280

SLM-280

Towards front

of projector

Towards front

of projector
