SL-236 PRE-TEST INSTRUCTIONS

Unpack carton and verify kit contents. If any listed parts are missing,

immediately contact a Chief Customer Service representative.

1. Carefully inspect the SL-236 for any shipping damage. If any

damage is apparent, do NOT continue with the installation.

Instead, contact Chief for further instructions.

IMPORTANT ! : These Pre-Test Instructions are meant to

provide an overview of the pre-test step. ALWAYS read the

Installation Instructions in its entirety before beginning the

Installation.

NOTE: Refer to the Installation Instructions for a complete list of

parts included with the SL-236.

2. Carefully place the SL-236 upside down on clean surface.

3. Using a small screwdriver, carefully pry one corner of ceiling pan

up to allow access to ceiling pan clips. (See Figure 1)

4. Pull ceiling pan away from SL-236 until ceiling pan clip releases.

Repeat on each corner of SL-236.

Figure 1

5. Attach supports (not provided) using a lag bolt or nut and bolt

through the top of lift (at attachment points). (See Figure 2)

Figure 2

Figure 3

6. Suspend the lift at least 3-1/2 ft. above a surface from a suitable

structure such as saw horses, ladders or tables. (See Figure 3)

7. Remove and save two screws holding side electrical cover in

place. (See Figure 4)

8. Remove electrical cover. (See Figure 4)

Figure 4

(Flipped

view)

ceiling

pan clip

ceiling pan

SL-236 shown

upside down

Attachment

points

Supports

SL-236

Sawhorse

Electrical

Cover

x 2

Test

Cord

External

wiring terminal

Continued...

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes

no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use

of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or

implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

8800-002174 Rev00

a Duchossois Group Company

01/14

Chief Manufacturing, a products division of Milestone AV Technologies

6436 City West Parkway, Eden Prairie, MN 55344

• P: 800.582.6480 / 952.225.6000 • F:877.894.6918 / 952.894.6918

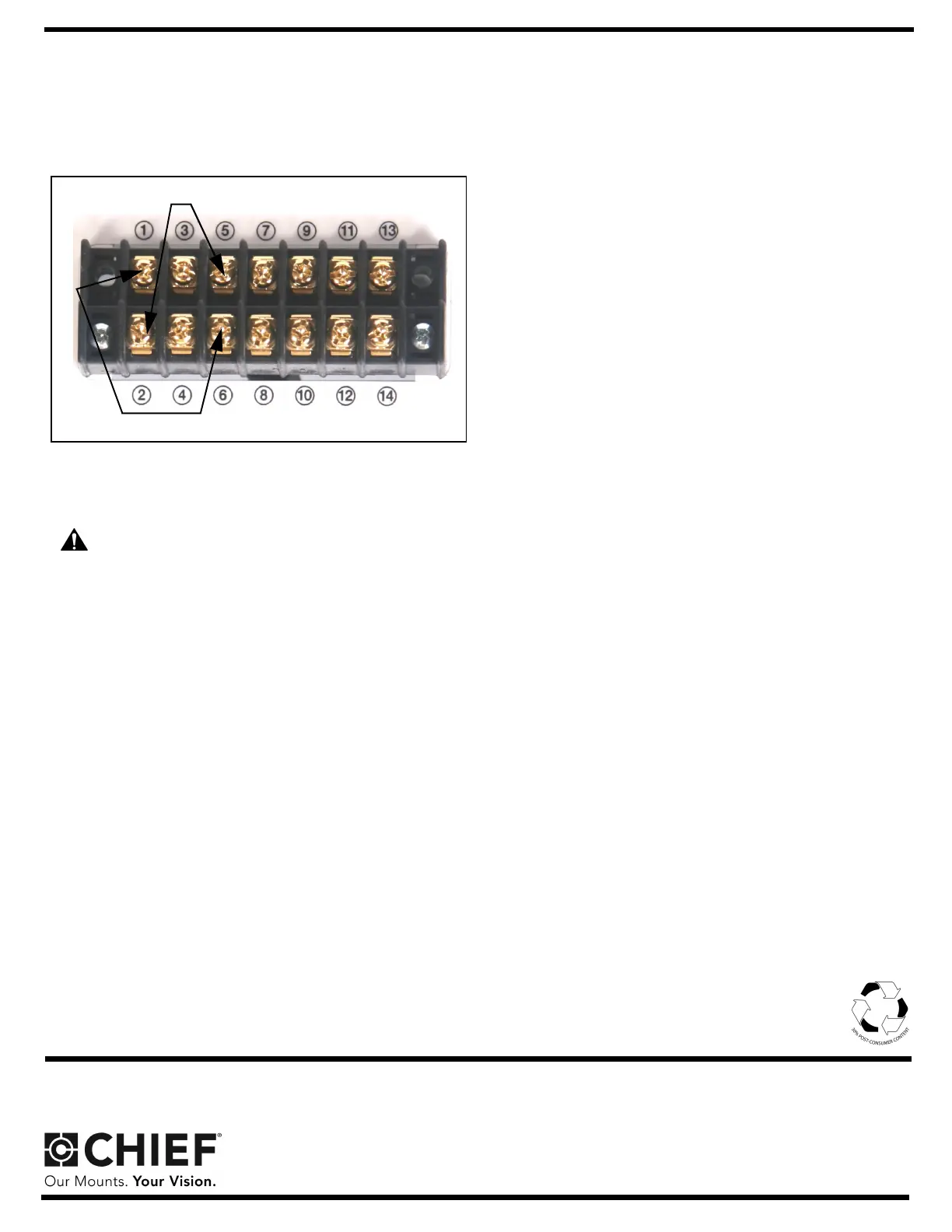

9. Place the jumper wire (E) on the external wiring terminal

contacts labeled2 and 5, and wire the push button assembly (B)

to contacts 1 (red) and 6 (black). (See Figure 5)

10. Plug in the SL236 test cord. (See Figure 4)

Figure 5

Power Requirements and Wiring

The SL236 requires 120VAC, 60 Hz and 12 amps power to operate.

WARNING: PINCH HAZARD! FINGERS OR HANDS

BETWEEN MOVING PARTS CAN LEAD TO SEVERE

PERSONAL INJURY! Keep fingers and hands away from mount

when operating.

11. Press the push button (B) to test the SL236 while it is still in the

pre-test position.

• Press when the lift is at its top position and it will move

down.

• Press when the lift is at its bottom position and it will move

up.

• Press while the lift is moving and it will stop.

• Leave SL236 in the closed position.

12. Continue with the installation steps listed in the Installation

Instructions.

Chief® is a registered trademark of Milestone AV

Place jumper wire (E) (2 and 5)

Wire push button assembly (B) (1-red, 6-black)

Produkt Specifikationer

Mærke:	Chief
Kategori:	Vægophæng
Model:	SL236SPI
Bredde:	648 mm
Dybde:	282 mm
Højde:	724 mm
Produktfarve:	Hvid
Monteringstype:	Loft
Maksimal vægtkapacitet:	15.9 kg
